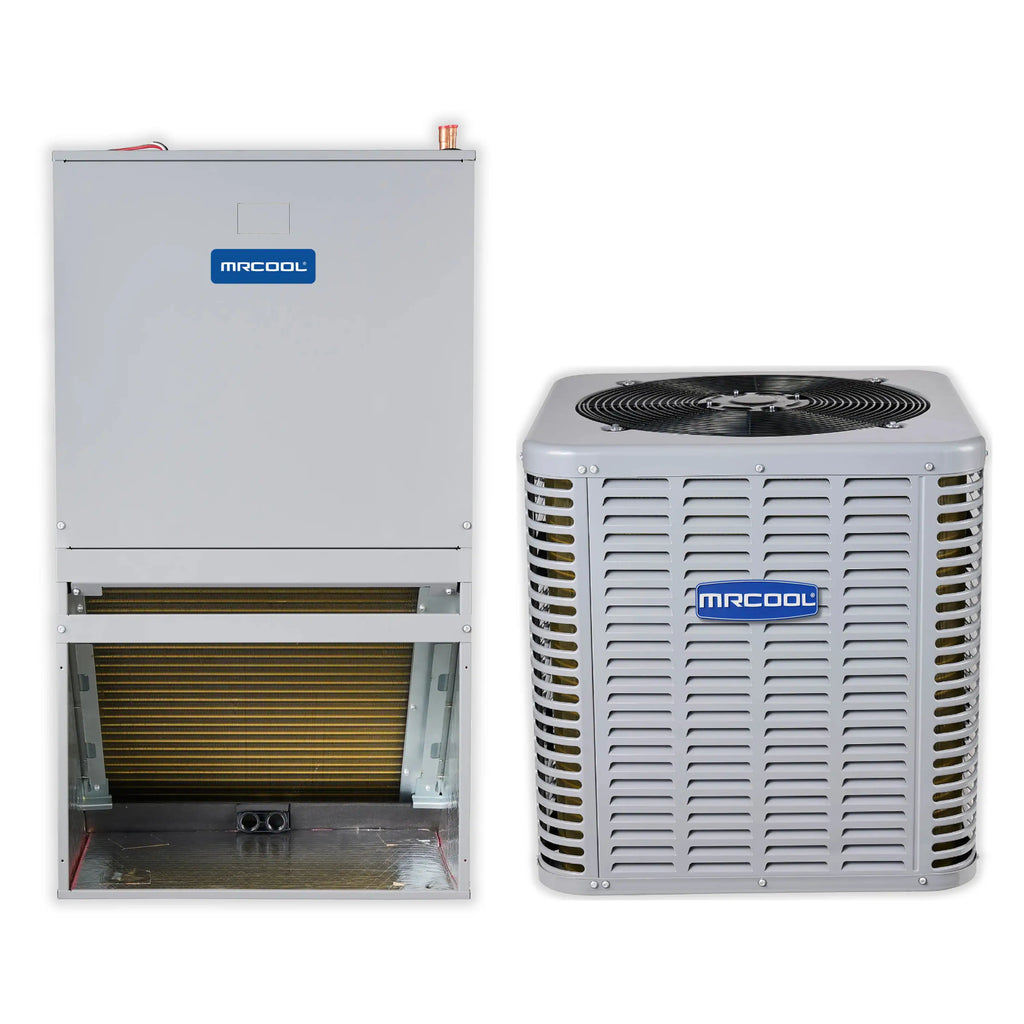

The MRCOOL Signature Series 36K BTU (3 Ton) split system pairs a Cooling Only Condenser with a Stud Mount Air Handler, rated 14.3 SEER2 and 11.7 EER2, built to fit between standard wall studs for tight installation spaces.
Highlights
- 14.3 SEER2 / 11.7 EER2 rating offers strong energy savings without sacrificing comfort
- Factory pre-charged with R-454B refrigerant for quicker, simpler installation
- Dependable scroll compressor with inner-groove copper tubing for efficient heat transfer
- Quiet 63-decibel operation with a sound-control top, comparable to a typical household appliance

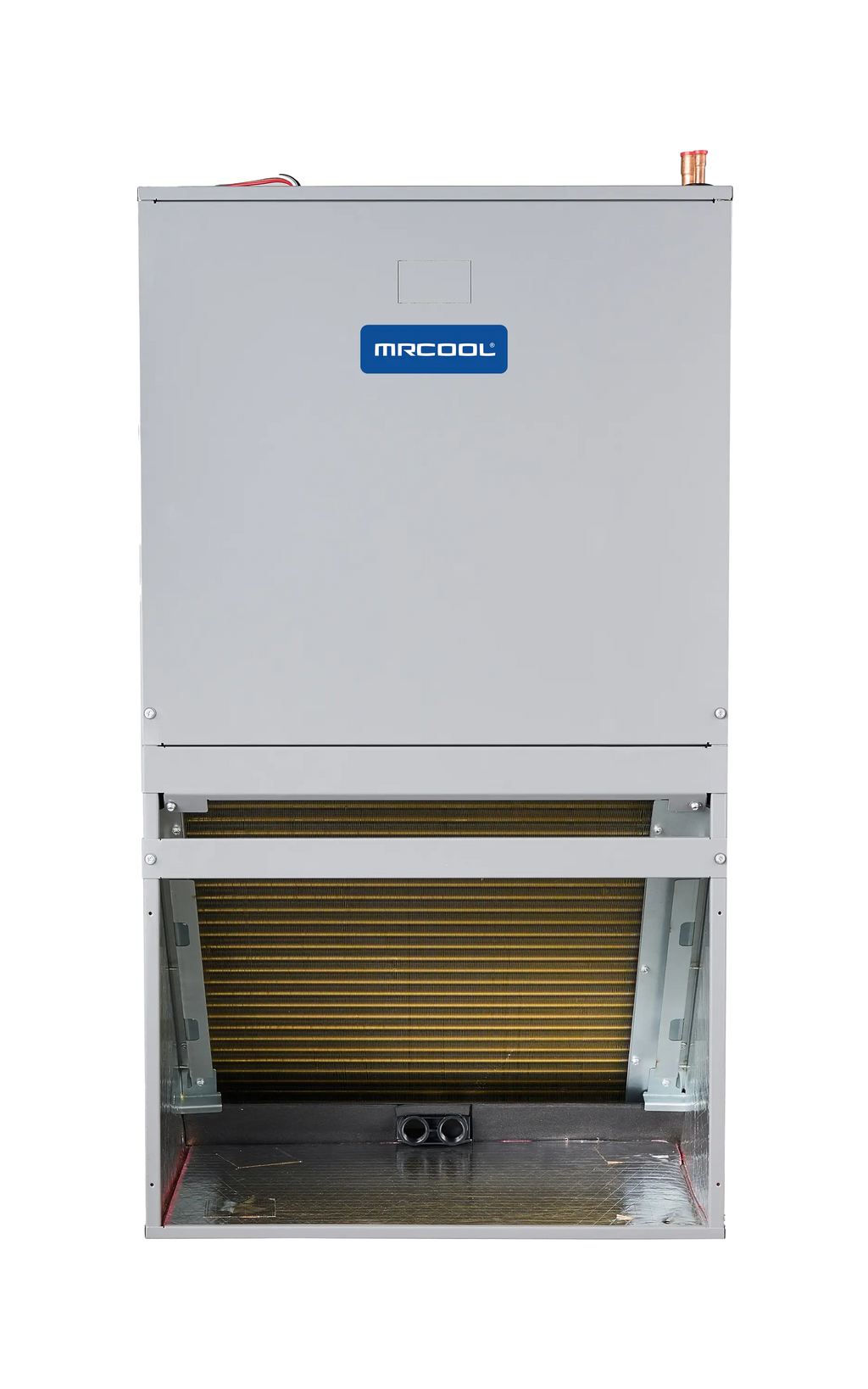

- Slim stud mount air handler fits between standard wall studs, with front or bottom return air options
Specs & Features
| Cooling Capacity |
36,000 BTU (3 Ton) |
| Efficiency |
14.3 SEER2 / 11.7 EER2 |
| Refrigerant |
R-454B, factory pre-charged |
| Compressor |
Scroll compressor |
| Condenser Sound Level |
63 dB |
| Condenser Protection |
Steel louver coil guard, wire fan discharge grille |
| Air Handler Type |
Stud Mount (fits between standard wall studs) |
| Return Air Configuration |
Front or bottom return |
| Air Handler Cabinet |
Galvanized steel, fully insulated |
| Blower Motor |
High-efficiency (advanced blower technology) |
| Parts Warranty |
10-year limited |
| Compressor Warranty |
Limited lifetime |
| Model Number |
WP36D21SHT3621AC |
- Integrated sensors monitor pressure and temperature to help protect the system
- Accessible service valves and gauge port for straightforward installation and maintenance
- Integrated filter rack allows for quick and easy maintenance
- Optional electric heat kit available for colder months
Details
Avermont Direct is an authorized MRCOOL dealer. This 36K BTU (3 Ton) cooling-only split system combines the Signature Series condenser with a stud mount air handler designed for areas where conventional air handlers aren't practical, such as upgrades, renovations, or new builds. The condenser and air handler are each backed by a 10-year limited parts warranty, with a limited lifetime compressor warranty on the condenser. Professional installation is required.
