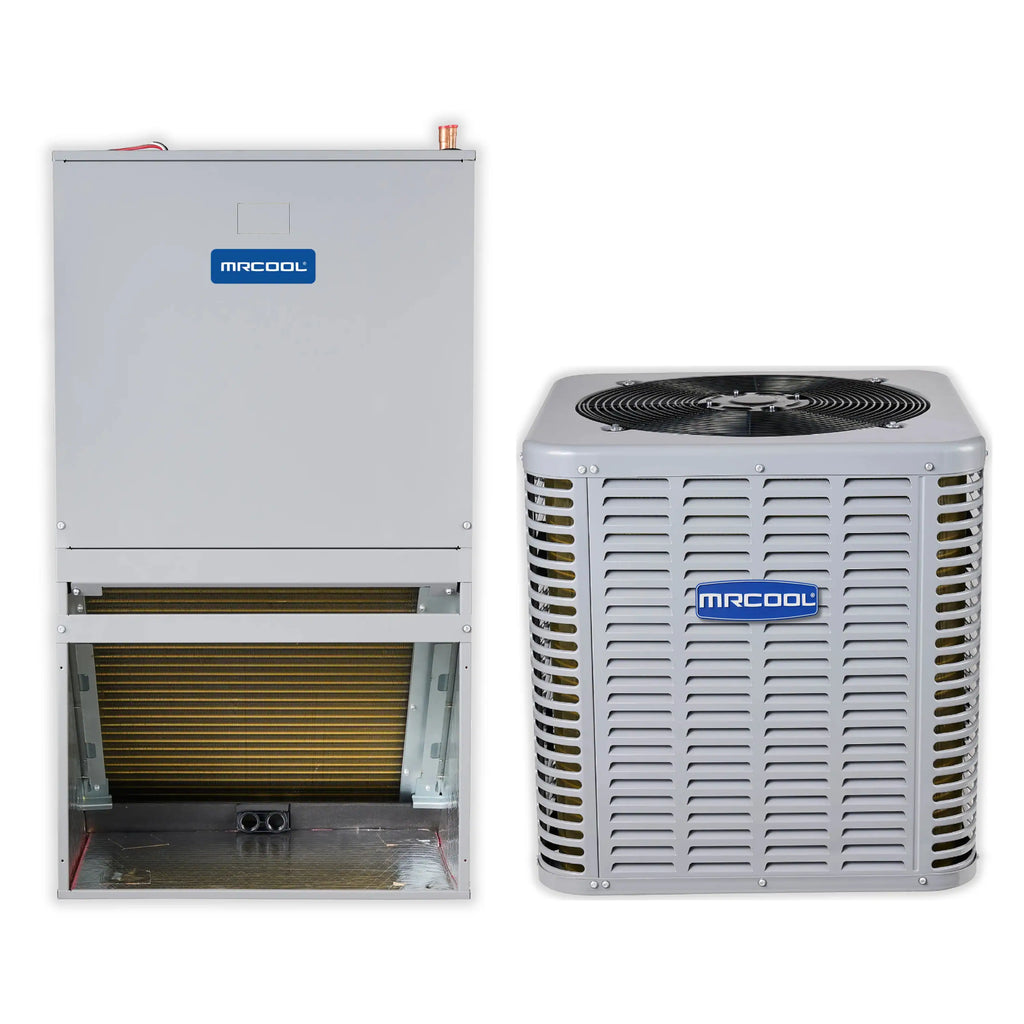

The MRCOOL Signature Series 30K BTU (2.5 Ton) split system pairs a Cooling Only Condenser with a Stud Mount Air Handler, rated 14.3 SEER2 and 11.7 EER2, built to fit between standard wall studs for tight or unconventional installation spaces.
Highlights
- 14.3 SEER2 / 11.7 EER2 rating reduces energy usage while maintaining consistent comfort
- Pre-charged with next-generation, low-GWP R-454B refrigerant for streamlined installation
- Durable scroll compressor with inner-groove copper tubing for efficient heat transfer
- Quiet 63-decibel operation with a sound-dampening top that doesn't limit airflow

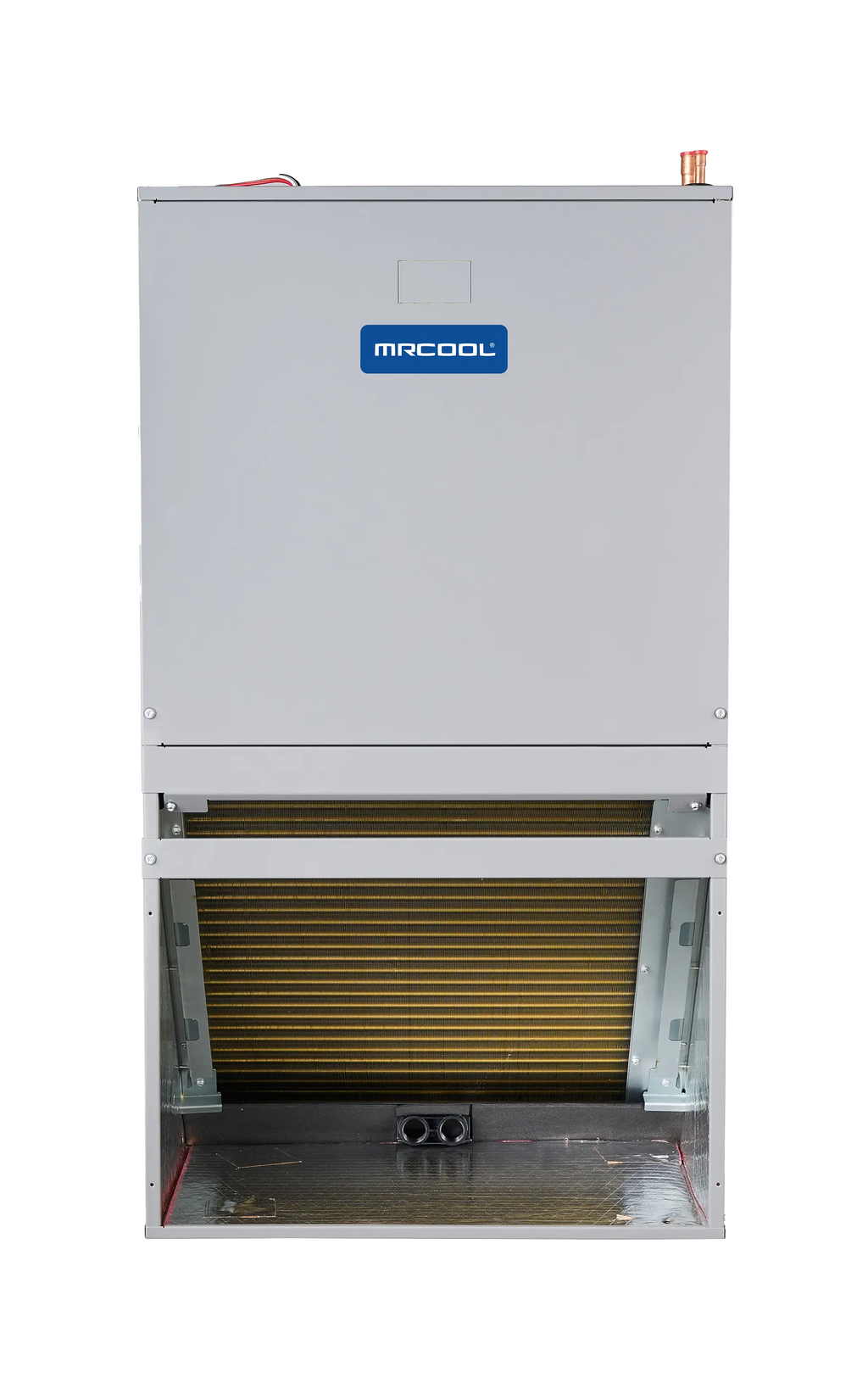

- Slim stud mount air handler fits between standard wall studs, with front or bottom return air options
Specs & Features
| Cooling Capacity |
30,000 BTU (2.5 Ton) |
| Efficiency |
14.3 SEER2 / 11.7 EER2 |
| Refrigerant |
R-454B, factory pre-charged |
| Compressor |
Scroll compressor |
| Condenser Sound Level |
63 dB |
| Condenser Protection |
Steel louver coil guard, wire fan discharge grille |
| Air Handler Type |
Stud Mount (fits between standard wall studs) |
| Return Air Configuration |
Front or bottom return |
| Air Handler Cabinet |
Galvanized steel, fully insulated |
| Blower Motor |
High-efficiency ECM |
| Parts Warranty |
10-year limited |
| Compressor Warranty |
Limited lifetime |
| Model Number |
WP30D21SHT3021AC |
- Built-in filter rack makes routine maintenance easy
- Optional electric heat kit available for colder climates
Details
Avermont Direct is an authorized MRCOOL dealer. This 30K BTU (2.5 Ton) cooling-only split system combines the Signature Series condenser with a stud mount air handler designed for tight or unconventional spaces where traditional air handlers aren't an option, such as remodels, replacements, or new installations. The condenser and air handler are each backed by a 10-year limited parts warranty, with a limited lifetime compressor warranty on the condenser. Professional installation is required.
