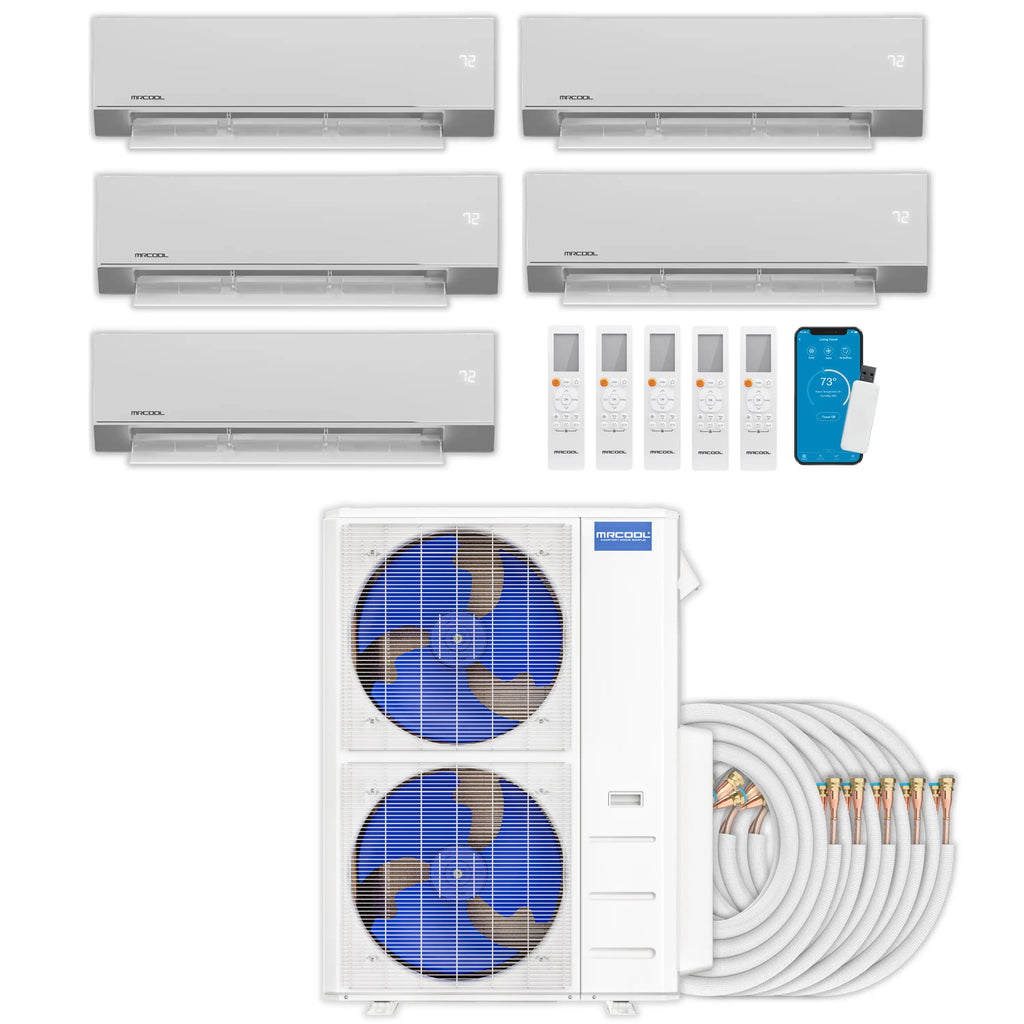

The MRCOOL Olympus 48,000 BTU 5-zone heat pump condenser pairs with five ESTAR® wall mount air handlers — one 12,000 BTU and four 9,000 BTU units — each rated up to SEER2 25.5–25.8 for high per-zone efficiency. Inverter-driven operation keeps working reliably in outdoor temperatures as low as 5°F.
Highlights

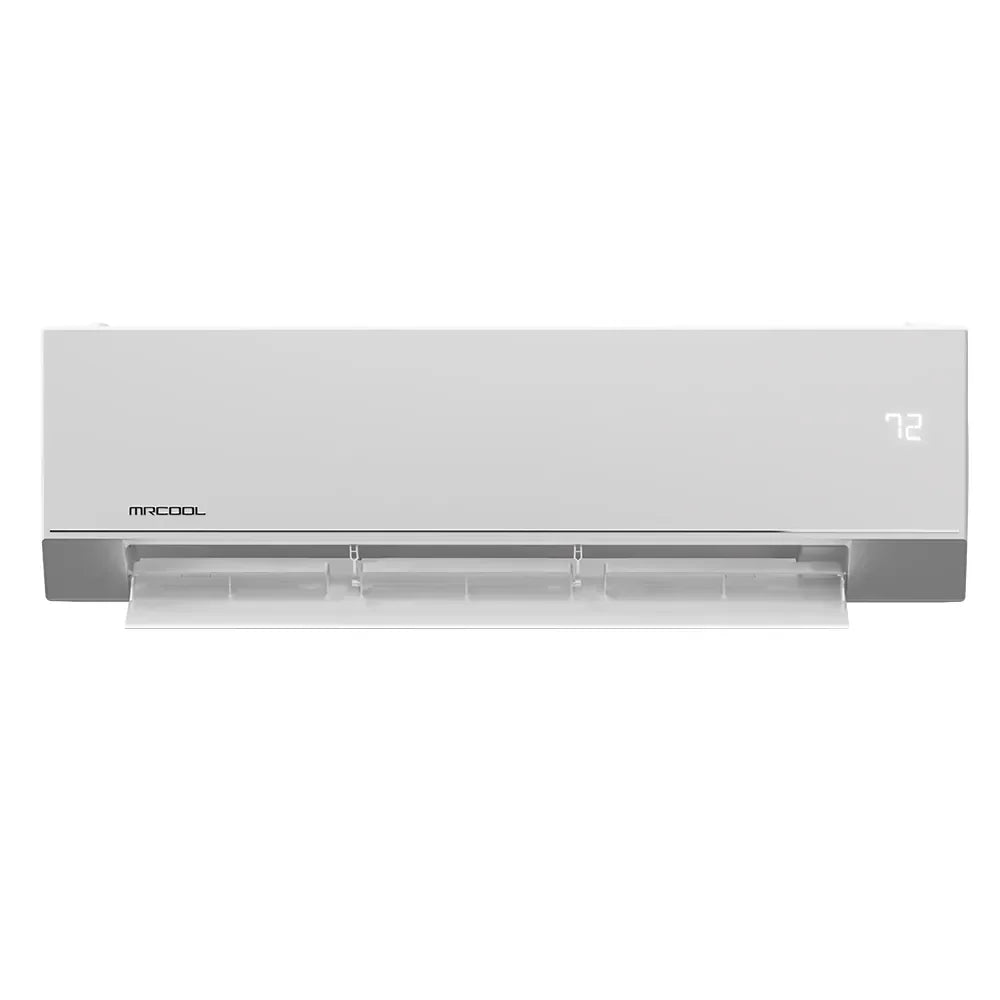

- Whole-home, multi-room comfort: one outdoor condenser powers five independently controlled zones — one 12,000 BTU and four 9,000 BTU ESTAR® wall mount air handlers — for tailored heating and cooling room by room.
- High per-zone efficiency: the 12,000 BTU unit is rated up to SEER2 25.5, EER2 13, HSPF2-4 10.6; each 9,000 BTU unit is rated up to SEER2 25.8, EER2 14.9, HSPF2-4 12.5.
- Quiet, compact wall units: multiple indoor fan speeds with whisper-quiet operation at 46 dB (12K) and 47 dB (9K).
- Cold-climate reliability: rated to operate in outdoor temperatures as low as 5°F.
- Flexible control: manage each zone with the MRCOOL SmartHVAC app over Wi-Fi, the included remote control, or voice commands via Amazon Alexa and Google Assistant.
Specs & Features

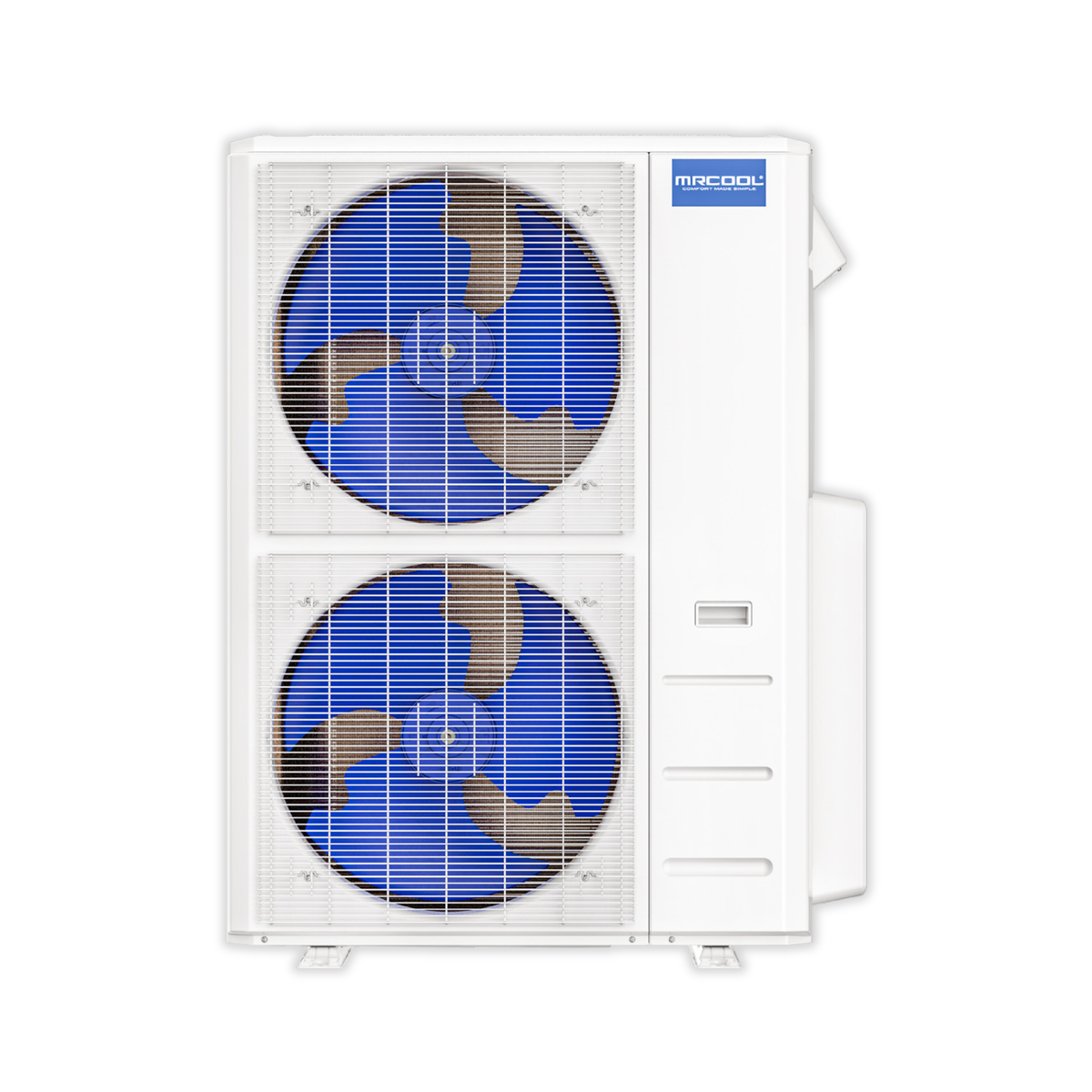

| Condenser Model |
MULTI6-48HP230C-O |
| System Type |
5-Zone Ductless Air Conditioner & Heat Pump |
| Total Condenser Capacity |
48,000 BTU |
| Zones Installed |
5 (condenser supports up to 6) |
| Indoor Unit Configuration |
12,000 + 9,000 + 9,000 + 9,000 + 9,000 BTU, Wall Mount (ESTAR® Series) |
| 12,000 BTU Wall Unit Coverage |
Up to 550 sq. ft. |
| 12,000 BTU Wall Unit SEER2 / EER2 / HSPF2-4 |
Up to 25.5 / 13 / 10.6 |
| 12,000 BTU Wall Unit Indoor Fan Noise |
46 dB |
| 9,000 BTU Wall Unit Coverage |
Up to 400 sq. ft. each |
| 9,000 BTU Wall Unit SEER2 / EER2 / HSPF2-4 |
Up to 25.8 / 14.9 / 12.5 |
| 9,000 BTU Wall Unit Indoor Fan Noise |
47 dB |
| Minimum Outdoor Operating Temperature |
5°F |
| Refrigerant |
R-454B |
| Compressor Warranty |
7 years |
| Parts Warranty |
5 years (with professional installation and registration); indoor units backed by limited lifetime warranty |
| Installation |
Professional installation required |
- Each wall unit includes a handheld remote control and Wi-Fi connectivity via the MRCOOL SmartHVAC app.
- Compatible with Amazon Alexa and Google Assistant voice control.
Details
Avermont Direct is an authorized MRCOOL dealer. This 5-zone Olympus system pairs a single outdoor condenser with five wall mount ESTAR® air handlers, giving each room its own high-efficiency indoor unit and independent temperature control. Backed by a 7-year compressor warranty and a 5-year parts warranty when professionally installed and registered, it suits multi-room homes, additions, or offices looking to add ductless heating and cooling to several spaces at once. Professional HVAC installation is required.
