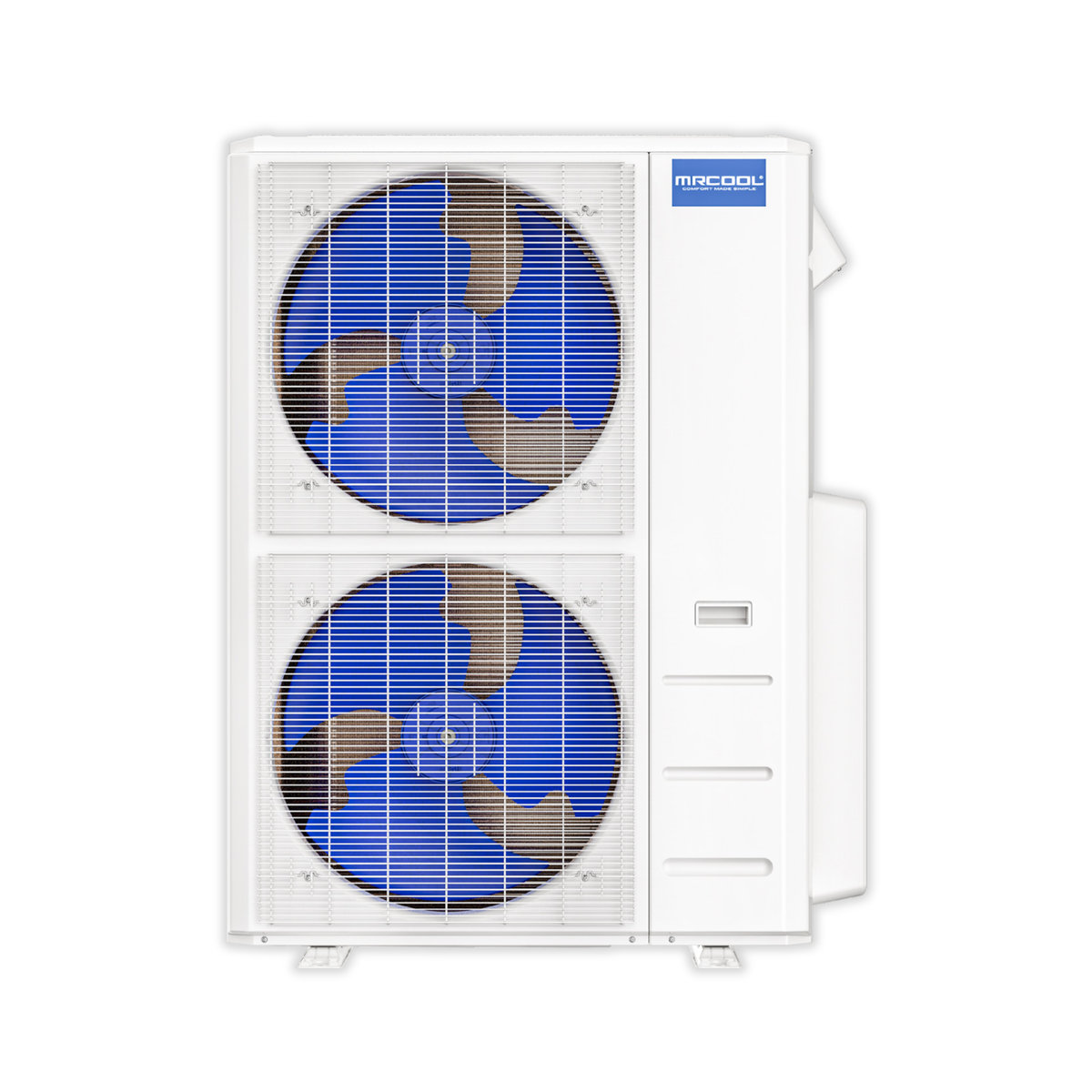

The MRCOOL Olympus 48,000 BTU 5-zone heat pump condenser pairs with five ceiling-concealed ducted air handlers — one 12,000 BTU and four 9,000 BTU units — for flush, out-of-sight comfort across a larger home. Inverter-driven operation delivers SEER2 ratings as high as 24 and keeps working reliably in outdoor temperatures as low as 5°F.
Highlights

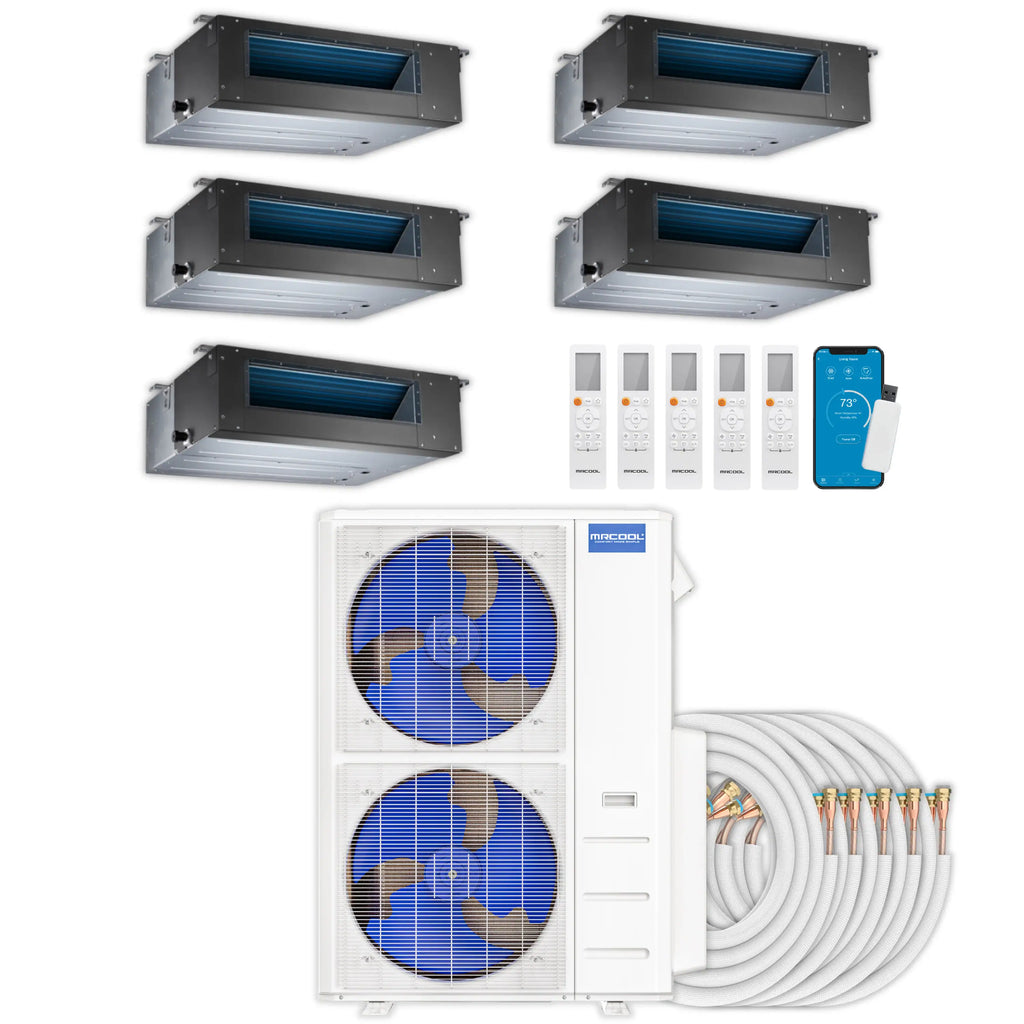

- Whole-home, multi-room comfort: one outdoor condenser powers five independently controlled zones — one 12,000 BTU and four 9,000 BTU ducted air handlers — for tailored heating and cooling room by room.

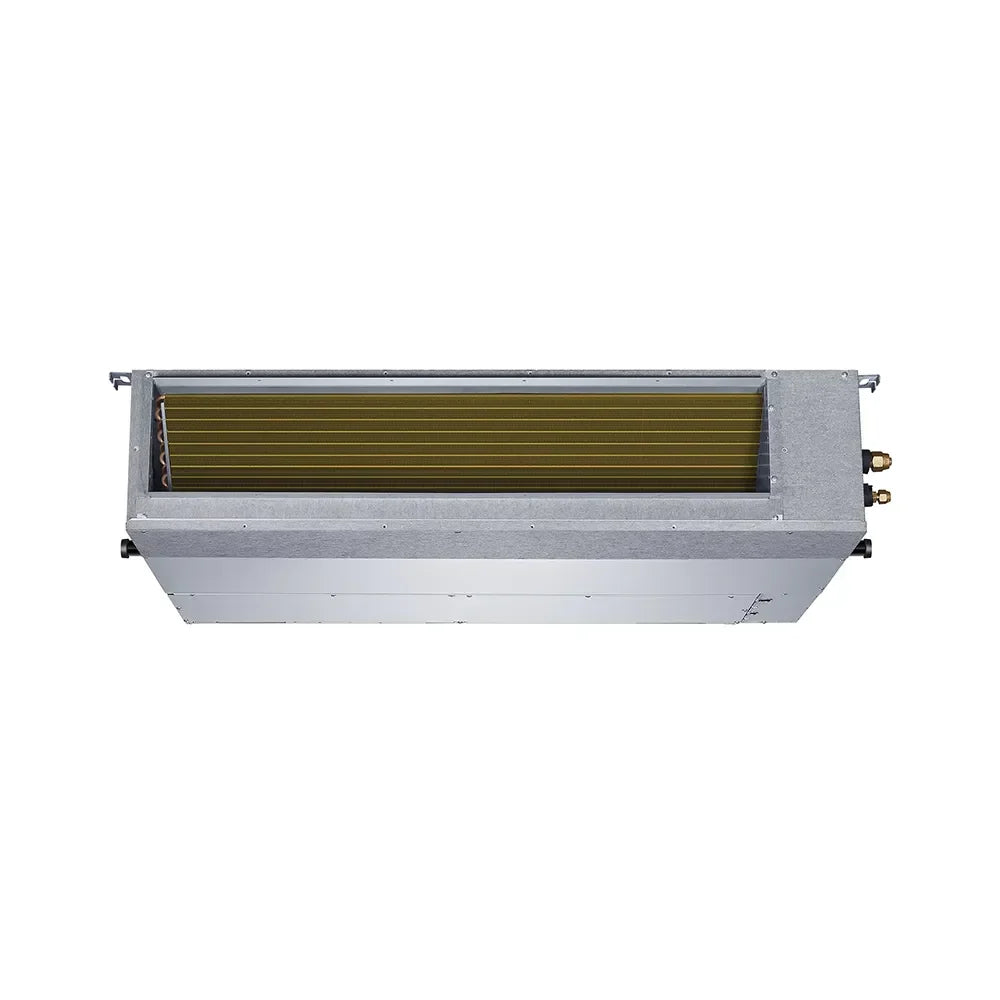

- Concealed installation: ceiling-integrated duct air handlers mount flush above the ceiling line for a discreet look with no visible indoor unit.
- High-efficiency inverter technology: SEER2 ratings up to 24 and HSPF2-4 up to 10.6 help lower energy costs year-round.
- Cold-climate reliability: rated to operate in outdoor temperatures as low as 5°F.
- Flexible control: manage the system with the MRCOOL SmartHVAC app, the included wired wall controller and handheld remote for each zone, or voice commands via Amazon Alexa and Google Assistant.
- Built-in safeguards: sleep mode, auto restart, and refrigerant leak detection support safe, consistent operation.
Specs & Features
| Condenser Model |
MULTI6-48HP230C-O |
| System Type |
5-Zone Ductless Air Conditioner & Heat Pump |
| Total Condenser Capacity |
48,000 BTU |
| Zones Installed |
5 (condenser supports up to 6) |
| Indoor Unit Configuration |
12,000 + 9,000 + 9,000 + 9,000 + 9,000 BTU, Ceiling Concealed Ducted |
| 12,000 BTU Duct Air Handler Coverage |
Up to 550 sq. ft. |
| 9,000 BTU Duct Air Handler Coverage |
Up to 400 sq. ft. each |
| System SEER2 |
Up to 24 |
| System HSPF2-4 |
Up to 10.6 |
| Minimum Outdoor Operating Temperature |
5°F |
| Refrigerant |
R-454B |
| Compressor Warranty |
7 years |
| Parts Warranty |
5 years (with professional installation and registration) |
| Certification |
Energy Star Certified |
| Installation |
Professional installation required |
- Each ducted air handler includes a wired wall-mounted controller and a handheld remote.
- Compatible with the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant.
Details
Avermont Direct is an authorized MRCOOL dealer. This 5-zone Olympus system is built for larger homes that need ductless heating and cooling without extensive ductwork — its ceiling-concealed duct air handlers keep the equipment out of sight while still delivering independent temperature control in each room. Backed by a 7-year compressor warranty and a 5-year parts warranty when professionally installed and registered, it suits multi-room additions, open-concept living areas, or homes replacing an aging central system. Professional HVAC installation is required.
