Description

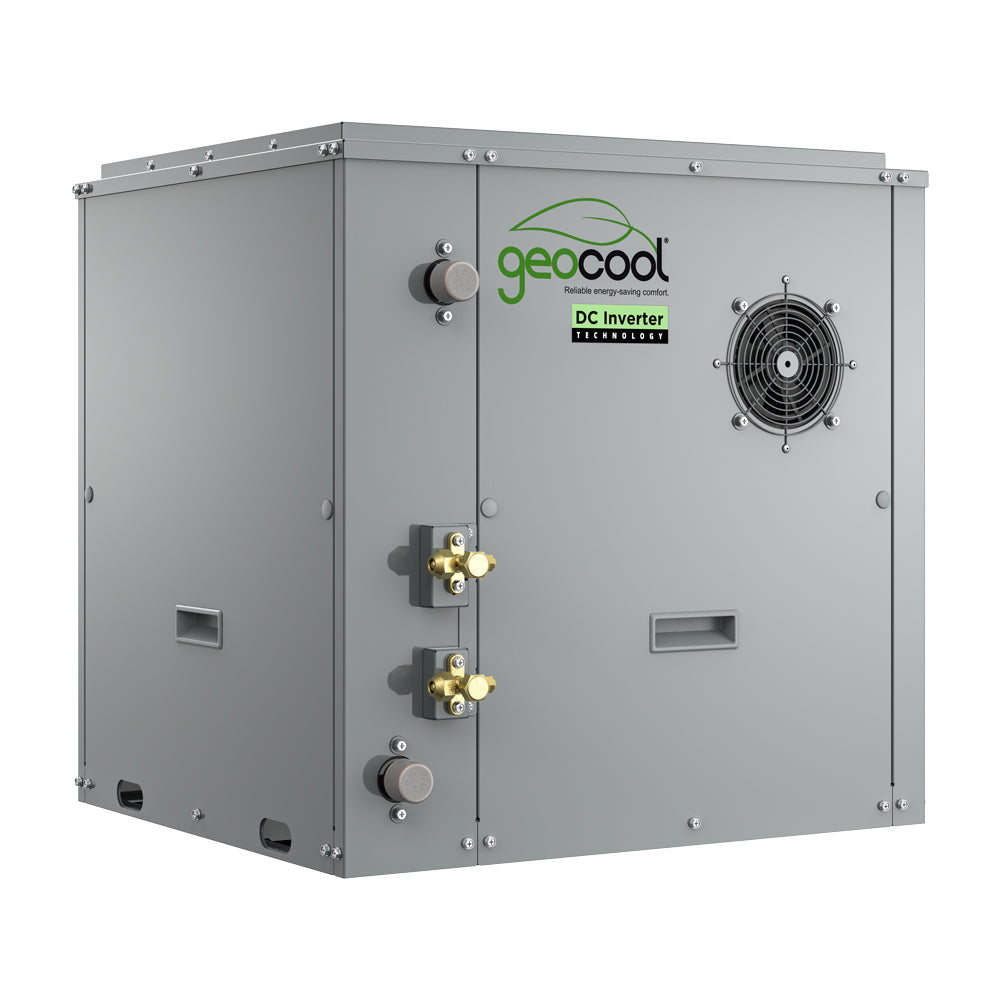

This MRCOOL GeoCool Split System Compressor is a 60,000 BTU (5-ton), 230V single-phase DC inverter geothermal compressor rated up to 70 EER.
Highlights
- All-DC inverter compressor with a high-precision electronic expansion valve for stable, accurate temperature control
- Multi-position installation — vertical, horizontal, and split configurations
- Co-axial copper-nickel (CuNi) heat exchanger for improved corrosion resistance with salt solutions or lower water quality
- Compatible with the MRCOOL GeoCool No-Vac line set for easier installation
- Cooling noise as low as 58 dBA and heating noise as low as 60 dBA
- Backed by a 10-year parts warranty and 5-year limited labor warranty
Details
Avermont Direct is an authorized MRCOOL dealer. This compressor module is designed as part of a complete GeoCool 60,000 BTU (5-ton) geothermal split system for ground-source heating and cooling, supporting both open-loop and closed-loop installations. Professional installation by a certified HVAC technician is required for geothermal heat pump systems.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Dimensions | 24.81" D x 29.94" H x 22.43" W |
| EER | Up to 70 |
| Cooling Capacity | Up to 62,000 BTU |
| Heating Capacity | Up to 55,000 BTU |
| Voltage | 208V / 230V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 35A |
| Min Circuit Ampacity | 26A |
| Rated Load | 28A |
| Refrigerant Type | R410a |
| Inverter | DC |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Compressor Motor Type | Rotary Inverter |
| UL Listed | Yes |
| Energy Star Certified | Yes |
| AHRI Certified | Yes |
| Base Parts Warranty | 10 years |
| Base Labor Warranty | 5 Year Limited |
| Gross Weight | 253.5 lbs |
- Open loop, full load: up to 62,000 BTU cooling / 55,000 BTU heating, EER 21.39, COP 3.7
- Closed loop, full load: up to 55,600 BTU cooling / 45,000 BTU heating, EER 14.4, COP 3.2
