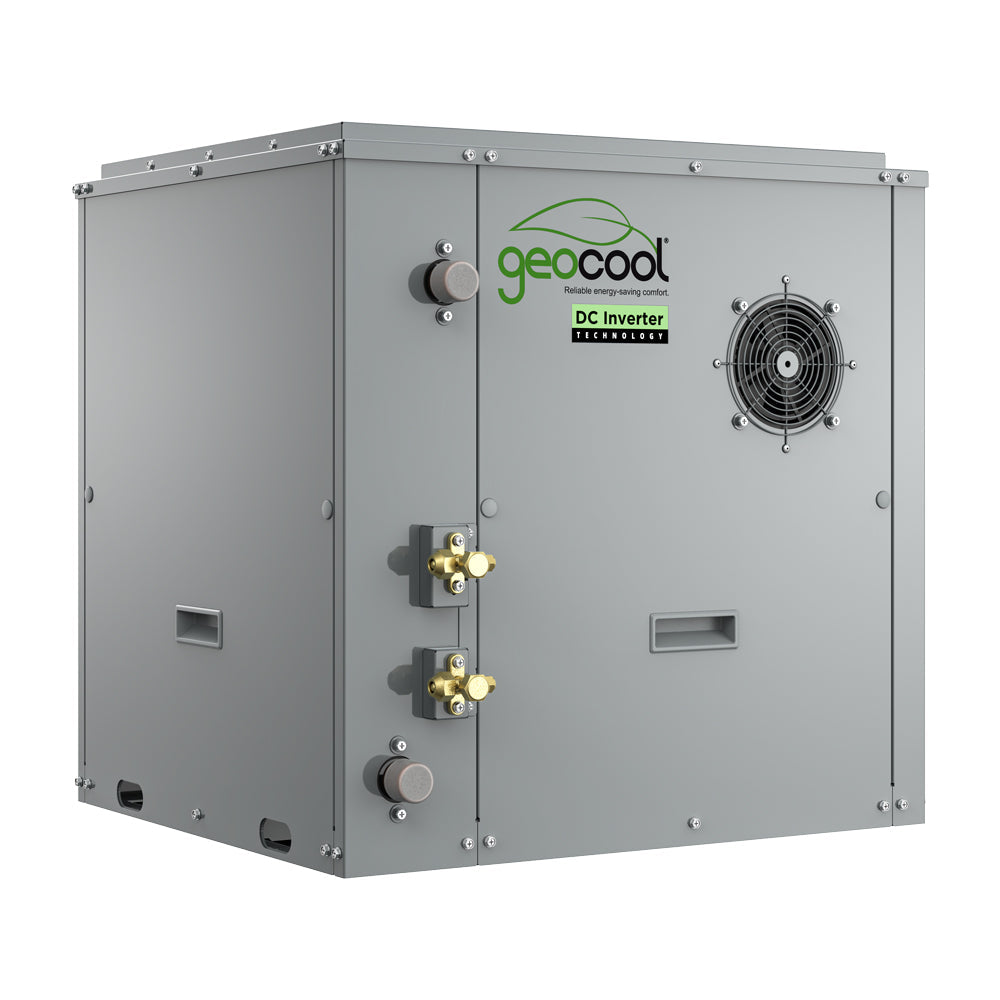

This MRCOOL GeoCool Split System Compressor is a 48,000 BTU (4-ton), 230V single-phase DC inverter geothermal compressor rated up to 70 EER.
Highlights
- All-DC inverter technology with a high-precision electronic expansion valve for accurate temperature control
- Modular design — pairs with independent blower, coil, and return-air modules for flexible installation layouts
- Up to 50,500 BTU cooling / 48,000 BTU heating capacity (open loop, full load)
- Backed by a 10-year parts warranty and 5-year limited labor warranty
Specs & Features
| Dimensions |
22.44" D x 25.12" H x 24.80" W |
| Net Weight |
231.53 lbs |
| EER |
Up to 70 |
| Voltage |
208V / 230V |
| Phase |
1 |
| Cycle |
60Hz |
| Max Fuse Breaker |
35A |
| Min Circuit Ampacity |
26A |
| Refrigerant Type |
R-410A |
| Inverter |
DC |
| Overload Protection |
Yes |
| Energy Star Certified |
Yes |
| AHRI Certified |
Yes |
| Base Parts Warranty |
10 years |
| Base Labor Warranty |
5 Year Limited |
- Open loop, full load: up to 50,500 BTU cooling / 48,000 BTU heating, EER 27.02, COP 4.2
- Closed loop, full load: up to 46,500 BTU cooling / 40,000 BTU heating, EER 18.29, COP 3.4
Details
Avermont Direct is an authorized MRCOOL dealer. This compressor module is designed as part of a complete GeoCool 48,000 BTU (4-ton) geothermal split system, supporting both open-loop and closed-loop ground-source configurations. Professional installation by a certified HVAC technician is required for geothermal heat pump systems.
