What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

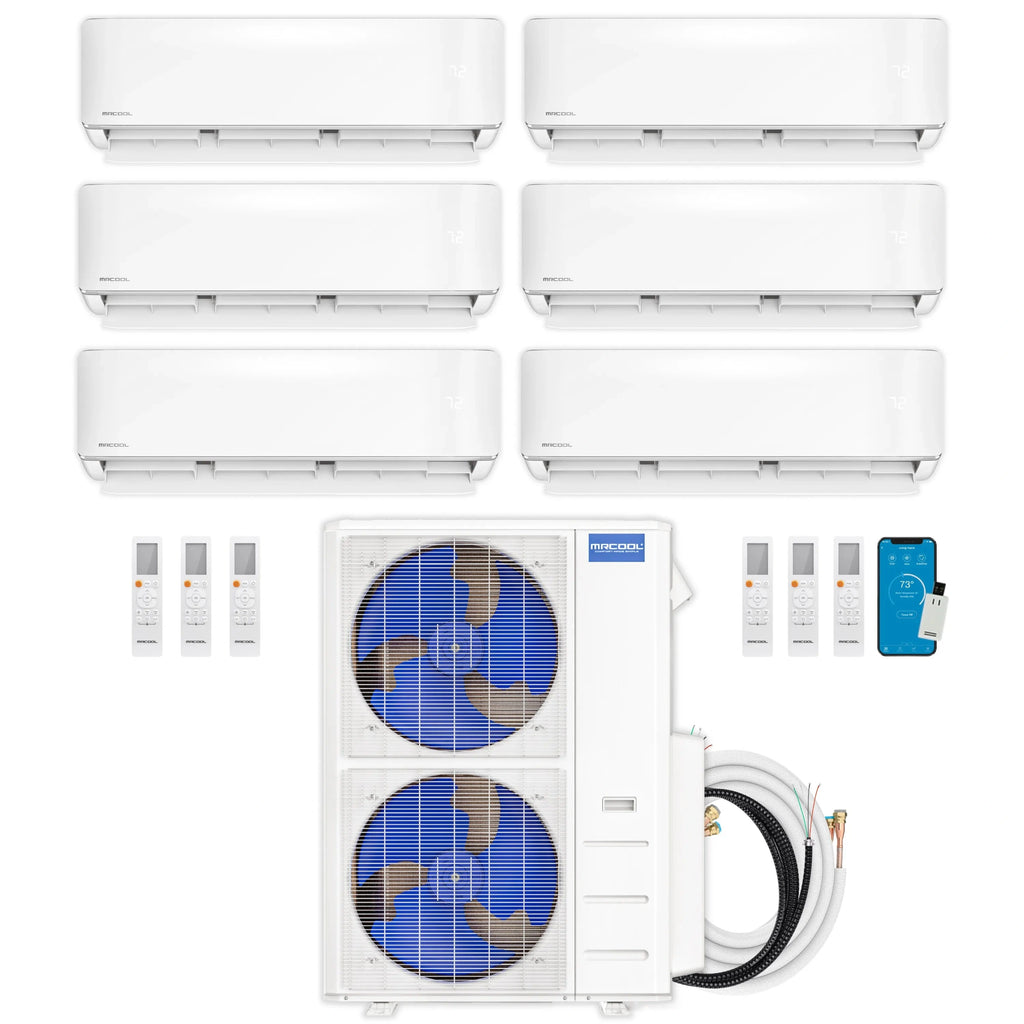

This MRCOOL® DIY® 5th Generation Multi-Zone Ductless Mini-Split system pairs a 55,000 BTU outdoor condenser with six wall-mounted indoor air handlers (18K + 9K + 9K + 6K + 6K + 6K BTU), giving you DIY-installable heating and cooling across up to 6 separate spaces totaling as much as 2,290 sq. ft. from a single MRCOOL® condenser.
Highlights
- No HVAC professional required – the patented pre-charged Quick-Connect® line sets use R-454B refrigerant and skip the evacuation and charging steps of a traditional install.
- Efficient performance – the condenser is rated SEER2 22 and HSPF2-4 10.6.
- Smart control – operate the system with the Smart HVAC app (Apple and Android) or hands-free through Amazon Alexa and Google Assistant, in addition to the included wireless remote.
- Six-zone flexibility – this condenser powers a 18K + 9K + 9K + 6K + 6K + 6K BTU wall mount air handler combination, so each space can be heated or cooled independently.
- DIYPro® cable included – removes the need for electrical conduit and adds protection against outdoor elements and wildlife.
- Follow Me® and Gold Fin® Condenser – the remote's Follow Me® function adjusts airflow based on its location, and the Gold Fin® Condenser resists corrosion, which is useful in coastal environments.
- Backed by a strong warranty – 5-year parts warranty, 7-year compressor warranty, and a Limited Lifetime Replacement warranty once enrolled in the MRCOOL® Care Program.
Details
Avermont Direct is an authorized MRCOOL® dealer. This DIY® 5th Generation 55,000 BTU 6-zone system is built for homeowners who want to heat and cool up to six separate rooms or living areas from a single outdoor condenser without hiring an HVAC professional. The pre-charged Quick-Connect® line sets and included DIYPro® cable are designed to keep installation manageable for a do-it-yourselfer. The system is backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL® Care Program — a fit for larger homes or multi-room additions that need independent, zone-by-zone temperature control.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 55,000 BTU |
| Zones | 6 |
| Zone Configuration | 18K + 9K + 9K + 6K + 6K + 6K BTU Wall Mount air handlers |
| Indoor Air Handlers (individual rated coverage) | 18K BTU (up to 800 sq. ft.); 9K BTU (up to 400 sq. ft.); 9K BTU (up to 400 sq. ft.); 6K BTU (up to 200 sq. ft.); 6K BTU (up to 200 sq. ft.); 6K BTU (up to 200 sq. ft.) |
| Condenser Rated Coverage | Up to 2,290 sq. ft. across 6 zones (per manufacturer condenser spec) |
| SEER2 | 22 |
| HSPF2-4 | 10.6 |
| Refrigerant | R-454B, pre-charged in the Quick-Connect® line set |
| Installation Type | DIY – no HVAC professional required |
| Parts Warranty | 5 years |
| Compressor Warranty | 7 years |
| Limited Lifetime Replacement Warranty | Available upon enrollment in the MRCOOL® Care Program |
| Listing | Intertek listed 5031495 |
- Follow Me® function tracks the temperature near the remote for even comfort in each zone.
- Gold Fin® Condenser offers added corrosion resistance for coastal or humid climates.
- Dry Mode helps reduce excess indoor humidity and condensation buildup.
