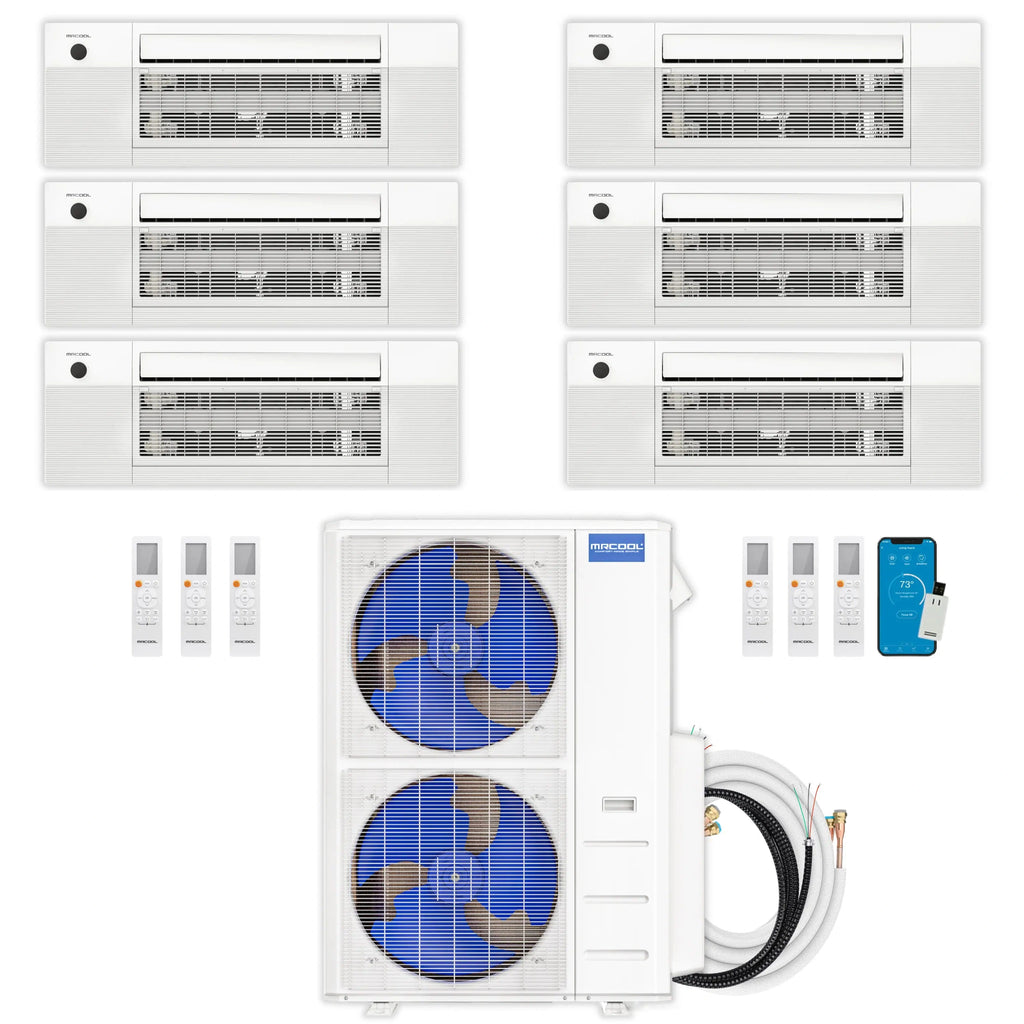

This MRCOOL DIY 5th Gen ductless mini-split system pairs a 55,000 BTU multi-zone condenser with six ceiling cassette air handlers (1x 18,000 BTU, 2x 12,000 BTU, 3x 9,000 BTU), letting you heat and cool up to 6 separate spaces (up to 2290 sq. ft. combined) without hiring an HVAC professional.
Highlights
- Patented pre-charged Quick Connect line sets, filled with R-454B refrigerant, let you skip the evacuation and charging steps a traditional install requires.
- Rated 22 SEER2 and 10.6 HSPF2-4 on the condenser, so the system is built to help lower run-time energy costs.
- Control the system from the included wireless remote, the SmartHVAC app (Apple and Android), or hands-free through Amazon Alexa and Google Assistant.
- Low-profile OuttaSight ceiling cassettes fit flush between 16" ceiling joists (including pre-manufactured I-joists), with no ductwork or extra wall space required.
- The Elevation function lowers the filter panel for easy cleaning, and Advanced Filtration helps maintain indoor air quality.
- Backed by a 5-year parts warranty, a 7-year compressor warranty, and — once enrolled in the MRCOOL Care Program — a limited lifetime replacement warranty.
Specs & Features
| Condenser Capacity |
55,000 BTU |
| Zones |
6 |
| Indoor Unit Type |
Ceiling Cassette air handlers |
| Indoor Unit Capacities |
9,000 BTU, 9,000 BTU, 9,000 BTU, 12,000 BTU, 12,000 BTU, 18,000 BTU |
| Combined Coverage Area |
Up to 2290 sq. ft. |
| SEER2 |
22 |
| HSPF2-4 |
10.6 |
| Refrigerant |
R-454B (pre-charged Quick Connect line sets) |
| Installation Type |
DIY — no HVAC professional required |
| Certification |
Intertek listed 5031495 |
| Warranty |
5-year parts, 7-year compressor; limited lifetime replacement with MRCOOL Care Program enrollment |
- Two-stage DC motor for quiet operation, with Swing Technology and multiple operating modes.
- Compatible with both multi-zone and single-zone MRCOOL DIY systems.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 55,000 BTU 6-zone DIY system is built for homeowners who want to heat and cool up to six separate rooms — living areas, bedrooms, additions, or workspaces — with one ductless system installed without contractor labor. The condenser is covered by a 5-year parts warranty and a 7-year compressor warranty, with a limited lifetime replacement warranty available through MRCOOL Care Program enrollment.
