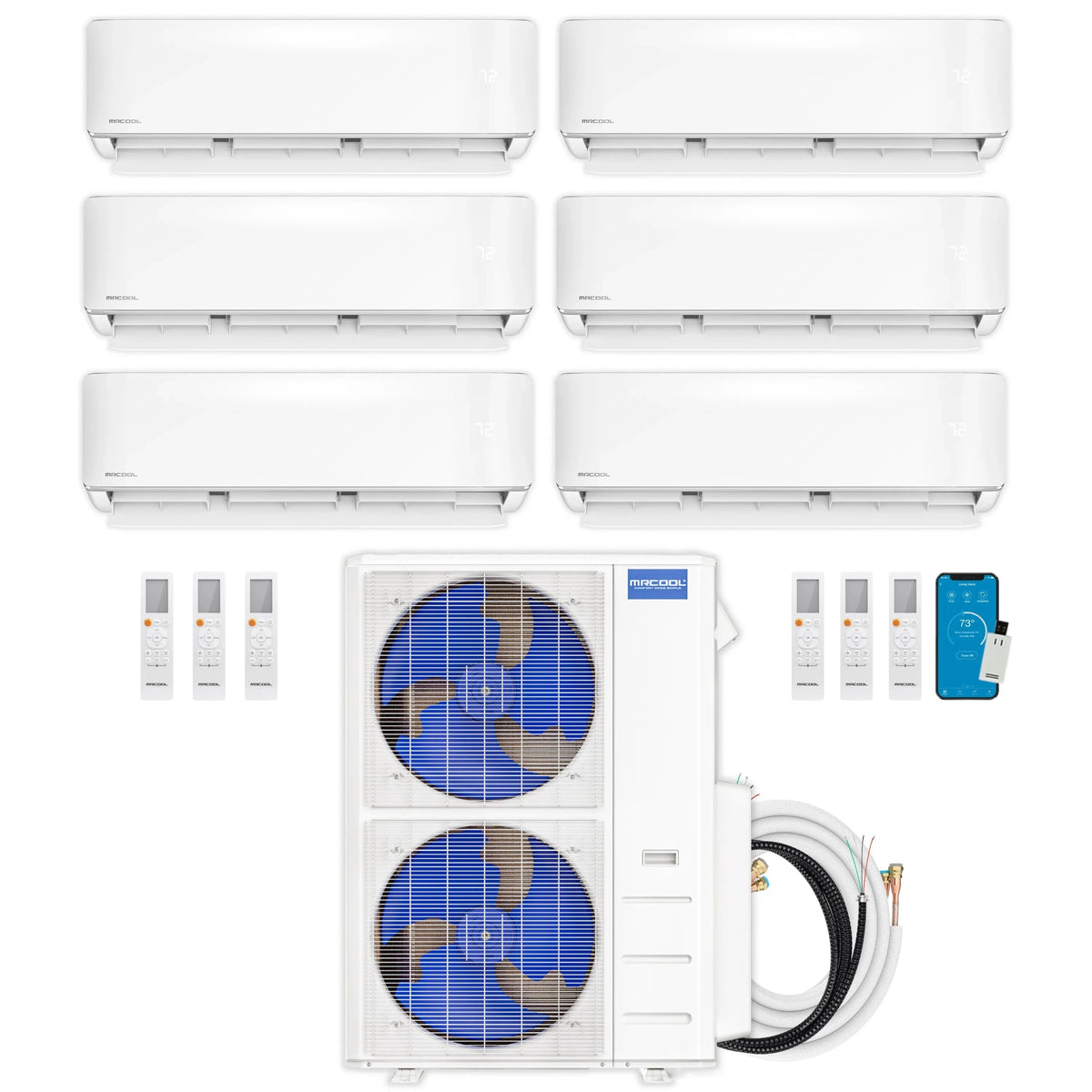

This MRCOOL® DIY® 5th Generation 55,000 BTU Multi-Zone Ductless Mini-Split system pairs a single outdoor condenser with six wall-mounted air handlers (12K + 6K + 6K + 6K + 6K + 6K BTU), letting you heat and cool up to 6 separate spaces totaling as much as 2,290 sq. ft. without a full HVAC installation crew. The condenser is rated at SEER2 22 and HSPF2-4 10.6 for efficient year-round performance.
Highlights
- Pre-charged DIY® Quick-Connect® line sets use R-454B refrigerant and skip the evacuation/charging steps, simplifying installation
- Gold Fin® condensers on the wall-mount air handlers add extra corrosion resistance, a plus for coastal environments
- Control the system from the included wireless remote, the SmartHVAC app (iOS and Android), or hands-free through Amazon Alexa and Google Assistant
- Follow Me® function adjusts airflow based on the remote's location for more consistent comfort
- Included DIYPro® cable removes the need for electrical conduit during installation
- Backed by a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty once enrolled in the MRCOOL® Care Program
Specs & Features
| Condenser Capacity |
55,000 BTU |
| Zones |
6 |
| Indoor Unit Type |
Wall Mount |
| Efficiency |
SEER2 22 / HSPF2-4 10.6 |
| Max Combined Coverage |
Up to 2,290 sq. ft. |
| Refrigerant |
R-454B (pre-charged Quick-Connect® line sets) |
| Indoor Unit 1 |
12K BTU (up to 550 sq. ft.) |
| Indoor Unit 2 |
6K BTU (up to 200 sq. ft.) |
| Indoor Unit 3 |
6K BTU (up to 200 sq. ft.) |
| Indoor Unit 4 |
6K BTU (up to 200 sq. ft.) |
| Indoor Unit 5 |
6K BTU (up to 200 sq. ft.) |
| Indoor Unit 6 |
6K BTU (up to 200 sq. ft.) |
| Installation |
DIY, no HVAC professional required |
| Certification |
Intertek listed 5031495 |
| Warranty |
5-year parts / 7-year compressor / Limited Lifetime Replacement (with MRCOOL® Care Program enrollment) |
- Gold Fin® corrosion-resistant condenser coil
- Dry Mode helps reduce indoor humidity
- Smart HVAC Controller® Module and app support Google Assistant and Amazon Alexa out of the box
Details
Avermont Direct is an authorized MRCOOL® dealer, and this 55,000 BTU 6-zone DIY® system is backed by a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty once you enroll in the MRCOOL® Care Program. It's a practical option for zoning a larger home or multi-room space, letting you heat and cool up to six separate areas from one outdoor condenser without hiring an HVAC contractor.
