What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

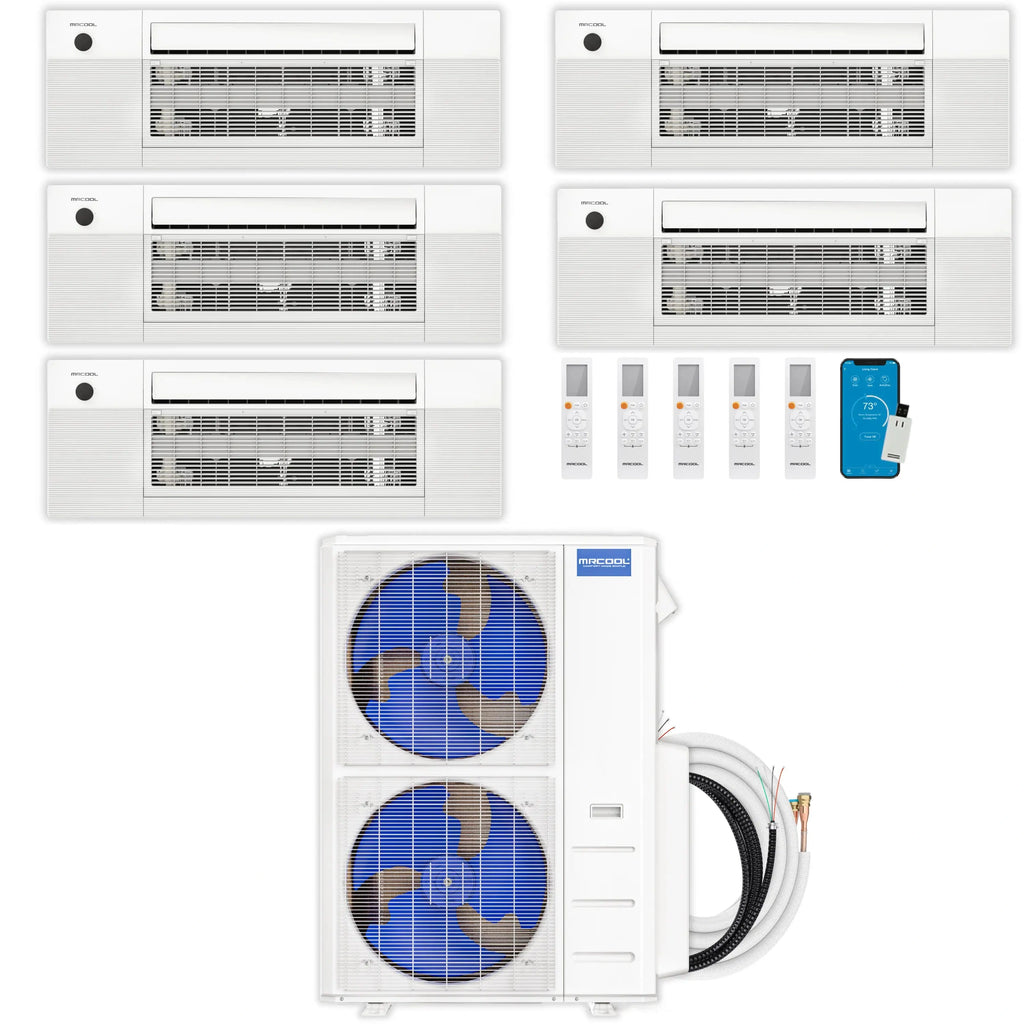

This MRCOOL DIY 5th Generation 5-Zone system pairs a 55,000 BTU ductless condenser with five OuttaSight Ceiling Cassette indoor air handlers (18K + 18K + 12K + 9K + 9K BTU) to heat and cool up to 5 separate rooms or zones from one outdoor unit. It's rated at SEER2 22 and HSPF2-4 10.6, and every indoor unit connects through a pre-charged R-454B Quick-Connect line set, so the whole system installs without hiring an HVAC professional.
Highlights
- True DIY installation — pre-charged R-454B Quick-Connect line sets skip the evacuation and vacuuming steps that normally require a licensed HVAC technician.
- High efficiency — a SEER2 rating of 22 and an HSPF2-4 rating of 10.6 are built in to help lower energy costs over the life of the system.
- Smart, flexible control — run the system from the SmartHVAC app (Apple and Android) or hands-free through Amazon Alexa or Google Assistant/Google Home.
- Included wireless remote per zone — the Follow Me function tracks the temperature near the remote for more even comfort, and Dry Mode helps manage indoor humidity.
- Low-profile ceiling installation — each OuttaSight Ceiling Cassette fits flush between 16" ceiling joists (including pre-manufactured I-joists) with no exposed wall unit.
- Advanced filtration — the Elevation function lowers the filter panel for easy cleaning and maintenance.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 5-Zone DIY mini-split system is built for homeowners who want to heat and cool up to five rooms from a single outdoor condenser without scheduling a professional installation. The pre-charged line sets and DIYPro wiring are designed so an experienced DIYer can complete the install with common tools, and MRCOOL backs the system with a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty for owners enrolled in the MRCOOL Care Program.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 55,000 BTU (5-Zone) |
| Indoor Air Handlers | 18K + 18K + 12K + 9K + 9K BTU (OuttaSight Ceiling Cassette) |
| Number of Zones | 5 |
| Efficiency | SEER2 22 / HSPF2-4 10.6 |
| Refrigerant | R-454B, pre-charged in DIY Quick-Connect line sets |
| Installation Type | DIY (no HVAC professional required) |
| Certification | Intertek listed 5031495 |
| Warranty | 5-year parts, 7-year compressor, and Limited Lifetime Replacement warranty with MRCOOL Care Program enrollment |
| Zone 1 Coverage (18K BTU OuttaSight Ceiling Cassette) | Up to 800 sq. ft. |
| Zone 2 Coverage (18K BTU OuttaSight Ceiling Cassette) | Up to 800 sq. ft. |
| Zone 3 Coverage (12K BTU OuttaSight Ceiling Cassette) | Up to 550 sq. ft. |
| Zone 4 Coverage (9K BTU OuttaSight Ceiling Cassette) | Up to 400 sq. ft. |
| Zone 5 Coverage (9K BTU OuttaSight Ceiling Cassette) | Up to 400 sq. ft. |
- DIYPro® cable eliminates the need for electrical conduit on the outdoor unit run.
- Follow Me® function on the included remote adjusts airflow based on the remote's location.
- Dry Mode helps reduce excess indoor humidity.
- Smart HVAC Controller Module and app support Google Assistant and Amazon Alexa out of the box.
- Two-stage DC motor and Swing Technology on each ceiling cassette for quiet, even airflow.
