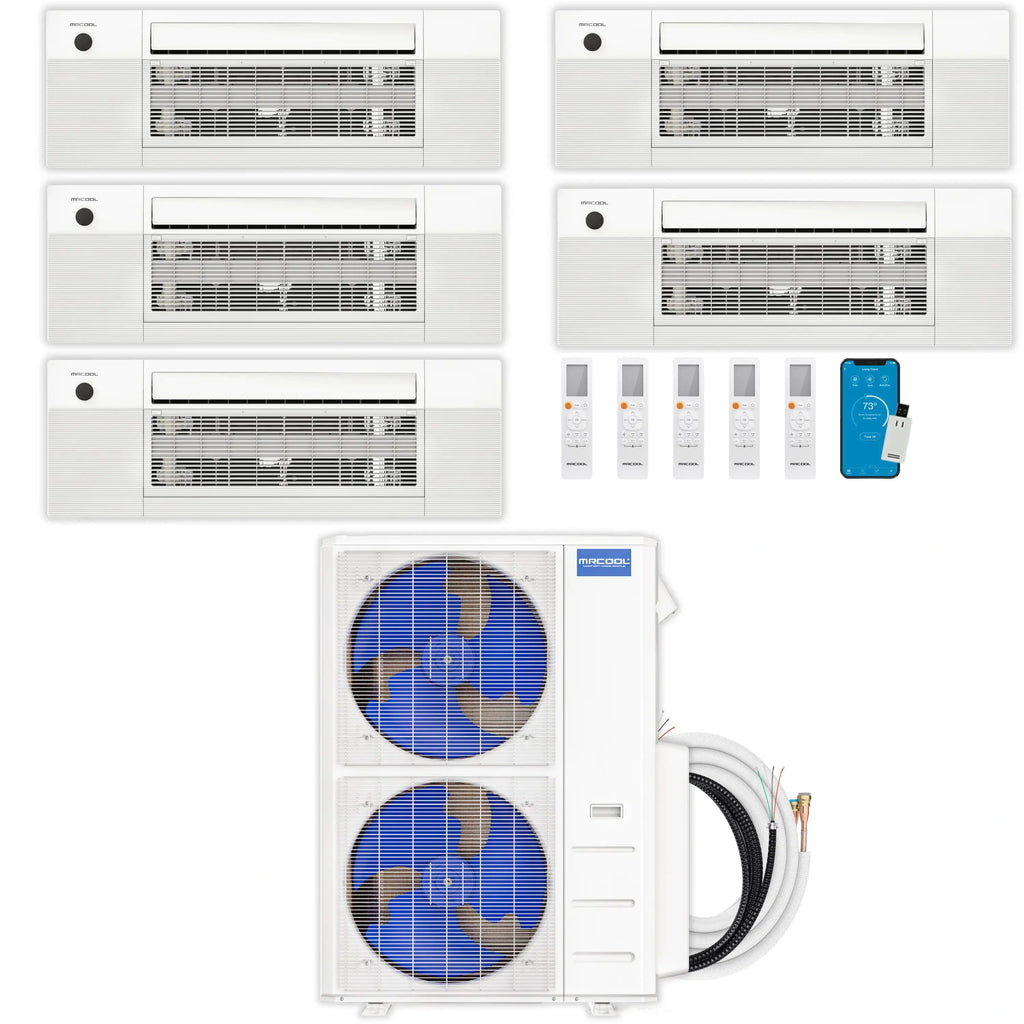

This MRCOOL DIY 5th Generation 5-Zone system pairs a 55,000 BTU ductless condenser with five OuttaSight Ceiling Cassette indoor air handlers (18K + 18K + 12K + 9K + 6K BTU) to heat and cool up to 5 separate rooms or zones from one outdoor unit. It's rated at SEER2 22 and HSPF2-4 10.6, and every indoor unit connects through a pre-charged R-454B Quick-Connect line set, so the whole system installs without hiring an HVAC professional.
Highlights
-
True DIY installation — pre-charged R-454B Quick-Connect line sets skip the evacuation and vacuuming steps that normally require a licensed HVAC technician.
-
High efficiency — a SEER2 rating of 22 and an HSPF2-4 rating of 10.6 are built in to help lower energy costs over the life of the system.
-
Smart, flexible control — run the system from the SmartHVAC app (Apple and Android) or hands-free through Amazon Alexa or Google Assistant/Google Home.
-
Included wireless remote per zone — the Follow Me function tracks the temperature near the remote for more even comfort, and Dry Mode helps manage indoor humidity.
-
Low-profile ceiling installation — each OuttaSight Ceiling Cassette fits flush between 16" ceiling joists (including pre-manufactured I-joists) with no exposed wall unit.
-
Advanced filtration — the Elevation function lowers the filter panel for easy cleaning and maintenance.
Specs & Features
| Condenser Capacity |
55,000 BTU (5-Zone) |
| Indoor Air Handlers |
18K + 18K + 12K + 9K + 6K BTU (OuttaSight Ceiling Cassette) |
| Number of Zones |
5 |
| Efficiency |
SEER2 22 / HSPF2-4 10.6 |
| Refrigerant |
R-454B, pre-charged in DIY Quick-Connect line sets |
| Installation Type |
DIY (no HVAC professional required) |
| Certification |
Intertek listed 5031495 |
| Warranty |
5-year parts, 7-year compressor, and Limited Lifetime Replacement warranty with MRCOOL Care Program enrollment |
| Zone 1 Coverage (18K BTU OuttaSight Ceiling Cassette) |
Up to 800 sq. ft. |
| Zone 2 Coverage (18K BTU OuttaSight Ceiling Cassette) |
Up to 800 sq. ft. |
| Zone 3 Coverage (12K BTU OuttaSight Ceiling Cassette) |
Up to 550 sq. ft. |
| Zone 4 Coverage (9K BTU OuttaSight Ceiling Cassette) |
Up to 400 sq. ft. |
| Zone 5 Coverage (6K BTU OuttaSight Ceiling Cassette) |
Up to 200 sq. ft. |
- DIYPro® cable eliminates the need for electrical conduit on the outdoor unit run.
- Follow Me® function on the included remote adjusts airflow based on the remote's location.
- Dry Mode helps reduce excess indoor humidity.
- Smart HVAC Controller Module and app support Google Assistant and Amazon Alexa out of the box.
- Two-stage DC motor and Swing Technology on each ceiling cassette for quiet, even airflow.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 5-Zone DIY mini-split system is built for homeowners who want to heat and cool up to five rooms from a single outdoor condenser without scheduling a professional installation. The pre-charged line sets and DIYPro wiring are designed so an experienced DIYer can complete the install with common tools, and MRCOOL backs the system with a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty for owners enrolled in the MRCOOL Care Program.
