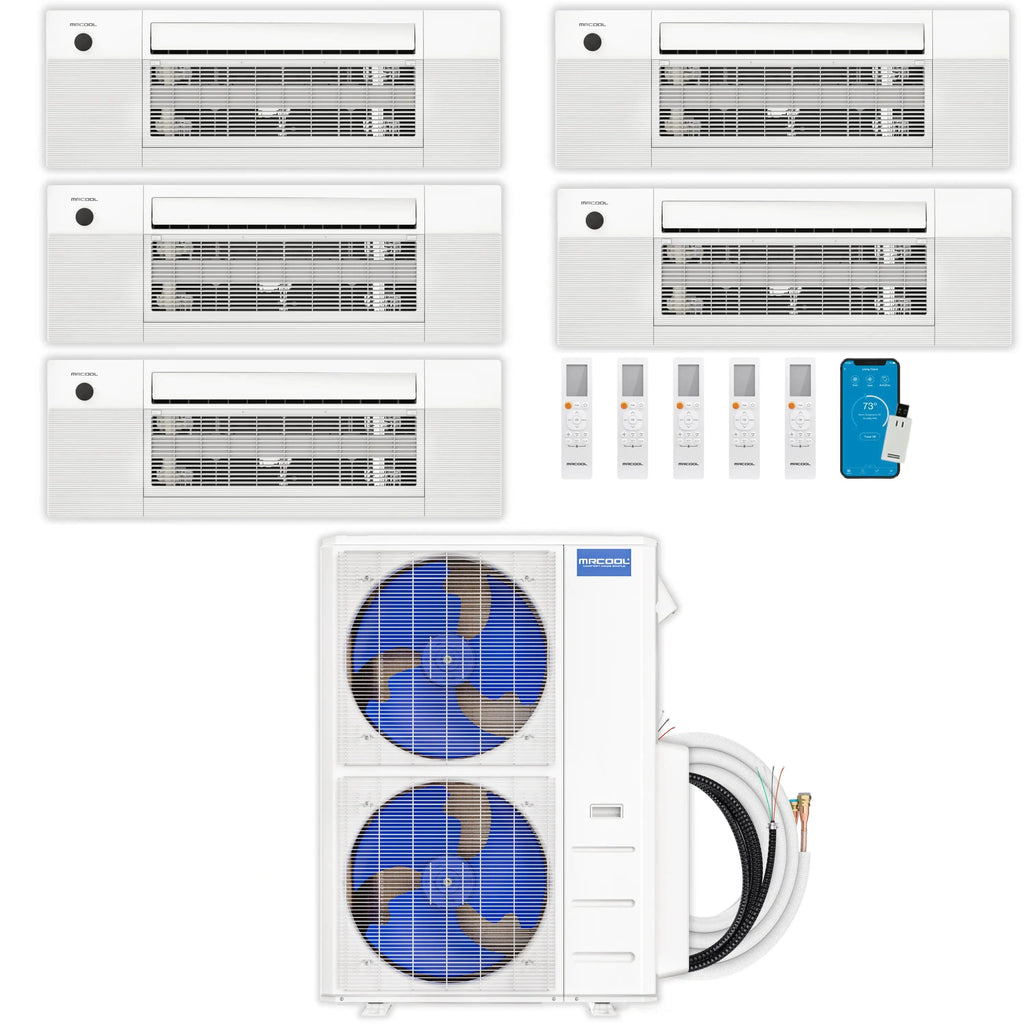

This MRCOOL DIY 5th Generation ductless mini-split system pairs a 48,000 BTU multi-zone condenser with 5 ceiling cassette air handlers (18K + 9K + 9K + 9K + 6K BTU), delivering a SEER2 rating of 21.8 and an HSPF2-4 rating of 10.
Highlights
- Patented pre-charged Quick Connect® line sets use R-454B refrigerant, letting you skip the evacuation and vacuuming steps for a true DIY installation.
- Control the system remotely with the SmartHVAC app (iOS and Android), or hands-free through Amazon Alexa and Google Assistant/Google Home integration.
- The included DIYPro® cable removes the need for electrical conduit, adding durability against outdoor elements.
- OuttaSight® ceiling cassette air handlers fit between 16" ceiling joists (including pre-manufactured I-joists) for a flush, low-profile look.
- The Elevation function lowers the filter panel for easy cleaning and maintenance, and advanced filtration helps improve indoor air quality.
- Backed by a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty available through enrollment in the MRCOOL Care Program.
Specs & Features
| Condenser Capacity |
48,000 BTU |
| Zones |
5 |
| Indoor Air Handler BTUs |
18K + 9K + 9K + 9K + 6K |
| Air Handler Type |
Ceiling Cassette (OuttaSight® 230V one-way) |
| SEER2 |
21.8 |
| HSPF2-4 |
10 |
| Refrigerant |
R-454B (pre-charged Quick Connect® line sets) |
| Installation |
DIY (no HVAC professional required) |
| Certification |
Intertek listed 5031495 |
| Warranty |
5-year parts / 7-year compressor / Limited Lifetime Replacement with MRCOOL Care Program enrollment |
| 18K BTU Ceiling Cassette |
Covers up to 800 sq. ft. |
| 9K BTU Ceiling Cassette |
Covers up to 400 sq. ft. |
| 9K BTU Ceiling Cassette |
Covers up to 400 sq. ft. |
| 9K BTU Ceiling Cassette |
Covers up to 400 sq. ft. |
| 6K BTU Ceiling Cassette |
Covers up to 200 sq. ft. |
- Two-stage DC motor with Swing Technology and quiet operation.
- Gold Fin® Condenser coil offers extra corrosion resistance, a benefit in coastal climates.
Details
Avermont Direct is an authorized MRCOOL dealer. This 5-zone DIY mini-split system lets a homeowner install ductless heating and cooling in up to 5 separate rooms or areas without hiring an HVAC professional, using the pre-charged Quick Connect® line sets to skip evacuation and vacuuming. The condenser and air handlers are covered by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL Care Program. The manufacturer's own overview text for this condenser tier states a higher zone count and total coverage area than this product's own 5-zone title and configuration reflect; this description uses the 5-zone figure stated in the product title and its actual air handler lineup.
