What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

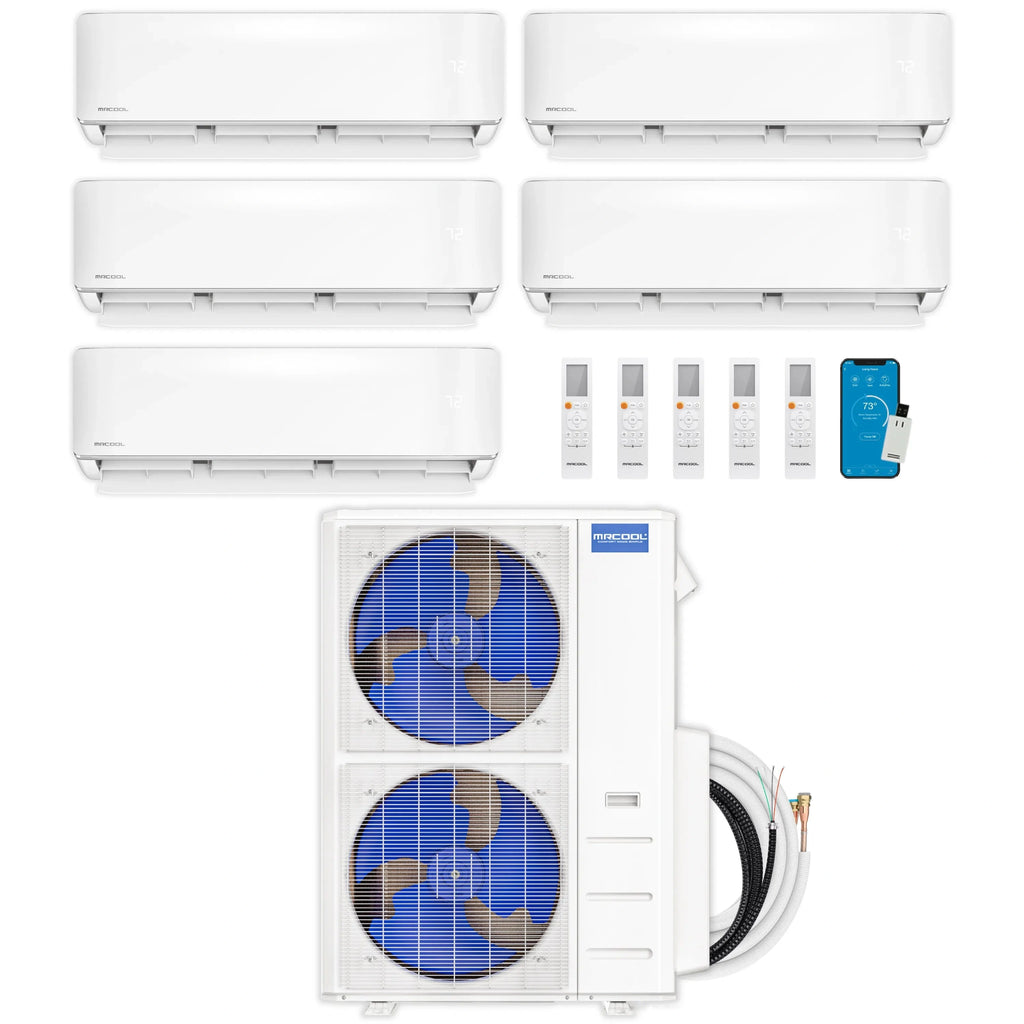

This MRCOOL DIY 5th Generation 48,000 BTU 5-Zone Ductless Mini-Split System pairs a single outdoor condenser with five wall mount indoor air handlers — a 18,000 + 9,000 + 9,000 + 6,000 + 6,000 BTU lineup in this configuration — engineered for do-it-yourself installation with no HVAC professional required.
Highlights
- Pre-charged 25-ft. DIY® QuickConnect® line sets filled with R-454B refrigerant eliminate on-site vacuuming, cutting installation time and cost.
- Rated 21.8 SEER2 and an HSPF2 of 10 for efficient year-round heating and cooling.
- The included DIYPRO® cable removes the need for electrical conduit, adding durability against outdoor elements.
- Control each zone with the wireless remote, the SmartHVAC app (iOS and Android), or hands-free through Amazon Alexa and Google Assistant.
- The Follow Me function tracks temperature near the remote for even comfort, and Dry Mode helps manage indoor humidity in each zone.
- Backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL® Care Program.
Details
Avermont Direct is an authorized MRCOOL dealer. This DIY 5th Generation 5-zone system installs without a professional HVAC crew, using pre-charged Quick Connect® line sets and a DIYPRO® cable in place of conduit. This 18,000 + 9,000 + 9,000 + 6,000 + 6,000 BTU wall mount configuration suits a home or addition with five separate rooms to condition from one outdoor condenser, and it carries a 5-year parts warranty and a 7-year compressor warranty as standard.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Brand | MRCOOL DIY, 5th Generation |
| System type | Ductless mini-split, multi-zone |
| Zones | 5 |
| Condenser capacity | 48,000 BTU |
| Indoor air handlers (this configuration) | 18,000 + 9,000 + 9,000 + 6,000 + 6,000 BTU |
| Air handler mount type | Wall Mount |
| Efficiency | 21.8 SEER2 / 10 HSPF2 |
| Refrigerant | R-454B, pre-charged in 25-ft. Quick Connect® line sets |
| Electrical | DIYPRO® cable included (no conduit required) |
| Certification | Intertek listed 5031495 |
| Parts warranty | 5 years |
| Compressor warranty | 7 years |
| Extended warranty | Limited Lifetime Replacement (with MRCOOL® Care Program subscription) |
- 18,000 BTU handler — up to 800 sq. ft.
- 9,000 BTU handlers (2x) — up to 400 sq. ft. each
- 6,000 BTU handlers (2x) — up to 200 sq. ft. each
- Gold Fin® Condenser coil on each air handler offers added corrosion resistance, a benefit in coastal environments.
- Follow Me function adjusts airflow based on the wireless remote's location.
- Dry Mode helps reduce excess indoor humidity and condensation.
