What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

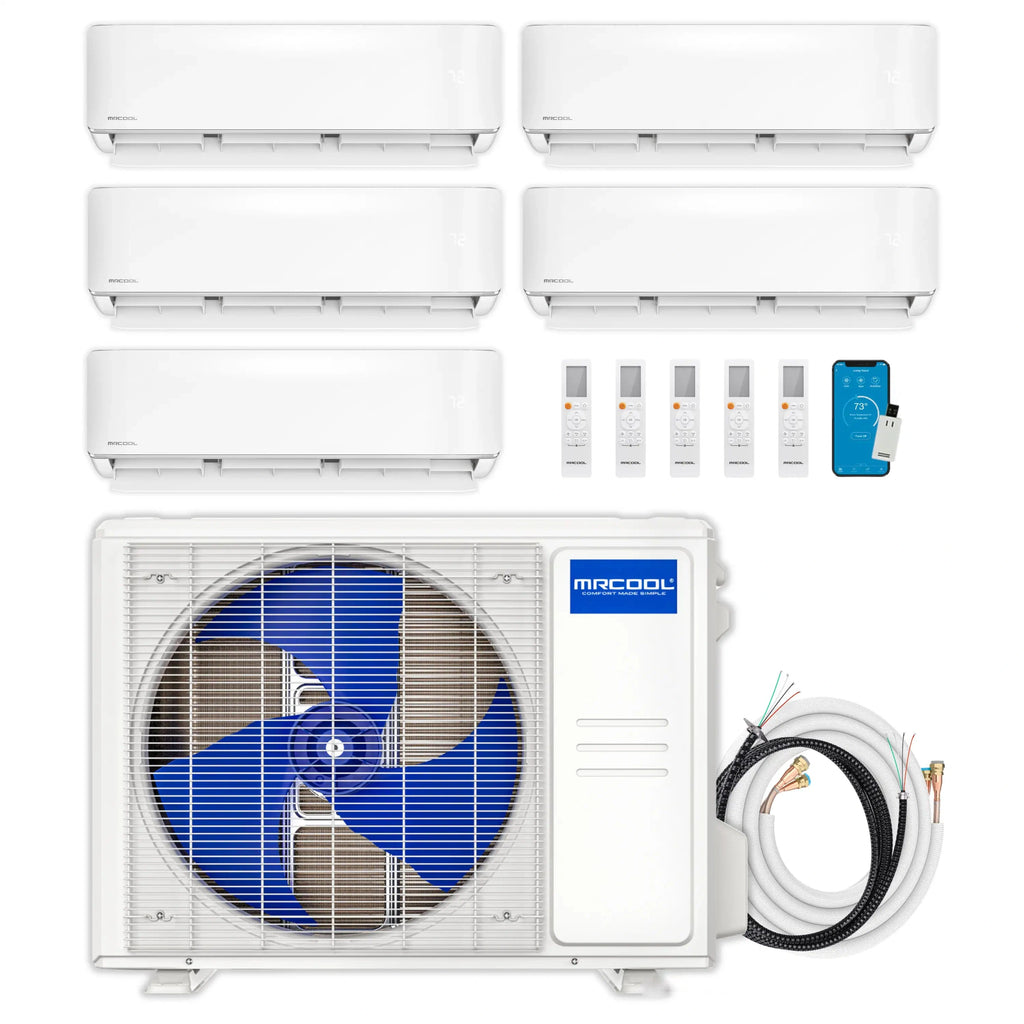

This MRCOOL DIY 5th Generation ductless mini-split system pairs a 36,000 BTU 5-zone outdoor condenser with five wall mount air handlers (9K BTU, 6K BTU, 6K BTU, 6K BTU, 6K BTU), giving you whole-home comfort across up to 5 separate spaces totaling around 1,500 sq. ft. from a single DIY-installed system.
Highlights
- Pre-charged DIY® Quick Connect® line sets use R-454B refrigerant, so there's no vacuuming or evacuation step during installation.
- Rated SEER2 23 / HSPF2-4 9.9 for efficient year-round heating and cooling.
- Each wall mount air handler includes Follow Me® temperature tracking via the included remote for more consistent comfort in its zone.
- Control every zone from the SmartHVAC app, with full out-of-the-box support for Amazon Alexa and Google Assistant.
- Included DIYPro® cable removes the need for electrical conduit during installation.
- Gold Fin® condenser coil offers added corrosion resistance, a benefit in coastal environments.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 5-zone DIY system is backed by a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with an optional Limited Lifetime Replacement warranty through the MRCOOL® Care Program. Because each zone is installed and controlled independently, it's well suited to comfortably heating and cooling several rooms of a home — bedrooms, a living area, and a home office, for example — from one outdoor condenser, without opening walls for ductwork.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 36,000 BTU |
| Zones | 5 |
| Total Coverage Area | Up to approx. 1,500 sq. ft. |
| Efficiency | SEER2 23 / HSPF2-4 9.9 |
| Refrigerant | R-454B, pre-charged in the Quick Connect® line sets |
| Installation Type | DIY (no HVAC professional required) |
| Indoor Unit Type | Wall Mount |
| Zone 1 | 9K BTU Wall Mount air handler — rated for spaces up to 400 sq. ft. |
| Zone 2 | 6K BTU Wall Mount air handler — rated for spaces up to 200 sq. ft. |
| Zone 3 | 6K BTU Wall Mount air handler — rated for spaces up to 200 sq. ft. |
| Zone 4 | 6K BTU Wall Mount air handler — rated for spaces up to 200 sq. ft. |
| Zone 5 | 6K BTU Wall Mount air handler — rated for spaces up to 200 sq. ft. |
| Parts Warranty | 5 years |
| Compressor Warranty | 7 years |
| Extended Warranty | Limited Lifetime Replacement warranty available by enrolling in the MRCOOL® Care Program |
| Certification | Intertek listed 5031495 |
- DIYPro® cable eliminates the need for electrical conduit.
- Follow Me® function adjusts airflow based on the remote's location.
- Dry Mode helps reduce excess indoor humidity.
