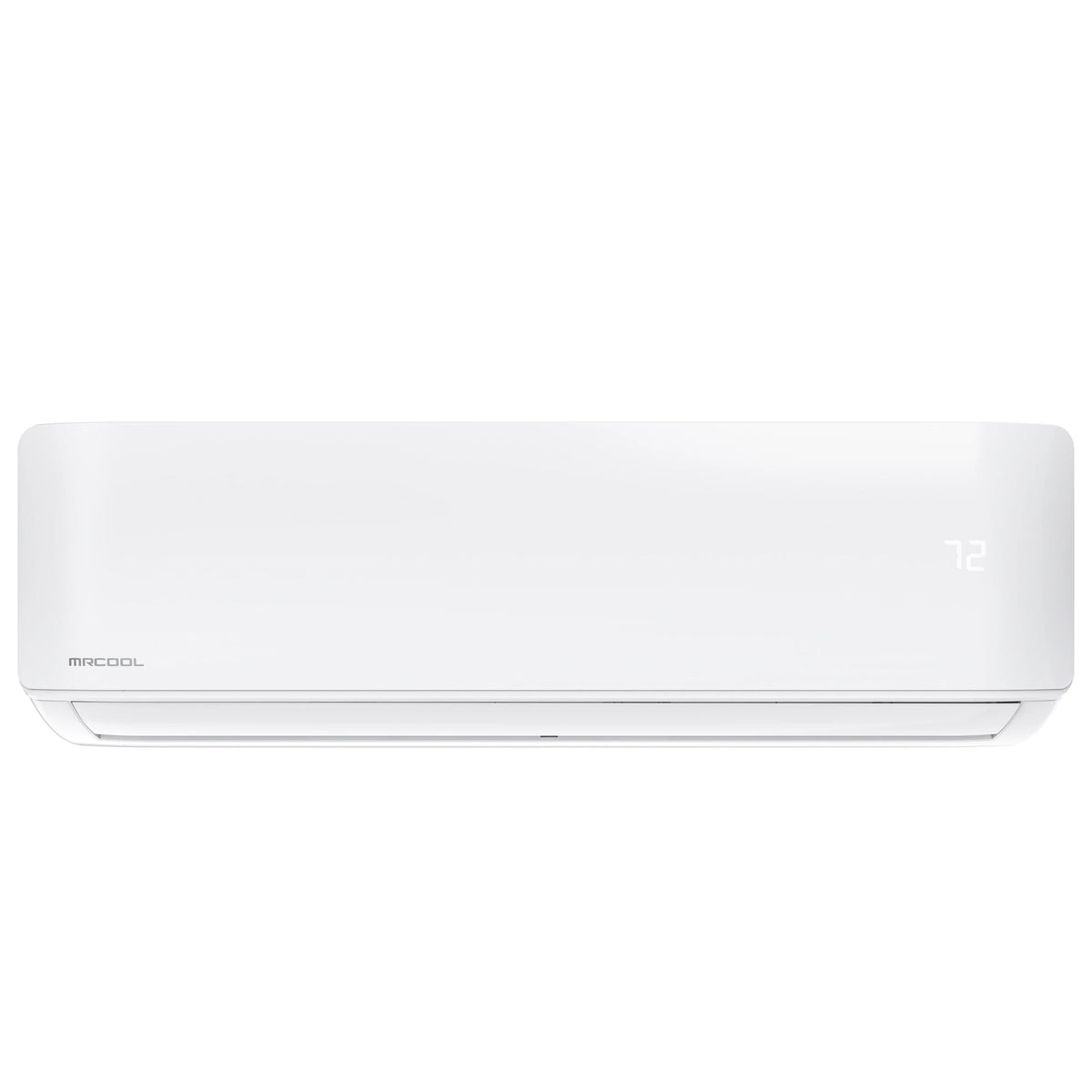

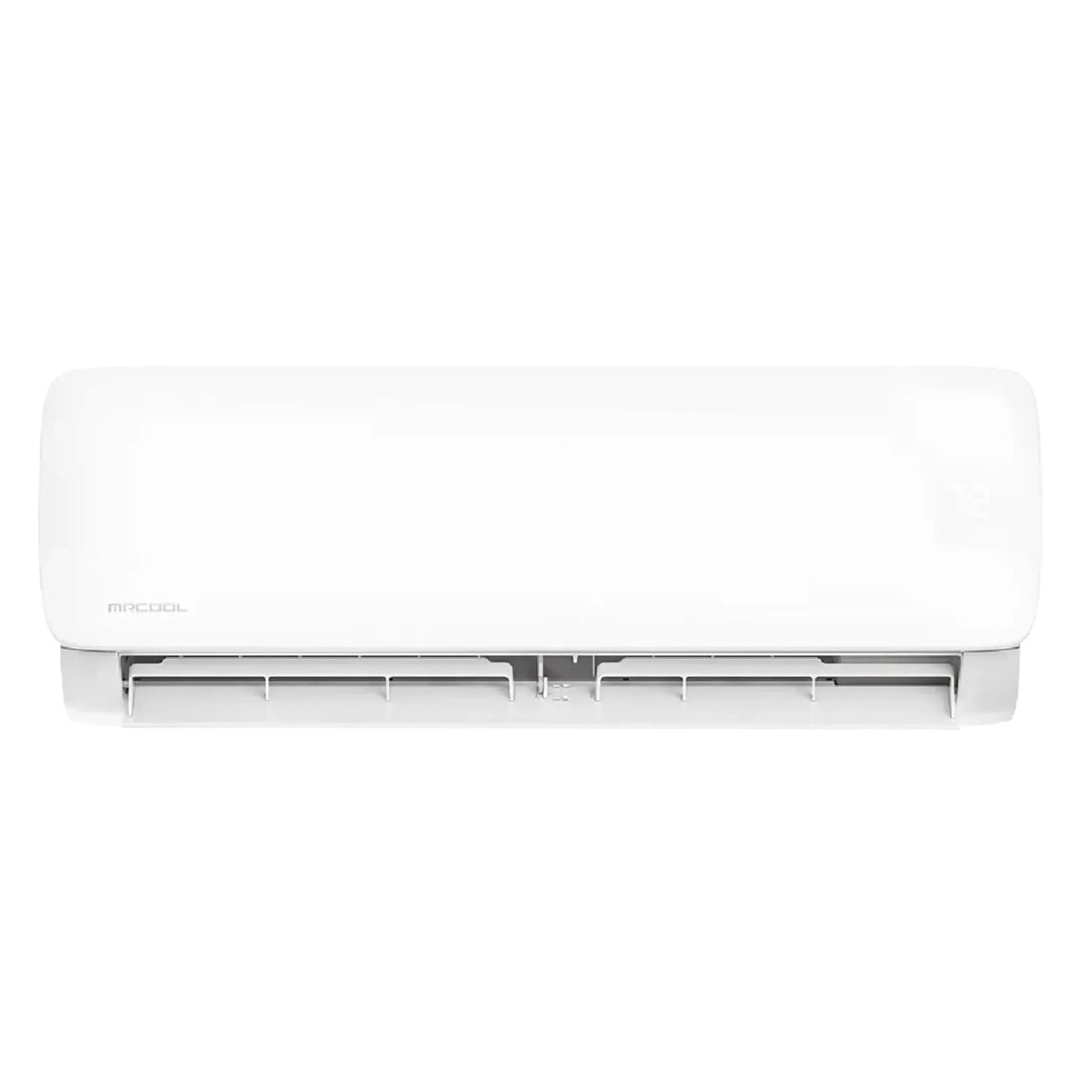

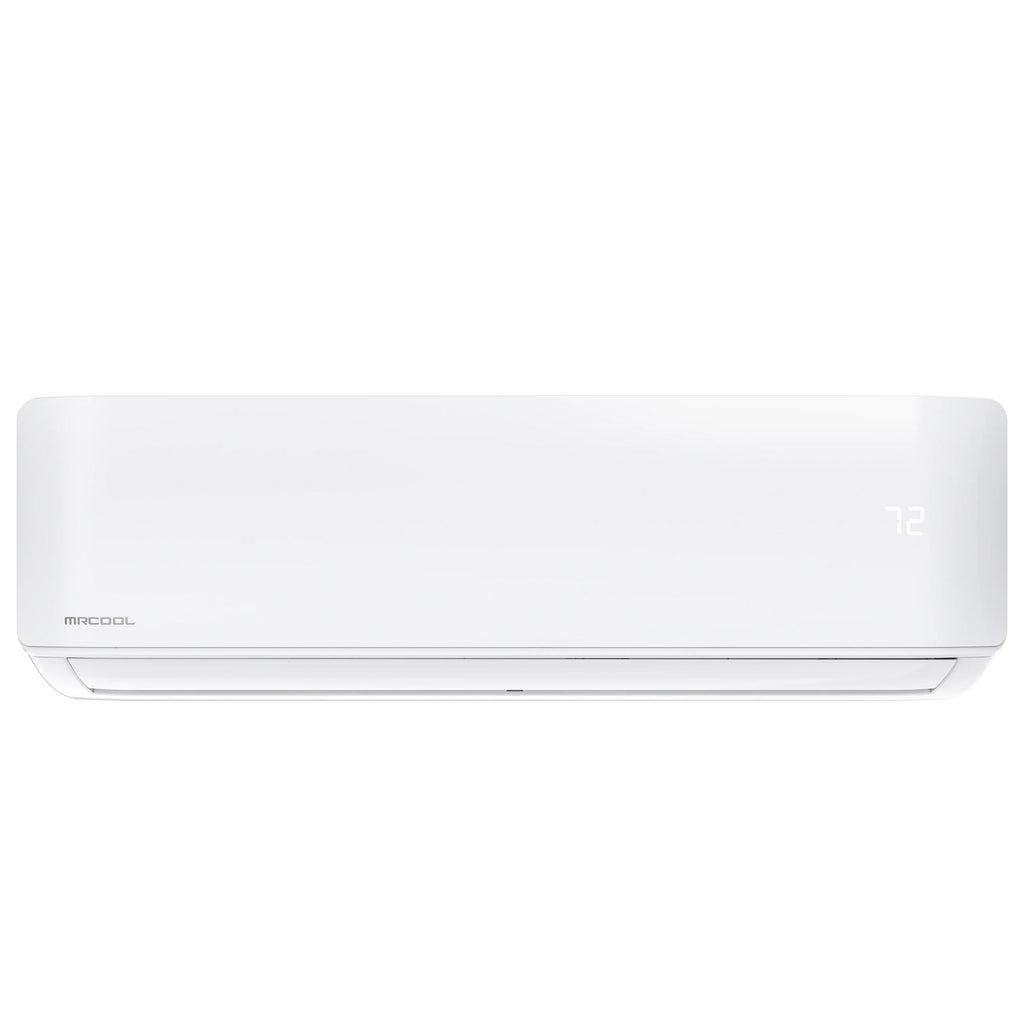

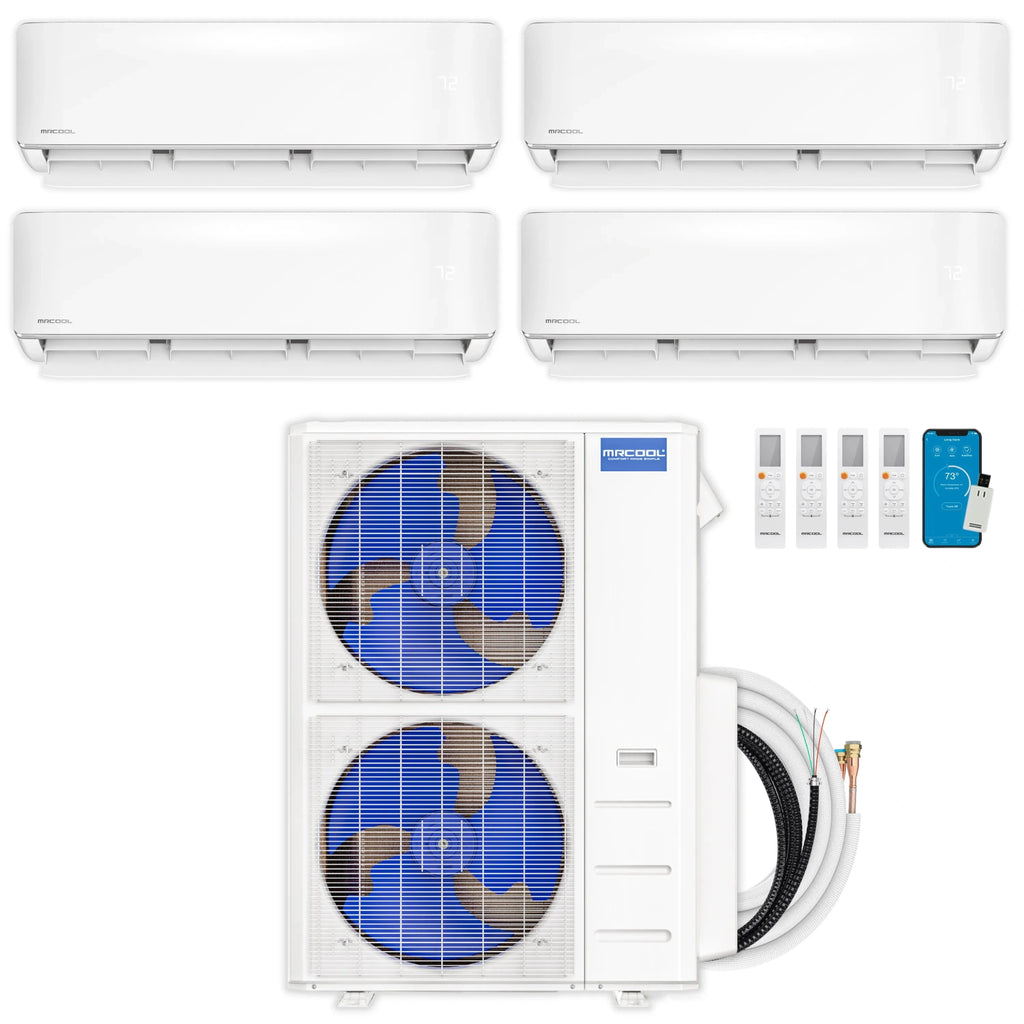

This MRCOOL DIY 5th Gen 4-Zone ductless mini-split system pairs a 55,000 BTU outdoor condenser with 24K+9K+9K+6K BTU wall mount indoor air handlers, and is designed for do-it-yourself installation without hiring an HVAC professional.
Highlights
-
Tool-free refrigerant connections — each air handler connects to the condenser with a pre-charged MRCOOL DIY Quick Connect line set filled with R-454B refrigerant, so there's no vacuuming, evacuation, or refrigerant charging required during installation.
-
Rated efficiency — this system is rated 22 SEER2 and 10.6 HSPF2-4.
-

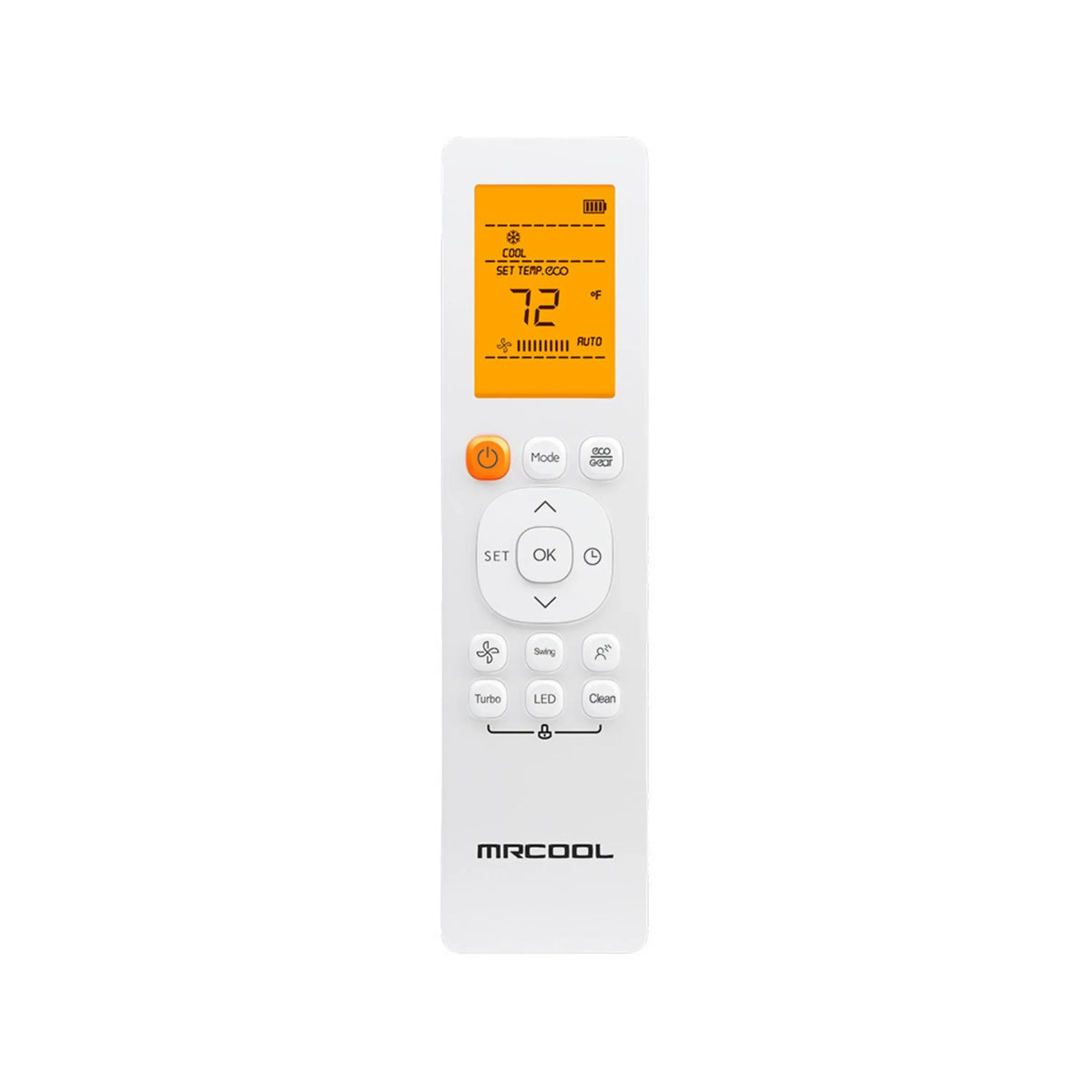

Smart controls — each zone can be managed with the included wireless remote, the MRCOOL SmartHVAC app (iOS and Android), or hands-free through Amazon Alexa and Google Assistant.
-
Conduit-free wiring — the included DIYPro cable eliminates the need for electrical conduit between the condenser and each air handler.
-
Follow Me & Dry Mode — the wireless remote's Follow Me function adjusts airflow based on the remote's location, and Dry Mode helps reduce excess indoor humidity.
-

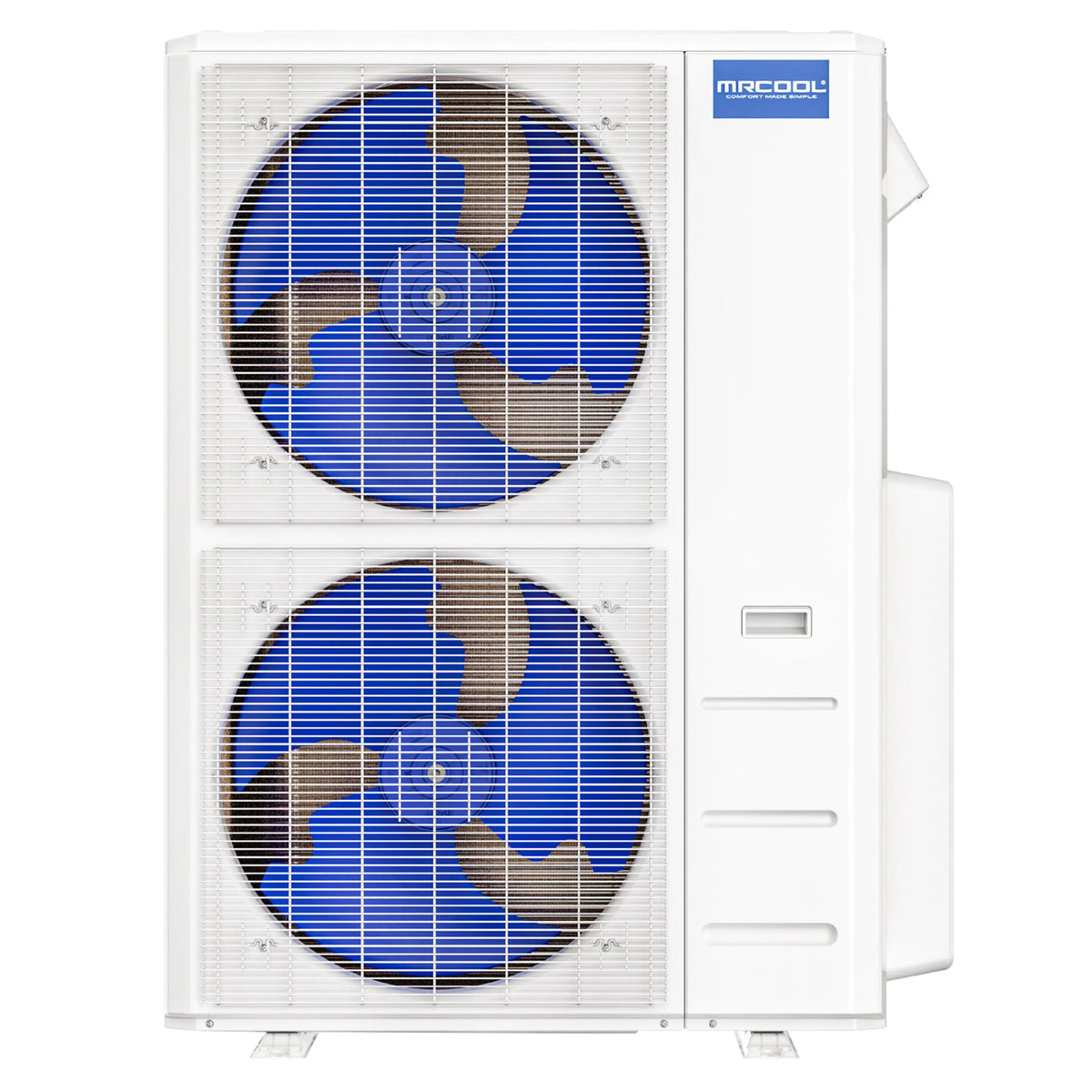

Corrosion-resistant outdoor unit — the condenser's Gold Fin coating adds protection in coastal or high-humidity climates.
Specs & Features
| Brand |
MRCOOL DIY 5th Gen |
| Installation Type |
DIY (no HVAC license required) |
| System Configuration |
4-Zone Ductless Mini-Split |
| Condenser Capacity |
55,000 BTU |
| Indoor Air Handler BTUs |
24K+9K+9K+6K BTU |

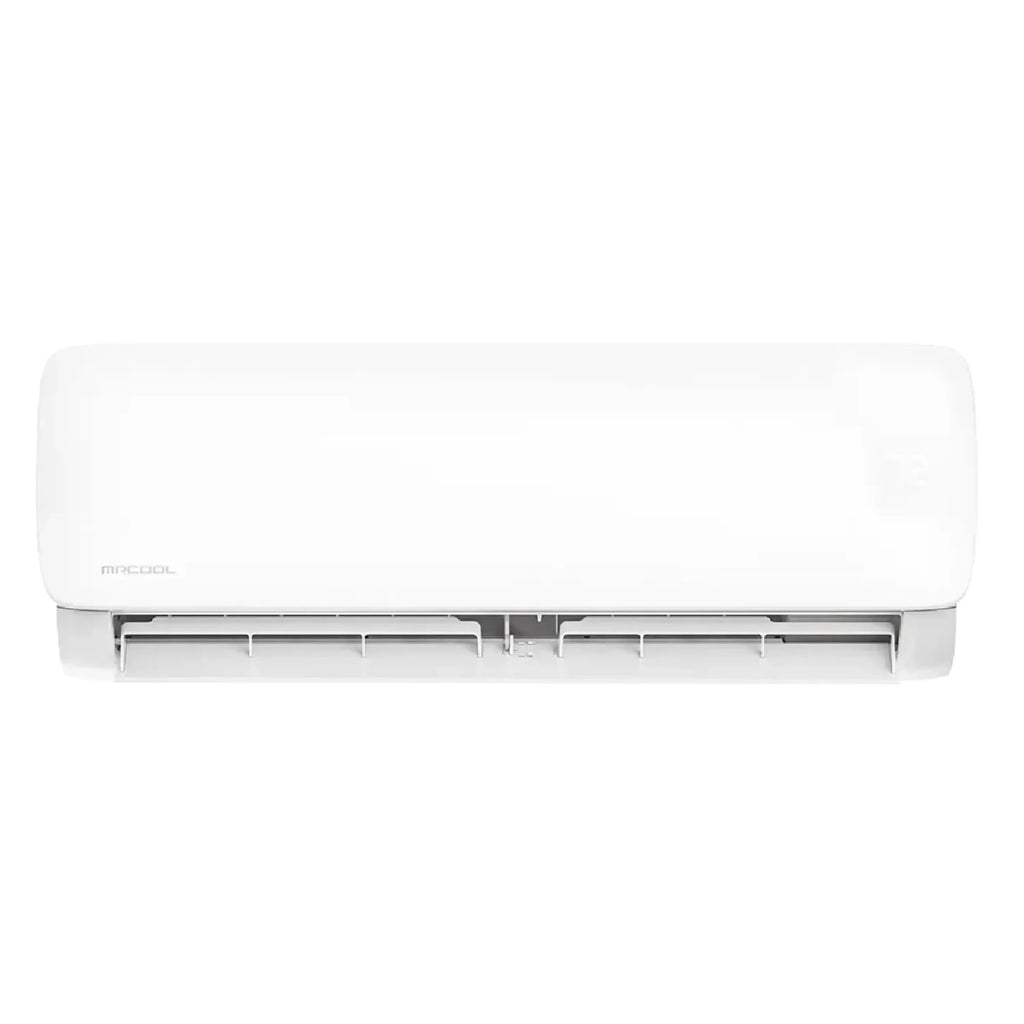

| Indoor Unit Mount Type |
Wall Mount |
| Individual Zone Coverage (per source) |
24K BTU (up to 1,050 sq. ft.); 9K BTU (up to 400 sq. ft.); 9K BTU (up to 400 sq. ft.); 6K BTU (up to 200 sq. ft.) |
| Efficiency |
22 SEER2 / 10.6 HSPF2-4 |
| Refrigerant |
R-454B, pre-charged in DIY Quick Connect line sets |
| Condenser Rated Capacity (per source) |
up to 6 zones / approx. 2,290 sq. ft. |
| Warranty |
5-year parts, 7-year compressor; Limited Lifetime Replacement available with MRCOOL Care Program enrollment |
| Certification |
Intertek Listed 5031495 |
- MRCOOL Smart HVAC Controller Module and app support Google Assistant and Amazon Alexa out of the box.
- DIYPro cable and Follow Me remote function included on each indoor unit.
Details
Avermont Direct is an authorized MRCOOL dealer. This 4-zone wall mount system is backed by a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available to customers who enroll in the MRCOOL Care Program. It's a fit for homeowners who want to condition multiple rooms from a single outdoor condenser without opening walls for ductwork. Note: this condenser is rated for up to 6 zones and approximately 2,290 sq. ft. of total capacity per MRCOOL; this listing is configured as a 4-zone system with the 24K+9K+9K+6K BTU indoor units above, and it is normal for a multi-zone MRCOOL condenser's rated capacity not to exactly equal the sum of the individual indoor unit ratings.
