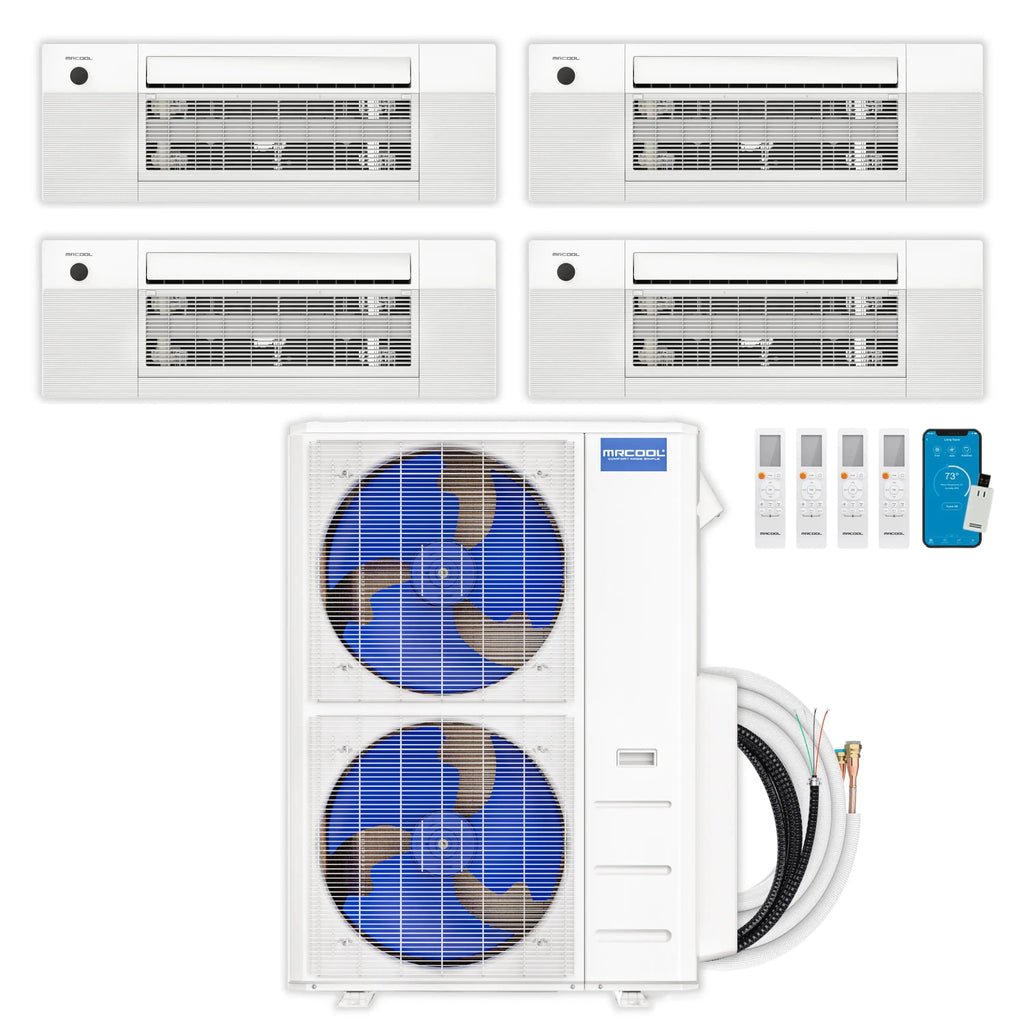

What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

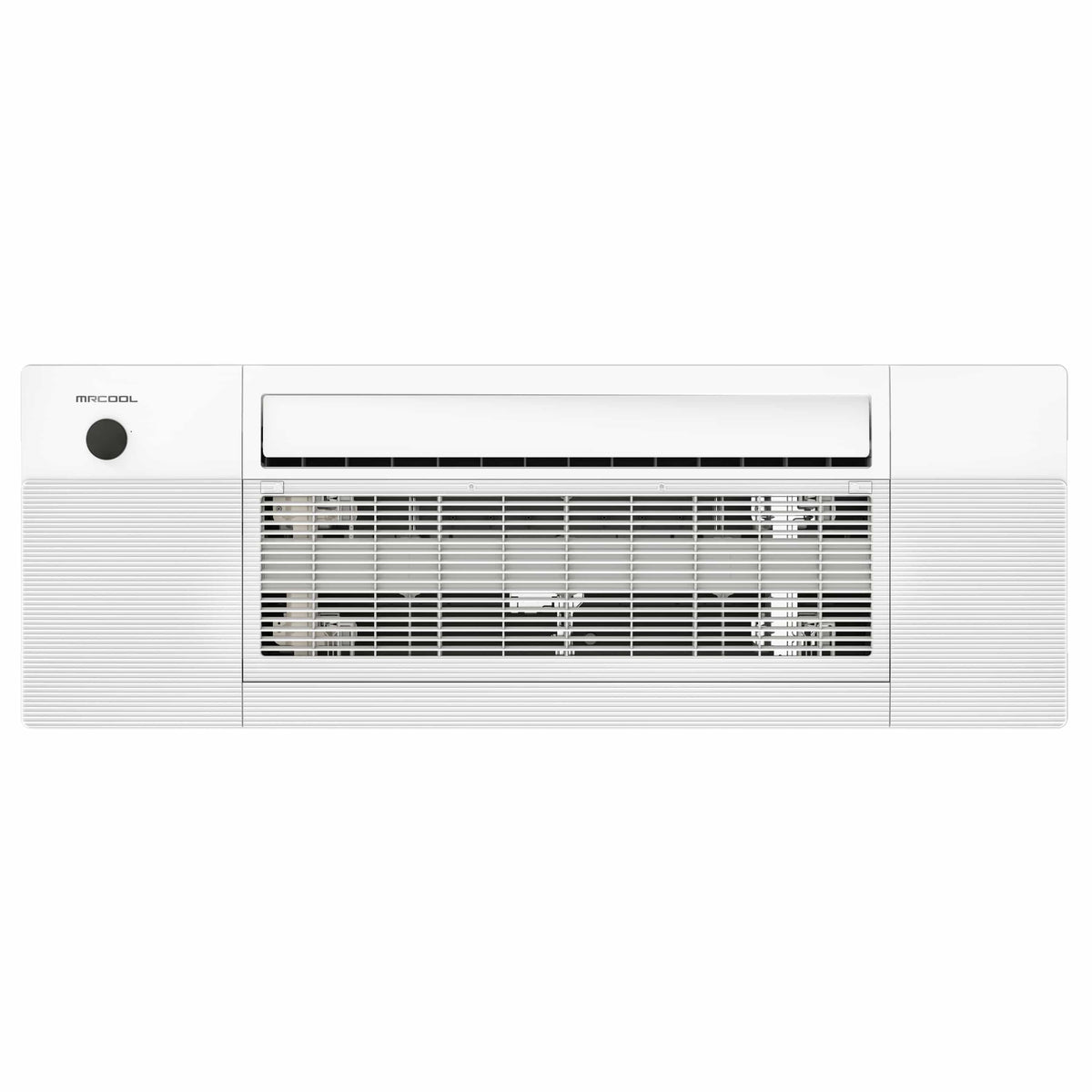

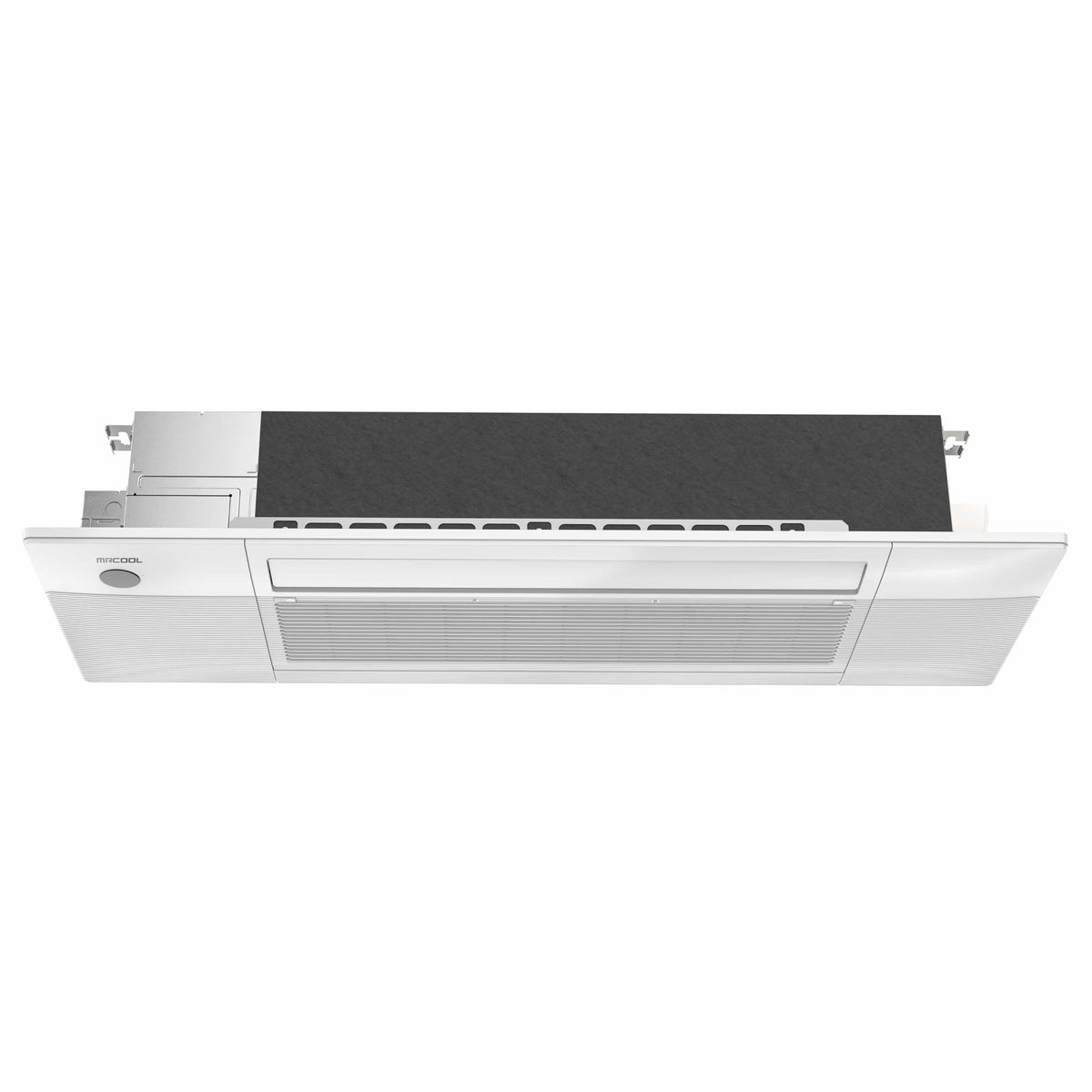

This MRCOOL DIY 5th Gen 4-zone system pairs a 55,000 BTU heat pump condenser with four OuttaSight one-way ceiling cassettes (18K + 18K + 9K + 6K BTU), and it is designed to be installed without an HVAC professional.
Highlights
- Pre-charged Quick-Connect line set design with R-454B refrigerant lets you skip evacuation and charging
- SEER2 of 22 and HSPF2-4 of 10.6

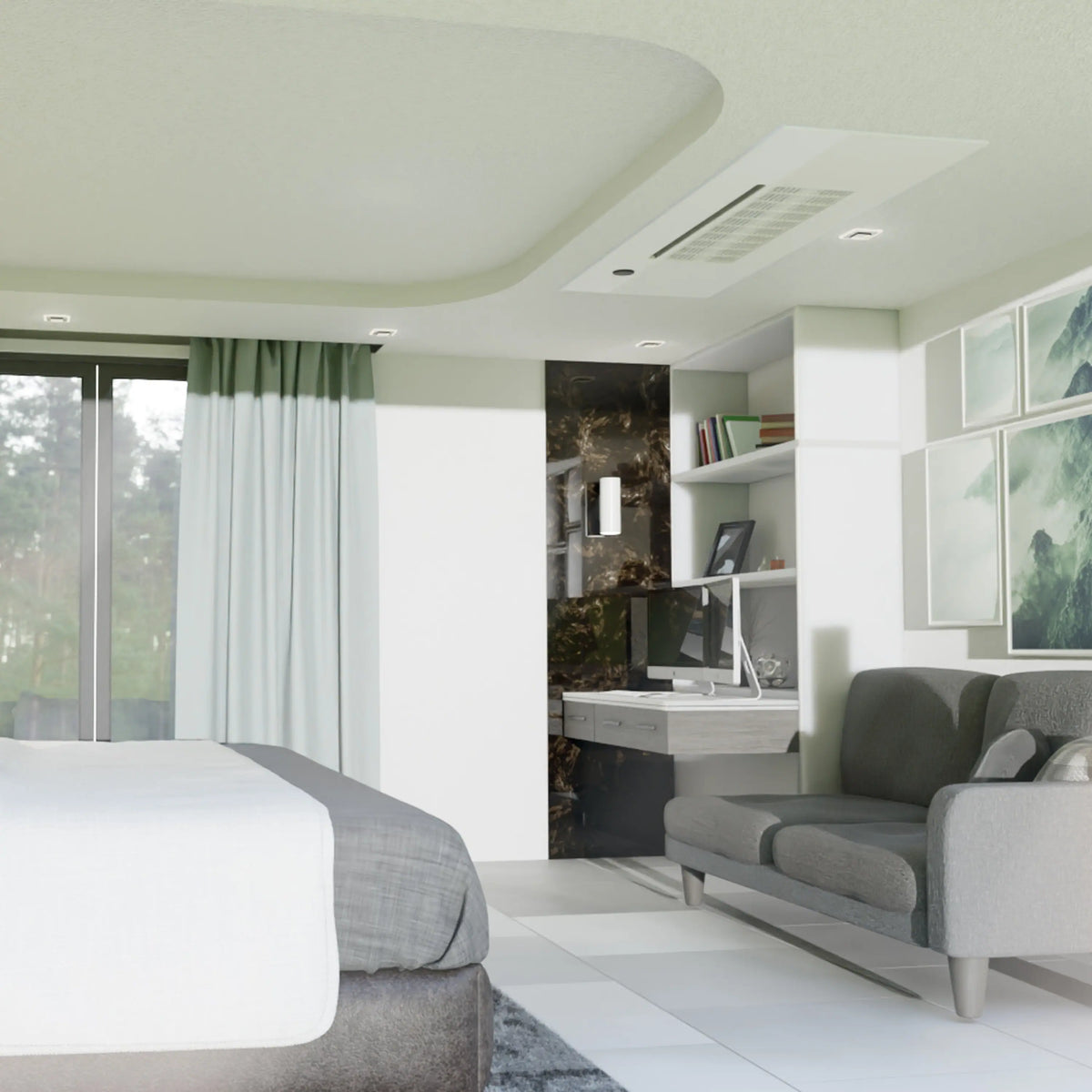

- Four low-profile ceiling cassettes fit between 16" ceiling joists, including pre-manufactured I-joists, for a flush look
- Elevation function lowers the filter panel for easy cleaning
- Smart HVAC app (Apple and Android) for schedules, modes and energy monitoring, with Amazon Alexa and Google Assistant voice control
- Included DIYPro cable eliminates the need for electrical conduit
Details
Avermont Direct is an authorized MRCOOL dealer. The system carries a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available after enrolling in the MRCOOL Care Program. It is a fit for homeowners who want ceiling-mounted ductless comfort across four rooms and plan to handle the installation themselves.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 55,000 BTU |
| Zones | 4 |
| Indoor Units | Two 18K BTU, one 9K BTU and one 6K BTU OuttaSight one-way ceiling cassettes (230V) |
| Cassette Coverage | 18K: up to 800 sq. ft. each; 9K: up to 400 sq. ft.; 6K: up to 200 sq. ft. |
| Refrigerant | R-454B |
| SEER2 | 22 |
| HSPF2-4 | 10.6 |
| Installation | DIY |
| Listing | Intertek listed 5031495 |
| Warranty | 5-year parts, 7-year compressor; Limited Lifetime Replacement with MRCOOL Care Program enrollment |
- Remote included with each air handler; Follow Me function tracks the temperature around you
- Cassettes feature a two-stage DC motor, swing technology, multiple operating modes and advanced filtration
- Cassettes work with multi-zone and single-zone systems and suit new construction or retrofit projects
- Includes DIYPro cable
