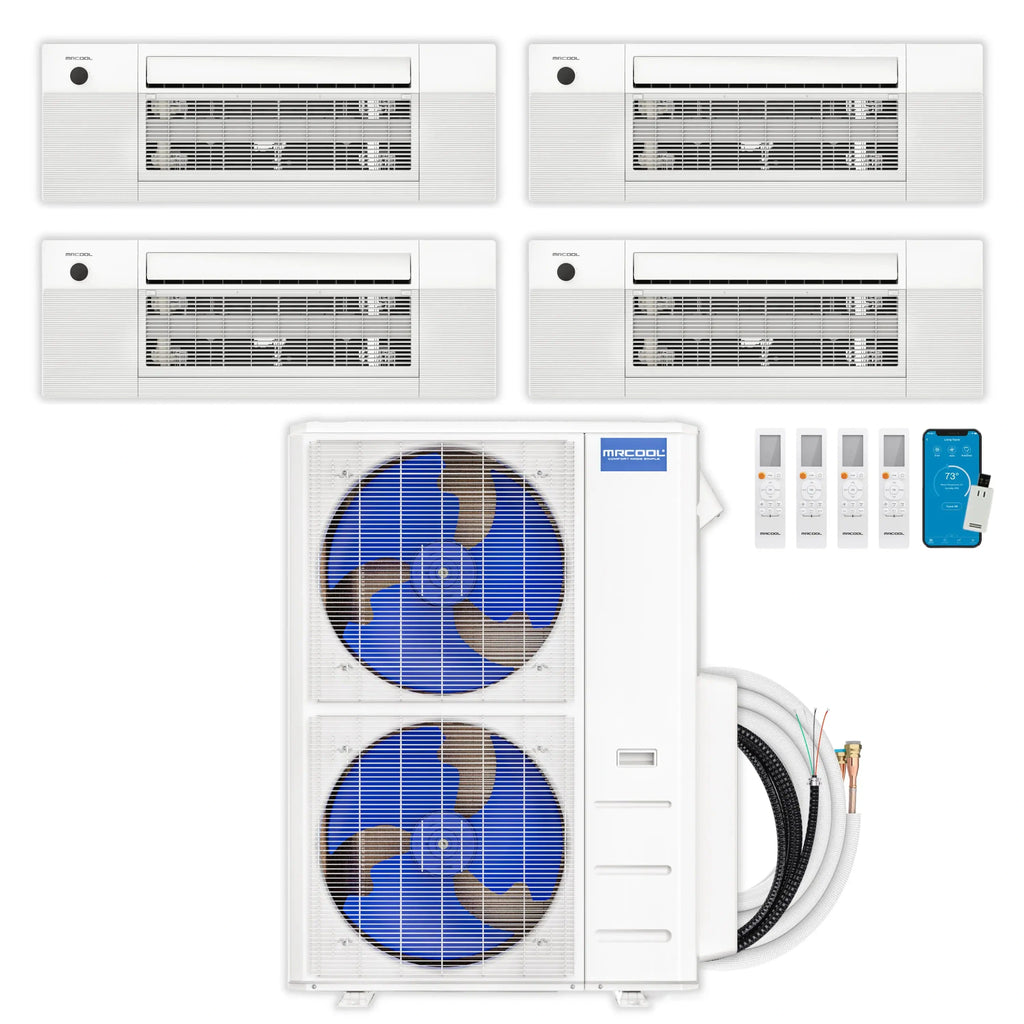

What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description
This MRCOOL® DIY® 5th Generation 55,000 BTU multi-zone ductless mini-split condenser powers four independently controlled ceiling cassette air handlers (12K + 6K + 6K + 6K BTU), rated at 22 SEER2 and 10.6 HSPF2-4 efficiency. It installs without a licensed HVAC technician, using MRCOOL®'s pre-charged Quick Connect® line sets.
Highlights
- True DIY installation — pre-charged Quick Connect® line sets (R-454B refrigerant) skip the evacuating and vacuuming steps a professional install requires.
- 22 SEER2 / 10.6 HSPF2-4 efficiency rating helps lower year-round heating and cooling costs.
- Low-profile cassettes fit flush between 16" ceiling joists (including pre-manufactured I-joists) for a discreet, no-ductwork install.
- Elevation function lowers the filter panel for easy access during maintenance.
- Advanced filtration and a whisper-quiet, two-stage DC motor.
- Control each zone from the SmartHVAC app (iOS/Android) or hands-free with Amazon Alexa and Google Assistant.
Details
Avermont Direct is an authorized MRCOOL dealer. This system is backed by MRCOOL®'s 5-year parts and 7-year compressor warranty, extendable to a Limited Lifetime Replacement warranty through the MRCOOL® Care Program. It's a practical option for homeowners who want independent temperature control in four rooms — such as bedrooms, a home office, or an addition — without the cost of ductwork or a professional HVAC installation crew.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 55,000 BTU |
| Zones | 4 |
| Indoor Air Handler Type | Ceiling Cassette |
| Indoor Air Handler Sizes | 12K + 6K + 6K + 6K BTU |
| Efficiency | 22 SEER2 / 10.6 HSPF2-4 |
| Refrigerant | R-454B (pre-charged Quick Connect® line sets) |
| Installation Type | DIY — no professional HVAC installation required |
| Controls | Wireless remote, SmartHVAC app, Amazon Alexa, Google Assistant |
| Certification | Intertek listed 5031495 |
| Parts Warranty | 5 years |
| Compressor Warranty | 7 years |
| Extended Warranty | Limited Lifetime Replacement with MRCOOL® Care Program enrollment |
| Zone Coverage 1 | 12,000 BTU air handler (×1) – up to 550 sq. ft. each |
| Zone Coverage 2 | 6,000 BTU air handlers (×3) – up to 200 sq. ft. each |
- Swing Technology for even air distribution
- Advanced filtration for improved indoor air quality
- Low-profile fit between 16" ceiling joists
