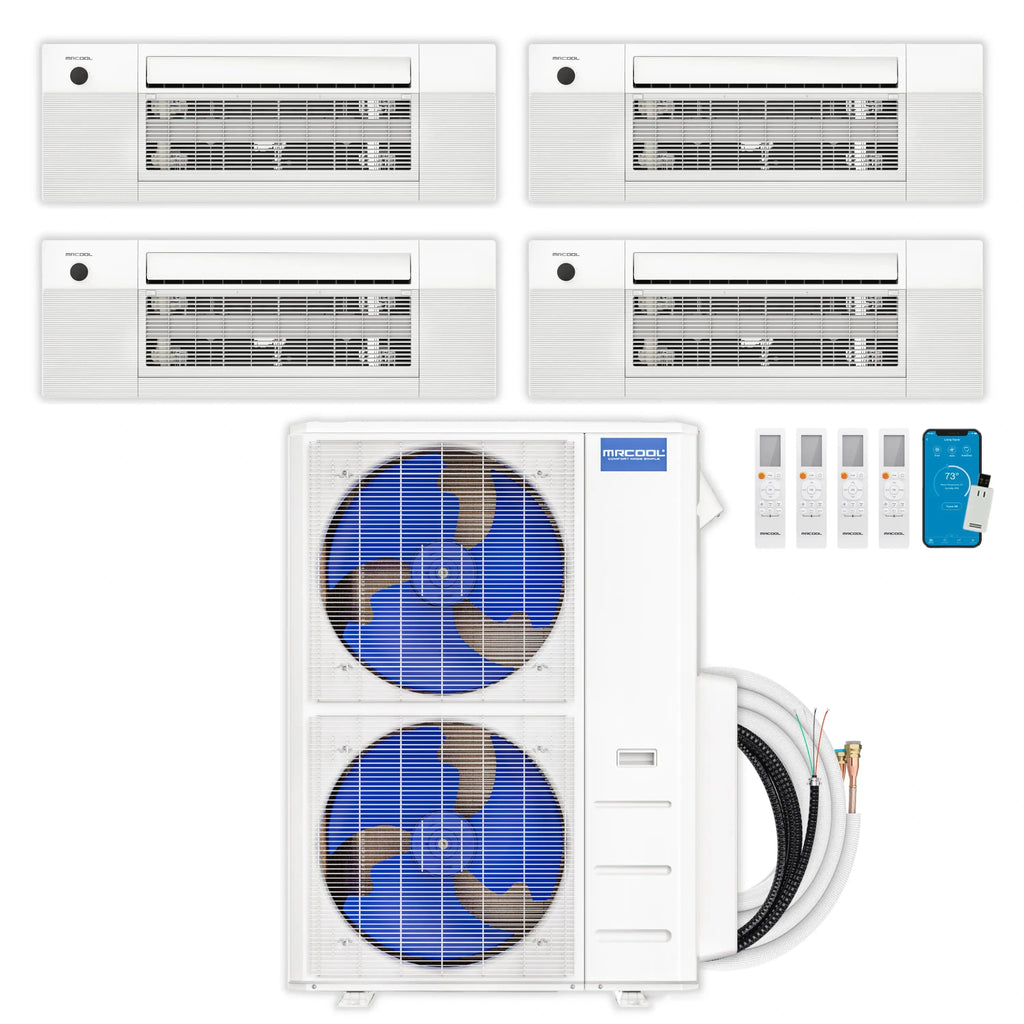

This MRCOOL® DIY® 5th Generation 48,000 BTU multi-zone ductless mini-split condenser powers four independently controlled ceiling cassette air handlers (9K + 9K + 6K + 6K BTU), rated at 21.8 SEER2 and 10 HSPF2-4 efficiency. It installs without a licensed HVAC technician, using MRCOOL®'s pre-charged Quick Connect® line sets.
Highlights
- True DIY installation — pre-charged Quick Connect® line sets (R-454B refrigerant) skip the evacuating and vacuuming steps a professional install requires.
- 21.8 SEER2 / 10 HSPF2-4 efficiency rating helps lower year-round heating and cooling costs.
- Low-profile cassettes fit flush between 16" ceiling joists (including pre-manufactured I-joists) for a discreet, no-ductwork install.
- Elevation function lowers the filter panel for easy access during maintenance.
- Advanced filtration and a whisper-quiet, two-stage DC motor.
- Control each zone from the SmartHVAC app (iOS/Android) or hands-free with Amazon Alexa and Google Assistant.
Specs & Features
| Condenser Capacity |
48,000 BTU |
| Zones |
4 |
| Indoor Air Handler Type |
Ceiling Cassette |
| Indoor Air Handler Sizes |
9K + 9K + 6K + 6K BTU |
| Efficiency |
21.8 SEER2 / 10 HSPF2-4 |
| Refrigerant |
R-454B (pre-charged Quick Connect® line sets) |
| Installation Type |
DIY — no professional HVAC installation required |
| Controls |
Wireless remote, SmartHVAC app, Amazon Alexa, Google Assistant |
| Certification |
Intertek listed 5031495 |
| Parts Warranty |
5 years |
| Compressor Warranty |
7 years |
| Extended Warranty |
Limited Lifetime Replacement with MRCOOL® Care Program enrollment |
| Zone Coverage 1 |
9,000 BTU air handlers (×2) – up to 400 sq. ft. each |
| Zone Coverage 2 |
6,000 BTU air handlers (×2) – up to 200 sq. ft. each |
- Swing Technology for even air distribution
- Advanced filtration for improved indoor air quality
- Low-profile fit between 16" ceiling joists
Details
Avermont Direct is an authorized MRCOOL dealer. This system is backed by MRCOOL®'s 5-year parts and 7-year compressor warranty, extendable to a Limited Lifetime Replacement warranty through the MRCOOL® Care Program. It's a practical option for homeowners who want independent temperature control in four rooms — such as bedrooms, a home office, or an addition — without the cost of ductwork or a professional HVAC installation crew.
