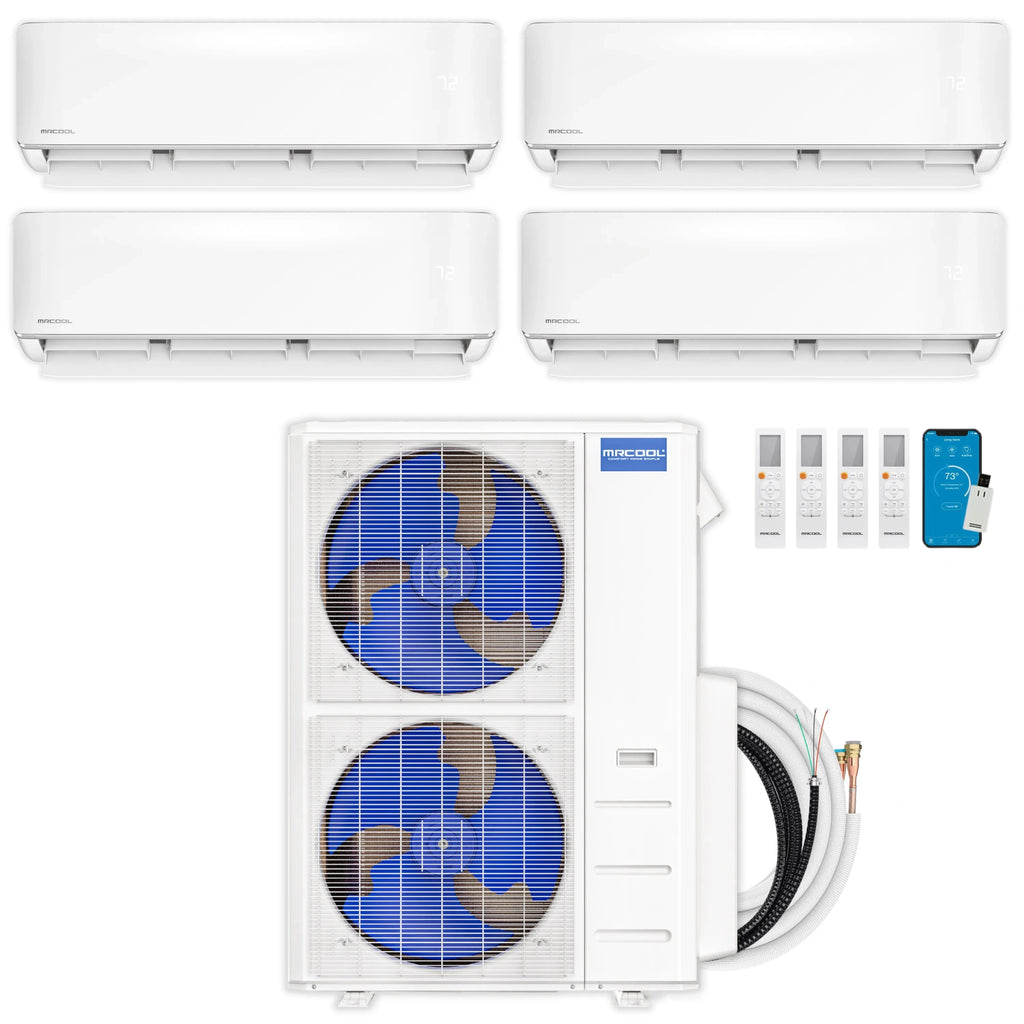

This MRCOOL DIY 5th Gen Multi-Zone Mini-Split pairs a 48,000-BTU outdoor condenser with 4 wall-mount indoor air handlers (18K + 12K + 9K + 9K BTU), giving you 4 independently controlled zones from a single DIY-installed system with pre-charged Quick Connect line sets and R-454B refrigerant.
Highlights
-
4-zone DIY system — one 48,000 BTU outdoor condenser runs 4 indoor wall-mount air handlers (18K + 12K + 9K + 9K BTU), each with independent temperature control.
-
No professional installation required — patented pre-charged Quick Connect line sets let you skip the evacuating/charging process an HVAC pro would normally handle.
-
High-efficiency R-454B refrigerant system — rated at 21.8 SEER2 and an HSPF2-4 of 10 for efficient year-round heating and cooling.
-
DIYPro cable included — future-proofs the installation by eliminating the need for electrical conduit.
-
Follow Me function — the included remote tracks the temperature around you for more consistent comfort, plus Dry Mode for humidity control and a Gold Fin condenser coil for added corrosion resistance.
-
Smart controls — operate via wireless remote, the SmartHVAC app (iOS/Android), or hands-free through Amazon Alexa and Google Assistant.
Specs & Features
| Spec |
Value |
| Condenser Capacity |
48,000 BTU |
| Zones |
4 (18K + 12K + 9K + 9K BTU) |
| Indoor Air Handler Type |
Wall Mount |
| Efficiency |
21.8 SEER2 / HSPF2-4 of 10 |
| Refrigerant |
R-454B (pre-charged Quick Connect line sets) |
| Combined Indoor Coverage |
Up to 2,150 sq. ft. across all zones |
| Installation |
DIY — no HVAC professional required |
| Parts Warranty |
5 years |
| Compressor Warranty |
7 years |
| Extended Warranty |
Limited Lifetime Replacement with MRCOOL Care Program subscription |
| Certification |
Intertek listed 5031495 |
Per-zone coverage: 18K BTU (up to 800 sq. ft.), 12K BTU (up to 550 sq. ft.), 9K BTU (up to 400 sq. ft.), 9K BTU (up to 400 sq. ft.).
- Smart HVAC Controller Module and app support Google Assistant and Amazon Alexa out of the box.
- Individual indoor-unit BTU ratings are sized independently of the outdoor condenser's rated capacity, which is standard for MRCOOL multi-zone system design.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 4-zone DIY mini-split system is built for homeowners who want ductless heating and cooling in multiple rooms without hiring an HVAC contractor. The 48,000 BTU condenser and 4 wall-mount air handlers are backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL Care Program. It's a practical fit for covering several rooms or an entire home from one outdoor unit.
