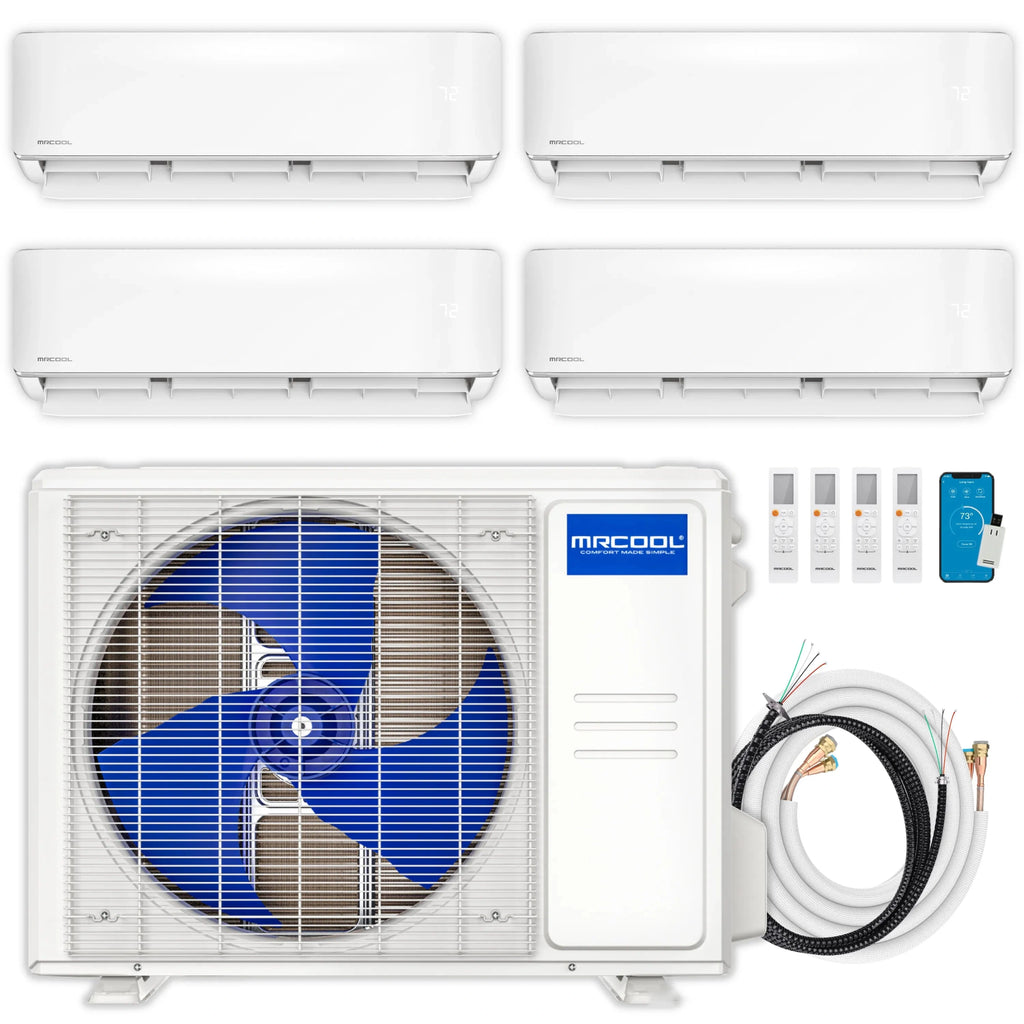

This MRCOOL DIY 5th Gen 4-Zone 36,000 BTU ductless mini-split system pairs a single outdoor condenser with four wall mount indoor air handlers (9K + 9K + 6K + 6K BTU), and is rated at 23 SEER2 / 9.9 HSPF2. It's designed to be installed without the assistance of an HVAC professional, using pre-charged Quick Connect line sets that skip the evacuation and charging process.
Highlights
-
Do-it-yourself install — pre-charged 25-ft Quick Connect line sets (R-454B refrigerant) eliminate the vacuuming and evacuation steps a licensed HVAC technician would otherwise handle.
-
No electrical conduit needed — the included DIYPro cable replaces conduit for the condenser wiring run and adds durability against outdoor elements and wildlife.
-
Smart, zone-by-zone control — each indoor unit ships with a wireless remote and can be managed individually through the SmartHVAC app or by voice through Amazon Alexa and Google Assistant.
-
Follow Me temperature tracking — the remote reports ambient temperature from its own location so the system can adjust airflow for more even comfort.
-
Corrosion-resistant outdoor unit — the condenser's Gold Fin coating is built to hold up in coastal or harsh outdoor environments.
-
Dry Mode — each wall mount air handler can run as a dehumidifier to help manage indoor humidity.
Specs & Features
| System Type |
4-Zone Ductless Mini-Split (DIY Installation) |
| Condenser Capacity |
36,000 BTU |
| Zone 1 |
9K BTU Wall Mount air handler — up to 400 sq ft |
| Zone 2 |
9K BTU Wall Mount air handler — up to 400 sq ft |
| Zone 3 |
6K BTU Wall Mount air handler — up to 200 sq ft |
| Zone 4 |
6K BTU Wall Mount air handler — up to 200 sq ft |
| Efficiency |
23 SEER2 / 9.9 HSPF2 |
| Refrigerant |
R-454B, pre-charged in Quick Connect line sets |
| Indoor Unit Style |
Wall Mount |
| Controls |
Included wireless remote, SmartHVAC app (iOS/Android), Amazon Alexa & Google Assistant compatible |
| Certification |
Intertek listed 5031495 |
| Warranty |
5-year parts, 7-year compressor; Limited Lifetime Replacement warranty available by enrolling in the MRCOOL Care Program |
- DIYPro cable included, removing the need for electrical conduit between condenser and disconnect.
- Wall mount air handlers use the Gold Fin condenser coil for added corrosion resistance.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 4-zone system is backed by MRCOOL's standard 5-year parts and 7-year compressor warranty, with a Limited Lifetime Replacement warranty available when the condenser is registered through the MRCOOL Care Program. Because each of the four wall mount indoor units is controlled independently, this system suits homes that need different temperatures across multiple rooms without extending or modifying existing ductwork.
