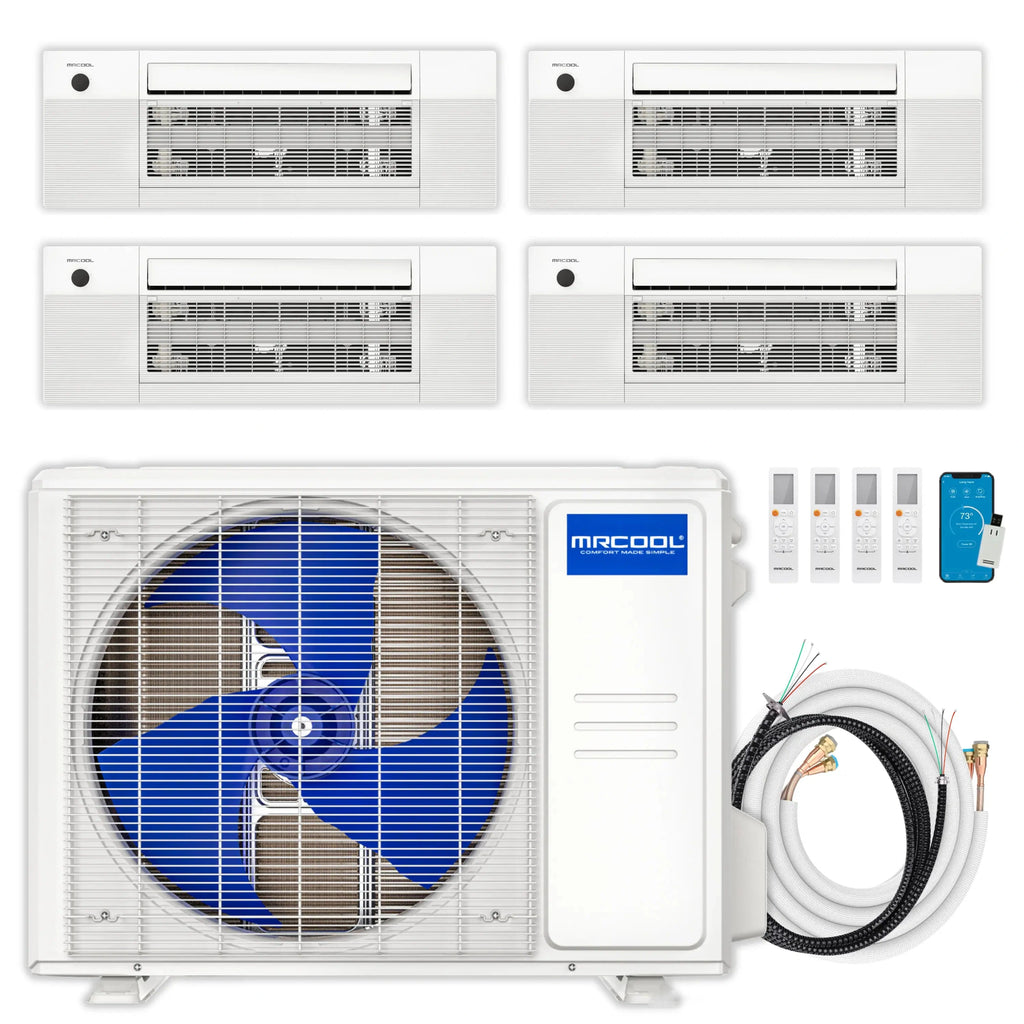

This MRCOOL DIY 5th Generation 4-Zone Mini Split pairs a 36,000 BTU ductless heat pump condenser with four ceiling cassette indoor air handlers rated at 9K + 6K + 6K + 6K BTU, giving each zone independent temperature control. The condenser is rated at SEER2 23 and HSPF2 9.9, and the system's DIY QuickConnect line sets come pre-charged with R-454B refrigerant, so installation doesn't require vacuuming or a licensed HVAC technician.
Highlights
- Pre-charged 25-ft DIY QuickConnect line sets (R-454B refrigerant) eliminate the vacuuming step, cutting installation time and cost.
- Included DIYPRO cable removes the need for electrical conduit while adding durability against outdoor elements.
- Control every zone from the included wireless remote, the SmartHVAC app (iOS/Android), or hands-free through Amazon Alexa and Google Assistant.
- Follow Me function tracks the temperature near the remote's location so each zone stays evenly comfortable.
- Rated SEER2 23 / HSPF2 9.9 for efficient year-round heating and cooling.

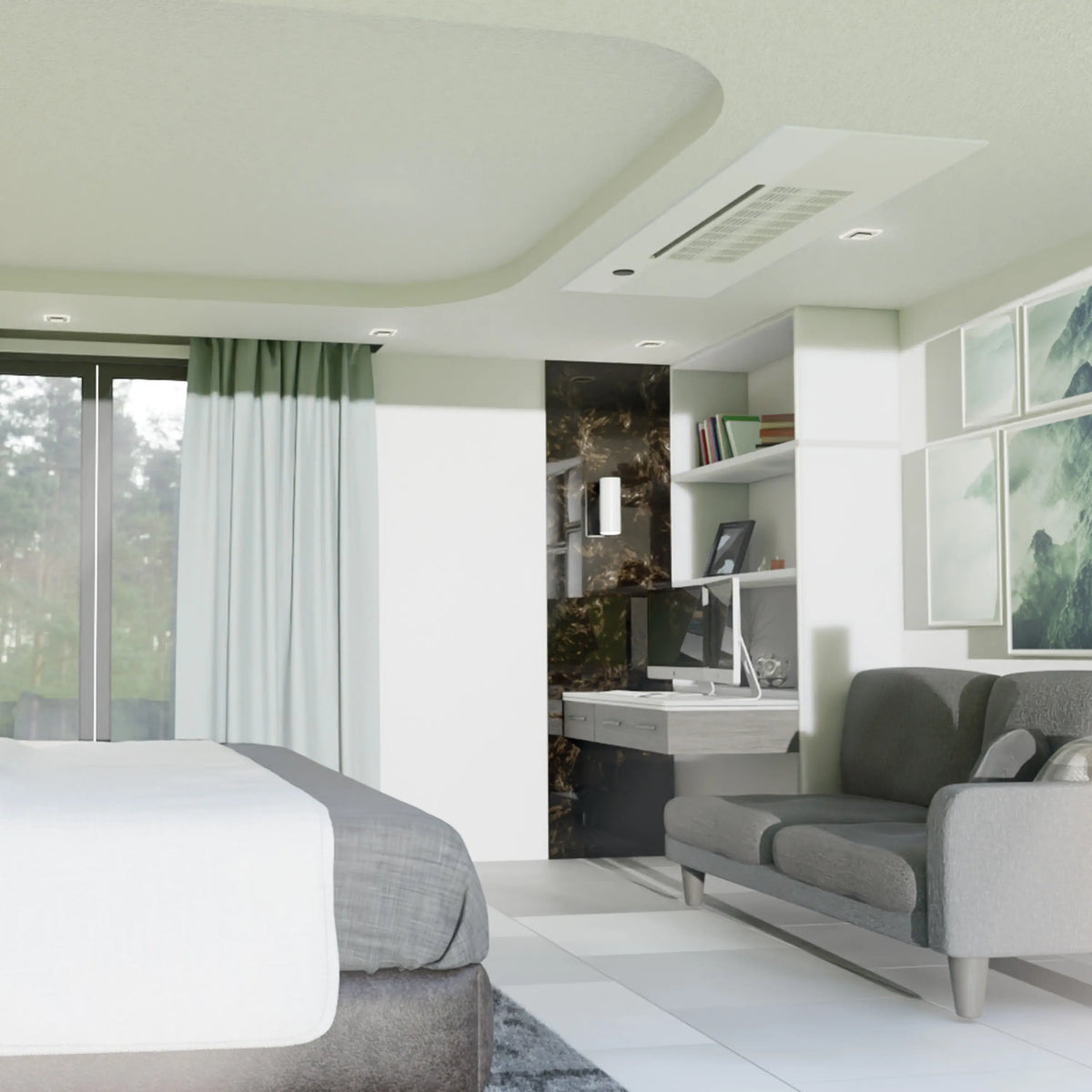

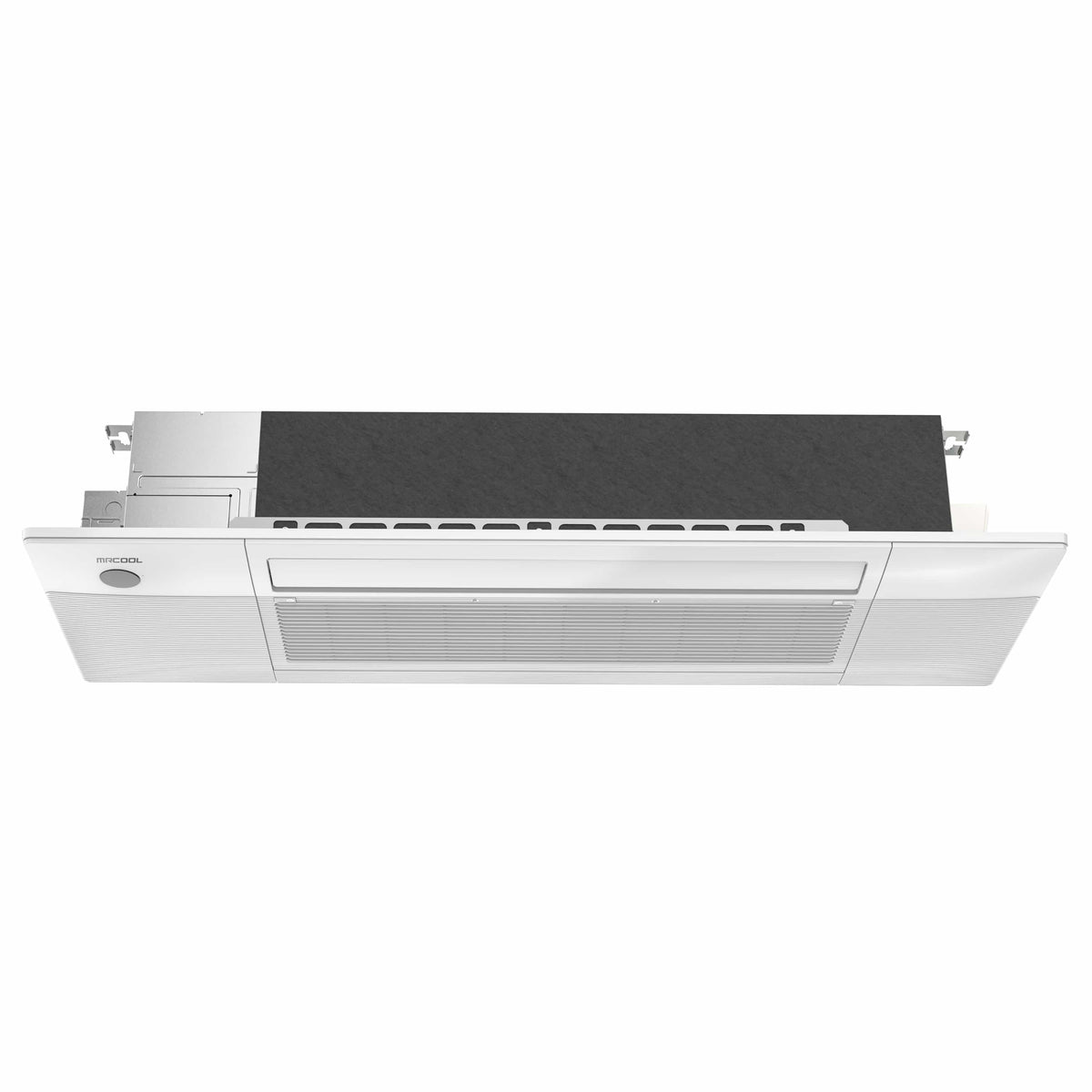

- Low-profile ceiling cassettes fit flush between standard 16" ceiling joists (including pre-manufactured I-joists) with no ductwork or extra wall space needed.
- Two-stage DC motor, Swing Technology, and an Elevation function that lowers the filter panel for easy cleaning.
Specs & Features

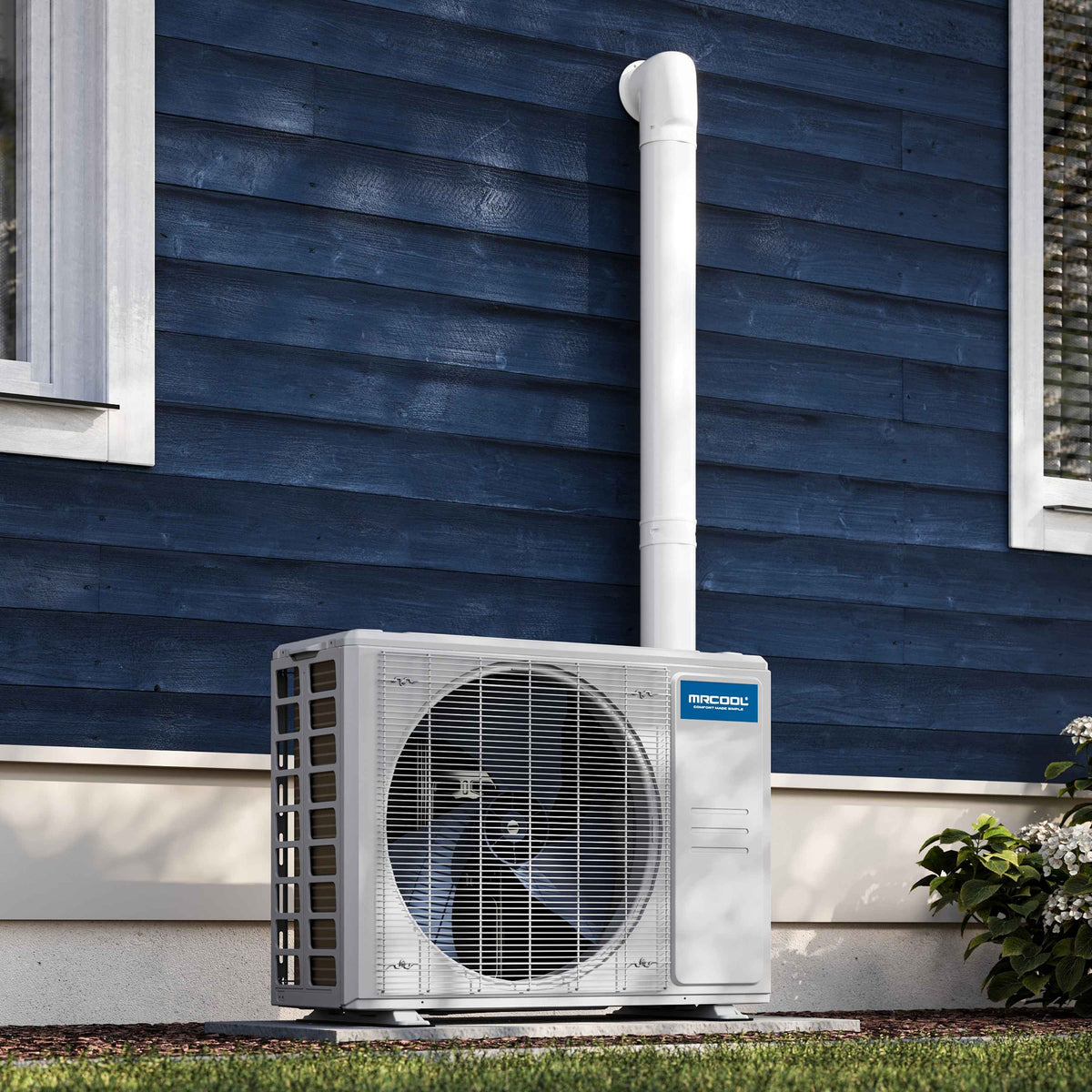

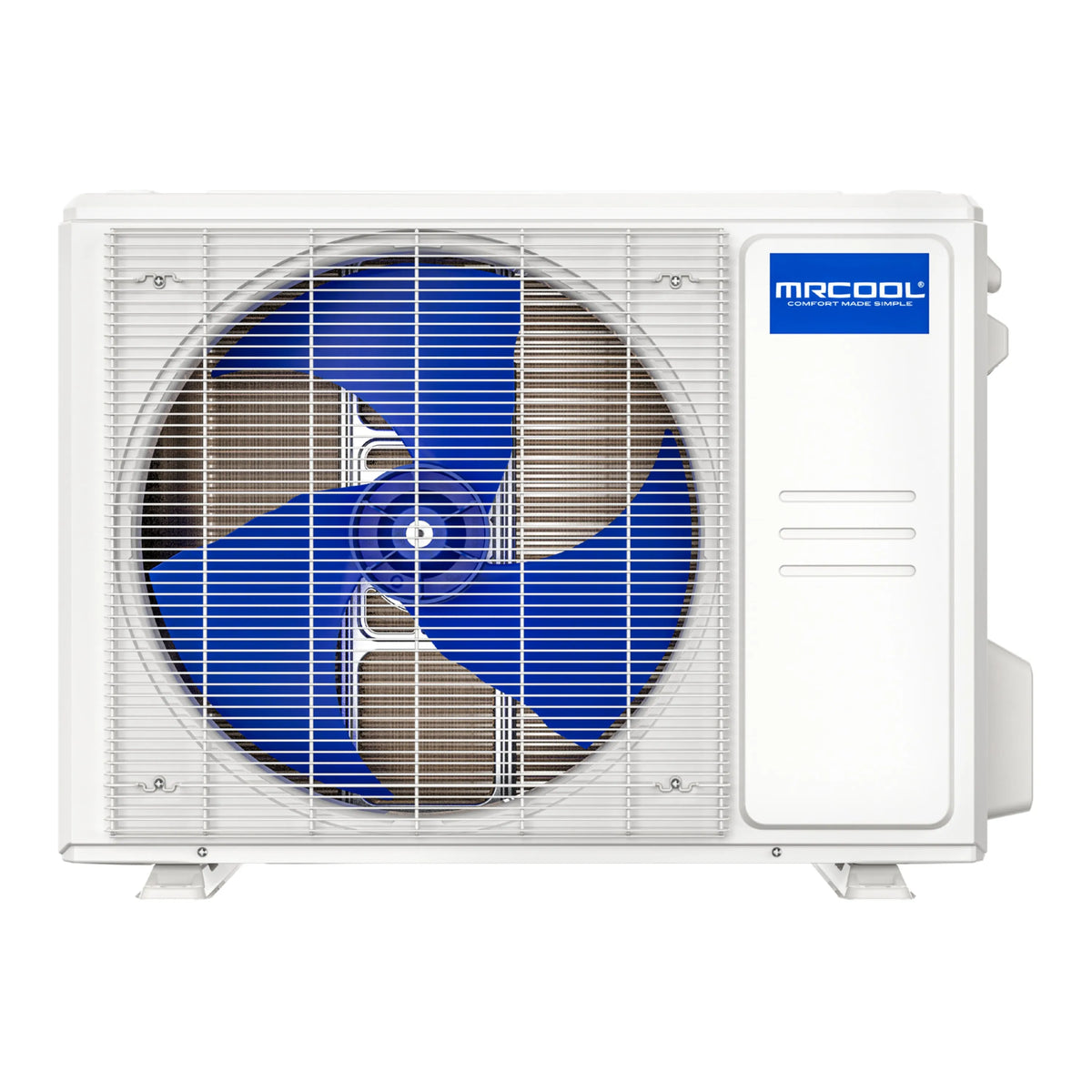

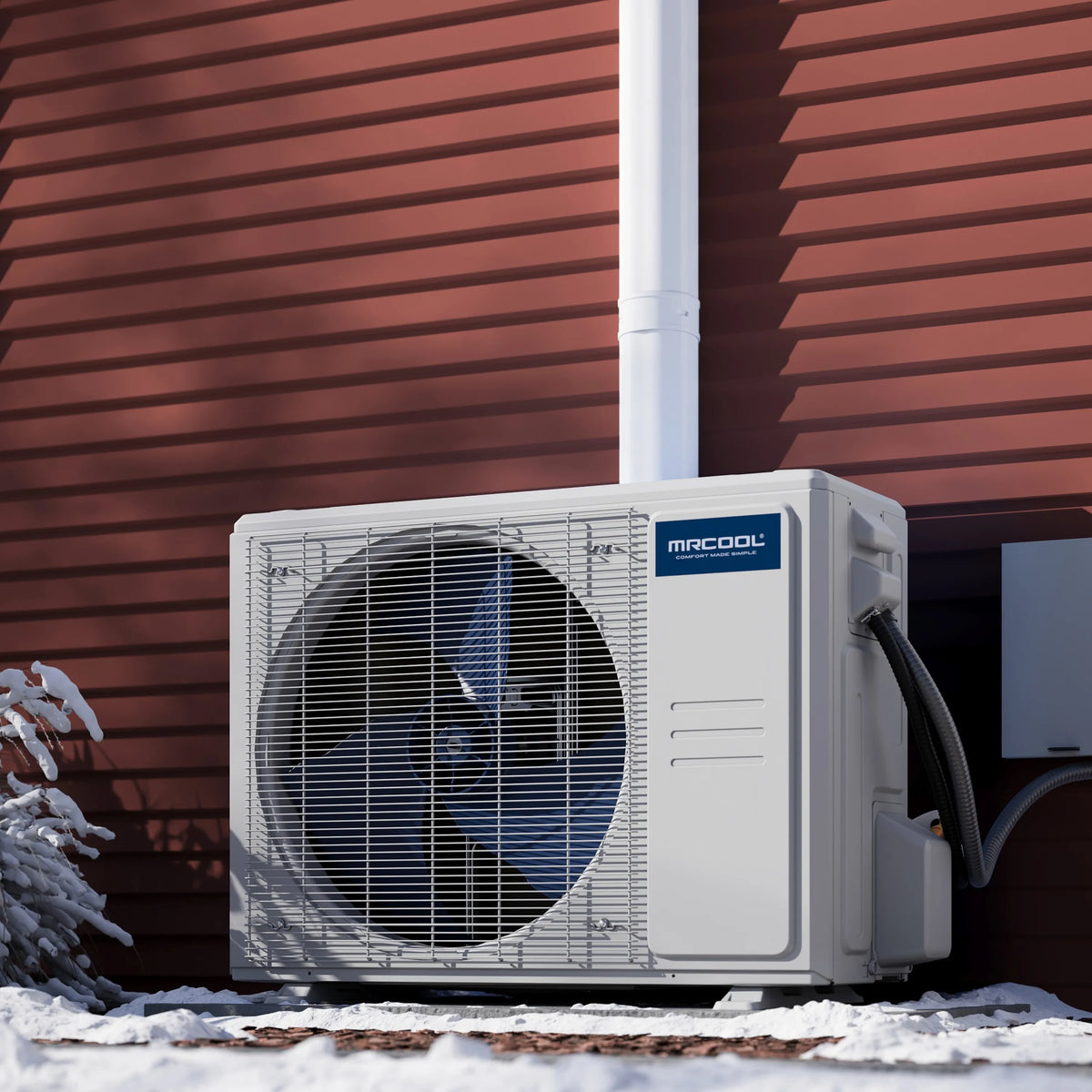

| Condenser Capacity |
36,000 BTU (4-Zone) |
| Efficiency |
SEER2 23 / HSPF2 9.9 |
| Refrigerant |
R-454B (pre-charged Quick Connect line sets) |
| Zone 1 Air Handler |

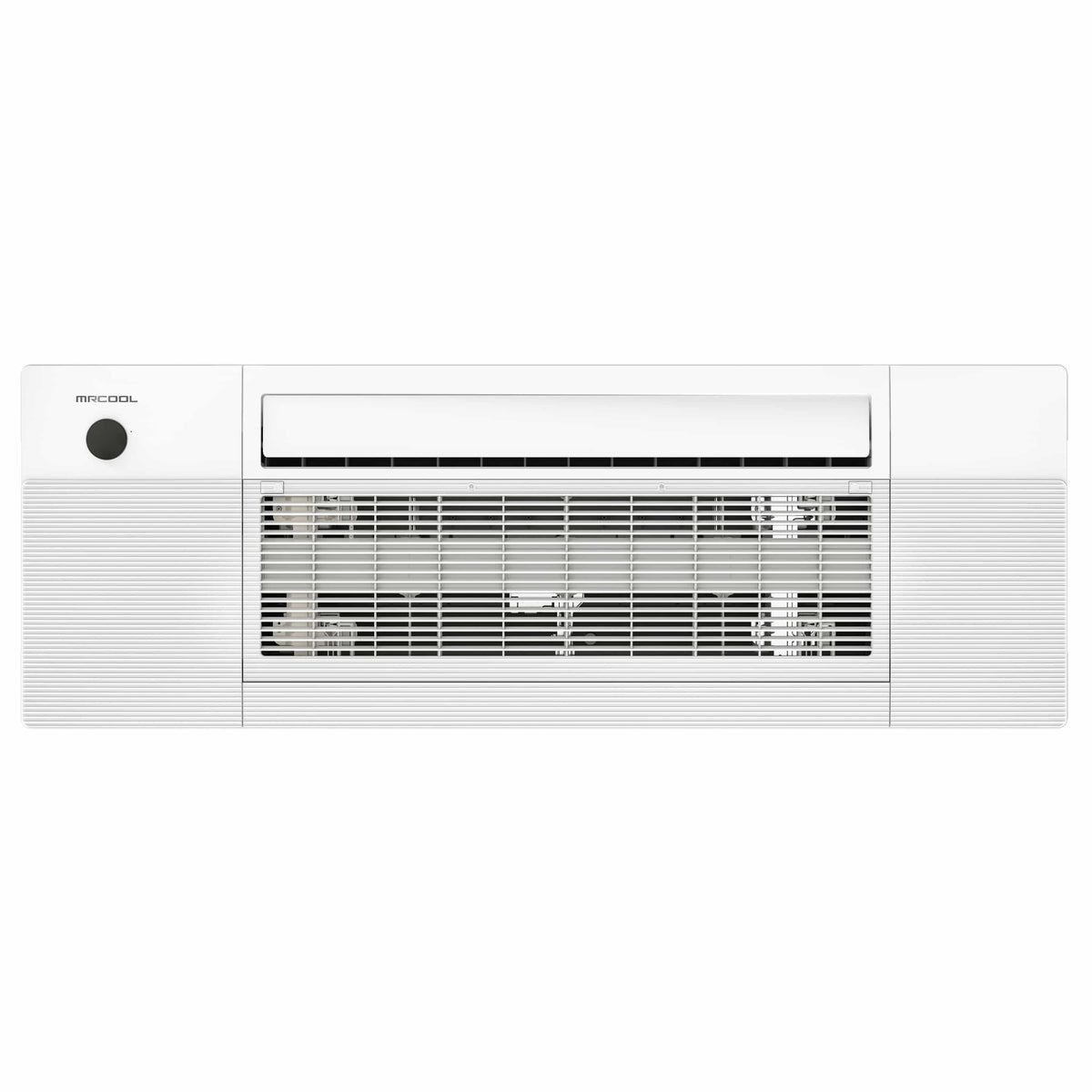

9,000 BTU Ceiling Cassette — up to 400 sq. ft. |
| Zone 2 Air Handler |
6,000 BTU Ceiling Cassette — up to 200 sq. ft. |
| Zone 3 Air Handler |
6,000 BTU Ceiling Cassette — up to 200 sq. ft. |
| Zone 4 Air Handler |
6,000 BTU Ceiling Cassette — up to 200 sq. ft. |
| Installation Type |
DIY (no HVAC professional required) |
| Electrical Cable |
DIYPRO cable included (no electrical conduit needed) |
| Certification |
Intertek listed 5031495 |
| Warranty |
5-year parts, 7-year compressor; Limited Lifetime Replacement warranty available with MRCOOL Care Program enrollment |

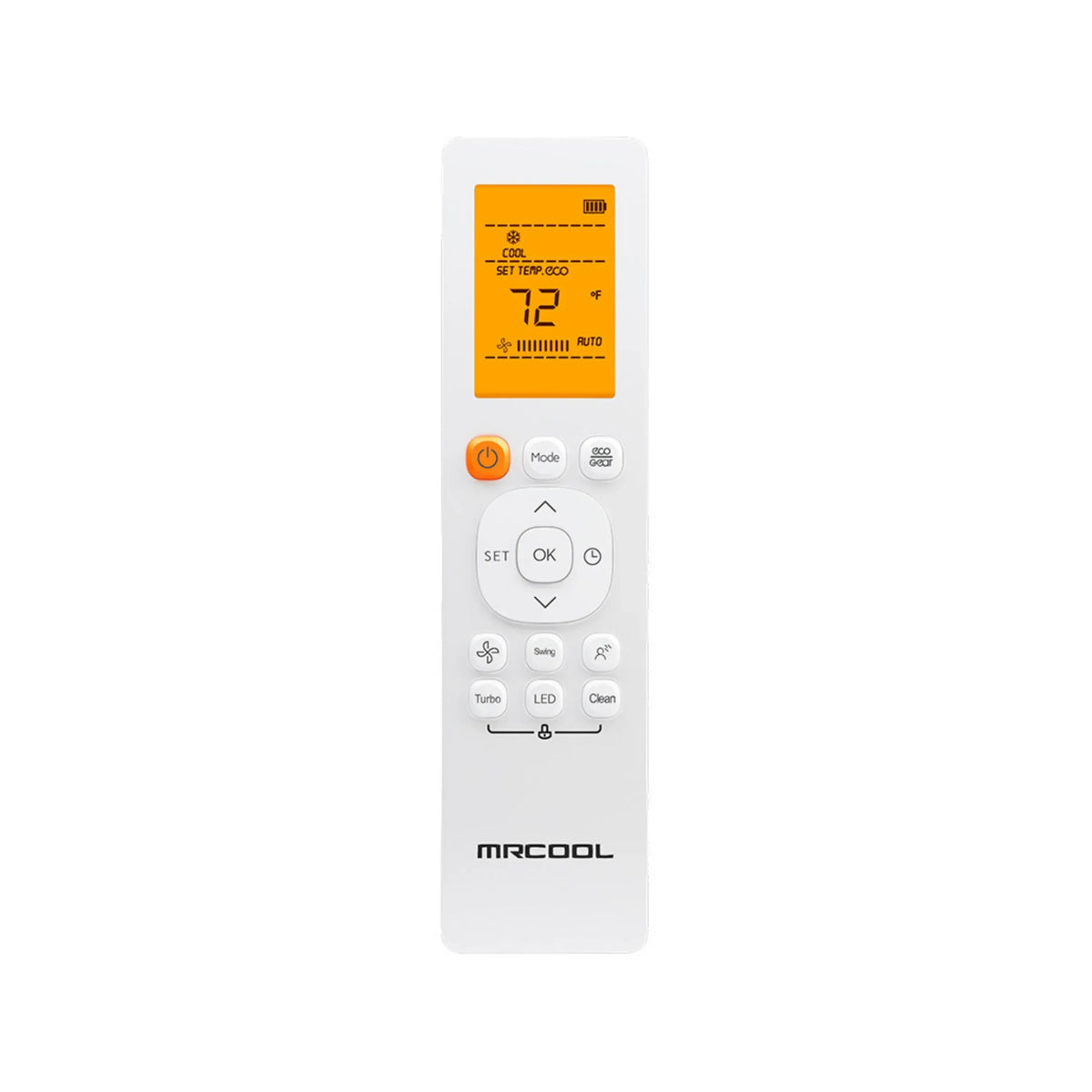

- Wireless remote included with every air handler
- SmartHVAC app control with Amazon Alexa and Google Assistant compatibility
- Advanced filtration and Swing Technology for even, quiet airflow
Details
Avermont Direct is an authorized MRCOOL dealer, and this 4-Zone DIY Mini Split System is well suited to homeowners who want to condition several rooms — such as a primary suite, home office, and living areas — from a single outdoor condenser using ceiling cassettes. The system is backed by a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available to owners who enroll in the MRCOOL Care Program. Because the line sets arrive pre-charged with R-454B refrigerant, most homeowners can complete the installation themselves without hiring an HVAC contractor.
