What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

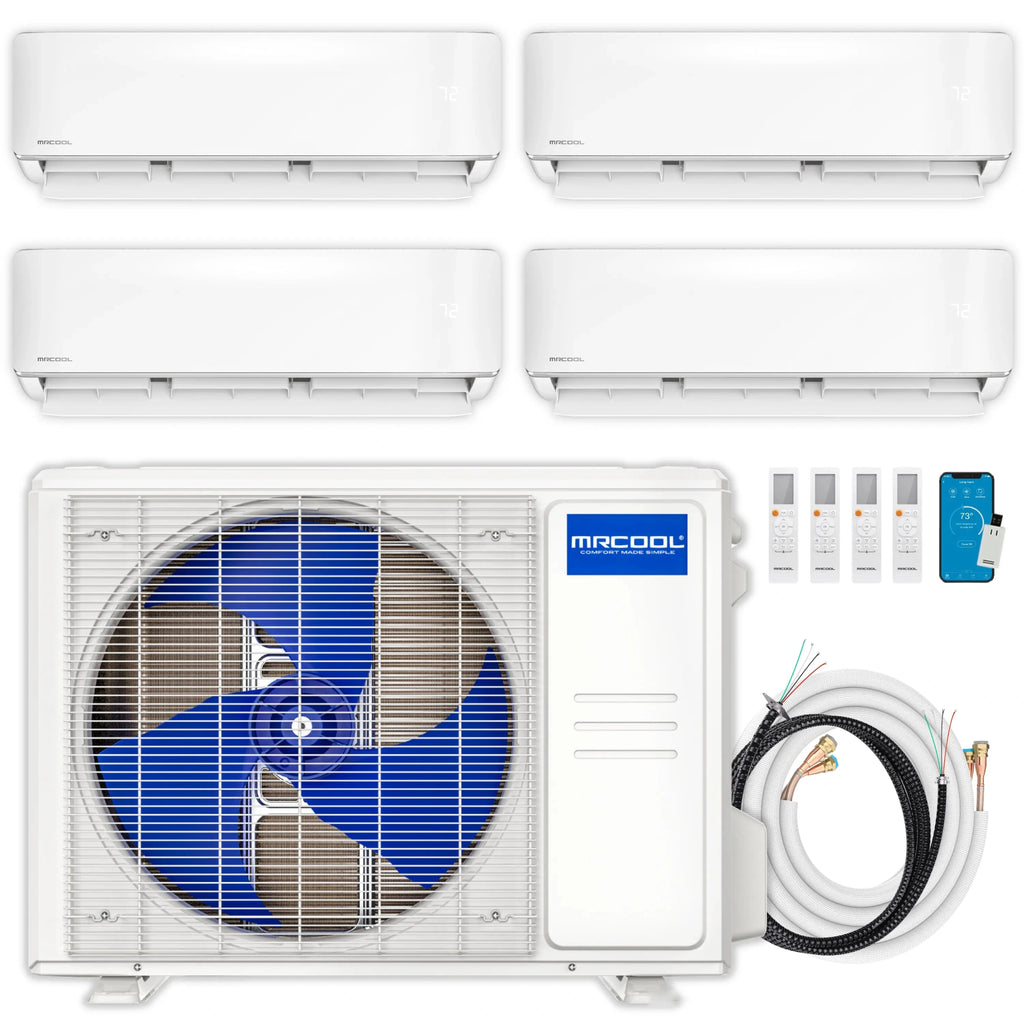

This MRCOOL DIY 5th Generation 4-Zone Mini Split pairs a 36,000 BTU ductless heat pump condenser with four wall-mount indoor air handlers rated at 18K + 9K + 9K + 9K BTU, giving each zone independent temperature control. The condenser is rated at SEER2 23 and HSPF2 9.9, and the system's DIY QuickConnect line sets come pre-charged with R-454B refrigerant, so installation doesn't require vacuuming or a licensed HVAC technician.
Highlights
- Pre-charged 25-ft DIY QuickConnect line sets (R-454B refrigerant) eliminate the vacuuming step, cutting installation time and cost.
- Included DIYPRO cable removes the need for electrical conduit while adding durability against outdoor elements.
- Control every zone from the included wireless remote, the SmartHVAC app (iOS/Android), or hands-free through Amazon Alexa and Google Assistant.
- Follow Me function tracks the temperature near the remote's location so each zone stays evenly comfortable.
- Rated SEER2 23 / HSPF2 9.9 for efficient year-round heating and cooling.
- Gold Fin condenser coil offers extra corrosion resistance, a benefit in coastal environments.
- Dry Mode helps the system pull excess humidity out of the air.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 4-Zone DIY Mini Split System is well suited to homeowners who want to condition several rooms — such as a primary suite, home office, and living areas — from a single outdoor condenser using wall-mount air handlers. The system is backed by a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available to owners who enroll in the MRCOOL Care Program. Because the line sets arrive pre-charged with R-454B refrigerant, most homeowners can complete the installation themselves without hiring an HVAC contractor.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 36,000 BTU (4-Zone) |
| Efficiency | SEER2 23 / HSPF2 9.9 |
| Refrigerant | R-454B (pre-charged Quick Connect line sets) |
| Zone 1 Air Handler | 18,000 BTU Wall Mount — up to 800 sq. ft. |
| Zone 2 Air Handler | 9,000 BTU Wall Mount — up to 400 sq. ft. |
| Zone 3 Air Handler | 9,000 BTU Wall Mount — up to 400 sq. ft. |
| Zone 4 Air Handler | 9,000 BTU Wall Mount — up to 400 sq. ft. |
| Installation Type | DIY (no HVAC professional required) |
| Electrical Cable | DIYPRO cable included (no electrical conduit needed) |
| Certification | Intertek listed 5031495 |
| Warranty | 5-year parts, 7-year compressor; Limited Lifetime Replacement warranty available with MRCOOL Care Program enrollment |
- Wireless remote included with every air handler
- SmartHVAC app control with Amazon Alexa and Google Assistant compatibility
- Gold Fin condenser coil for added corrosion resistance
