What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

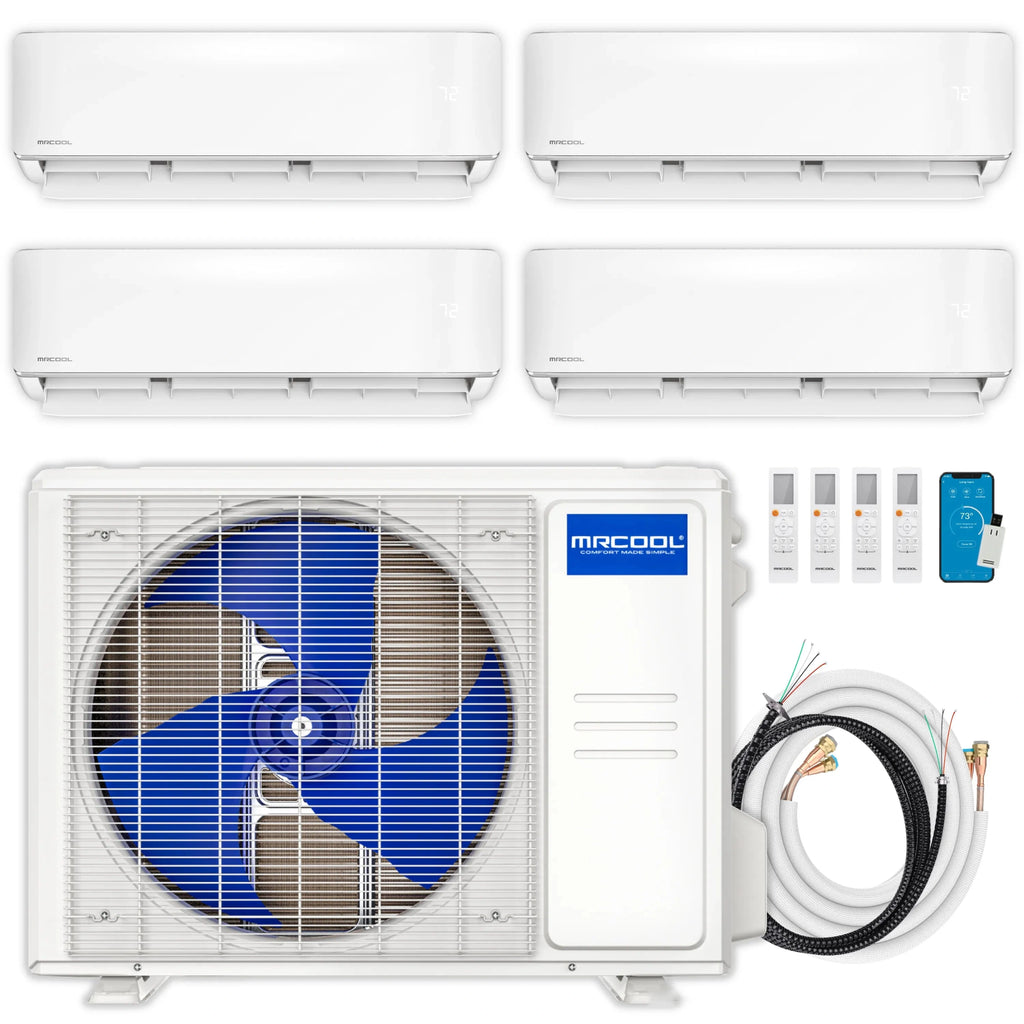

This MRCOOL DIY 5th Gen ductless mini-split system pairs a 27,000 BTU multi-zone condenser with 4 wall mount indoor units (9K+6K+6K+6K BTU), rated at SEER2 23 and HSPF2-4 9.5. The system installs without a licensed HVAC professional, using MRCOOL's pre-charged Quick Connect line sets (R-454B refrigerant) to skip the evacuation and vacuuming steps of a traditional install.
Highlights
- True DIY installation — pre-charged Quick Connect line sets (R-454B refrigerant) eliminate the evacuation and vacuuming steps a professional install would require.
- Smart HVAC app (iOS/Android) lets you set schedules, switch modes, and monitor energy use per zone, with voice control through Amazon Alexa or Google Assistant.
- Included DIYPro cable removes the need for electrical conduit between the condenser and indoor units.
- Follow Me function on the included remote adjusts airflow based on the remote's location for more even comfort.
- Gold Fin condenser coil adds corrosion resistance, and each indoor unit's Dry Mode helps manage indoor humidity.
- Backed by a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty once enrolled in the MRCOOL Care Program.
Details
Avermont Direct is an authorized MRCOOL dealer. This 4-zone DIY system carries a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available through the MRCOOL Care Program. It's a fit for homeowners who want to add independently controlled heating and cooling to 4 separate rooms or zones without extending ductwork, and without paying for professional HVAC installation.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 27,000 BTU |
| Zones Supported | 4 |
| Efficiency | SEER2 23 / HSPF2-4 9.5 |
| Indoor Unit Type | Wall Mount |
| Refrigerant | R-454B (pre-charged Quick Connect line sets) |
| Certification | Intertek listed 5031495 |
| Warranty | 5-year parts, 7-year compressor, Limited Lifetime Replacement (with MRCOOL Care Program enrollment) |
| Zone 1 Indoor Unit | 9,000 BTU Wall Mount — up to 400 sq. ft. |
| Zone 2 Indoor Unit | 6,000 BTU Wall Mount — up to 200 sq. ft. |
| Zone 3 Indoor Unit | 6,000 BTU Wall Mount — up to 200 sq. ft. |
| Zone 4 Indoor Unit | 6,000 BTU Wall Mount — up to 200 sq. ft. |
- Each indoor unit ships with its own wireless remote.
