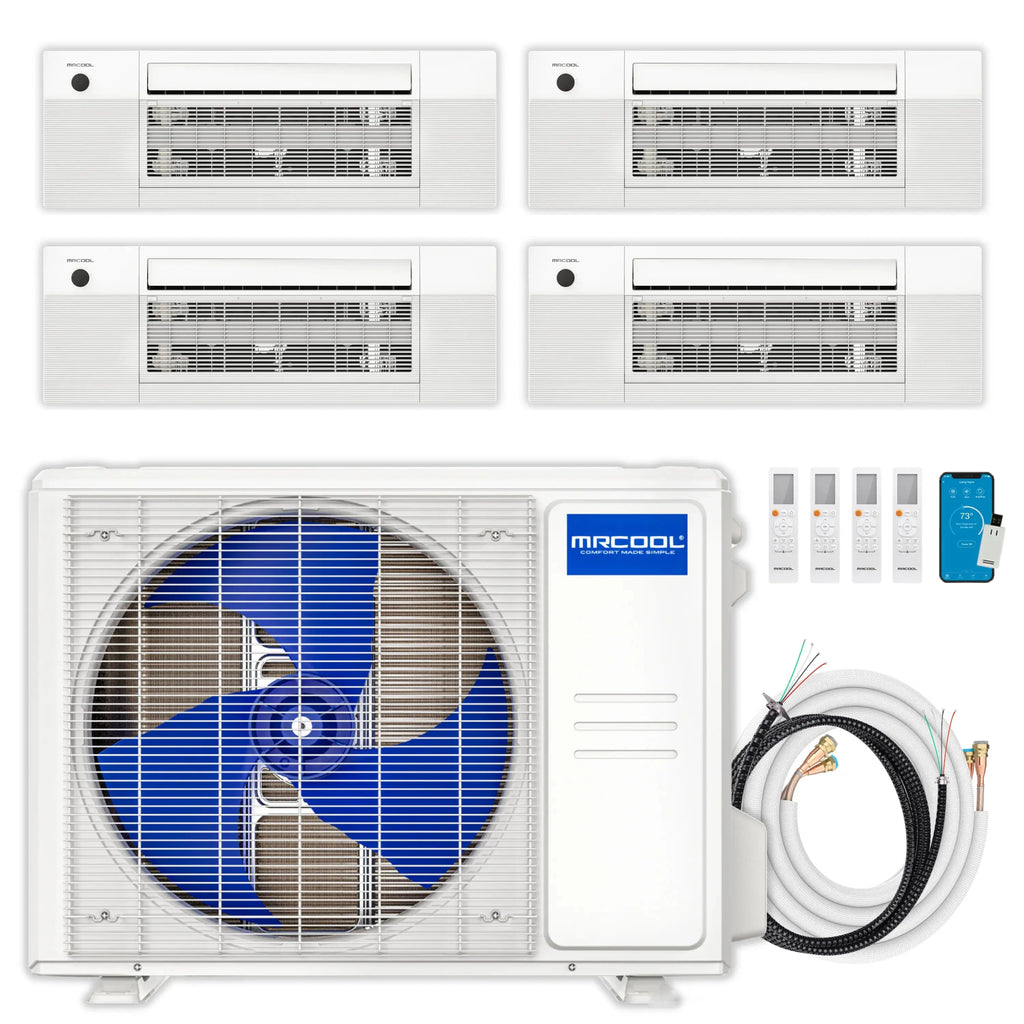

This MRCOOL DIY 5th Gen ductless mini-split system pairs a 27,000 BTU multi-zone condenser with 4 ceiling cassette indoor units (12K+6K+6K+6K BTU), rated at SEER2 23 and HSPF2-4 9.5. The system installs without a licensed HVAC professional, using MRCOOL's pre-charged Quick Connect line sets (R-454B refrigerant) to skip the evacuation and vacuuming steps of a traditional install.
Highlights
- True DIY installation — pre-charged Quick Connect line sets (R-454B refrigerant) eliminate the evacuation and vacuuming steps a professional install would require.
- Smart HVAC app (iOS/Android) lets you set schedules, switch modes, and monitor energy use per zone, with voice control through Amazon Alexa or Google Assistant.
- Included DIYPro cable removes the need for electrical conduit between the condenser and indoor units.
- Follow Me function on the included remote adjusts airflow based on the remote's location for more even comfort.
- Low-profile ceiling cassette design fits flush between standard 16" ceiling joists (including pre-manufactured I-joists) with no ductwork or extra wall space needed.
- Backed by a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty once enrolled in the MRCOOL Care Program.
Specs & Features
| Condenser Capacity |
27,000 BTU |
| Zones Supported |
4 |
| Efficiency |
SEER2 23 / HSPF2-4 9.5 |
| Indoor Unit Type |
Ceiling Cassette |
| Refrigerant |
R-454B (pre-charged Quick Connect line sets) |
| Certification |
Intertek listed 5031495 |
| Warranty |
5-year parts, 7-year compressor, Limited Lifetime Replacement (with MRCOOL Care Program enrollment) |
| Zone 1 Indoor Unit |
12,000 BTU Ceiling Cassette — up to 550 sq. ft. |
| Zone 2 Indoor Unit |
6,000 BTU Ceiling Cassette — up to 200 sq. ft. |
| Zone 3 Indoor Unit |
6,000 BTU Ceiling Cassette — up to 200 sq. ft. |
| Zone 4 Indoor Unit |
6,000 BTU Ceiling Cassette — up to 200 sq. ft. |
- Each indoor unit ships with its own wireless remote.
- Wireless remote, Smart HVAC app, and Amazon Alexa/Google Assistant voice control on every unit.
- Two-stage DC motor with quiet operation, multiple operating modes, advanced filtration, and swing technology; the Elevation function lowers the filter panel for easy maintenance.
Details
Avermont Direct is an authorized MRCOOL dealer. This 4-zone DIY system carries a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available through the MRCOOL Care Program. It's a fit for homeowners who want to add independently controlled heating and cooling to 4 separate rooms or zones without extending ductwork, and without paying for professional HVAC installation.
