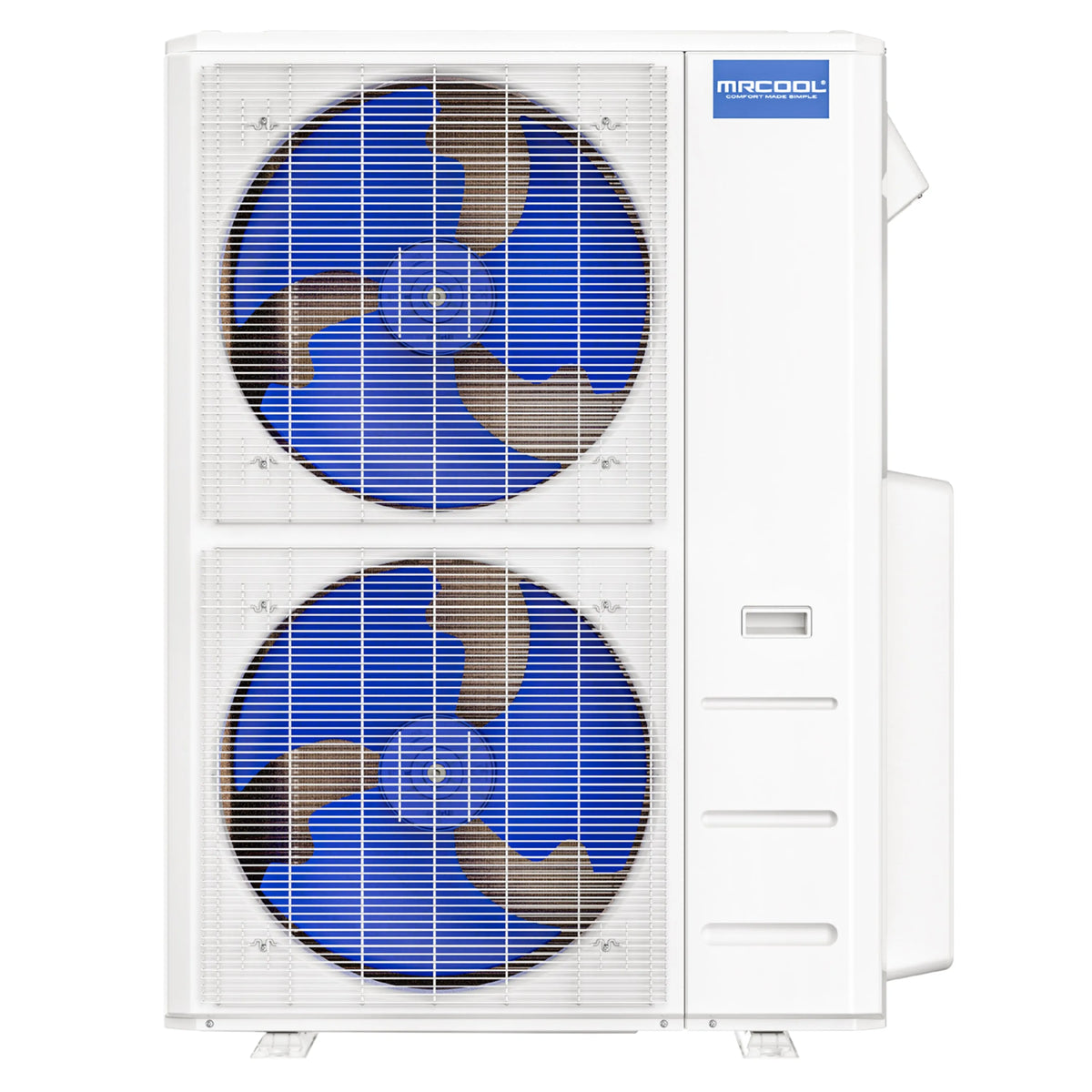

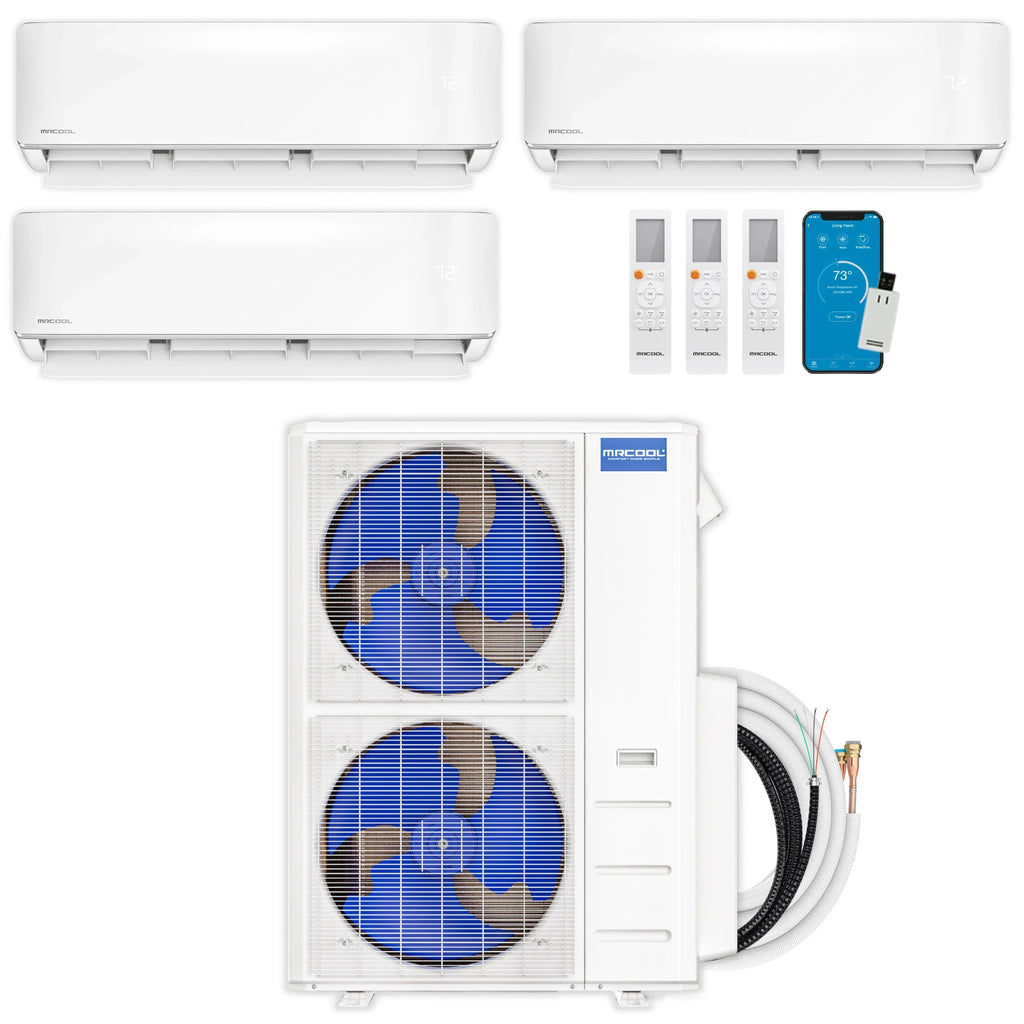

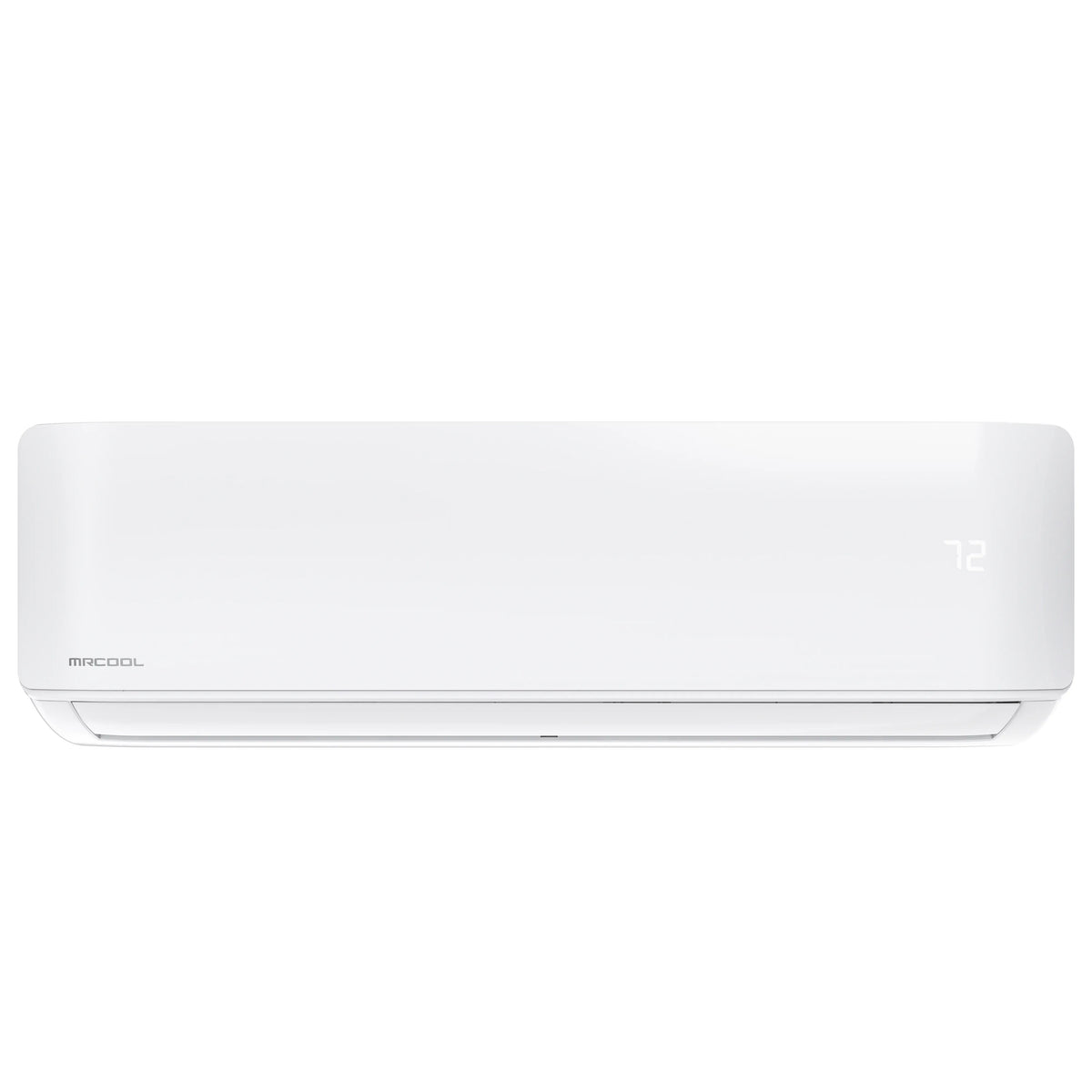

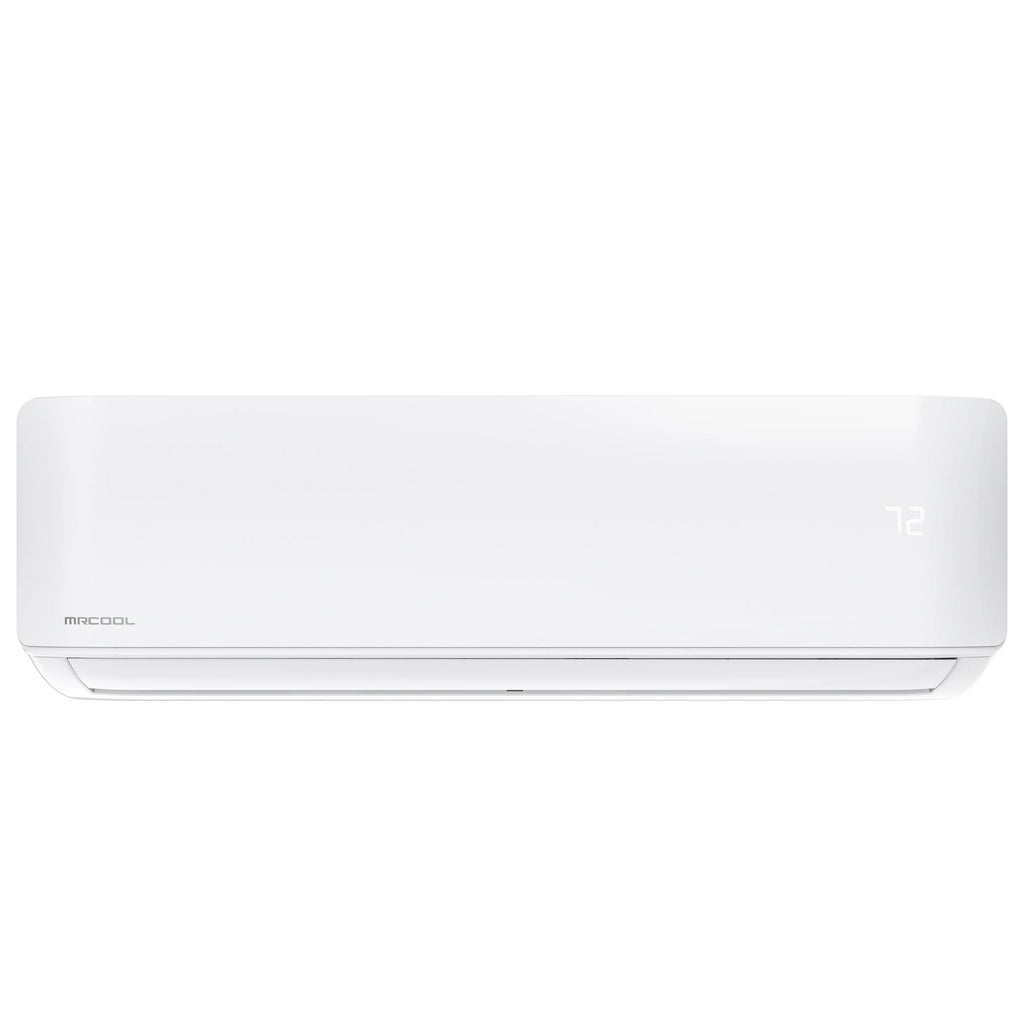

This MRCOOL® DIY® 5th Generation 3-Zone Ductless Mini-Split system pairs a 55,000 BTU outdoor condenser with three indoor air handlers sized 24K + 12K + 6K BTU (24K BTU Wall Mount, 12K BTU Wall Mount, 6K BTU Wall Mount), giving each zone its own coverage of up to 1050, 550, and 200 sq. ft. respectively. The condenser is rated SEER2 up to 22 and HSPF2-4 up to 10.6, and the system is designed for do-it-yourself installation with no HVAC professional required.
Highlights
- No HVAC professional required — installs with pre-charged Quick-Connect® line sets and R-454B refrigerant, eliminating on-site evacuation and vacuuming

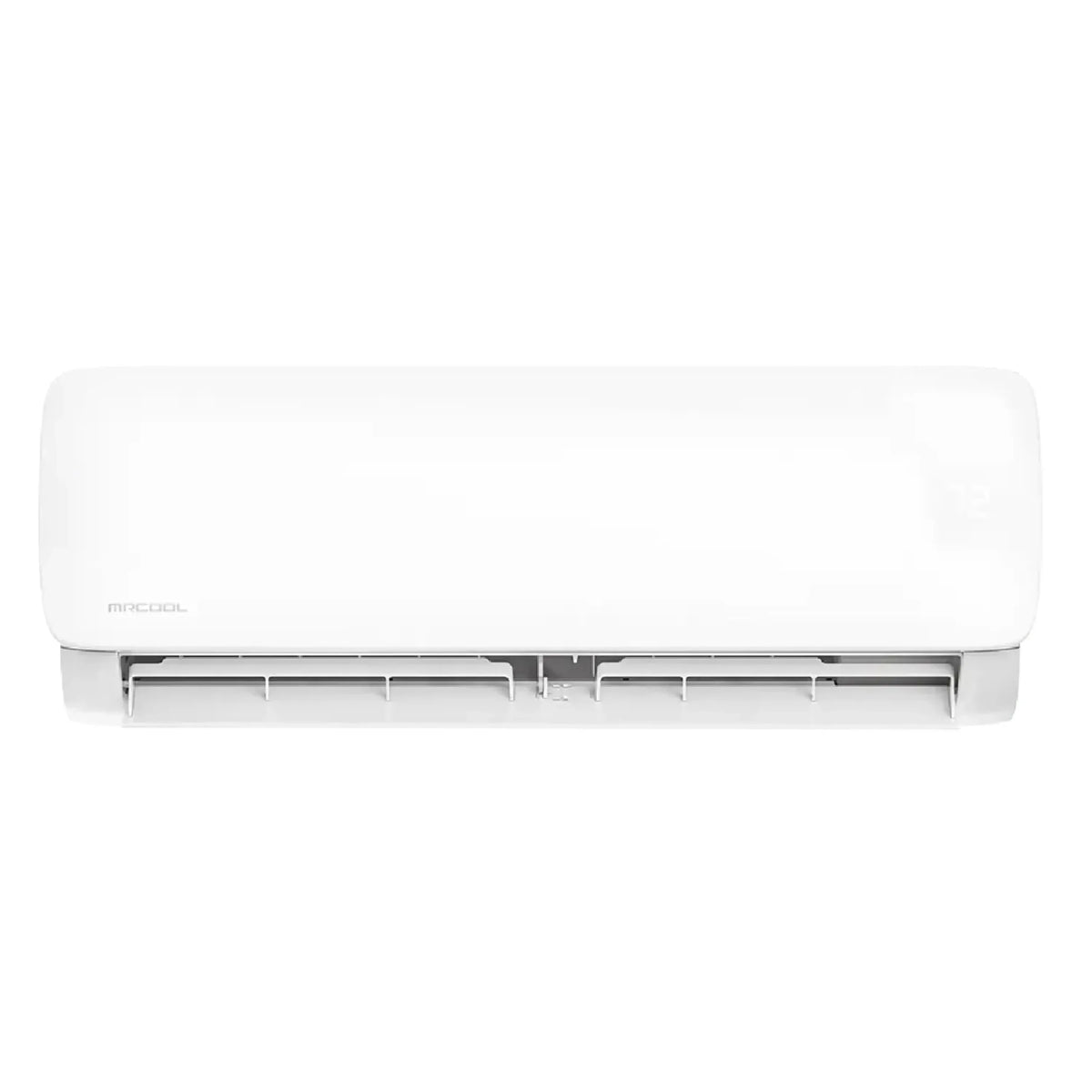

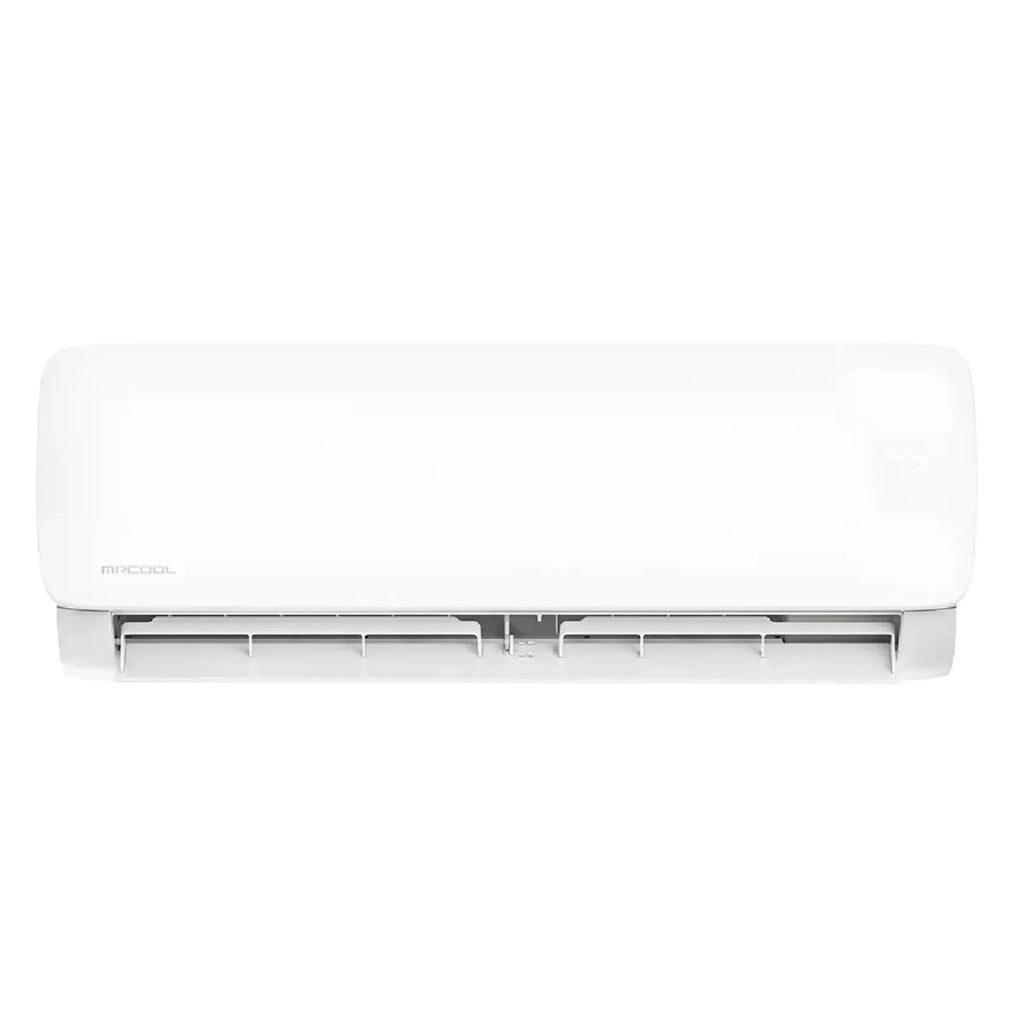

- Three independently controlled zones sized to the space they serve: 24K BTU Wall Mount (up to 1050 sq. ft.), 12K BTU Wall Mount (up to 550 sq. ft.), 6K BTU Wall Mount (up to 200 sq. ft.)
- SEER2 up to 22 and HSPF2-4 up to 10.6 for efficient year-round heating and cooling
- Controllable via the Smart HVAC app (iOS/Android), included wireless remote, and compatible with Amazon Alexa and Google Assistant
- Wall mount air handlers include the DIYPro® cable, removing the need for electrical conduit, plus Follow Me temperature tracking and Dry Mode dehumidification
- Backed by a 5-year parts warranty and 7-year compressor warranty, with a Limited Lifetime Replacement warranty available upon MRCOOL® Care Program enrollment
Specs & Features
| Condenser Capacity |
55,000 BTU (3-Zone) |
| Efficiency |
SEER2 up to 22 / HSPF2-4 up to 10.6 |
| Zone 1 |
24K BTU Wall Mount — up to 1050 sq. ft. |
| Zone 2 |
12K BTU Wall Mount — up to 550 sq. ft. |
| Zone 3 |
6K BTU Wall Mount — up to 200 sq. ft. |
| Refrigerant |
R-454B (pre-charged Quick-Connect® line set) |
| Certification |
Intertek Listed 5031495 |
| Parts Warranty |
5 years |
| Compressor Warranty |
7 years |
| Limited Lifetime Replacement |
With MRCOOL® Care Program enrollment |
- Wall mount zones ship with the DIYPro® cable, eliminating the need for electrical conduit
- Gold Fin® Condenser on wall mount air handlers offers added corrosion resistance for coastal environments
- Follow Me function and Dry Mode available on wall mount zones for even temperature distribution and humidity control
- NEEP ccASHP Listed indoor unit(s): 24K, 12K

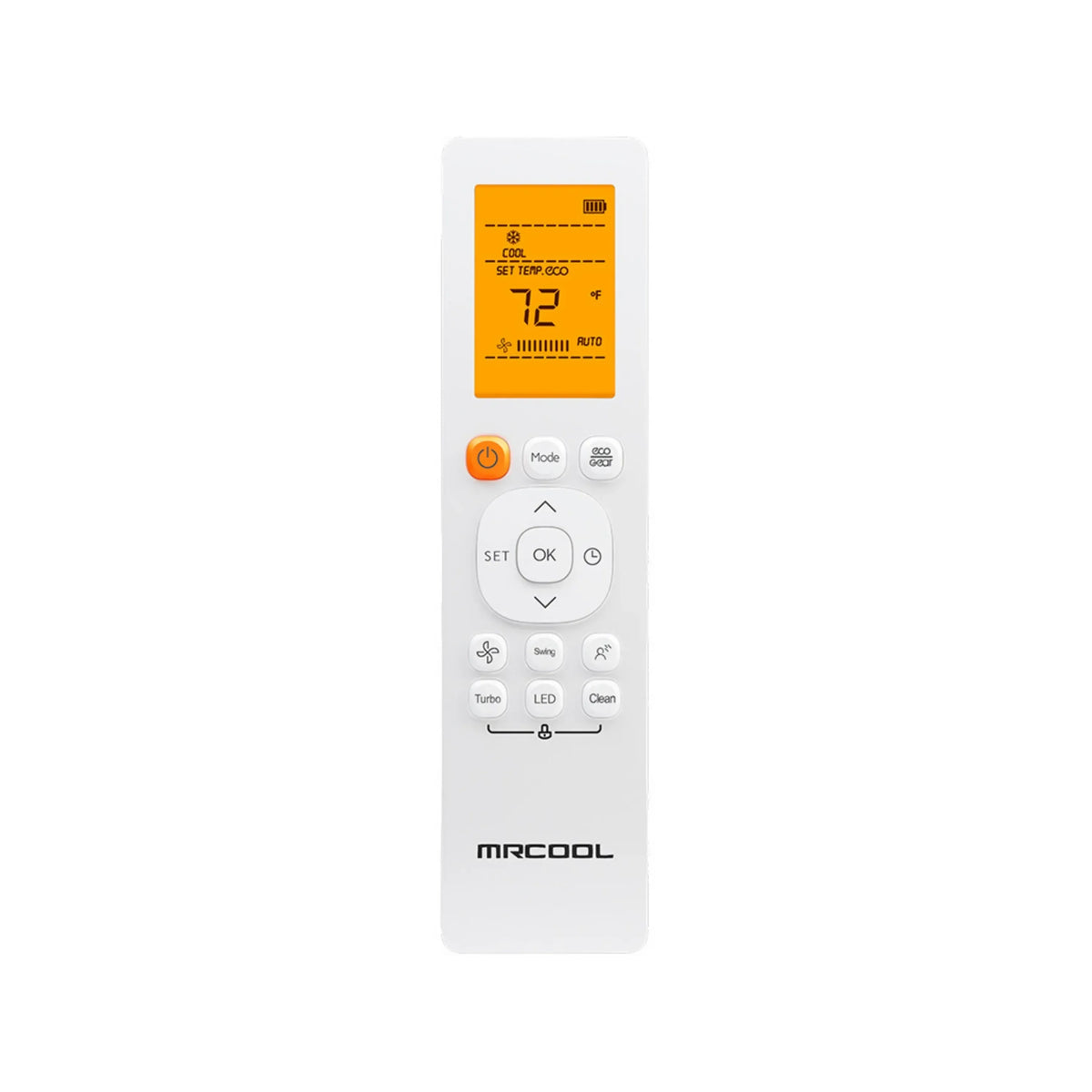

- Remote control included with each of the three indoor air handlers
Details
Avermont Direct is an authorized MRCOOL dealer. This 24K + 12K + 6K BTU 3-zone system pairs one 55,000 BTU outdoor condenser with three separately controlled indoor air handlers, suited to cooling and heating up to three rooms or areas of a home from a single outdoor unit. The system is backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available once registered through the MRCOOL® Care Program. It's designed for DIY installation, with pre-charged Quick-Connect® line sets and included DIYPro® wiring to simplify setup without requiring a licensed HVAC technician.
