What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

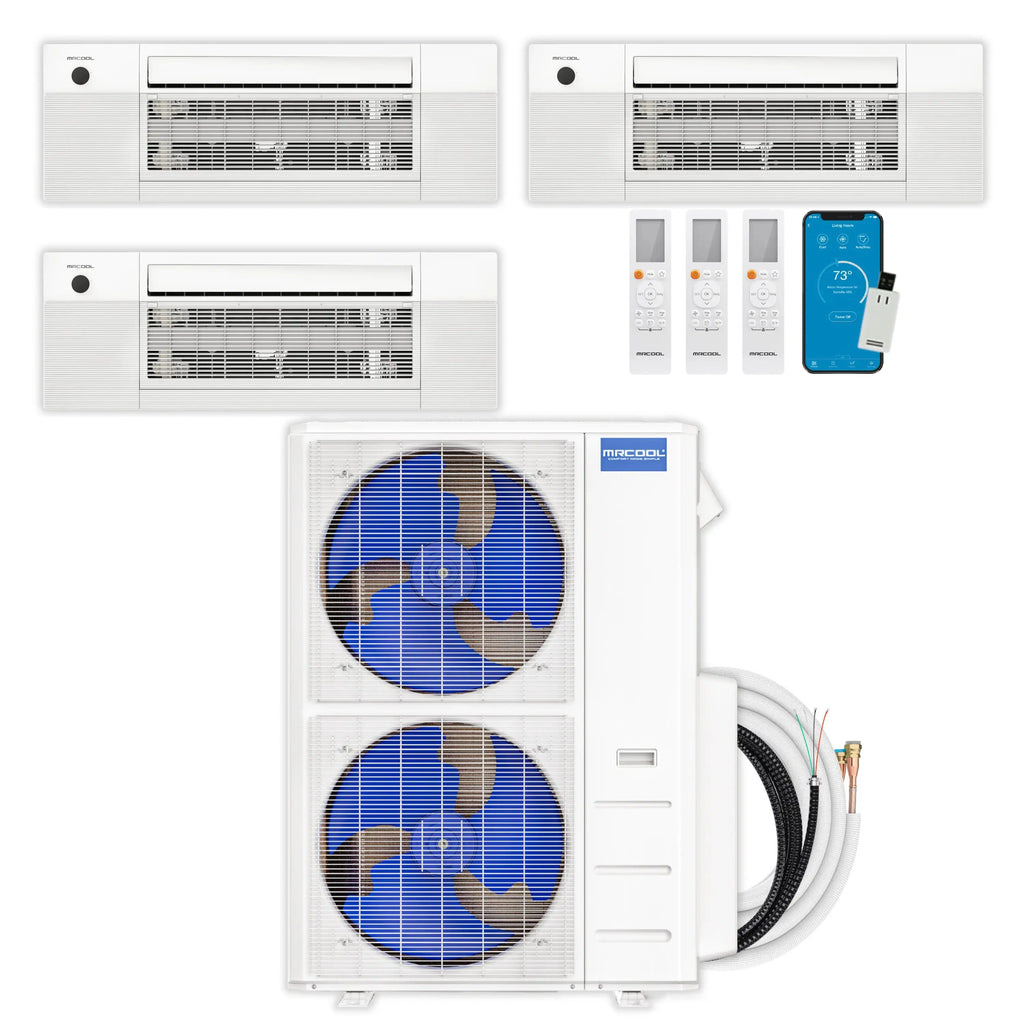

This MRCOOL® DIY® 5th Generation 3-zone ductless mini-split pairs a 55,000 BTU outdoor condenser with three ceiling cassette indoor air handlers sized 12K + 12K + 12K BTU, rated for do-it-yourself installation with no HVAC professional required. The condenser is rated to heat and cool up to 6 separate zones totaling up to 2,290 sq. ft., achieving 22 SEER2 and an HSPF2-4 of 10.6.
Highlights
- No HVAC professional required – the pre-charged 25-foot DIY® QuickConnect® line set arrives filled with R-454B refrigerant, so there's no evacuating or charging to do on site.
- Three-zone flexibility – the 55,000 BTU condenser powers this 12K + 12K + 12K BTU ceiling cassette combination, letting each room be heated or cooled independently.
- Efficient, eco-friendly operation – rated up to 22 SEER2 and an HSPF2-4 of 10.6 using R-454B refrigerant.
- Smart control options – operate the system with the included wireless remote, the SmartHVAC app (Apple and Android), or voice commands through Amazon Alexa and Google Assistant.
- Low-profile ceiling cassette design – each air handler fits flush between 16" ceiling joists, including pre-manufactured I-joists, with no exposed wall unit.
- Easy-access filter maintenance – the Elevation function lowers the filter panel for simple cleaning, and advanced filtration helps improve indoor air quality.
Details
Avermont Direct is an authorized MRCOOL dealer. This 3-zone 55,000 BTU DIY® system is backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available to customers who enroll in the MRCOOL® Care Program. It suits homeowners who want to heat and cool up to three rooms independently – such as bedrooms, a living area, or an addition – without scheduling a professional HVAC install.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 55,000 BTU |
| Zone Configuration | 3-Zone: 12K + 12K + 12K BTU Ceiling Cassette air handlers |
| Total Rated Coverage (condenser) | Up to 2,290 sq. ft. |
| Efficiency | Up to 22 SEER2 / HSPF2-4 of 10.6 |
| Refrigerant | R-454B (pre-charged 25-ft. DIY® QuickConnect® line set) |
| Installation Type | DIY – no HVAC professional required |
| Control Options | Wireless remote, SmartHVAC app (Apple/Android), Amazon Alexa, Google Assistant |
| Certification | Intertek listed 5031495 |
| Parts Warranty | 5-Year |
| Compressor Warranty | 7-Year |
| Extended Warranty | Limited Lifetime Replacement warranty available with enrollment in the MRCOOL® Care Program |
| Zone 1 Air Handler | 12K BTU Ceiling Cassette – up to 550 sq. ft. |
| Zone 2 Air Handler | 12K BTU Ceiling Cassette – up to 550 sq. ft. |
| Zone 3 Air Handler | 12K BTU Ceiling Cassette – up to 550 sq. ft. |
- Two-stage DC motor for quiet operation
- Swing technology for even airflow distribution
- Compatible with both multi-zone and single-zone systems
