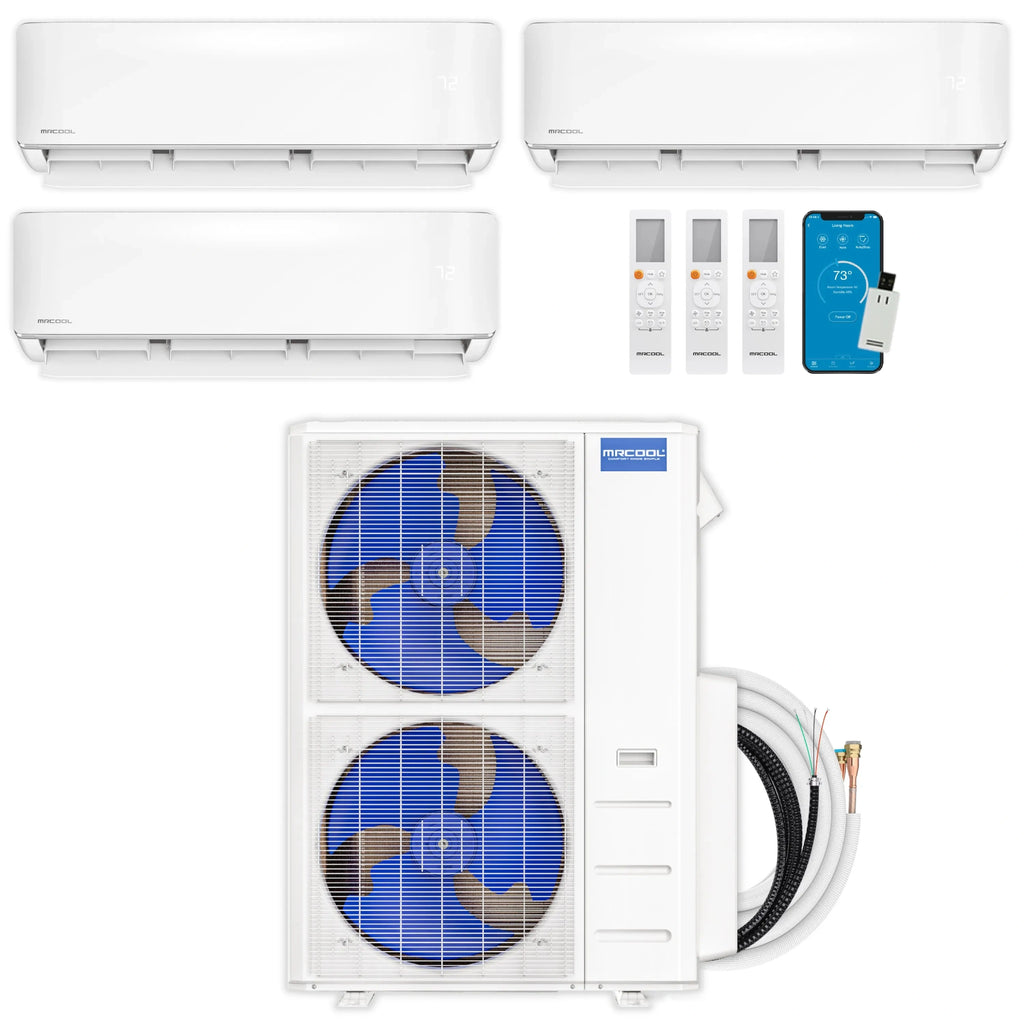

This MRCOOL DIY 5th Generation 3-Zone Ductless Mini-Split pairs a 48,000 BTU outdoor condenser with three wall-mount indoor air handlers — an 18,000 BTU unit rated for spaces up to 800 sq ft, a 12,000 BTU unit rated for spaces up to 550 sq ft, and a 6,000 BTU unit rated for spaces up to 200 sq ft — and installs without the need for an HVAC professional.
Highlights

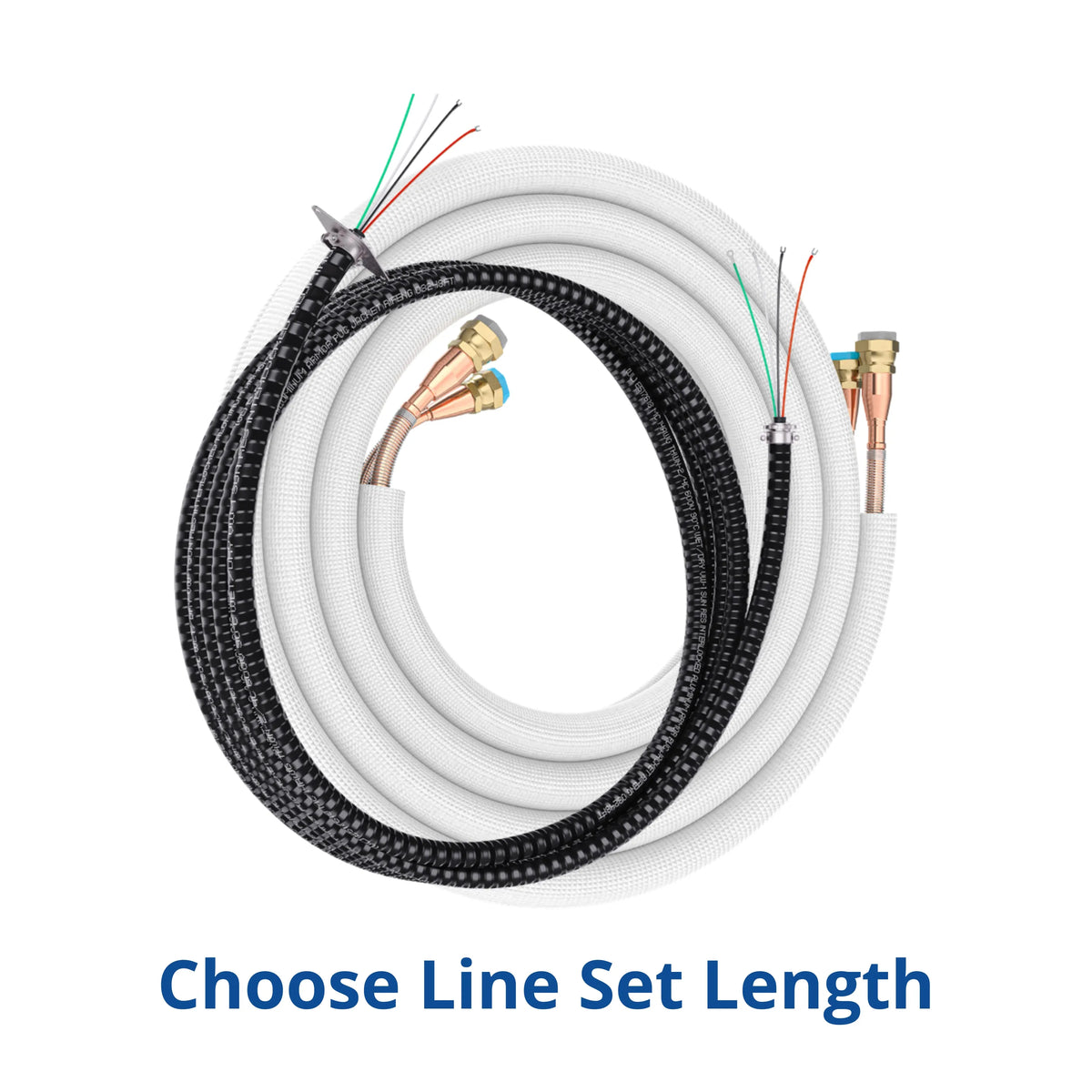

- Pre-charged DIY QuickConnect line sets filled with R-454B refrigerant remove the need for vacuuming, cutting installation time and cost.
- DIYPro cable eliminates the need for electrical conduit while standing up to outdoor elements and wildlife.
- Follow Me function tracks the wireless remote's location to help keep temperature even across the room.
- SmartHVAC app and voice control via Amazon Alexa and Google Assistant let you manage each zone from your phone or hands-free.
- Dry Mode helps reduce excess indoor humidity.
- Gold Fin Condenser coil offers added corrosion resistance for coastal climates.
Specs & Features
| Condenser Capacity |
48,000 BTU (3-Zone) |
| Zones Supported |
Up to 6 |
| Approx. Total Coverage |
2,000 sq ft (condenser rating) |
| SEER2 |
21.8 |
| HSPF2-4 |
10 |
| Refrigerant |
R-454B, pre-charged Quick Connect line sets |
| Zone 1 - Wall Mount |
18,000 BTU, up to 800 sq ft |
| Zone 2 - Wall Mount |
12,000 BTU, up to 550 sq ft |
| Zone 3 - Wall Mount |
6,000 BTU, up to 200 sq ft |
| Parts Warranty |
5 years |
| Compressor Warranty |
7 years |
| Certification |
Intertek listed 5031495 |
- Wireless remote included with each air handler
Details
Avermont Direct is an authorized MRCOOL dealer. This 3-zone ductless system carries a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available to systems enrolled in the MRCOOL Care Program. It suits homeowners looking to add zoned heating and cooling to a larger living space alongside one mid-sized room and one smaller room without ductwork or a full HVAC installation.
