What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

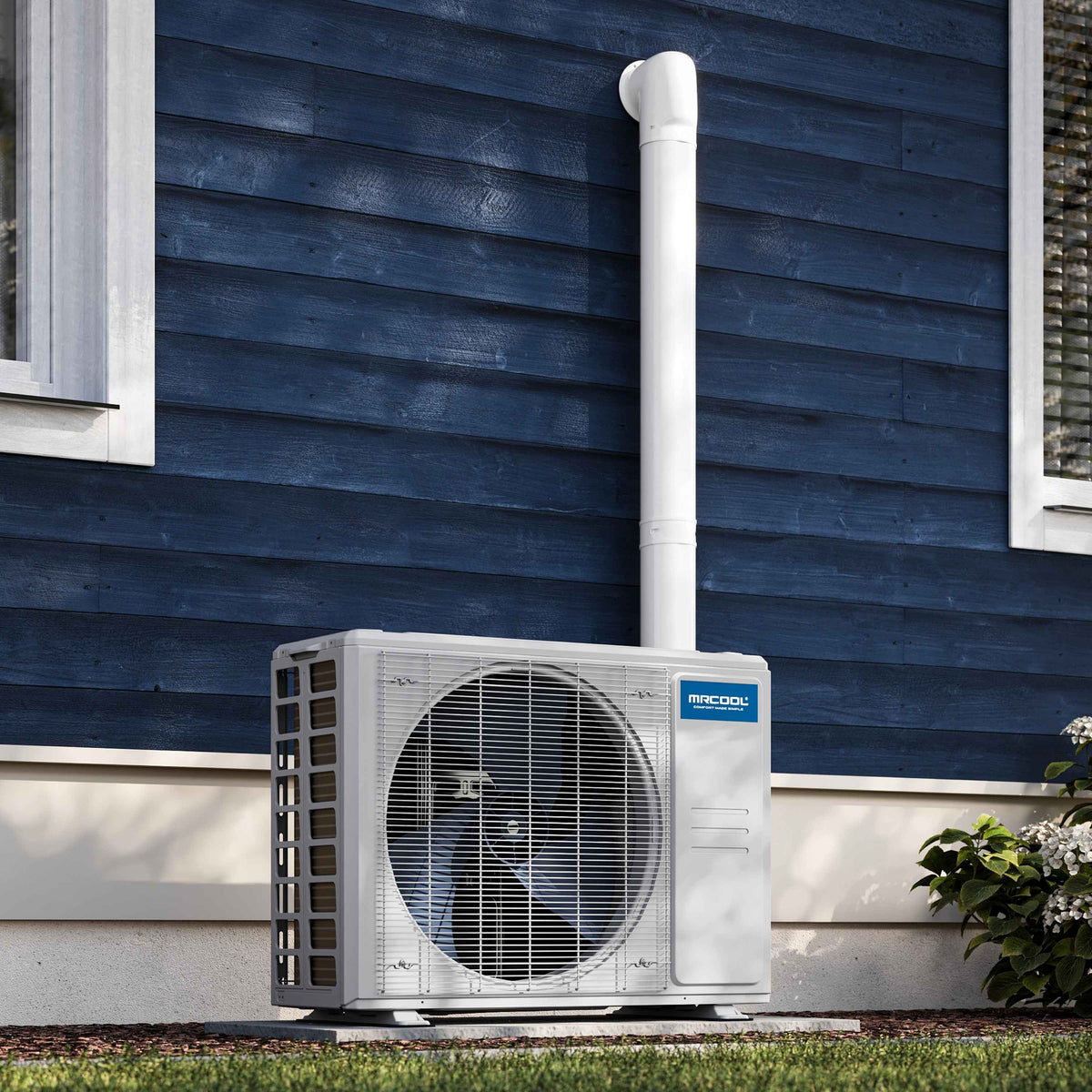

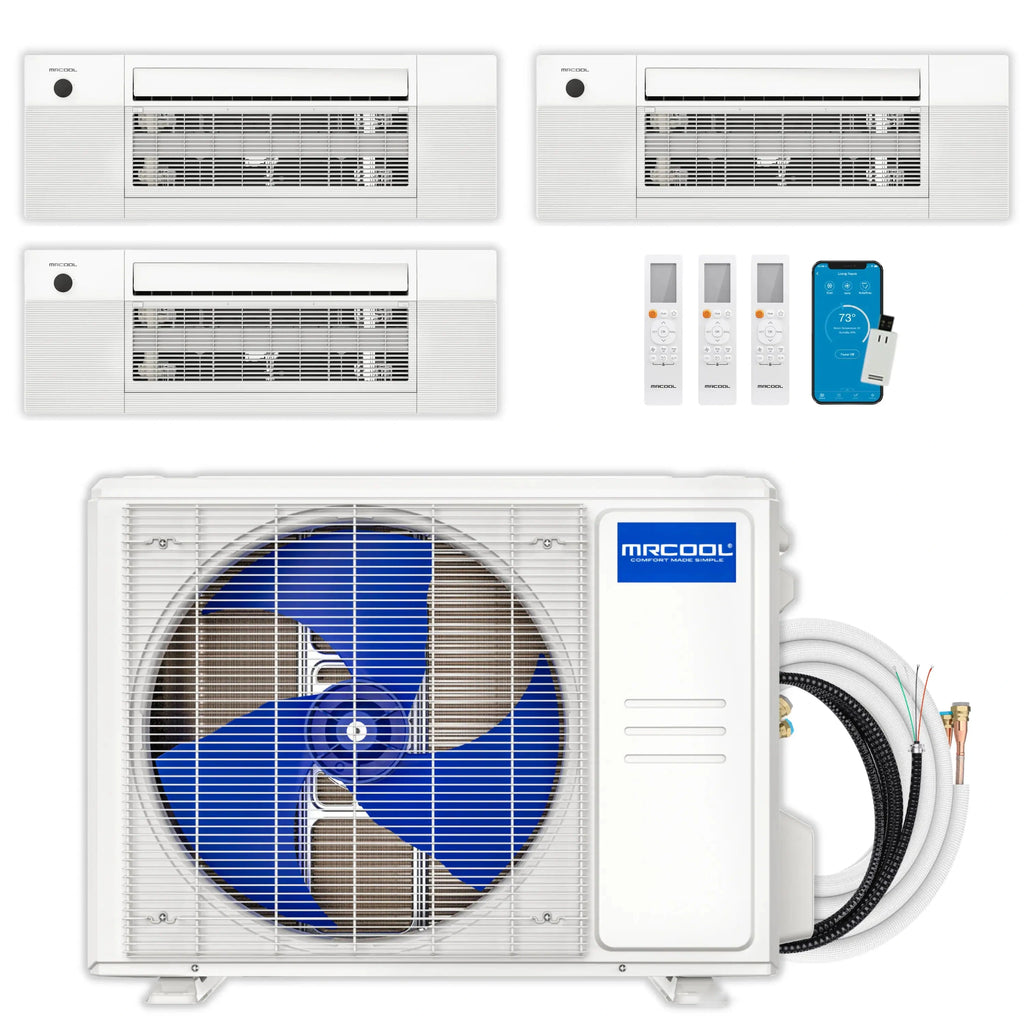

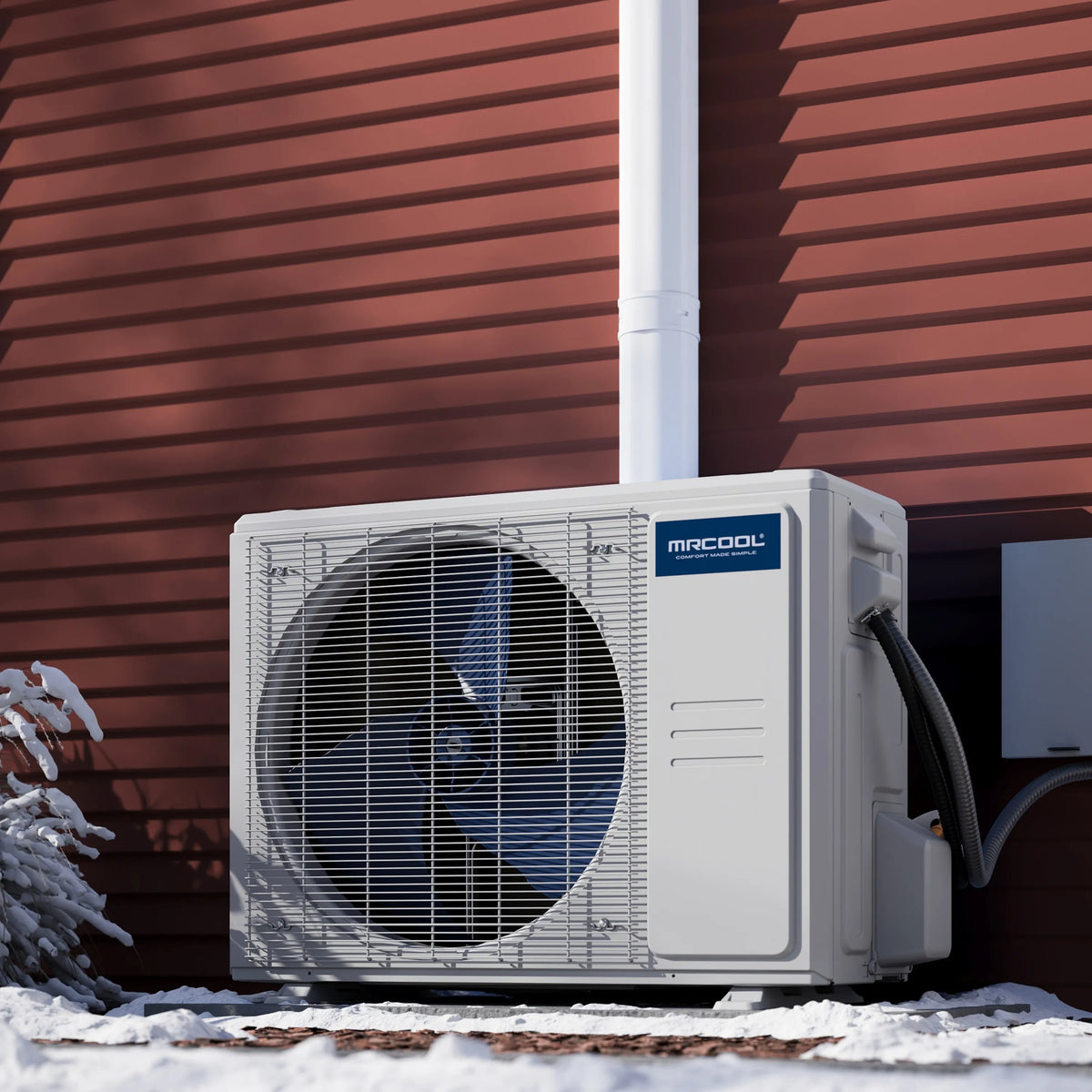

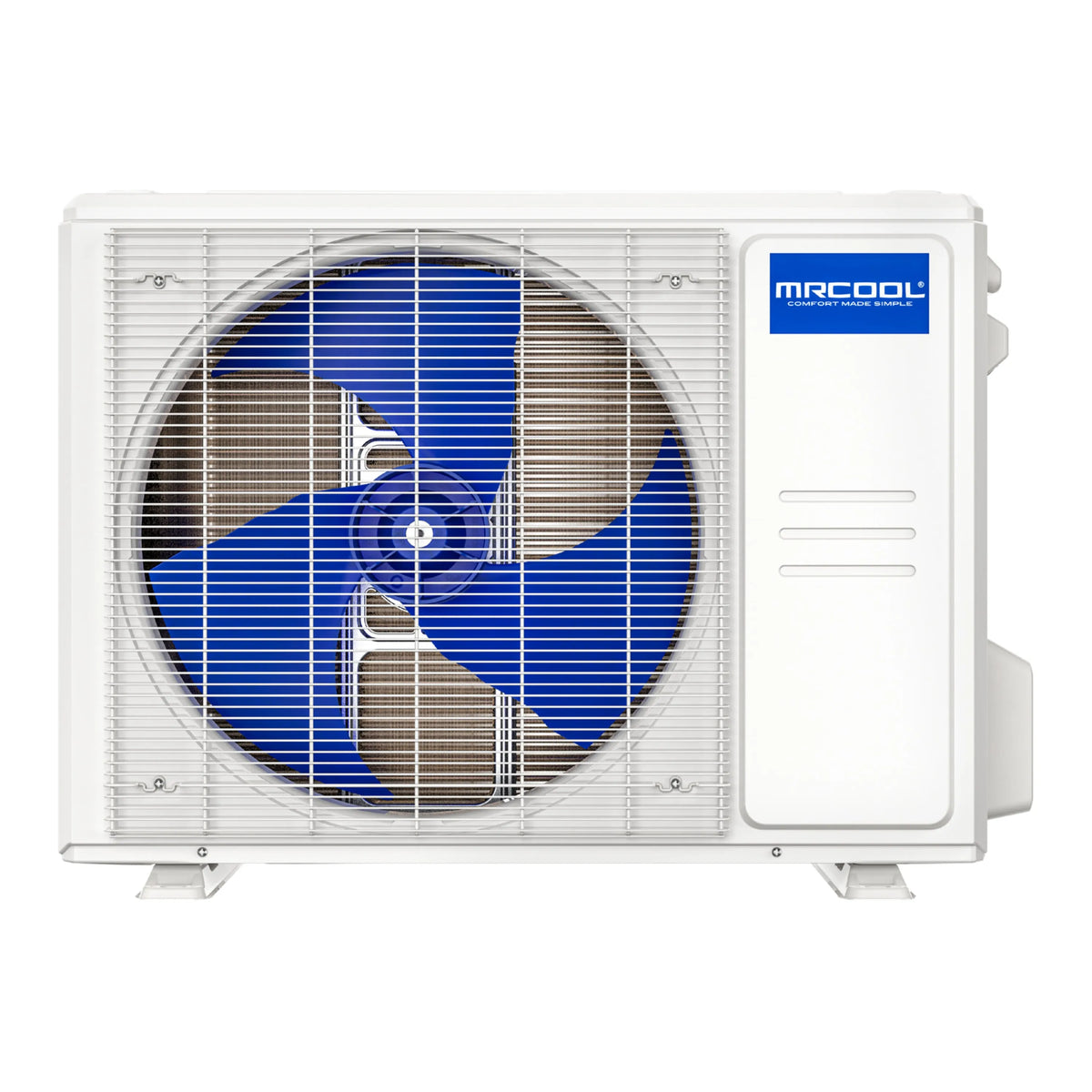

This MRCOOL DIY 5th Generation 3-Zone Ductless Mini-Split pairs a 36,000 BTU outdoor condenser with three matching 6,000 BTU OuttaSight ceiling cassette indoor air handlers, each rated for spaces up to 200 sq ft, and installs without the need for an HVAC professional.
Highlights
- Pre-charged DIY QuickConnect line sets filled with R-454B refrigerant remove the need for vacuuming, cutting installation time and cost.

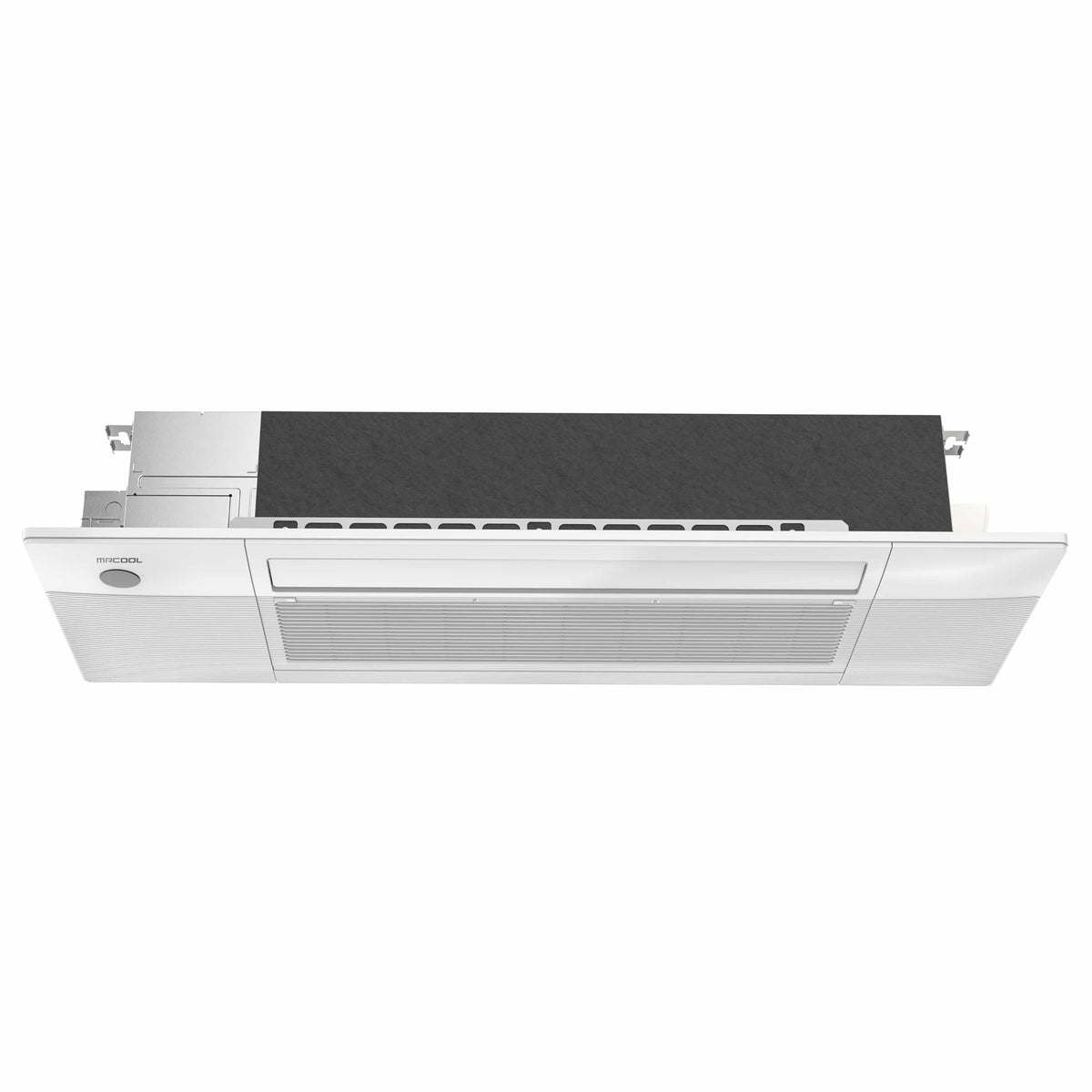

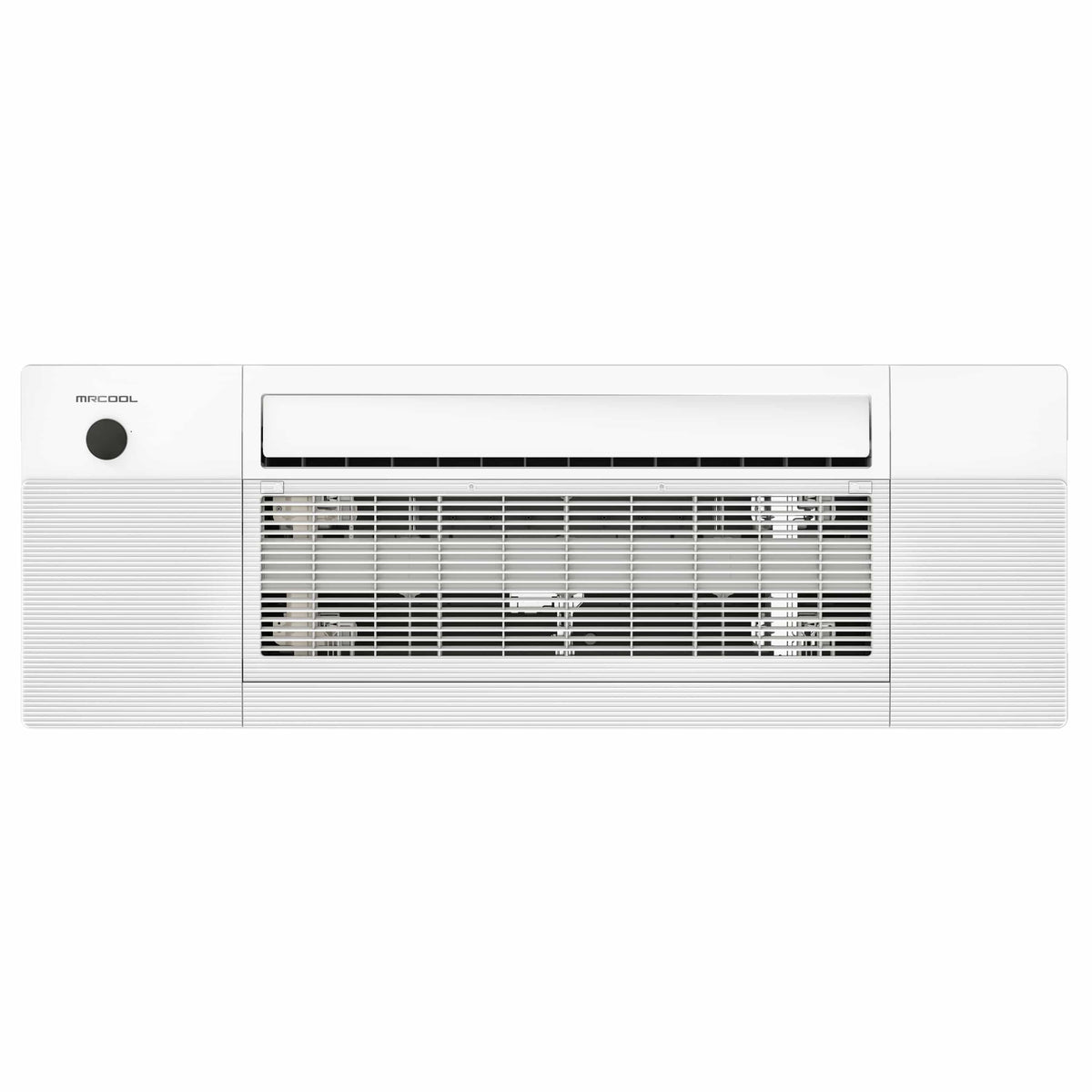

- Low-profile cassettes fit between 16" ceiling joists, including pre-manufactured I-joists, for a flush-mounted look.
- Elevation function lowers the panel for easy filter access and maintenance.
- Two-stage DC motor delivers quiet operation across multiple operating modes.
- Advanced filtration and Swing Technology help improve indoor air distribution and quality.
- Wireless remote, SmartHVAC app, and voice control via Amazon Alexa and Google Assistant give multiple ways to manage comfort.
Details
Avermont Direct is an authorized MRCOOL dealer. This 3-zone ductless system carries a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available to systems enrolled in the MRCOOL Care Program. It suits homeowners who want a discreet, ceiling-mounted comfort solution for three similarly sized small rooms without ductwork or a full HVAC installation.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 36,000 BTU (3-Zone) |
| Zones Supported | Up to 5 |
| Approx. Total Coverage | 1,500 sq ft (condenser rating) |
| SEER2 | 23 |
| HSPF2-4 | 9.9 |
| Refrigerant | R-454B, pre-charged Quick Connect line sets |
| Zone 1 - Ceiling Cassette | 6,000 BTU, up to 200 sq ft |
| Zone 2 - Ceiling Cassette | 6,000 BTU, up to 200 sq ft |
| Zone 3 - Ceiling Cassette | 6,000 BTU, up to 200 sq ft |
| Parts Warranty | 5 years |
| Compressor Warranty | 7 years |
- Fits between 16" ceiling joists, works with multi- and single-zone systems
- Wireless remote included with each air handler
