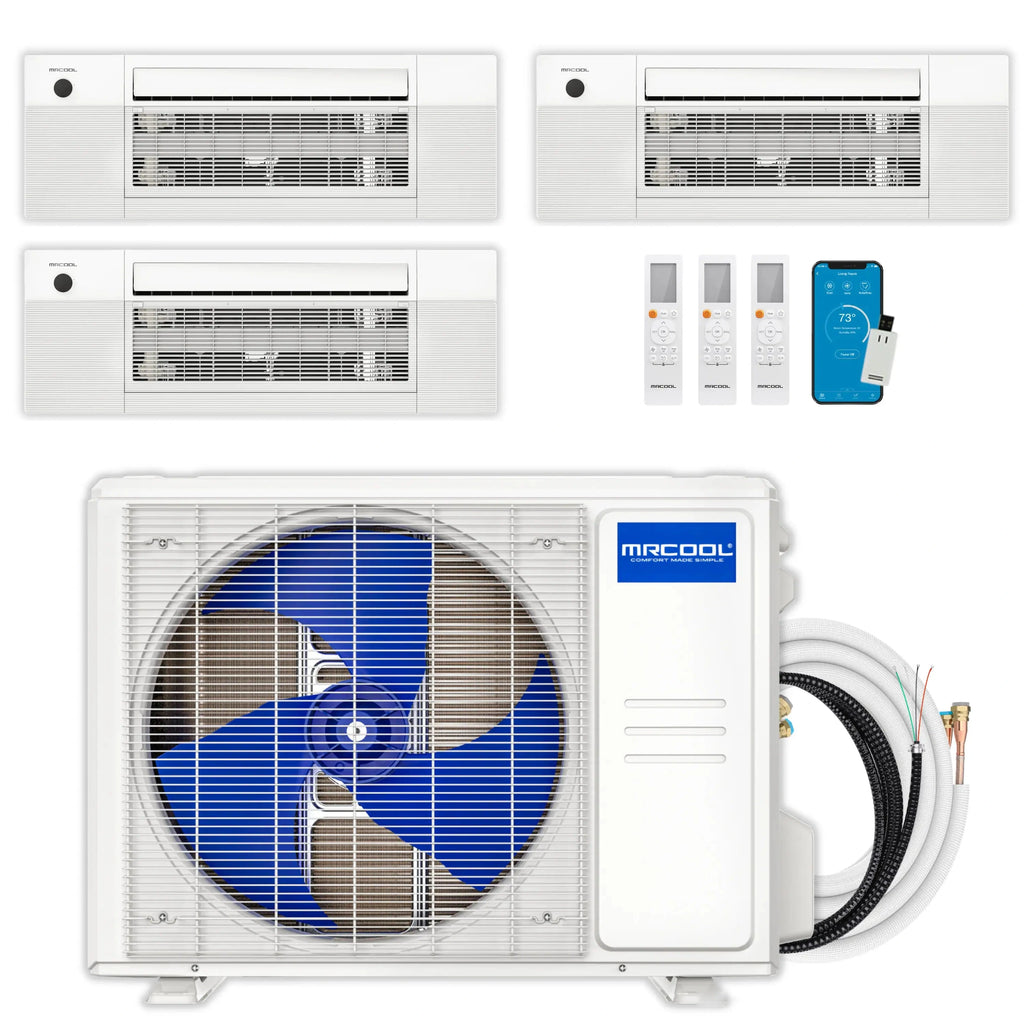

This MRCOOL® DIY® 5th Generation 36,000 BTU ductless mini-split system pairs a 3-zone condenser with 12,000 + 12,000 + 12,000 BTU indoor air handlers (12,000 BTU Ceiling Cassette (OuttaSight®), 12,000 BTU Ceiling Cassette (OuttaSight®), 12,000 BTU Ceiling Cassette (OuttaSight®)), and installs without an HVAC professional. The condenser is rated up to 5 zones and up to 1,500 sq. ft. of combined coverage, with a SEER2 of 23 and an HSPF2-4 of 9.9.
Highlights
- Patented pre-charged Quick Connect® line sets (filled with eco-friendly R-454B refrigerant) skip the evacuation and charging steps, so the system installs without specialized HVAC tools or certifications.
- Included DIYPro® cable eliminates the need for electrical conduit between the condenser and each indoor unit.
- SmartHVAC app (Apple and Android) plus Amazon Alexa and Google Assistant/Google Home compatibility let you set schedules, switch modes, and monitor the system remotely.
- Follow Me® function on each included remote adjusts airflow based on the remote's location for more even comfort.
- Gold Fin® condenser coil offers added corrosion resistance, a benefit in coastal or high-humidity climates.
- Backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through enrollment in the MRCOOL® Care Program.
Specs & Features
| Condenser Capacity |
36,000 BTU |
| Zones Supported by Condenser |
Up to 5 |
| Zones Installed (this configuration) |
3 (12,000 BTU Ceiling Cassette (OuttaSight®), 12,000 BTU Ceiling Cassette (OuttaSight®), 12,000 BTU Ceiling Cassette (OuttaSight®)) |
| Condenser SEER2 |
23 |
| Condenser HSPF2-4 |
9.9 |
| Total Rated Coverage (condenser) |
Up to 1,500 sq. ft. |
| 12,000 BTU Ceiling Cassette (OuttaSight®) Coverage |
Up to 550 sq. ft. |
| 12,000 BTU Ceiling Cassette (OuttaSight®) Coverage |
Up to 550 sq. ft. |
| 12,000 BTU Ceiling Cassette (OuttaSight®) Coverage |
Up to 550 sq. ft. |
| Refrigerant |
R-454B (pre-charged Quick Connect® line sets) |
| Certification |
Intertek listed 5031495 |
| Parts Warranty |
5 years |
| Compressor Warranty |
7 years |
| Extended Warranty |
Limited Lifetime Replacement warranty available with MRCOOL® Care Program enrollment |
- Multiple control options on every zone: wireless remote, SmartHVAC app, or voice control.
- Dry Mode helps reduce indoor humidity independent of full cooling operation.
- Ceiling cassette units are engineered to fit between 16" ceiling joists (including pre-manufactured I-joists) for a low-profile, flush-mounted appearance, with an Elevation function that lowers the filter panel for easy maintenance.
Details
Avermont Direct is an authorized MRCOOL dealer. This 36,000 BTU, 3-zone DIY® mini-split system is suited to homes needing independent heating and cooling across 3 rooms or living areas without ductwork — for example bedrooms, additions, or multi-room retrofits — since all 3 indoor air handlers are ceiling cassette (OuttaSight®) units. The condenser and indoor units are covered by a 5-year parts warranty and a 7-year compressor warranty as stated by the manufacturer, with a Limited Lifetime Replacement warranty available to customers who enroll in the MRCOOL® Care Program.
