What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

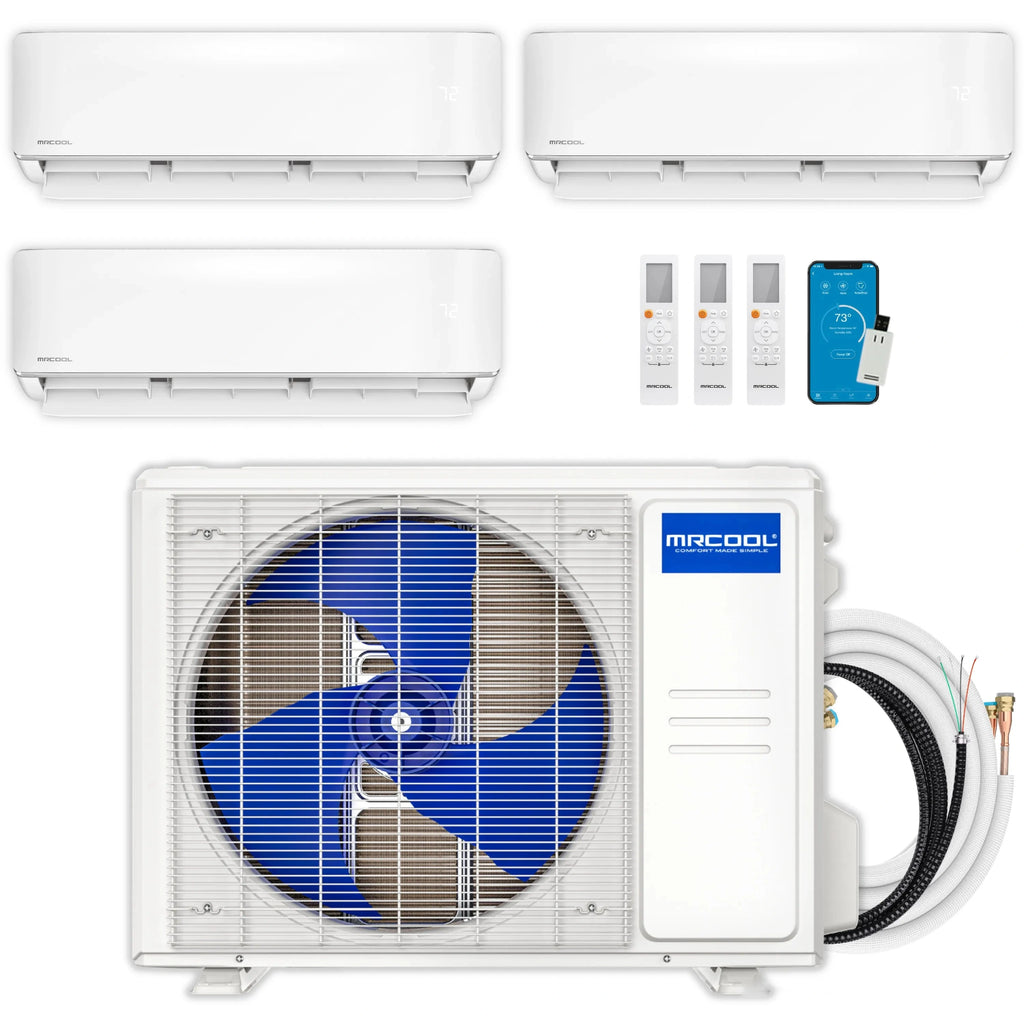

This MRCOOL® DIY® 5th Generation 27,000 BTU ductless mini-split system pairs a 3-zone condenser with 9,000 + 9,000 + 9,000 BTU indoor air handlers (9,000 BTU Wall Mount, 9,000 BTU Wall Mount, 9,000 BTU Wall Mount), and installs without an HVAC professional. The condenser is rated up to 4 zones and up to 1,000–1,200 sq. ft. of combined coverage, with a SEER2 of 23 and an HSPF2-4 of 9.5.
Highlights
- Patented pre-charged Quick Connect® line sets (filled with eco-friendly R-454B refrigerant) skip the evacuation and charging steps, so the system installs without specialized HVAC tools or certifications.
- Included DIYPro® cable eliminates the need for electrical conduit between the condenser and each indoor unit.
- SmartHVAC app (Apple and Android) plus Amazon Alexa and Google Assistant/Google Home compatibility let you set schedules, switch modes, and monitor the system remotely.
- Follow Me® function on each included remote adjusts airflow based on the remote's location for more even comfort.
- Gold Fin® condenser coil offers added corrosion resistance, a benefit in coastal or high-humidity climates.
- Backed by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through enrollment in the MRCOOL® Care Program.
Details
Avermont Direct is an authorized MRCOOL dealer. This 27,000 BTU, 3-zone DIY® mini-split system is suited to homes needing independent heating and cooling across 3 rooms or living areas without ductwork — for example bedrooms, additions, or multi-room retrofits — since all 3 indoor air handlers are wall mount units. The condenser and indoor units are covered by a 5-year parts warranty and a 7-year compressor warranty as stated by the manufacturer, with a Limited Lifetime Replacement warranty available to customers who enroll in the MRCOOL® Care Program.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 27,000 BTU |
| Zones Supported by Condenser | Up to 4 |
| Zones Installed (this configuration) | 3 (9,000 BTU Wall Mount, 9,000 BTU Wall Mount, 9,000 BTU Wall Mount) |
| Condenser SEER2 | 23 |
| Condenser HSPF2-4 | 9.5 |
| Total Rated Coverage (condenser) | Up to 1,000–1,200 sq. ft. |
| 9,000 BTU Wall Mount Coverage | Up to 400 sq. ft. |
| 9,000 BTU Wall Mount Coverage | Up to 400 sq. ft. |
| 9,000 BTU Wall Mount Coverage | Up to 400 sq. ft. |
| Refrigerant | R-454B (pre-charged Quick Connect® line sets) |
| Certification | Intertek listed 5031495 |
| Parts Warranty | 5 years |
| Compressor Warranty | 7 years |
| Extended Warranty | Limited Lifetime Replacement warranty available with MRCOOL® Care Program enrollment |
- Multiple control options on every zone: wireless remote, SmartHVAC app, or voice control.
- Dry Mode helps reduce indoor humidity independent of full cooling operation.
