What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

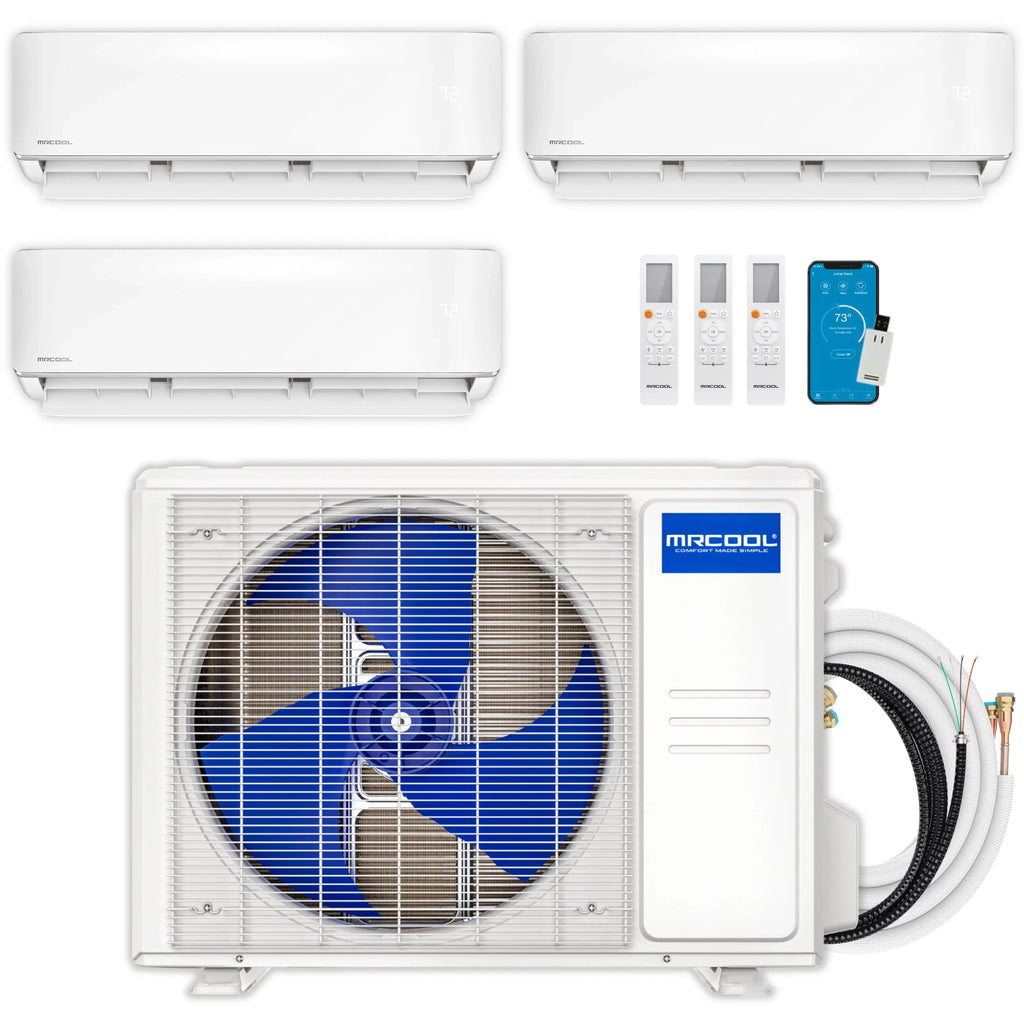

This MRCOOL DIY 5th Gen 3-zone ductless mini-split system pairs a 27,000 BTU condenser with 12,000 BTU, 12,000 BTU, 12,000 BTU wall-mount air handlers, giving you independent heating and cooling in three rooms without hiring an HVAC professional. The condenser reaches a SEER2 rating of up to 23 and an HSPF2-4 rating of up to 9.5, and installs using pre-charged Quick Connect® line sets filled with R-454B refrigerant.
Highlights
- DIY installation with no HVAC professional required — pre-charged Quick Connect® line sets (filled with R-454B refrigerant) eliminate the need for vacuuming, and the included DIYPro® cable removes the need for electrical conduit.
- This condenser supports up to 4 air handlers with a combined coverage area of 1,000–1,200 sq ft, and this configuration pairs it with three wall-mount zones (12,000 BTU, 12,000 BTU, 12,000 BTU).
- Control the system with the included wireless remote, the SmartHVAC app (iOS/Android), or voice commands via Amazon Alexa and Google Assistant.
- The Follow Me® function tracks the temperature near the remote in each zone to help keep comfort consistent.
- The Gold Fin® condenser coil offers added corrosion resistance for coastal environments, and Dry Mode helps manage indoor humidity alongside the Follow Me® function.
- Backed by a 7-year compressor warranty, a 5-year parts warranty, and a Limited Lifetime Replacement warranty with enrollment in the MRCOOL® Care Program.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 3-zone DIY system is built for homeowners adding independent heating and cooling to three rooms — bedrooms, home offices, or an addition, for example — without opening walls for ductwork or scheduling a professional HVAC install. The condenser is backed by a 7-year compressor warranty and a 5-year parts warranty, with a Limited Lifetime Replacement warranty available through enrollment in the MRCOOL® Care Program. Each wall-mount air handler connects to the condenser through a pre-charged Quick Connect® line set, so once the lines are run and connected the system is ready to use without additional refrigerant handling.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 27,000 BTU |
| Zone / Room Count | 3 zones |
| Zone 1 Air Handler | 12,000 BTU Wall Mount (up to 550 sq ft) |
| Zone 2 Air Handler | 12,000 BTU Wall Mount (up to 550 sq ft) |
| Zone 3 Air Handler | 12,000 BTU Wall Mount (up to 550 sq ft) |
| SEER2 Rating | up to 23 |
| HSPF2-4 Rating | up to 9.5 |
| Combined Coverage Area (Condenser) | 1,000–1,200 sq ft |
| Refrigerant | R-454B, pre-charged Quick Connect® line sets |
| Compressor Warranty | 7 years |
| Parts Warranty | 5 years |
| Replacement Warranty | Limited Lifetime (with MRCOOL® Care Program enrollment) |
| Certification | Intertek listed 5031495 |
- Google Assistant & Amazon Alexa compatible via the MRCOOL® Smart HVAC Controller® Module and App
- Wireless remote included with each air handler
- Wall-mounted air handlers with Gold Fin® condenser coil corrosion resistance
- Dry Mode humidity control on each wall-mount air handler
