What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

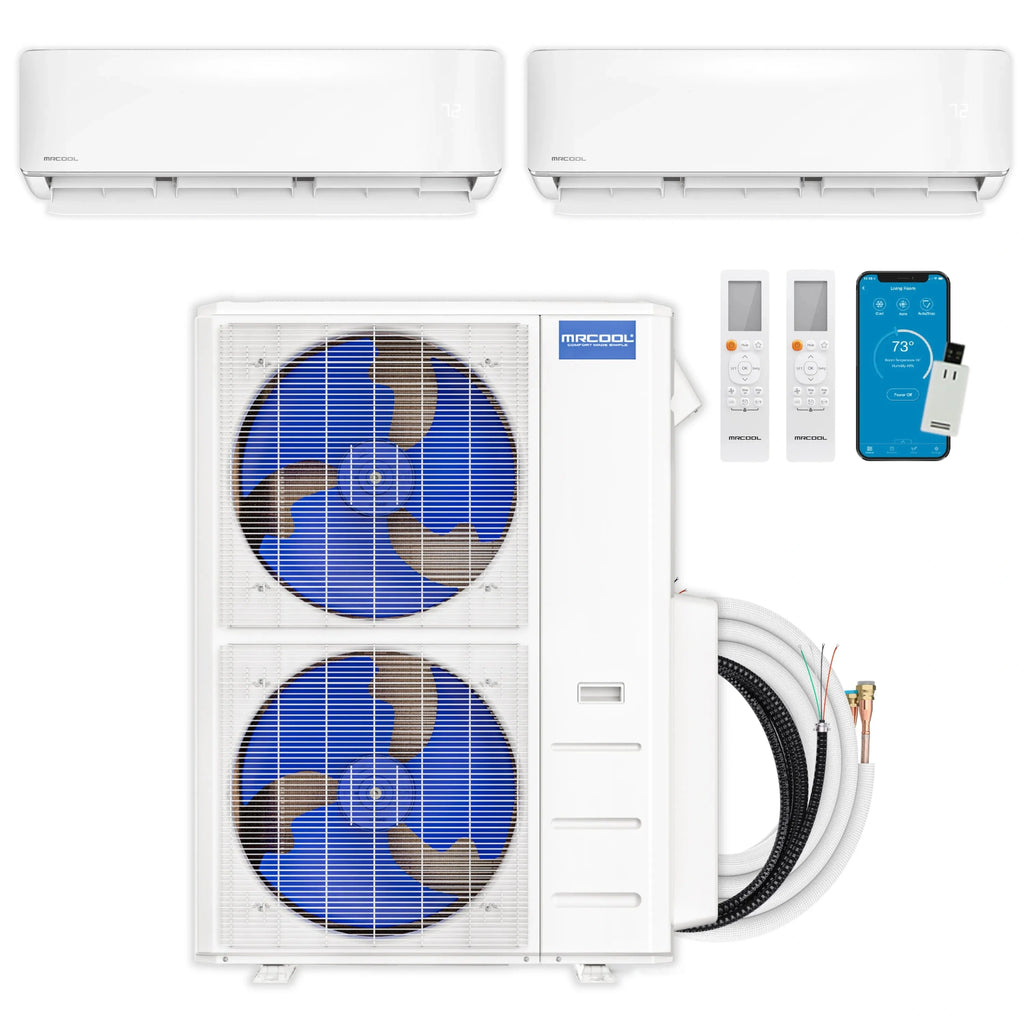

This MRCOOL DIY 5th Gen 2-zone ductless mini-split system pairs a 55,000 BTU condenser with a 24,000 BTU and an 18,000 BTU wall-mount air handler, letting you heat and cool two larger rooms without hiring an HVAC professional. The condenser is rated at SEER2 22 and HSPF2-4 10.6, and its pre-charged Quick Connect line sets use R-454B refrigerant to skip the evacuation and vacuuming steps of a traditional install.
Highlights

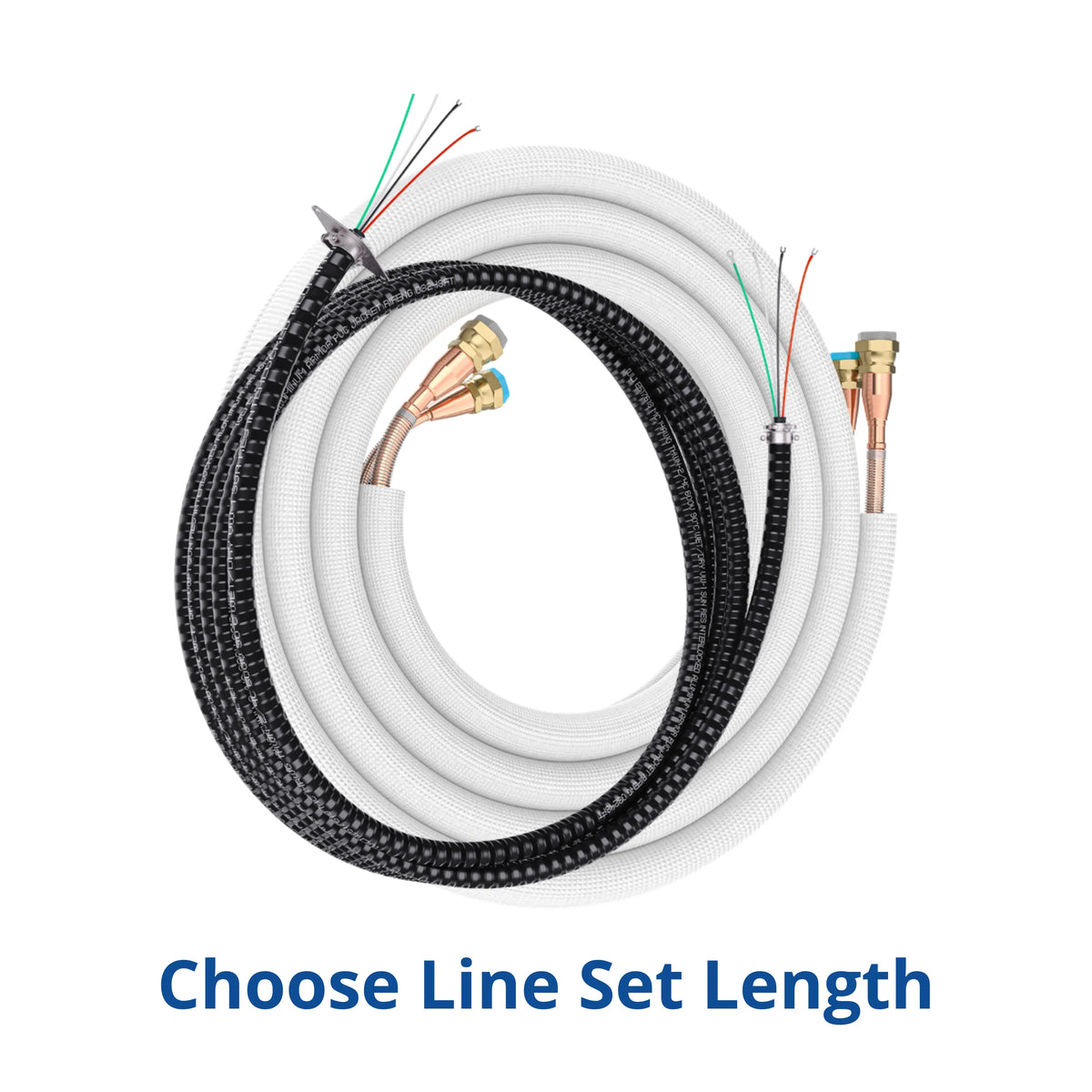

- Pre-charged Quick Connect line sets (R-454B refrigerant) and the included DIYPro cable let you install the system yourself, with no electrical conduit or refrigerant vacuuming required.
- A 24,000 BTU wall-mount air handler (rated for spaces up to 1,050 sq. ft.) pairs with an 18,000 BTU wall-mount air handler (up to 800 sq. ft.) for two independently zoned rooms.
- Smart HVAC app (iOS/Android) with Amazon Alexa and Google Assistant compatibility for schedules, mode control, and energy monitoring.
- Follow Me function on the included remote adjusts airflow based on the remote's location; Dry Mode helps manage indoor humidity.
- Gold Fin condenser coil offers added corrosion resistance for long-term outdoor durability, including coastal climates.
- Backed by a 5-year parts warranty, 7-year compressor warranty, and a Limited Lifetime Replacement warranty with MRCOOL Care Program enrollment.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 55,000 BTU 2-zone DIY system carries a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty when you enroll in the MRCOOL Care Program. Pairing a 24,000 BTU air handler with an 18,000 BTU air handler makes it well suited to zoning two larger rooms, such as a living room and a primary bedroom, from a single outdoor condenser.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 55,000 BTU |
| Zones | 2 |
| Indoor Unit 1 | 24,000 BTU Wall Mount (up to 1,050 sq. ft.) |
| Indoor Unit 2 | 18,000 BTU Wall Mount (up to 800 sq. ft.) |
| Combined Coverage (condenser-rated) | Up to 2,290 sq. ft. |
| Efficiency | SEER2 22 / HSPF2-4 10.6 |
| Refrigerant | R-454B, pre-charged Quick Connect line sets |
| Installation | DIY, no HVAC professional required |
| Certification | Intertek listed 5031495; NEEP ccASHP Listed (24K indoor unit) |
| Parts Warranty | 5 years |
| Compressor Warranty | 7 years |
| Extended Warranty | Limited Lifetime Replacement (with MRCOOL Care Program enrollment) |
- Wireless remote included with each air handler
- DIYPro cable eliminates the need for electrical conduit
- Smart HVAC app supports Amazon Alexa and Google Assistant out of the box
