Description

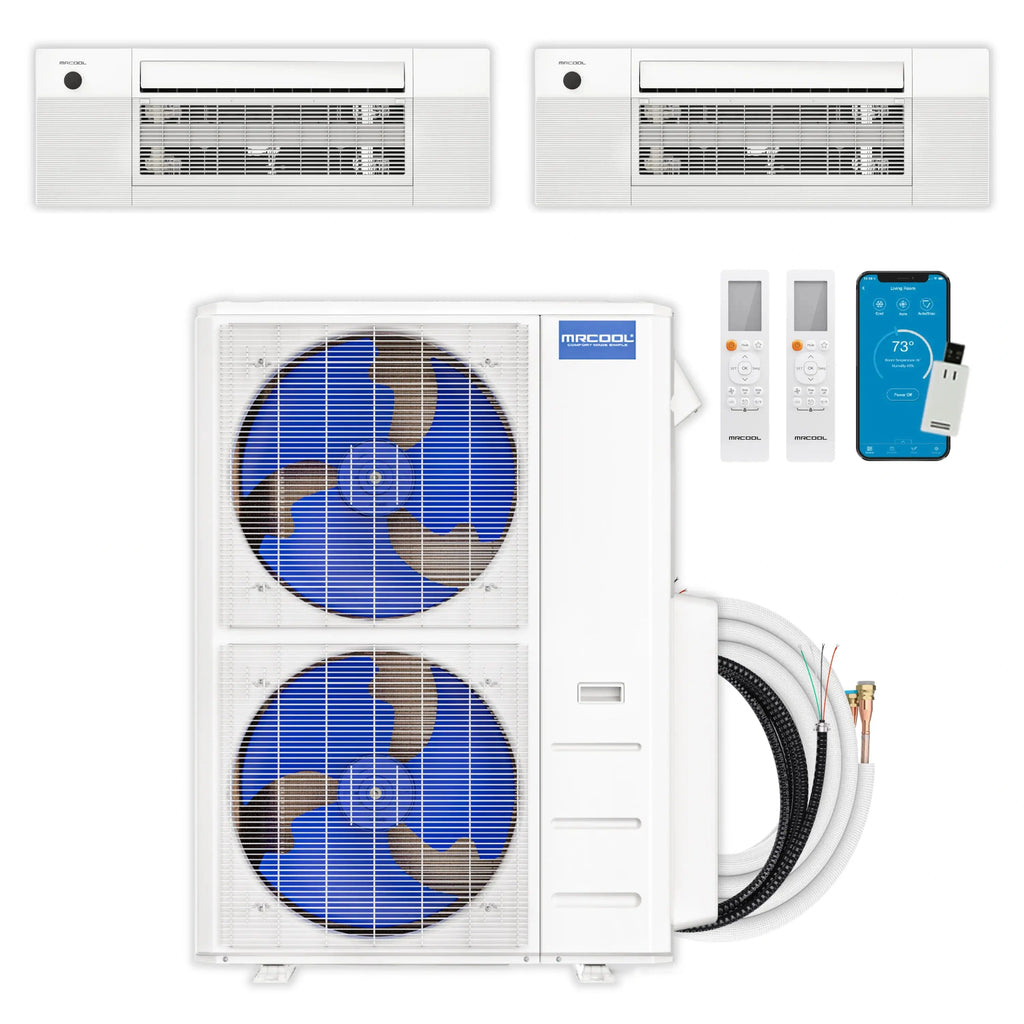

This MRCOOL DIY 5th Gen 2-zone ductless mini-split system pairs a 55,000 BTU condenser with an 18,000 BTU and a 9,000 BTU OuttaSight ceiling cassette air handler, letting you heat and cool two rooms with a low-profile, flush-mounted indoor unit and no HVAC professional required. The condenser is rated at SEER2 22 and HSPF2-4 10.6, and its pre-charged Quick Connect line sets use R-454B refrigerant to skip the evacuation and vacuuming steps of a traditional install.
Highlights
- Pre-charged Quick Connect line sets (R-454B refrigerant) let you install the system yourself, with no vacuuming or brazing required.
- An 18,000 BTU ceiling cassette (rated for spaces up to 800 sq. ft.) pairs with a 9,000 BTU ceiling cassette (up to 400 sq. ft.); both fit flush between 16" ceiling joists, including pre-manufactured I-joists, without ductwork or wall space.
- The Elevation function lowers the cassette's filter panel for easy access and cleaning, and advanced filtration helps improve indoor air quality.
- Whisper-quiet, two-stage DC motor operation with Swing Technology airflow distribution.
- Controllable via wireless remote, the SmartHVAC app (iOS/Android), or voice commands through Amazon Alexa and Google Assistant.
- Backed by a 5-year parts warranty, 7-year compressor warranty, and a Limited Lifetime Replacement warranty with MRCOOL Care Program enrollment.
Details
Avermont Direct is an authorized MRCOOL dealer, and this 55,000 BTU 2-zone DIY system carries a 5-year parts warranty, a 7-year compressor warranty, and a Limited Lifetime Replacement warranty when you enroll in the MRCOOL Care Program. Pairing an 18,000 BTU and a 9,000 BTU ceiling cassette makes it well suited to zoning a larger living area and a smaller bedroom or office from a single outdoor condenser, without giving up wall or floor space to the indoor units.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 55,000 BTU |
| Zones | 2 |
| Indoor Unit 1 | 18,000 BTU OuttaSight Ceiling Cassette, 230V One-Way (up to 800 sq. ft.) |
| Indoor Unit 2 | 9,000 BTU OuttaSight Ceiling Cassette, 230V One-Way (up to 400 sq. ft.) |
| Combined Coverage (condenser-rated) | Up to 2,290 sq. ft. |
| Efficiency | SEER2 22 / HSPF2-4 10.6 |
| Refrigerant | R-454B, pre-charged Quick Connect line sets |
| Installation | DIY, no HVAC professional required |
| Certification | Intertek listed 5031495 |
| Parts Warranty | 5 years |
| Compressor Warranty | 7 years |
| Extended Warranty | Limited Lifetime Replacement (with MRCOOL Care Program enrollment) |
- Low-profile installation fits between 16" ceiling joists
- Wireless remote included with each air handler
- Two-stage DC motor with multiple operating modes
