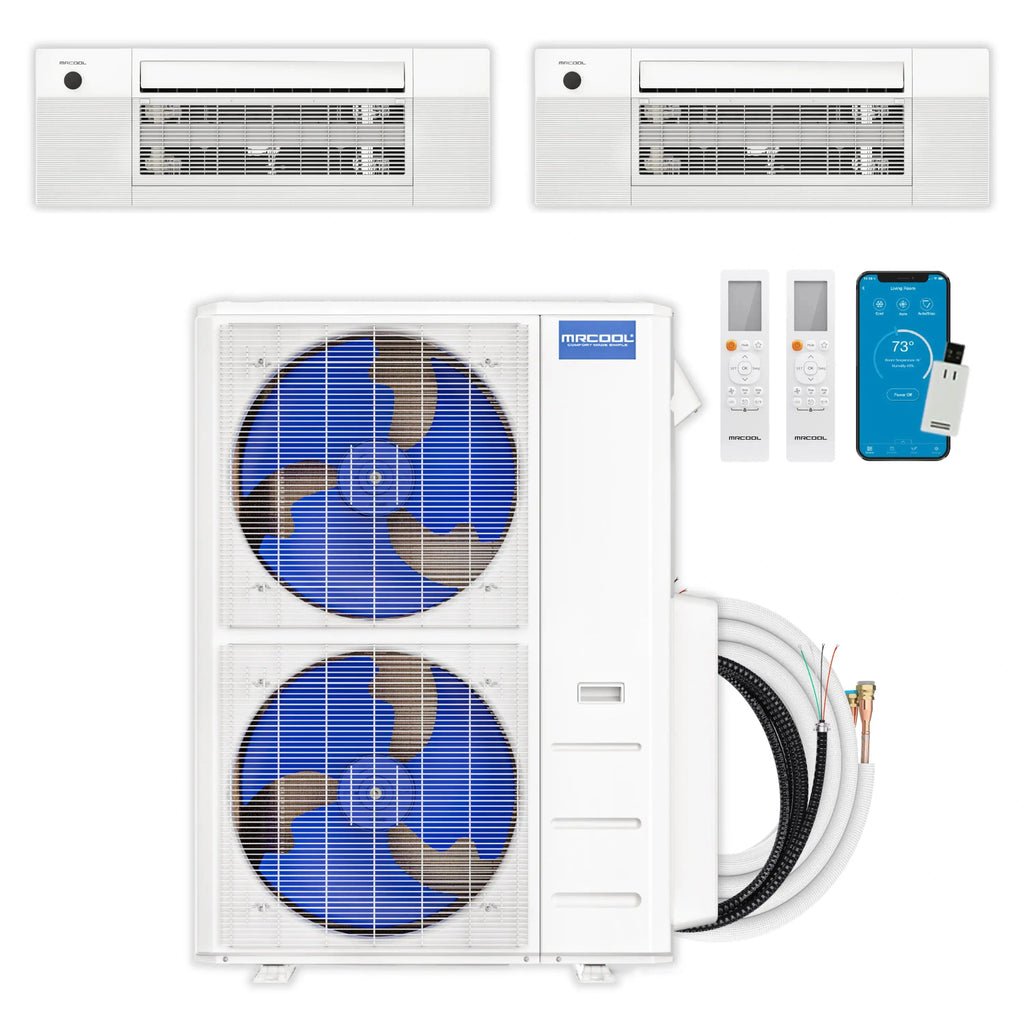

The MRCOOL DIY 5th Gen 55,000 BTU 2-Zone Mini-Split Condenser pairs two matching 12,000 BTU OuttaSight ceiling cassette air handlers, installs without an HVAC professional using pre-charged Quick Connect line sets, and is rated for a SEER2 of 22 and an HSPF2-4 of 10.6.
Highlights
- Pre-charged R-454B Quick Connect line sets skip the evacuation/charging steps an HVAC pro would normally handle
- This condenser supports up to 6 zones across roughly 2,290 sq. ft. combined, enough to cover an entire home with one system
- SmartHVAC app (iOS/Android) plus Amazon Alexa and Google Assistant compatibility for scheduling, mode changes, and energy monitoring
- Follow Me function tracks the temperature near the included remote for more even comfort

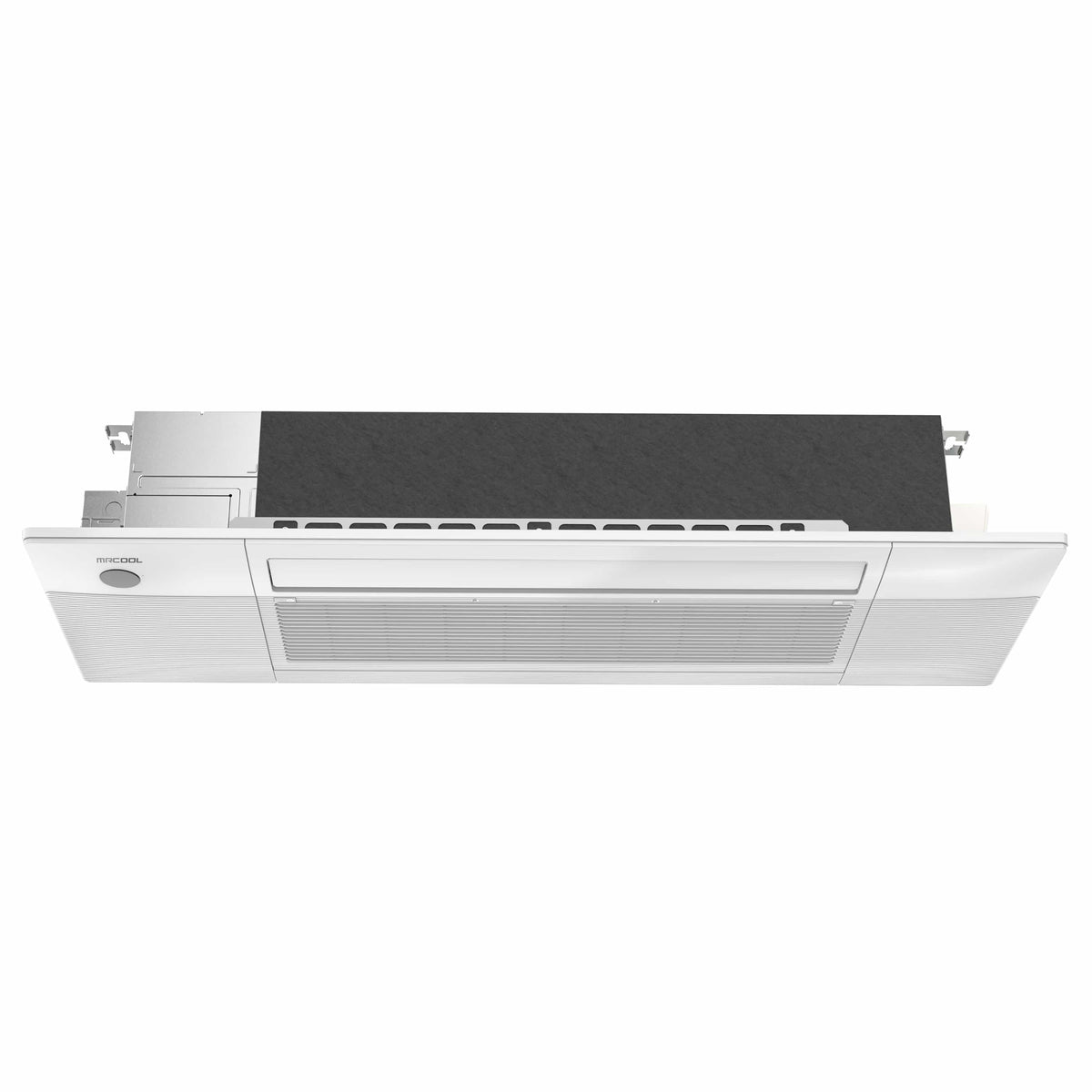

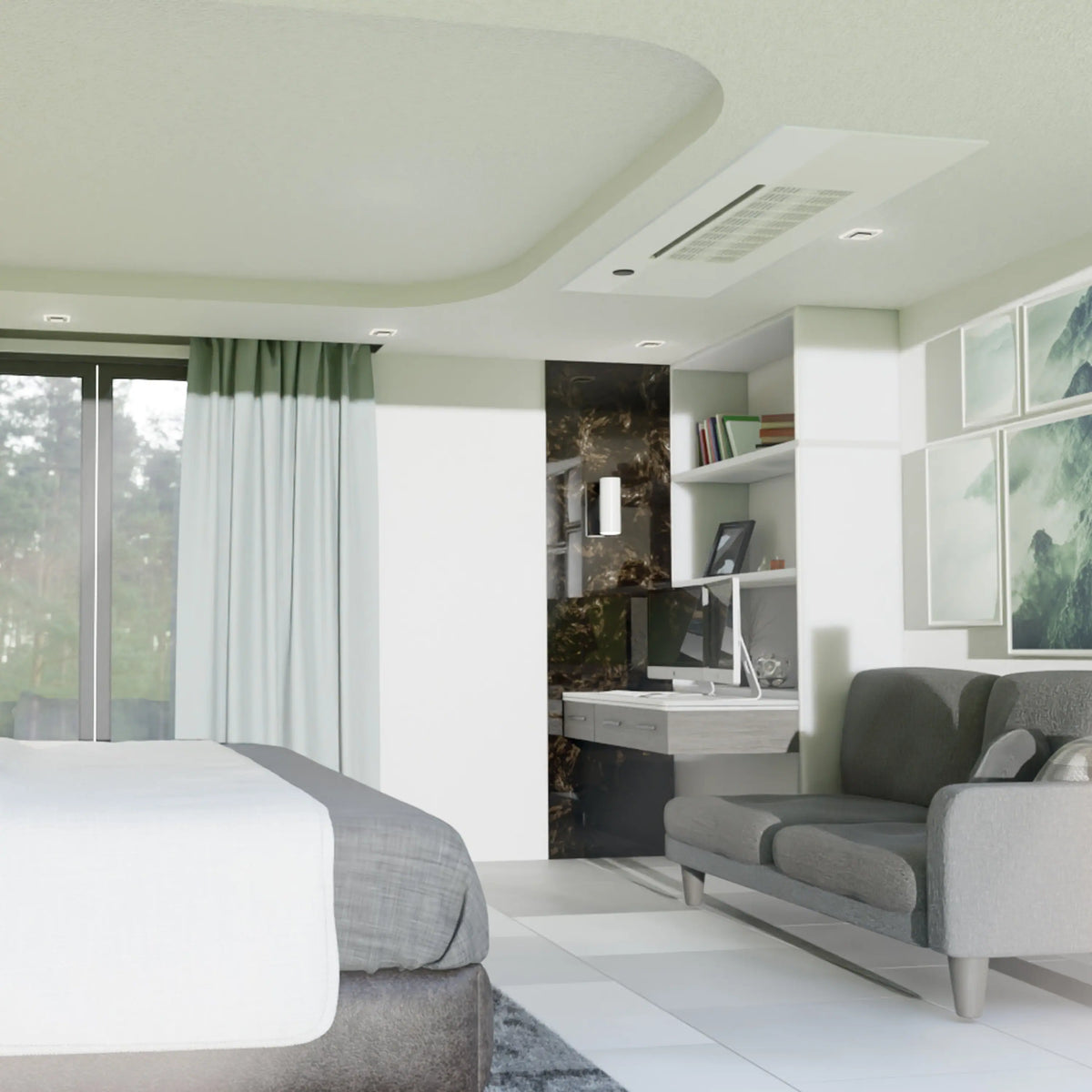

- Both ceiling cassettes mount flush between 16" ceiling joists (including pre-manufactured I-joists), with no ductwork or wall space needed
- Backed by a 5-year parts warranty and 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL Care Program
Specs & Features
| Condenser Capacity |
55,000 BTU |
| Zone Capacity |
Up to 6 zones / approx. 2,290 sq. ft. combined |
| Efficiency |
SEER2 22 / HSPF2-4 10.6 |
| Refrigerant |
R-454B, pre-charged Quick Connect line set |
| Indoor Unit 1 |

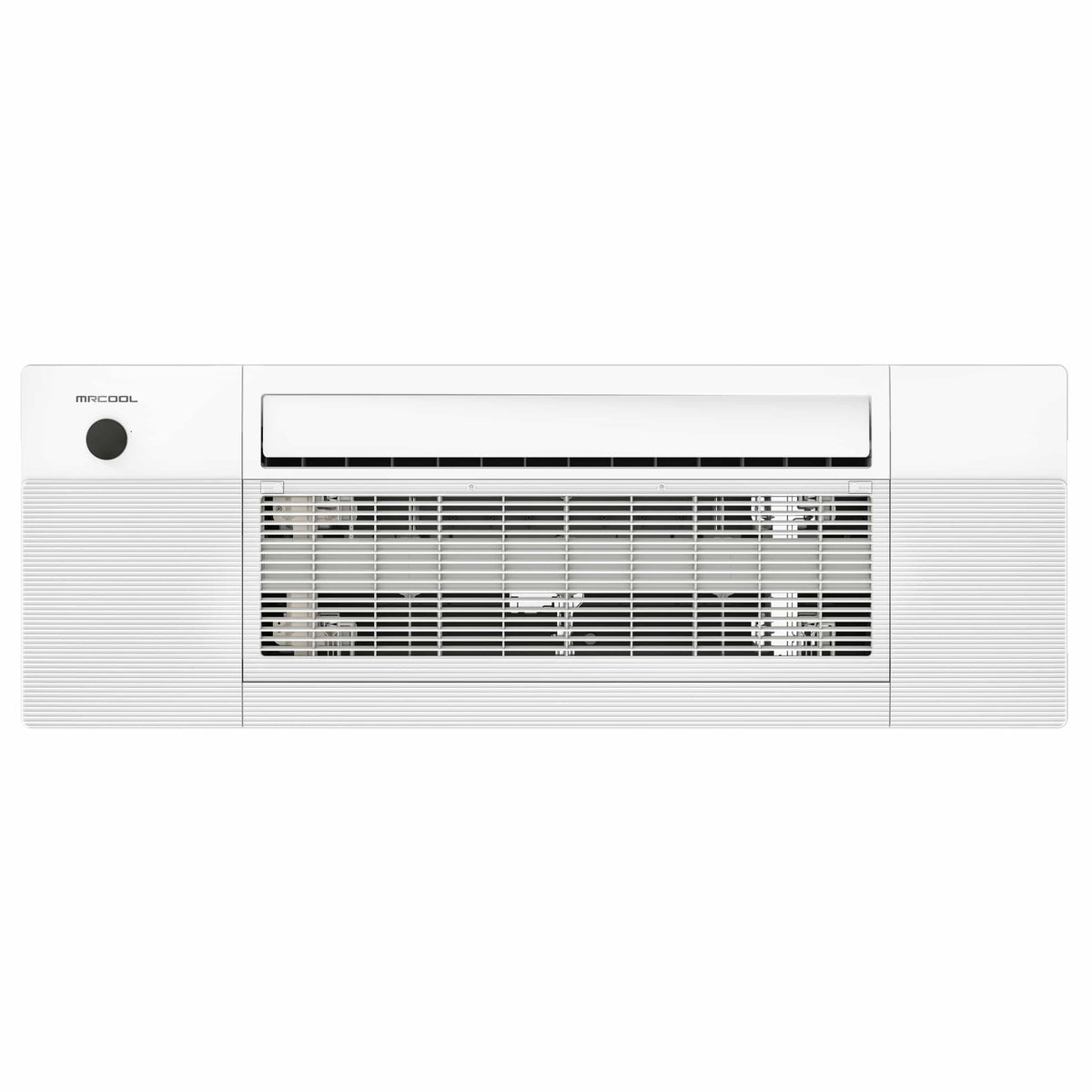

12,000 BTU OuttaSight Ceiling Cassette, up to 550 sq. ft. |
| Indoor Unit 2 |
12,000 BTU OuttaSight Ceiling Cassette, up to 550 sq. ft. |
| Warranty |
5-year parts / 7-year compressor; Limited Lifetime Replacement with MRCOOL Care Program enrollment |
| Certification |
Intertek listed 5031495 |
- Advanced filtration with an Elevation function that lowers the filter panel for easy cleaning
- Two-stage DC motor for quiet operation
- DIYPro cable eliminates the need for electrical conduit
- Wireless remote included with each air handler
Details
Avermont Direct is an authorized MRCOOL dealer. This 2-zone, 55,000 BTU condenser pairs two matching 12,000 BTU OuttaSight ceiling cassette air handlers, well suited for two similarly sized rooms handled in one DIY installation. The system is covered by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available to owners who enroll in the MRCOOL Care Program.
