What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

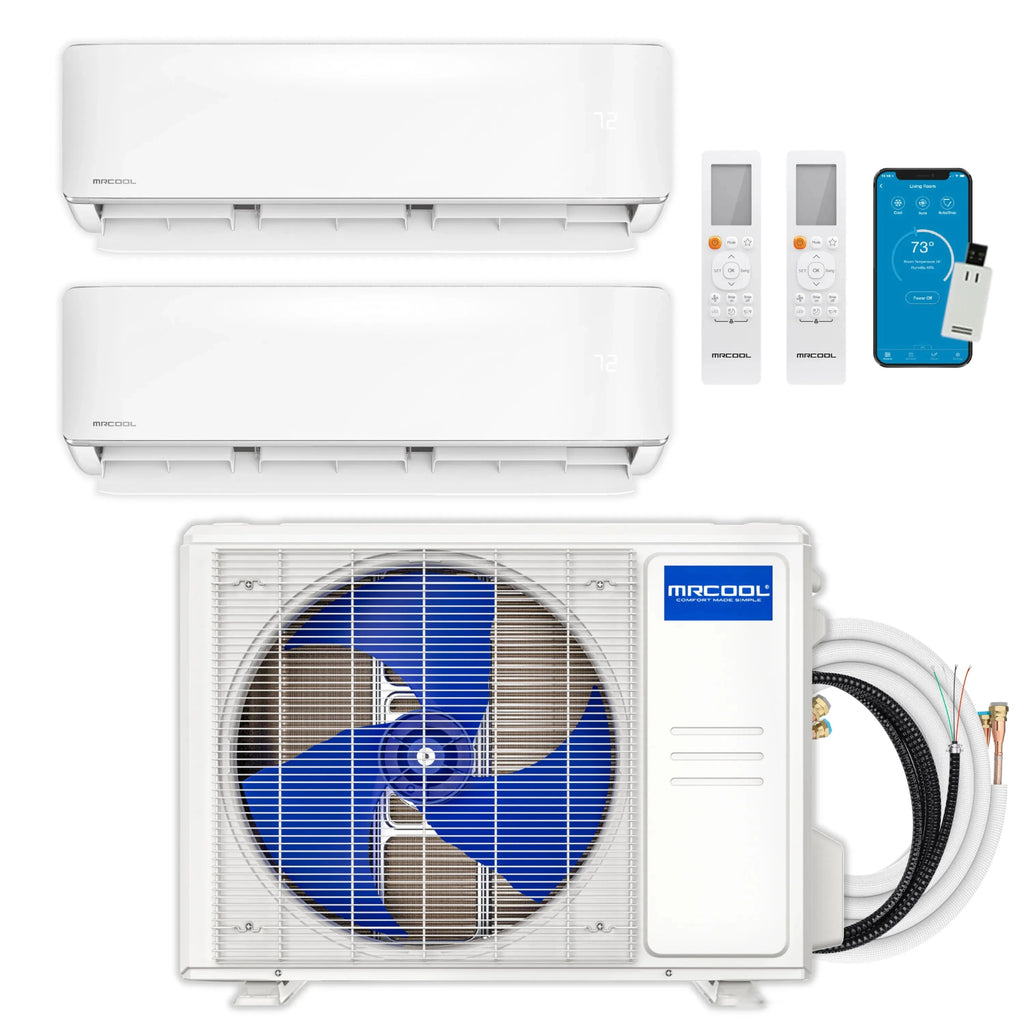

The MRCOOL DIY 5th Gen 36,000 BTU 2-Zone Mini-Split Condenser pairs an 18,000 BTU and a 9,000 BTU wall-mount air handler, installs without an HVAC professional using pre-charged Quick Connect line sets, and is rated for a SEER2 of 23 and an HSPF2-4 of 9.9.
Highlights
- Pre-charged 25-foot R-454B Quick Connect line sets remove the vacuuming step from installation
- This condenser supports up to 5 zones across roughly 1,500 sq. ft. combined, so one system can cover most of a home
- DIYPRO cable removes the need for electrical conduit and adds protection against outdoor elements and wildlife
- Control by wireless remote, the SmartHVAC app (iOS/Android), or hands-free through Amazon Alexa and Google Assistant
- Follow Me function adjusts airflow based on the remote's location; Dry Mode helps manage indoor humidity
- Backed by a 5-year parts warranty and 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL Care Program
Details
Avermont Direct is an authorized MRCOOL dealer. This 2-zone, 36,000 BTU condenser pairs an 18,000 BTU and a 9,000 BTU wall-mount air handler, making it a fit for a larger main room paired with a smaller secondary space in the same DIY installation. The system is covered by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available to owners who enroll in the MRCOOL Care Program.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 36,000 BTU |
| Zone Capacity | Up to 5 zones / approx. 1,500 sq. ft. combined |
| Efficiency | SEER2 23 / HSPF2-4 9.9 |
| Refrigerant | R-454B, pre-charged 25-ft Quick Connect line set |
| Indoor Unit 1 | 18,000 BTU Wall-Mount Air Handler, up to 800 sq. ft. |
| Indoor Unit 2 | 9,000 BTU Wall-Mount Air Handler, up to 400 sq. ft. |
| Warranty | 5-year parts / 7-year compressor; Limited Lifetime Replacement with MRCOOL Care Program enrollment |
| Certification | Intertek listed 5031495 |
- Gold Fin condenser coating offers added corrosion resistance, useful in coastal environments
- DIYPro cable eliminates the need for electrical conduit
- Wireless remote included with each air handler
