What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

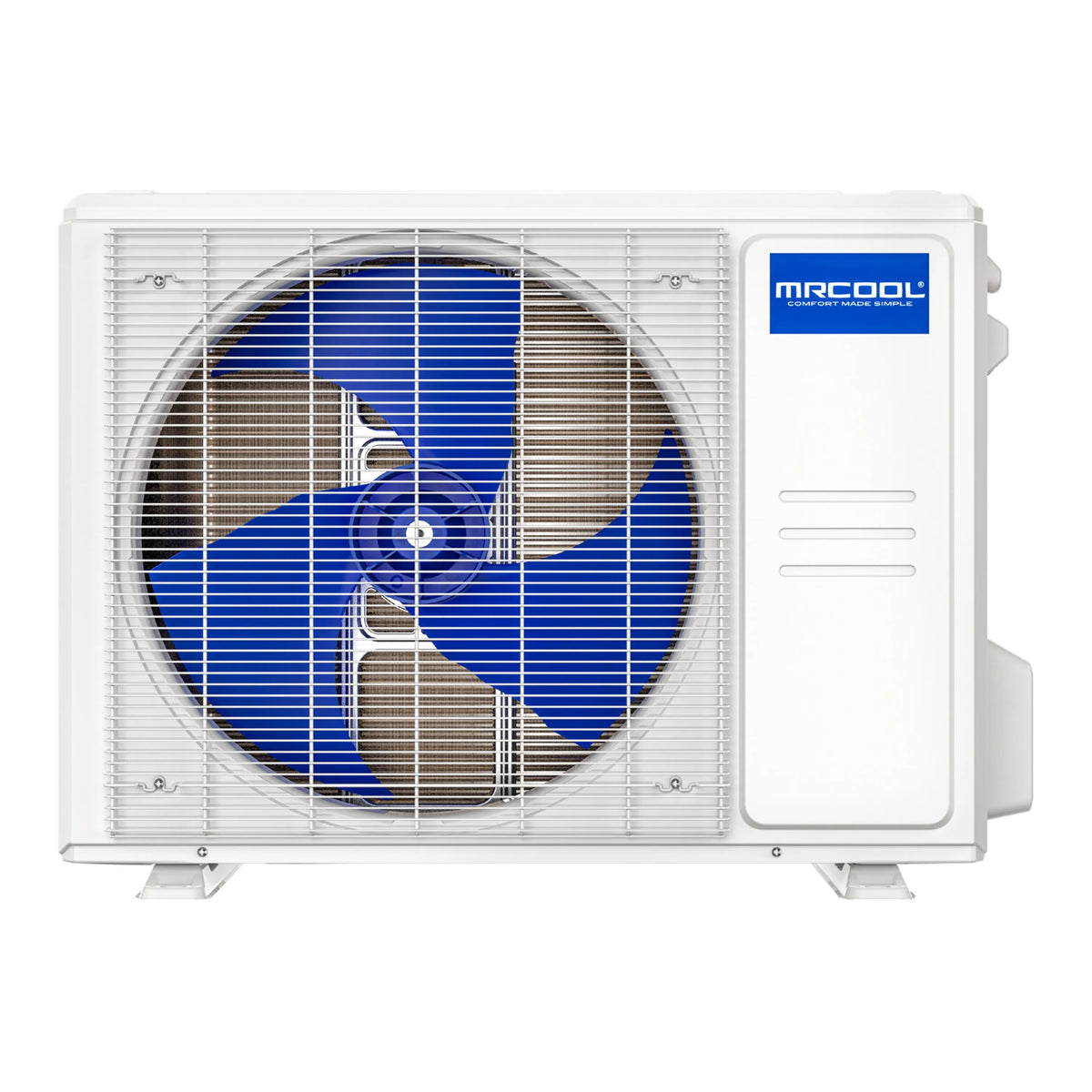

This MRCOOL DIY 5th Generation 36,000 BTU 2-Zone ductless mini-split system pairs an outdoor condenser with two 18,000 BTU wall-mount indoor air handlers, and installs without hiring an HVAC professional thanks to pre-charged Quick-Connect line sets.
Highlights

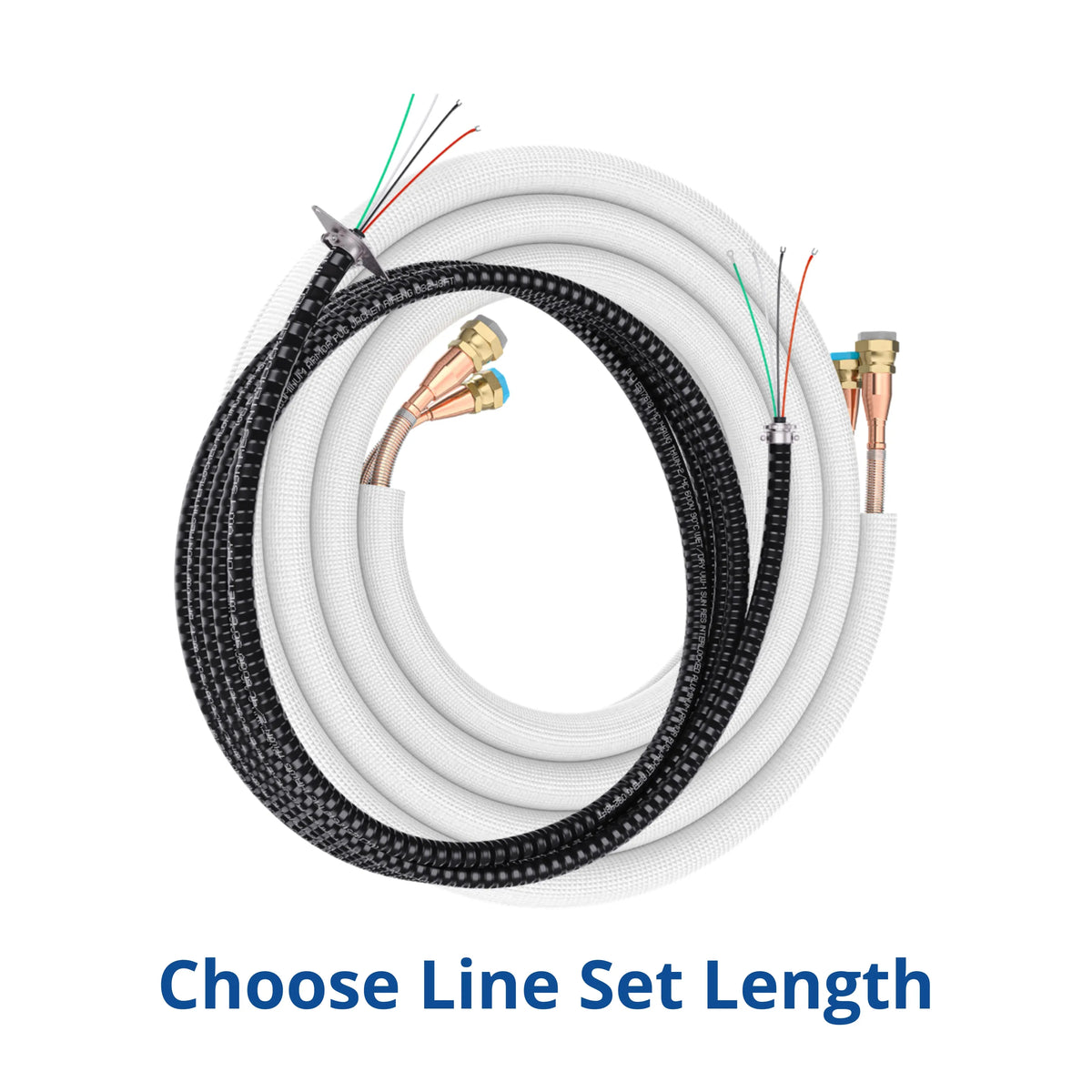

- Pre-charged Quick-Connect line sets filled with R-454B refrigerant skip the evacuation and charging steps, so the whole system installs DIY.
- Condenser rated SEER2 23 and HSPF2-4 9.9, and supports up to 5 air handlers total (around 1,500 sq. ft. combined) on this condenser model.
- Two matching 18,000 BTU wall-mount indoor units, each rated for up to 800 sq. ft.
- Included DIYPro cable eliminates the need for electrical conduit.
- Follow Me function on each included remote tracks the air temperature near you for more even comfort.
- Gold Fin Condenser resists corrosion, a benefit in coastal climates.
Details
Avermont Direct is an authorized MRCOOL dealer. This 2-zone DIY system is backed by a 5-year parts warranty and a 7-year compressor warranty from MRCOOL, with a Limited Lifetime Replacement warranty available through enrollment in the MRCOOL Care Program. Matched 18,000 BTU handlers make it a fitting choice for two similarly sized rooms run from a single outdoor condenser.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Configuration | 2-Zone: 18,000 BTU + 18,000 BTU wall-mount indoor units |
| Condenser Capacity | 36,000 BTU |
| Condenser Efficiency | SEER2 23 / HSPF2-4 9.9 |
| Condenser Rated Capacity | Up to 5 zones, around 1,500 sq. ft. total |
| Indoor Unit 1 | 18,000 BTU Wall Mount, up to 800 sq. ft. |
| Indoor Unit 2 | 18,000 BTU Wall Mount, up to 800 sq. ft. |
| Refrigerant | R-454B, pre-charged Quick-Connect line set |
| Listing | Intertek listed 5031495 |
| Warranty | 5-year parts, 7-year compressor; Limited Lifetime Replacement with MRCOOL Care Program enrollment |
- Remote control included with each indoor air handler
- DIYPro cable removes the need for electrical conduit
- Dry Mode helps reduce indoor humidity
