What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

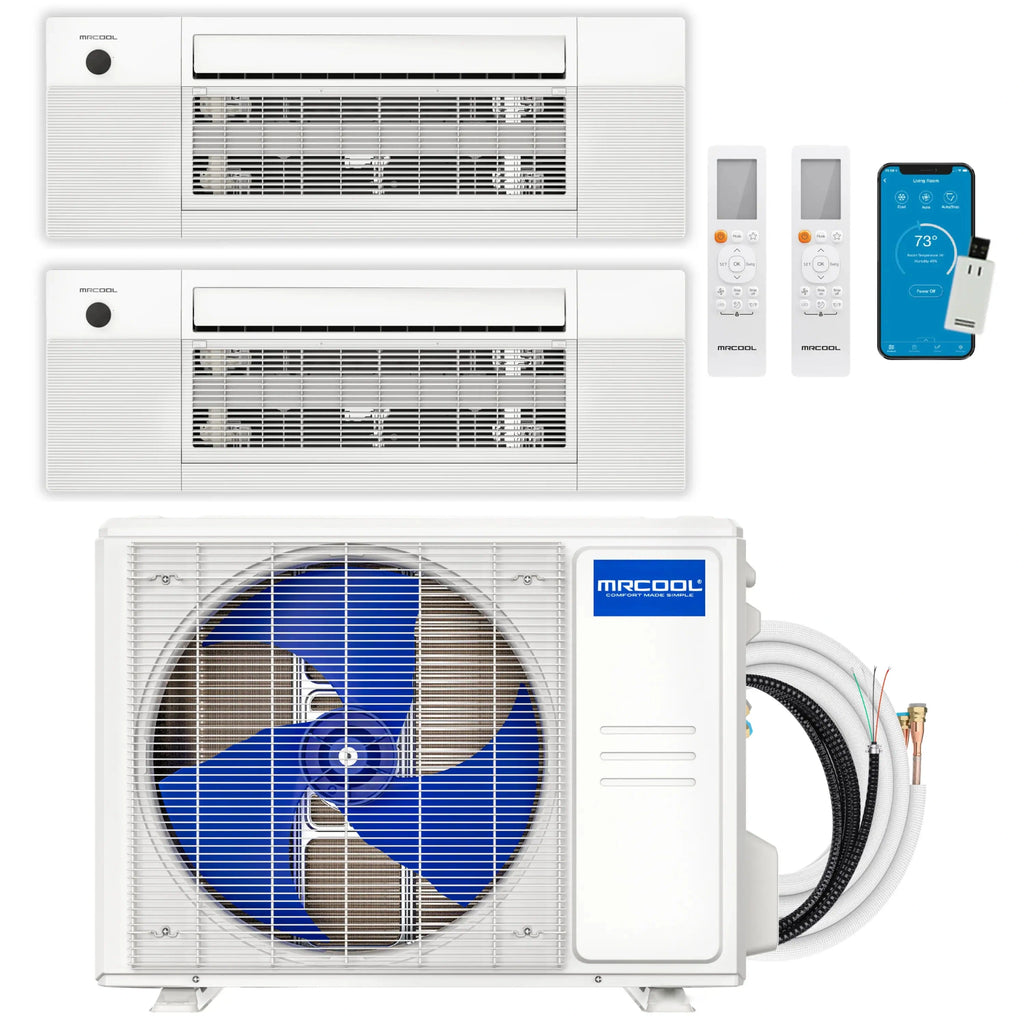

The MRCOOL DIY 5th Gen 36,000 BTU 2-Zone Mini-Split Condenser pairs a 12,000 BTU and a 9,000 BTU OuttaSight ceiling cassette air handler, installs without an HVAC professional using pre-charged Quick Connect line sets, and is rated for a SEER2 of 23 and an HSPF2-4 of 9.9.
Highlights
- Pre-charged R-454B Quick Connect line sets let you skip the evacuation/charging steps an HVAC pro would normally handle
- This condenser supports up to 5 zones across roughly 1,500 sq. ft. combined, so one system can cover most of a home
- SmartHVAC app (iOS/Android) plus Amazon Alexa and Google Assistant compatibility for scheduling, mode changes, and energy monitoring
- Follow Me function tracks the temperature near the included remote for more even comfort
- Both ceiling cassettes mount flush between 16" ceiling joists (including pre-manufactured I-joists), with no ductwork or wall space needed
- Backed by a 5-year parts warranty and 7-year compressor warranty, with a Limited Lifetime Replacement warranty available through the MRCOOL Care Program
Details
Avermont Direct is an authorized MRCOOL dealer. This 2-zone, 36,000 BTU condenser pairs a 12,000 BTU and a 9,000 BTU OuttaSight ceiling cassette air handler, well suited for two closely sized rooms handled in one DIY installation. The system is covered by a 5-year parts warranty and a 7-year compressor warranty, with a Limited Lifetime Replacement warranty available to owners who enroll in the MRCOOL Care Program.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 36,000 BTU |
| Zone Capacity | Up to 5 zones / approx. 1,500 sq. ft. combined |
| Efficiency | SEER2 23 / HSPF2-4 9.9 |
| Refrigerant | R-454B, pre-charged Quick Connect line set |
| Indoor Unit 1 | 12,000 BTU OuttaSight Ceiling Cassette, up to 550 sq. ft. |
| Indoor Unit 2 | 9,000 BTU OuttaSight Ceiling Cassette, up to 400 sq. ft. |
| Warranty | 5-year parts / 7-year compressor; Limited Lifetime Replacement with MRCOOL Care Program enrollment |
| Certification | Intertek listed 5031495 |
- Advanced filtration with an Elevation function that lowers the filter panel for easy cleaning
- Two-stage DC motor for quiet operation
- DIYPro cable eliminates the need for electrical conduit
- Wireless remote included with each air handler
