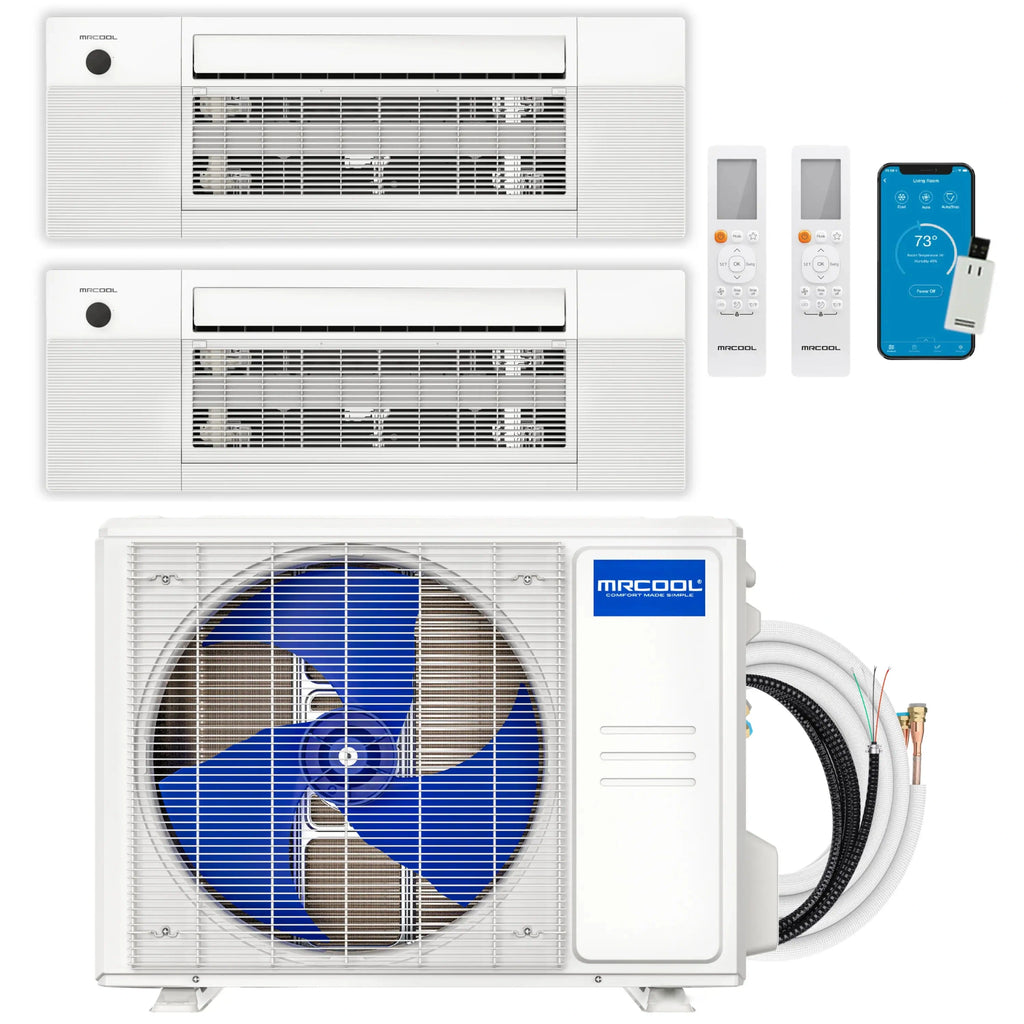

This MRCOOL DIY 5th Generation 2-zone ductless mini-split system pairs an 18,000 BTU outdoor condenser with a 12,000 BTU ceiling cassette air handler and a 6,000 BTU ceiling cassette air handler, so you can heat and cool two separate rooms without hiring an HVAC professional. The condenser is rated 23.9 SEER2 and 10 HSPF2-4 for efficient year-round performance.
Highlights
- DIY installation using patented, pre-charged R-454B Quick Connect line sets — no vacuuming or specialized HVAC tools required.
- Included DIYPro cable eliminates the need for electrical conduit, simplifying the wiring run between condenser and air handlers.
- Follow Me function on the included remote tracks the temperature near you for more consistent comfort in each zone.
- SmartHVAC app control with Amazon Alexa and Google Assistant compatibility lets you manage each zone from your phone or by voice.
- Ceiling cassette air handler(s) mount flush between 16" ceiling joists for a low-profile, space-saving install with advanced filtration and an Elevation function for easy filter access.
Specs & Features
| Condenser Capacity |
18,000 BTU |
| Configuration |
2-Zone (Dual Zone) Ductless Mini-Split |
| Condenser Efficiency |
23.9 SEER2 / 10 HSPF2-4 |
| Refrigerant |
R-454B (pre-charged Quick Connect line set) |
| Zone 1 Air Handler |
12,000 BTU Ceiling Cassette — covers up to 550 sq. ft. |
| Zone 2 Air Handler |
6,000 BTU Ceiling Cassette — covers up to 200 sq. ft. |
| Installation Type |
DIY (no HVAC professional required) |
| Compressor Warranty |
7 years |
| Parts Warranty |
5 years |
| Replacement Warranty |
Limited Lifetime (with MRCOOL Care Program enrollment) |
| Certification |
Intertek listed 5031495 |
- Wireless remote included with each air handler
- DIYPro cable (no electrical conduit needed)
- Follow Me temperature-tracking function
- SmartHVAC app with Amazon Alexa / Google Assistant support
Details
Avermont Direct is an authorized MRCOOL dealer. This DIY 5th Generation 2-zone system is backed by a 7-year compressor warranty and a 5-year parts warranty, with a Limited Lifetime Replacement warranty available through enrollment in the MRCOOL Care Program. It's a practical option for cooling and heating two separate rooms or living spaces — such as a bedroom and a home office, or two bedrooms — with independent temperature control for each zone, installed without scheduling a professional HVAC crew.
