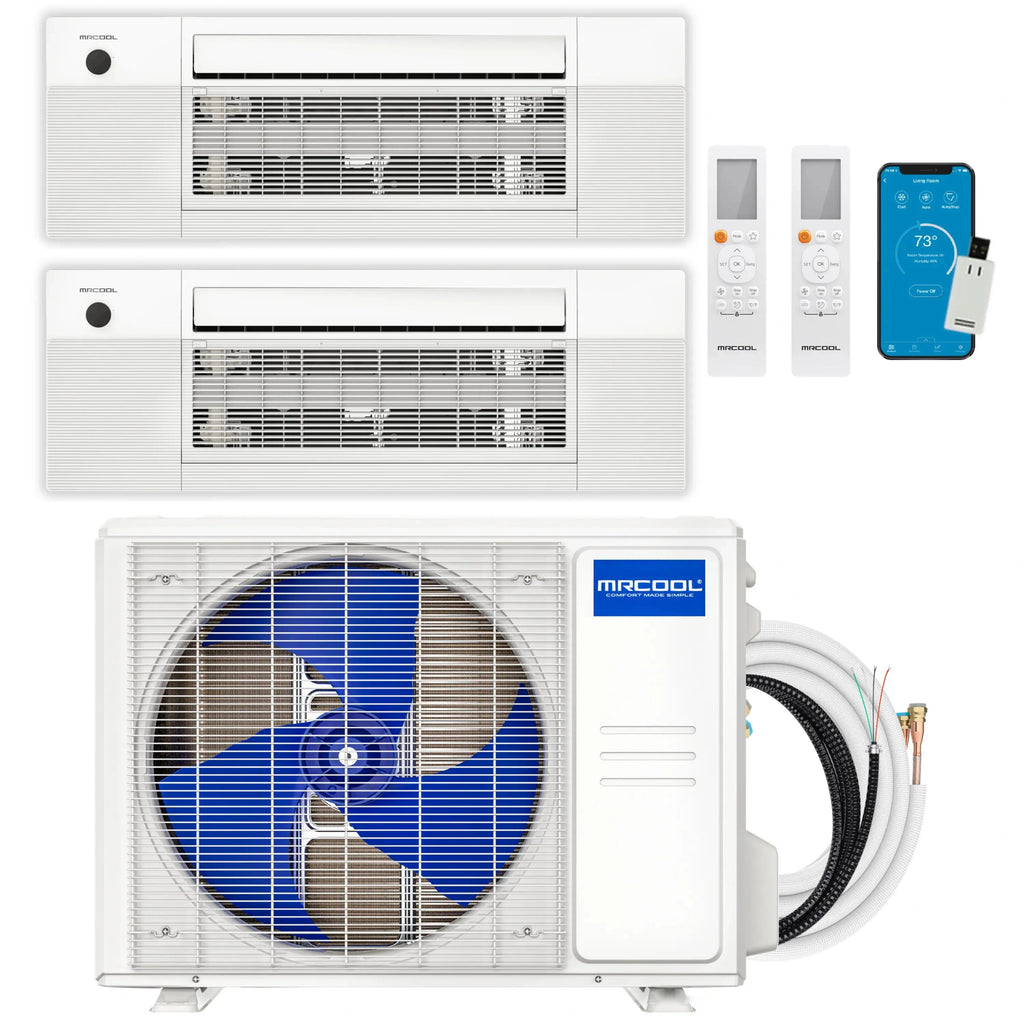

What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

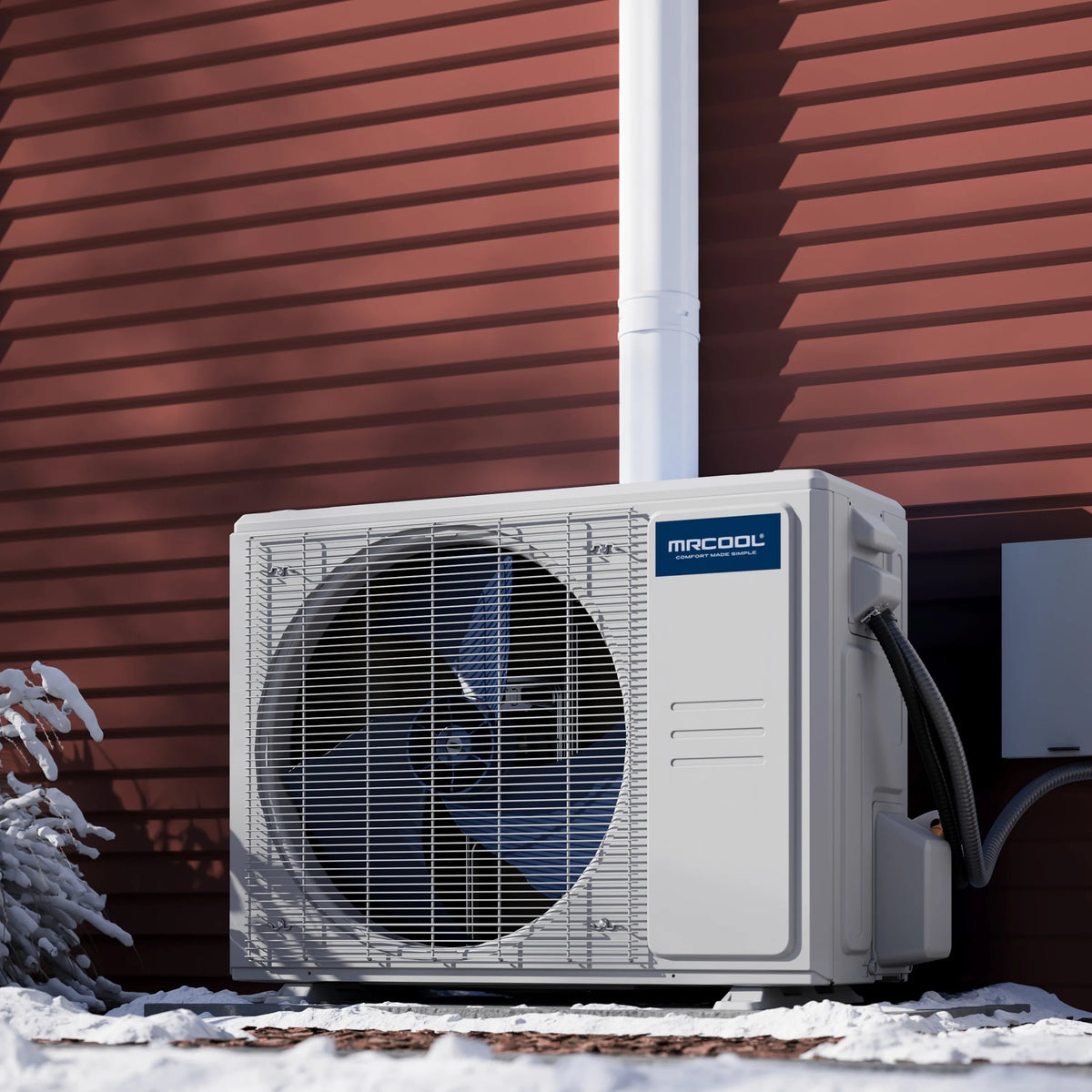

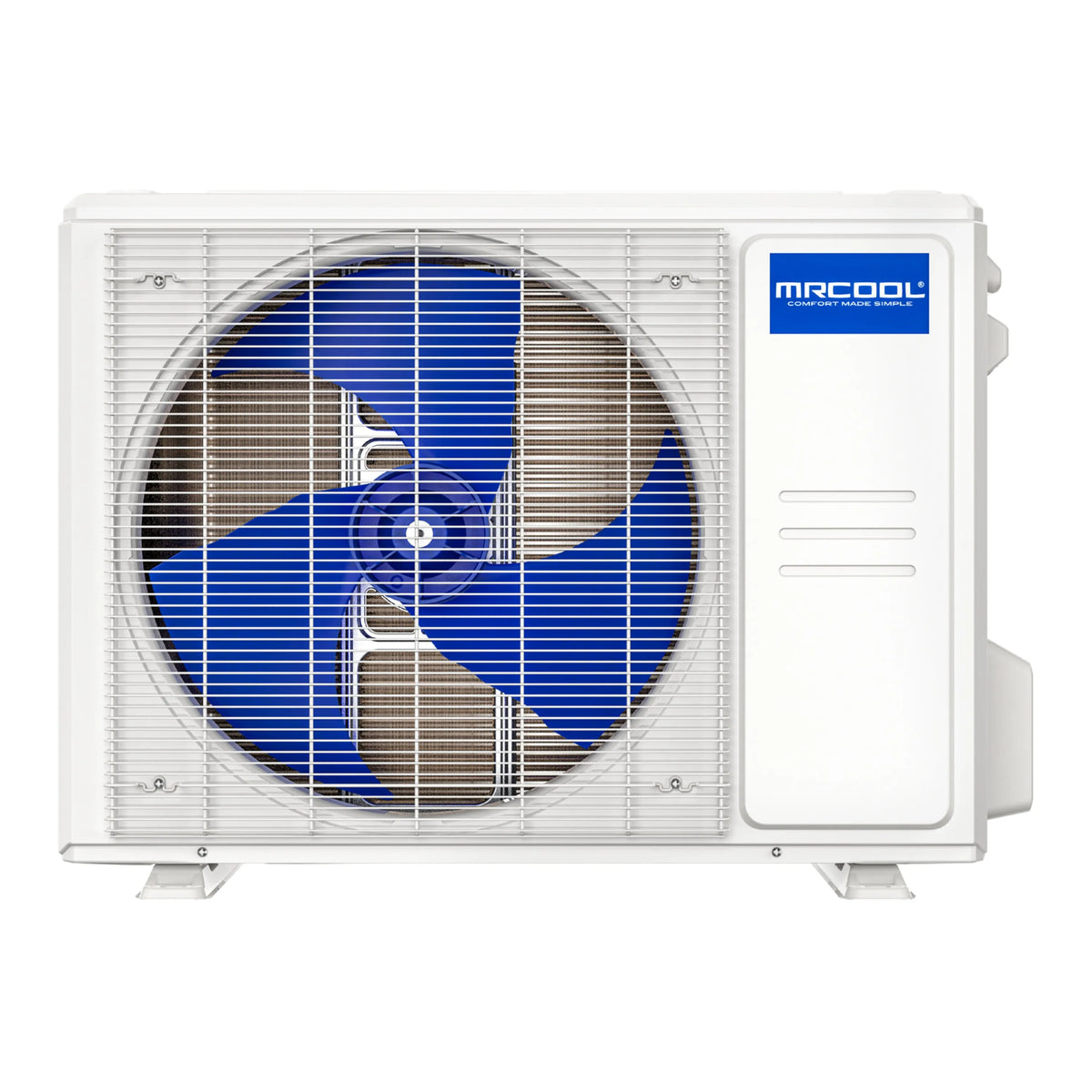

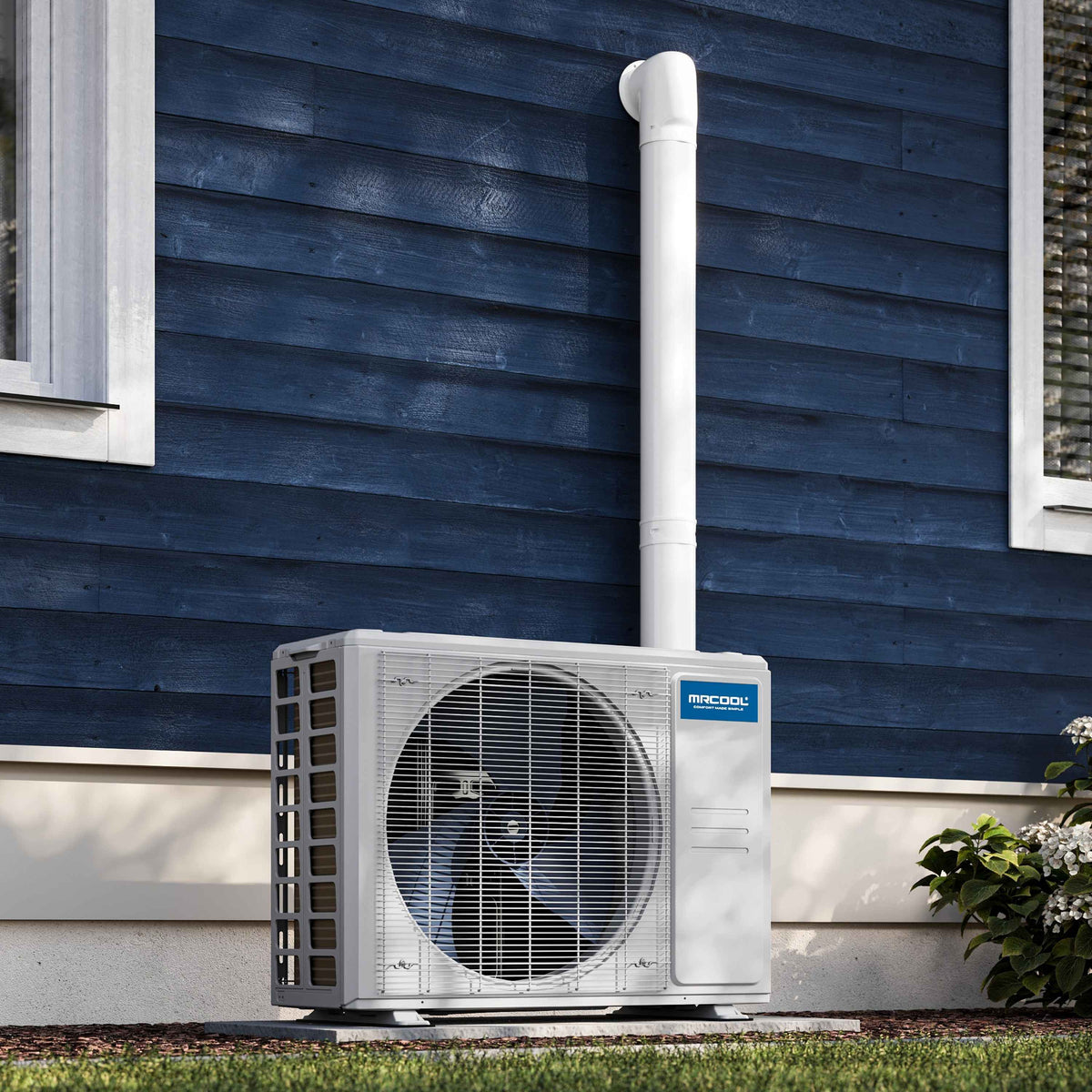

This MRCOOL DIY 5th Generation 2-zone ductless mini-split system pairs an 18,000 BTU outdoor condenser with two identical 12,000 BTU ceiling cassette air handlers, so you can heat and cool two separate rooms without hiring an HVAC professional. The condenser is rated 23.9 SEER2 and 10 HSPF2-4 for efficient year-round performance.
Highlights
- DIY installation using patented, pre-charged R-454B Quick Connect line sets — no vacuuming or specialized HVAC tools required.
- Included DIYPro cable eliminates the need for electrical conduit, simplifying the wiring run between condenser and air handlers.
- Follow Me function on the included remote tracks the temperature near you for more consistent comfort in each zone.
- SmartHVAC app control with Amazon Alexa and Google Assistant compatibility lets you manage each zone from your phone or by voice.

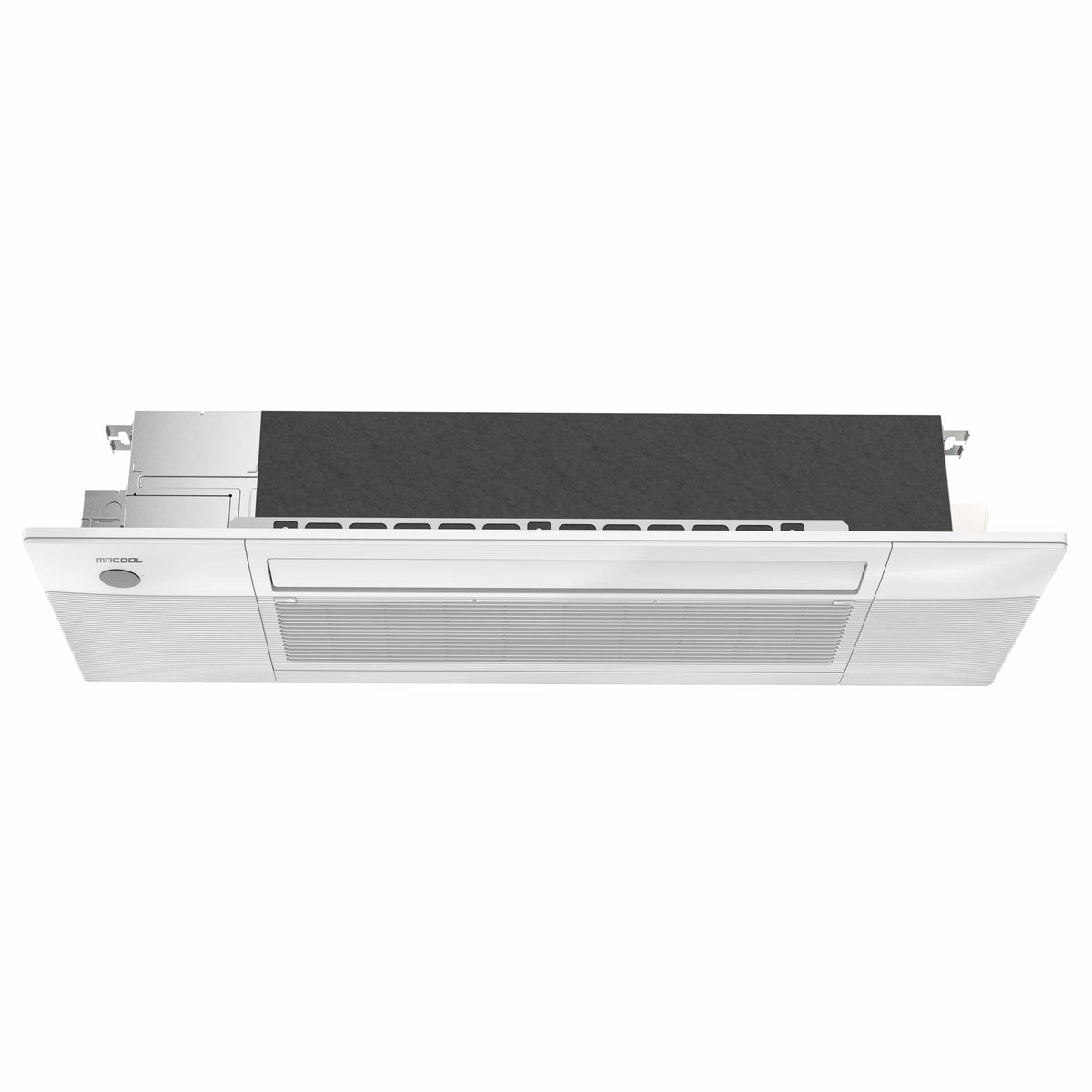

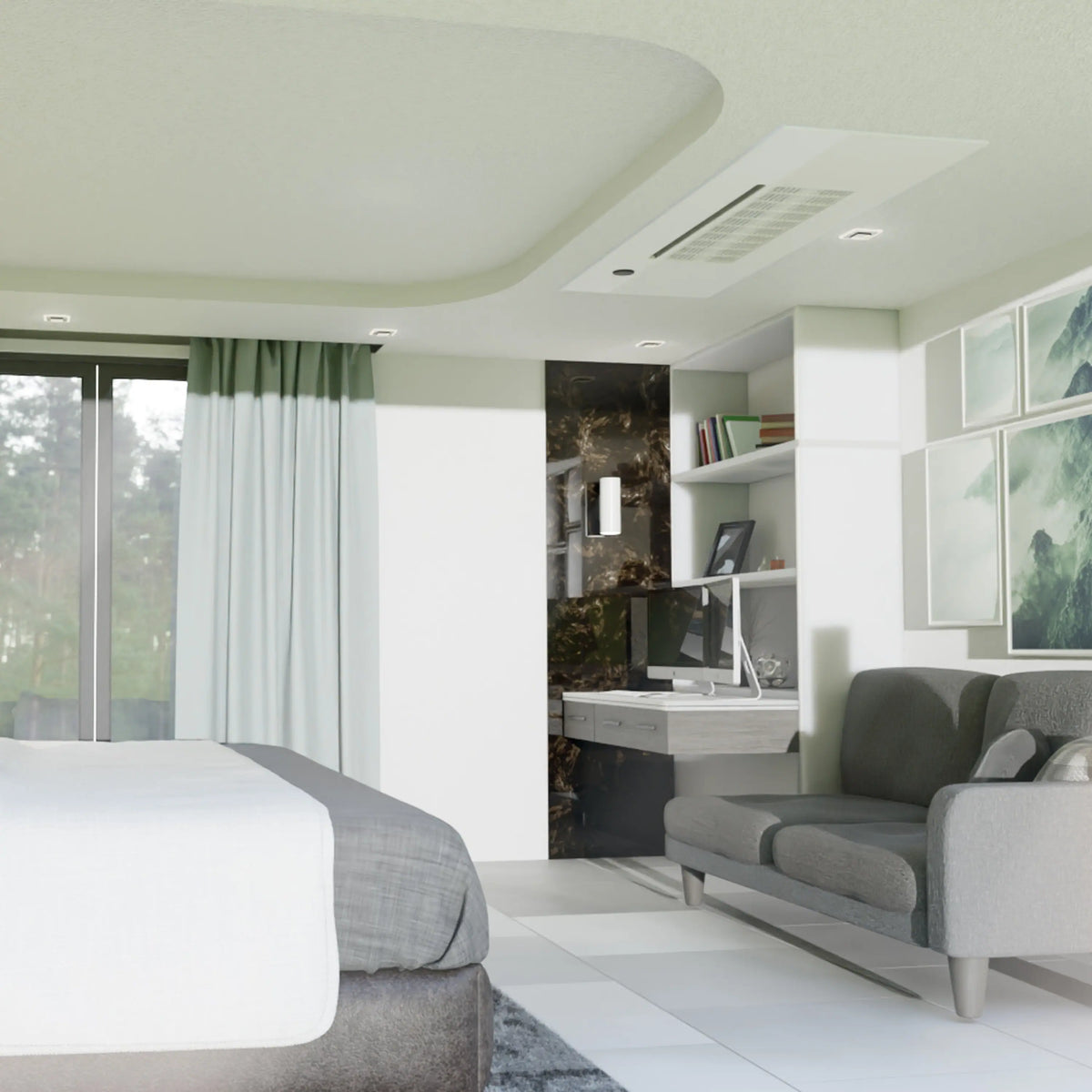

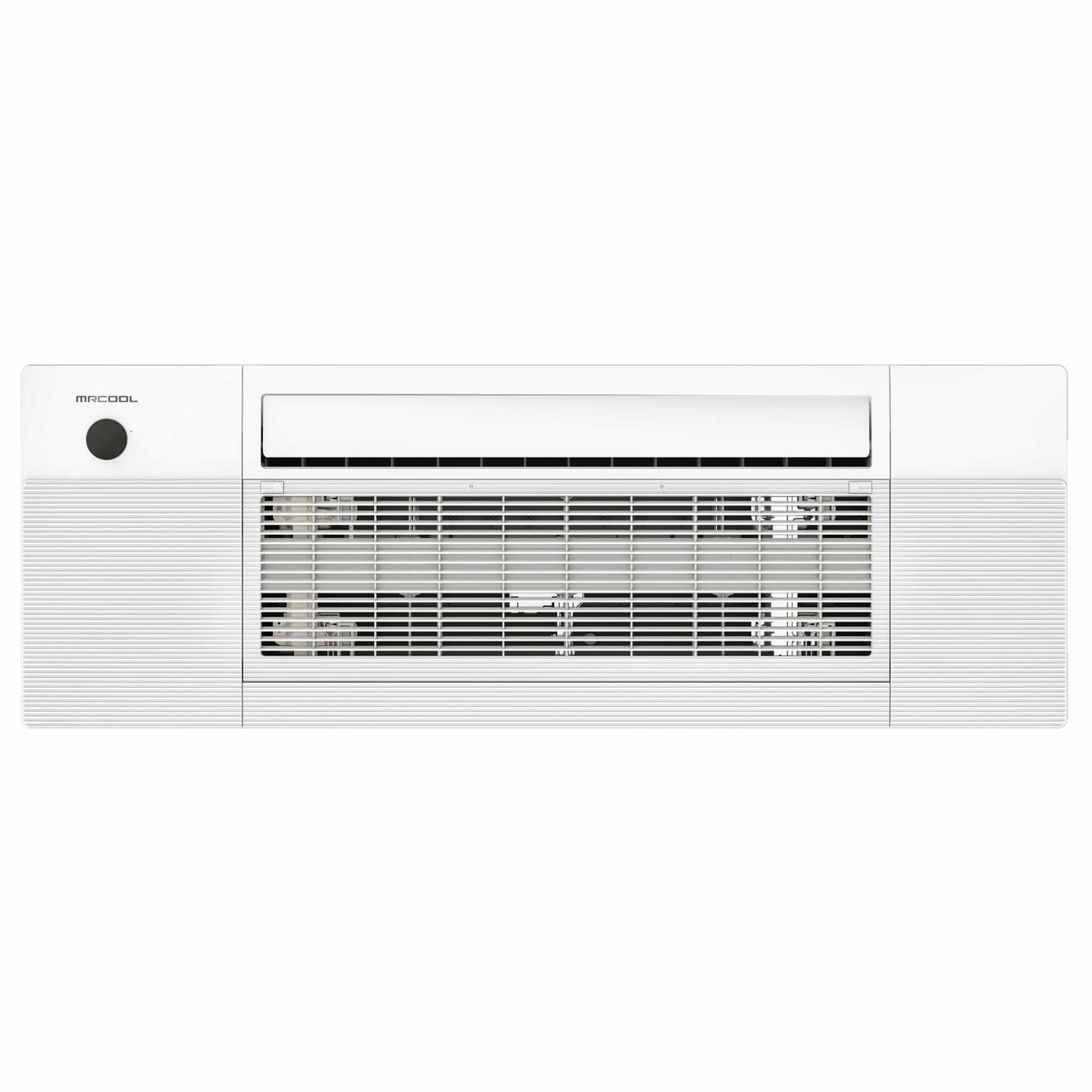

- Ceiling cassette air handler(s) mount flush between 16" ceiling joists for a low-profile, space-saving install with advanced filtration and an Elevation function for easy filter access.
Details
Avermont Direct is an authorized MRCOOL dealer. This DIY 5th Generation 2-zone system is backed by a 7-year compressor warranty and a 5-year parts warranty, with a Limited Lifetime Replacement warranty available through enrollment in the MRCOOL Care Program. It's a practical option for cooling and heating two separate rooms or living spaces — such as a bedroom and a home office, or two bedrooms — with independent temperature control for each zone, installed without scheduling a professional HVAC crew.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Condenser Capacity | 18,000 BTU |
| Configuration | 2-Zone (Dual Zone) Ductless Mini-Split |
| Condenser Efficiency | 23.9 SEER2 / 10 HSPF2-4 |
| Refrigerant | R-454B (pre-charged Quick Connect line set) |
| Zone 1 Air Handler | 12,000 BTU Ceiling Cassette — covers up to 550 sq. ft. |
| Zone 2 Air Handler | 12,000 BTU Ceiling Cassette — covers up to 550 sq. ft. |
| Installation Type | DIY (no HVAC professional required) |
| Compressor Warranty | 7 years |
| Parts Warranty | 5 years |
| Replacement Warranty | Limited Lifetime (with MRCOOL Care Program enrollment) |
| Certification | Intertek listed 5031495 |
- Wireless remote included with each air handler
- DIYPro cable (no electrical conduit needed)
- Follow Me temperature-tracking function
- SmartHVAC app with Amazon Alexa / Google Assistant support
