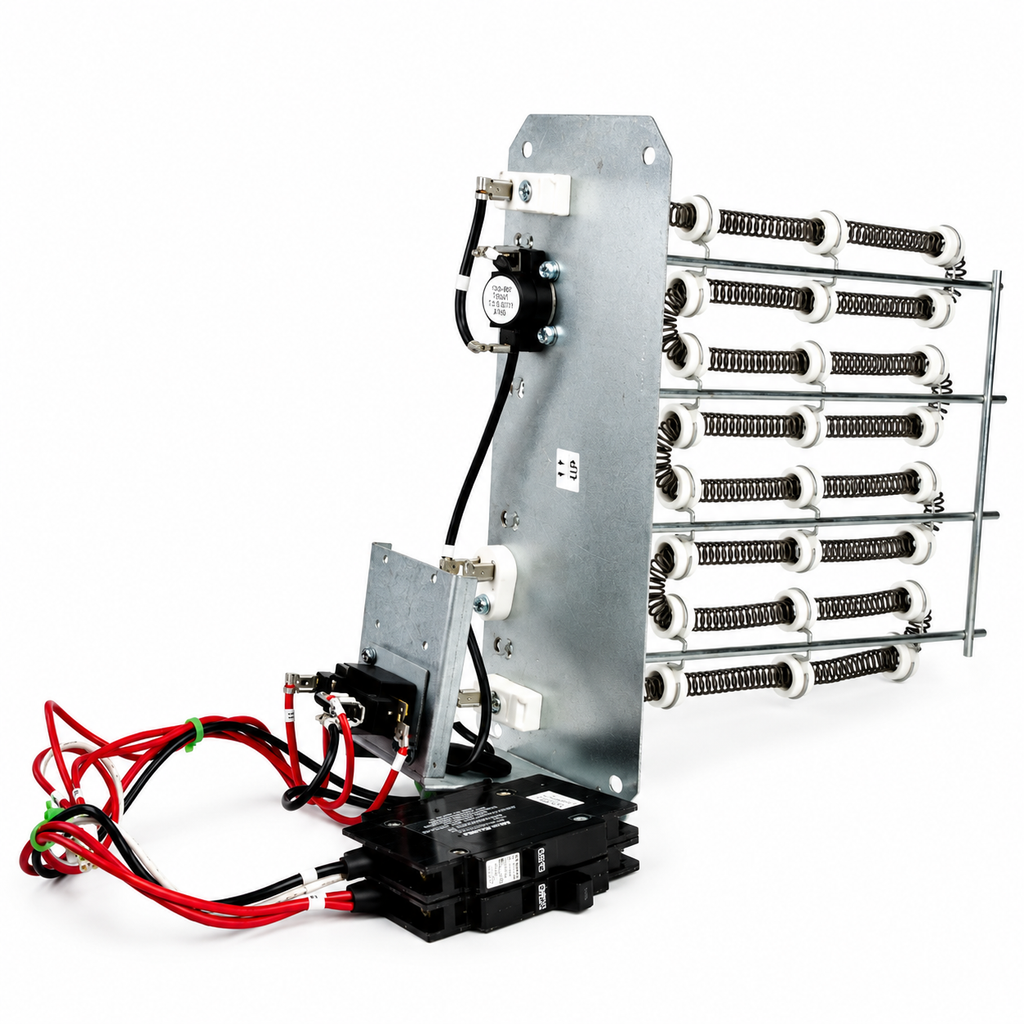

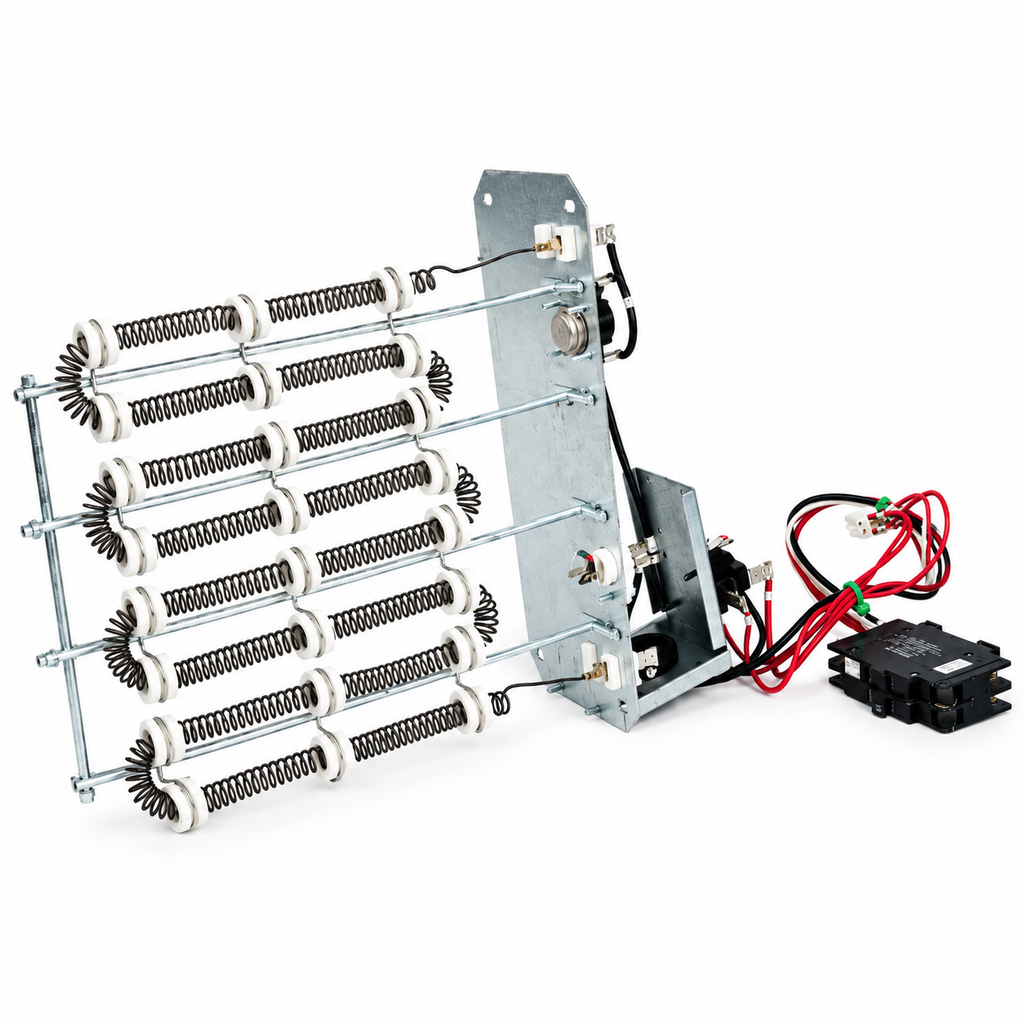

The MRCOOL UHK08 is an 8 kW Universal Series heat kit with a circuit breaker, built for R-454B Universal air handlers. It fits four listed UAH180 series models and has a 5.7 lb net weight.
Highlights
- 8 kW electric heat output for supplemental heating on a compatible Universal Series air handler.
- Circuit breaker included with the kit, so the overcurrent protection arrives matched to it.
- Compatible with four listed Universal air handlers, from UAH18024-O through UAH18048-O.
- 208/230V, single-phase, 60 Hz power matches standard residential heat-pump wiring.
- Net dimensions of 22 D x 8.125 H x 10.625 W inches at a 5.7 lb net weight.
Specs & Features
| Heat Output |
8 kW |
| Series |
MRCOOL Universal Series, R-454B |
| Circuit Breaker |
Included |
| Compatible Air Handlers |
UAH18024-O, UAH18030-O, UAH18036-O, UAH18048-O |
| Net Dimensions (In) |
22 D x 8.125 H x 10.625 W |
| Net Weight (Lbs) |
5.7 |
| Voltage (V) |
208/230 |
| Phase |
1 |
| Cycle |
60 |
| Gross Depth (In) |
25 5/8 |
| Gross Height (In) |
10 1/4 |
| Gross Width (In) |
15 |
| Gross Weight (Lbs) |
13.4 |
- Sits between the 5 kW and 15 kW kits, covering mid-size Universal air handlers up to the 48.
- Supplied as a stand-alone accessory for installation by a qualified HVAC professional.
Details
Avermont Direct is an authorized MRCOOL dealer, and this kit ships as a genuine MRCOOL accessory. A Universal Series heat kit gives a heat-pump system a source of supplemental electric heat for the coldest days, when the outdoor unit is working near the limit of its capacity. Installation should be carried out by a licensed HVAC professional following MRCOOL's instructions for the matching air handler, and the kit is backed by the manufacturer's warranty - see product documentation for full terms.
