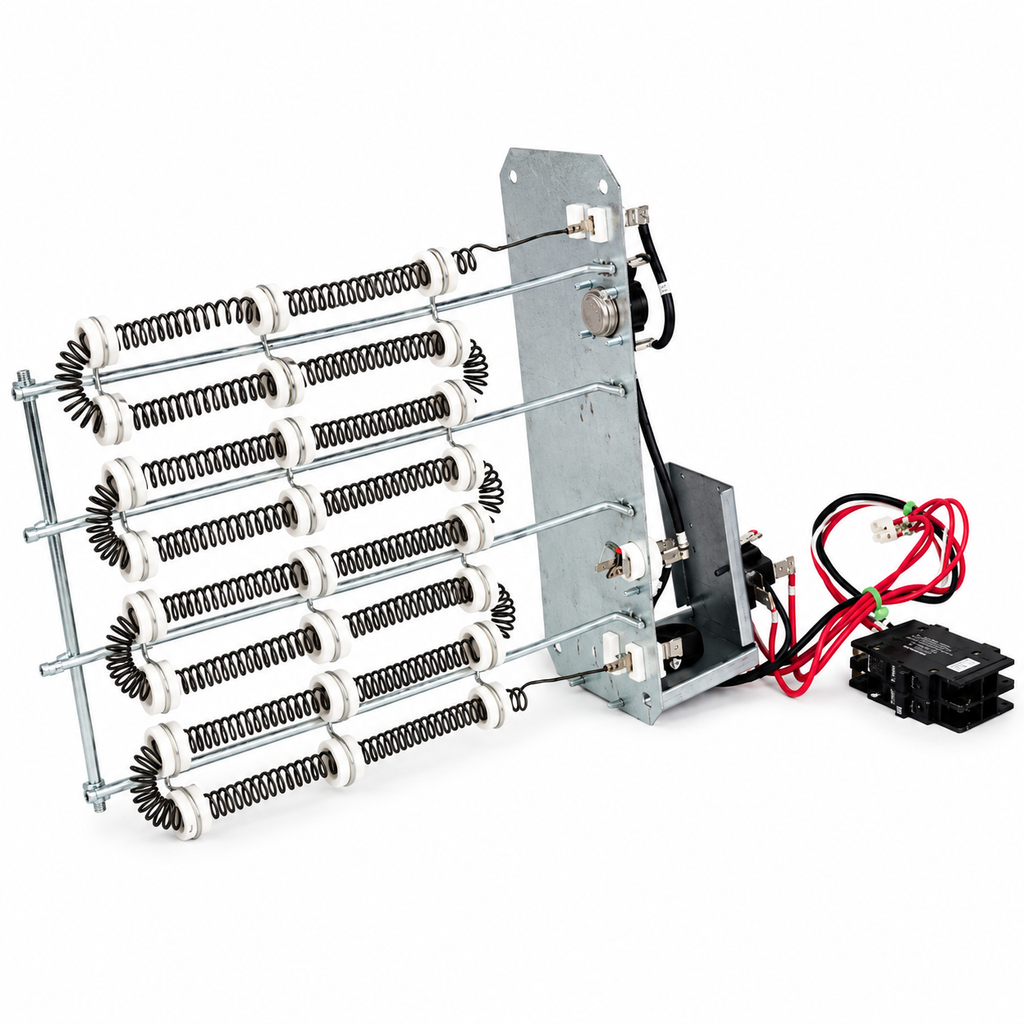

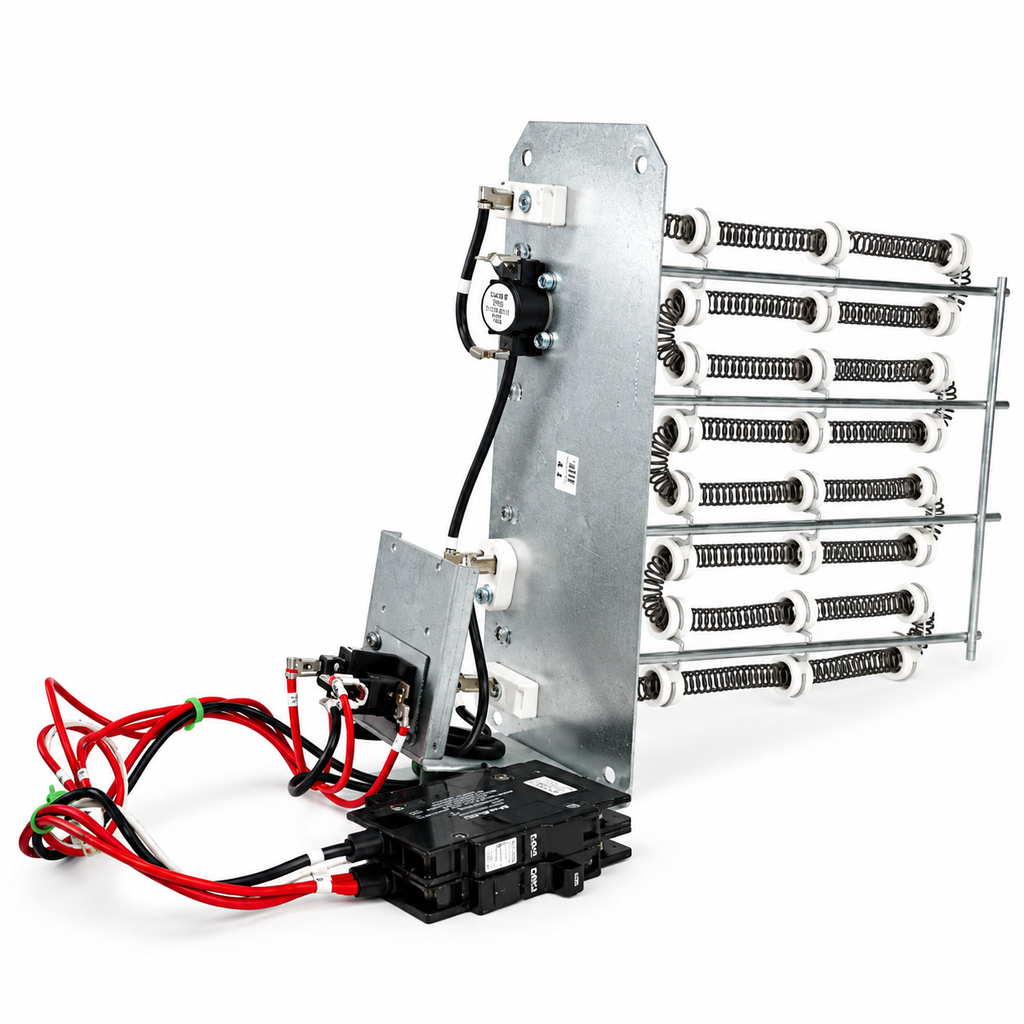

The MRCOOL UHK10 is a 10 kW electric heat kit with an integrated circuit breaker, built for MRCOOL Universal Series R-454B air handlers. It runs on 208/230V single-phase, 60 Hz power and fits the UAH18024-O through UAH18060-O air handler models.
Highlights
- 10 kW electric heat element adds supplemental heating capacity to a Universal Series air handler.
- Circuit breaker included with the kit, so the overcurrent protection ships with the heat element.
- Matched to five Universal air handler models, from the UAH18024-O through the UAH18060-O.
- 208/230V, single-phase, 60 Hz power, matching standard residential service for this equipment class.
- Compact 22" D x 8.125" H x 10.625" W net footprint at 5.3 lbs, sized to fit inside the air handler cabinet.
- Compatible with R-454B Universal Series systems.
Specs & Features
| Net Dimensions (In) |
22 D x 8.125 H x 10.625 W |
| Net Weight (Lbs) |
5.3 |
| Voltage (V) |
208/230 |
| Phase |
1 |
| Cycle |
60 |
| Gross Depth (In) |
25.625 |
| Gross Height (In) |
10 1/4 |
| Gross Width (In) |
15 |
| Gross Weight (Lbs) |
13.2 |
| Compatible Air Handlers |
UAH18024-O, UAH18030-O, UAH18036-O, UAH18048-O, UAH18060-O |
- Circuit breaker supplied as part of the kit.
- Field-installed accessory intended for installation by a qualified HVAC technician.
Details
Avermont Direct is an authorized MRCOOL dealer, and this heat kit ships as genuine MRCOOL equipment. A heat kit like the UHK10 gives a heat-pump system a source of supplemental electric heat on cold days, when the outdoor unit alone cannot keep up with the heating load. It is backed by the manufacturer's warranty — see product documentation for full terms.
