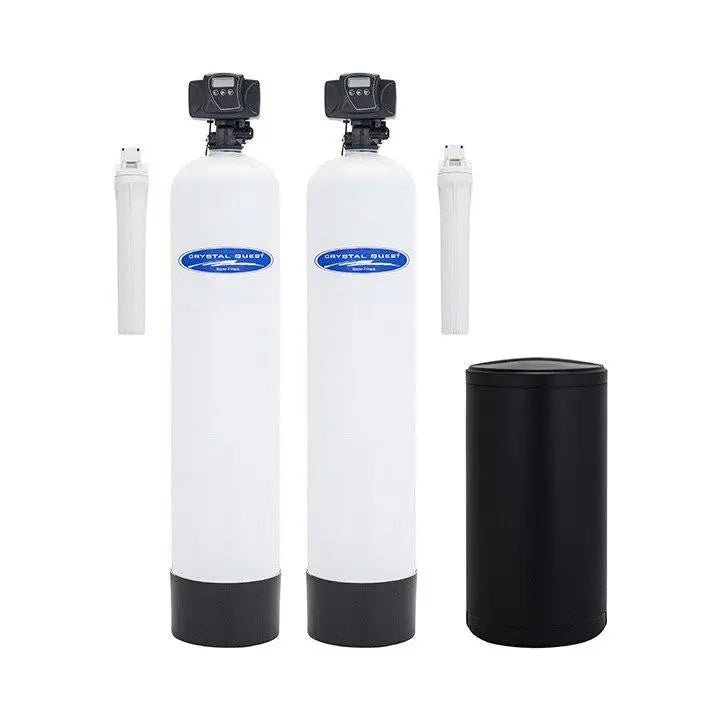

This whole house system pairs a dedicated turbidity/sediment removal tank with a water softener, moving water through 4 stages of filtration and conditioning.
Highlights
- Turbidity tank uses a natural zeolite mineral bed to reduce suspended sediment, dirt, and rust down to the 5-micron range
- Softener stage conditions hard water by exchanging calcium and magnesium for softer ions via ion exchange resin and a brine water conditioner
- 20" sediment pre-filter cartridge protects the softener and filtration media and helps prevent damage to control valves and pumps
- Final 20" solid carbon cartridge stage targets VOCs, pesticides, and industrial solvents
- Available in a 1.5 cu. ft./48,000-grain configuration or a larger 2.0 cu. ft./60,000-grain configuration
Specs & Features
| Resin Volume |
1.5 cu. ft. (2.0 cu. ft. option available) |
| Grain Capacity |
48,000 grains (60,000 grains with 2.0 cu. ft. option) |
| Rated Gallon Capacity |
750,000 gallons (1,000,000 gallons with 2.0 cu. ft. option) |
| Service Flow Rate |
9–11 GPM (10–13 GPM with 2.0 cu. ft. option) |
| Tank Dimensions |
10" x 54" (12" x 52" with 2.0 cu. ft. option) |
| Tank Material |

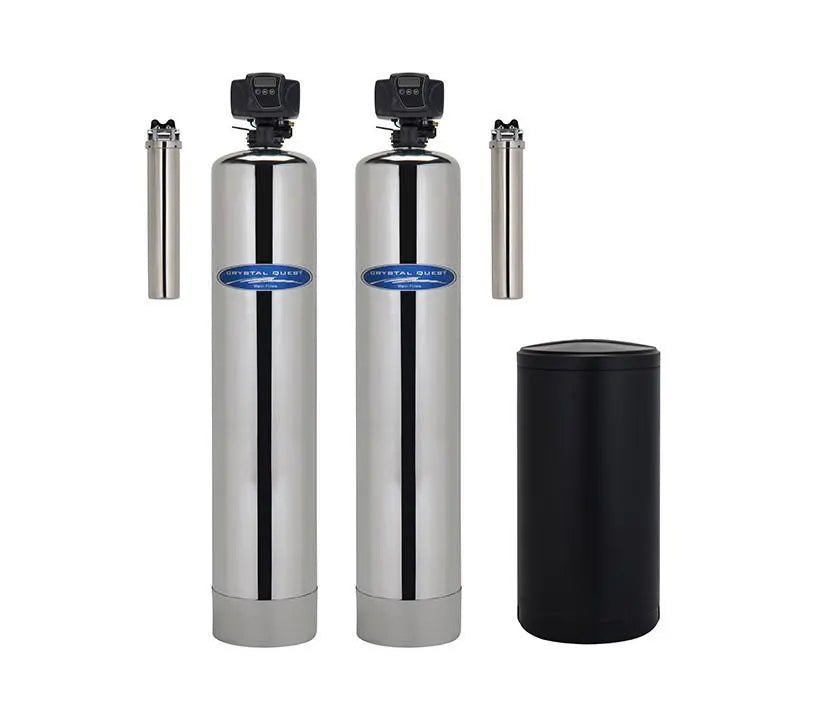

Fiberglass or stainless steel |
| Filtration Stages |
4 stages: sediment, turbidity/zeolite, ion exchange/brine softening, solid carbon |
- This configuration is focused on turbidity removal and water conditioning rather than broader multi-stage filtration and pH balancing
- Eagle Redox Alloys 6500 & 9500 media included in the turbidity stage to help inhibit bacteria growth
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is designed for whole-house installation on the main water line and is suited to households dealing with both hard water and elevated turbidity or sediment, combining softening with turbidity removal in a single installed setup.
