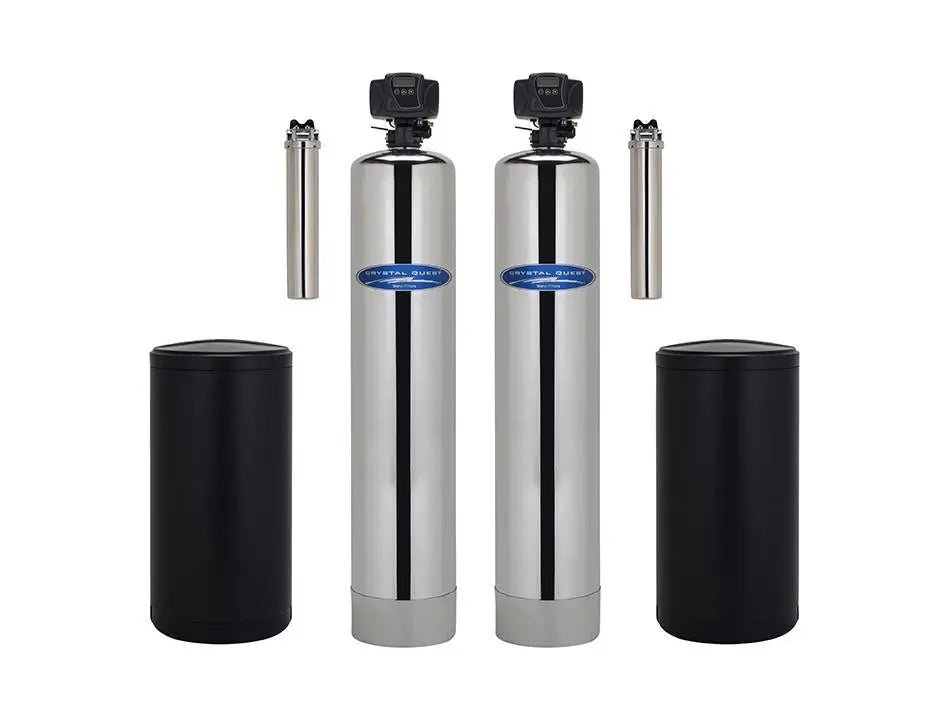

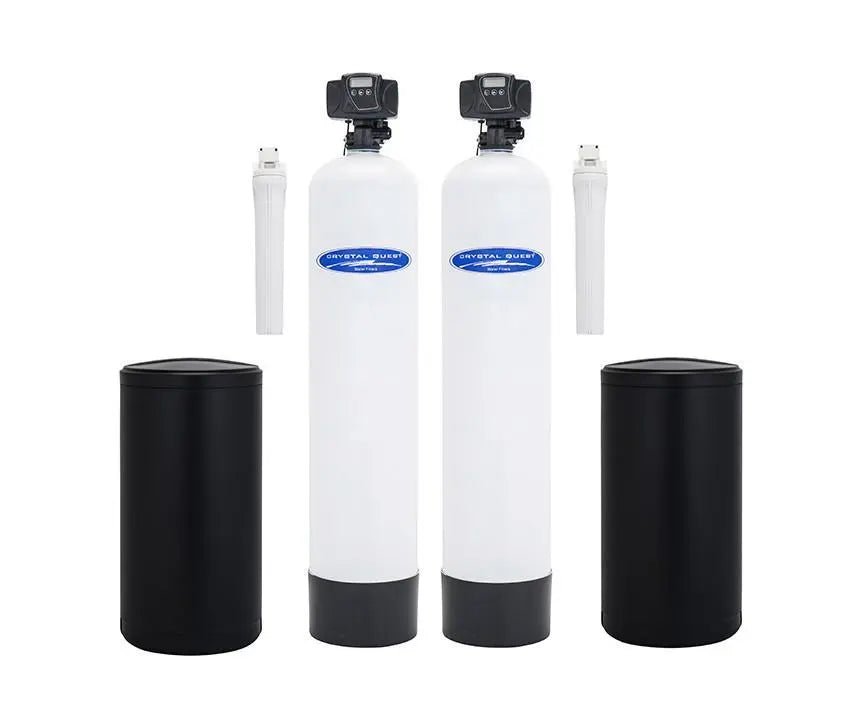

This whole house system pairs a self-backwashing tannin removal tank with a water softener, moving water through 4 stages of filtration and conditioning.
Highlights
- Self-backwashing tannin removal tank uses a microprocessor control valve that meters water use and automatically initiates a backwash cycle to clean the filtration bed
- Softener stage conditions hard water by exchanging calcium and magnesium for softer ions via an ion exchange mineral tank and brine water conditioner
- 20" sediment pre-filter cartridge removes silt, sand, and dirt ahead of the tannin and softening stages
- Final 20" solid carbon cartridge stage targets VOCs, pesticides, and industrial solvents
- Low maintenance — requires only periodic sodium or potassium pellets in the brine tank
- Optional leak detector valve and UV disinfection stage available
Specs & Features
| Resin Volume |
1.5 cu. ft. (2.0 cu. ft. option available) |
| Grain Capacity |
48,000 grains (60,000 grains with 2.0 cu. ft. option) |
| Rated Gallon Capacity |
750,000 gallons (1,000,000 gallons with 2.0 cu. ft. option) |
| Service Flow Rate |
9–11 GPM (10–13 GPM with 2.0 cu. ft. option) |
| Tank Dimensions |
10" x 54" (12" x 52" with 2.0 cu. ft. option) |
| Tank Material |
Fiberglass or stainless steel |
| Brine Tank |
Black, 18" x 33" |
| Approx. Gallons to Regenerate |
40 gallons |
| Maximum Removal Capacity |
5 ppm tannins and 40 grains hardness |
| Maximum Iron/Manganese |
Combined levels must be below 0.2 ppm |
| Filtration Stages |
4 stages: sediment, tannin reduction, ion exchange/brine softening, solid carbon |
- Requires a nearby power outlet for the control valve
- Optional add-ons: leak detector valve; UV disinfection stage for microorganism control (bacteria, viruses, algae, protozoa)
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is designed for whole-house installation on the main water line and is suited to households dealing with both tannins and hard water, combining tannin removal with softening in a single installed setup.
