Description

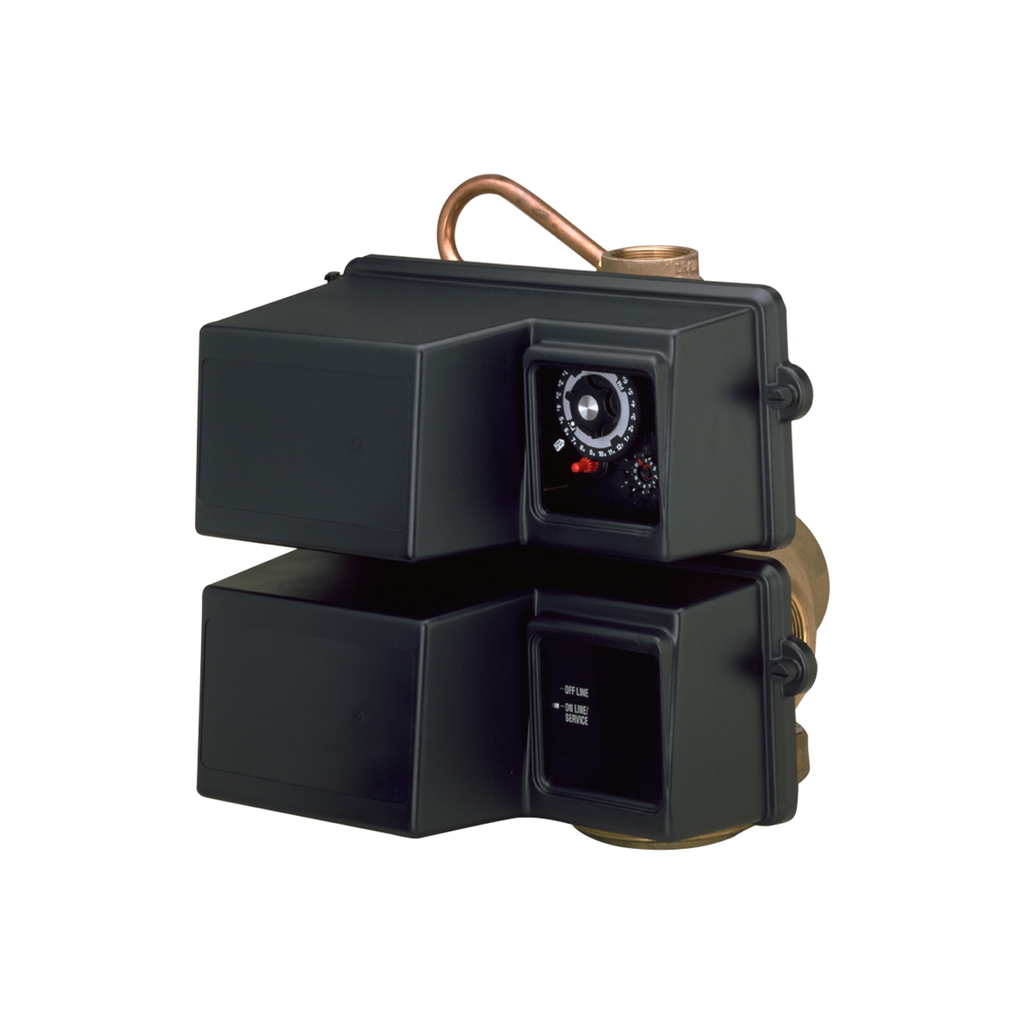

The Crystal Quest 3900 is a brass control valve for commercial and industrial softeners and large filtration systems, with 3" BSP female inlet and outlet connections. Valve-only continuous service flow is 57.0 m³/h at a 1 bar pressure drop, with a peak of 74.0 m³/h.
Highlights
- Timer or meter-initiated regeneration, in filter or softener configuration

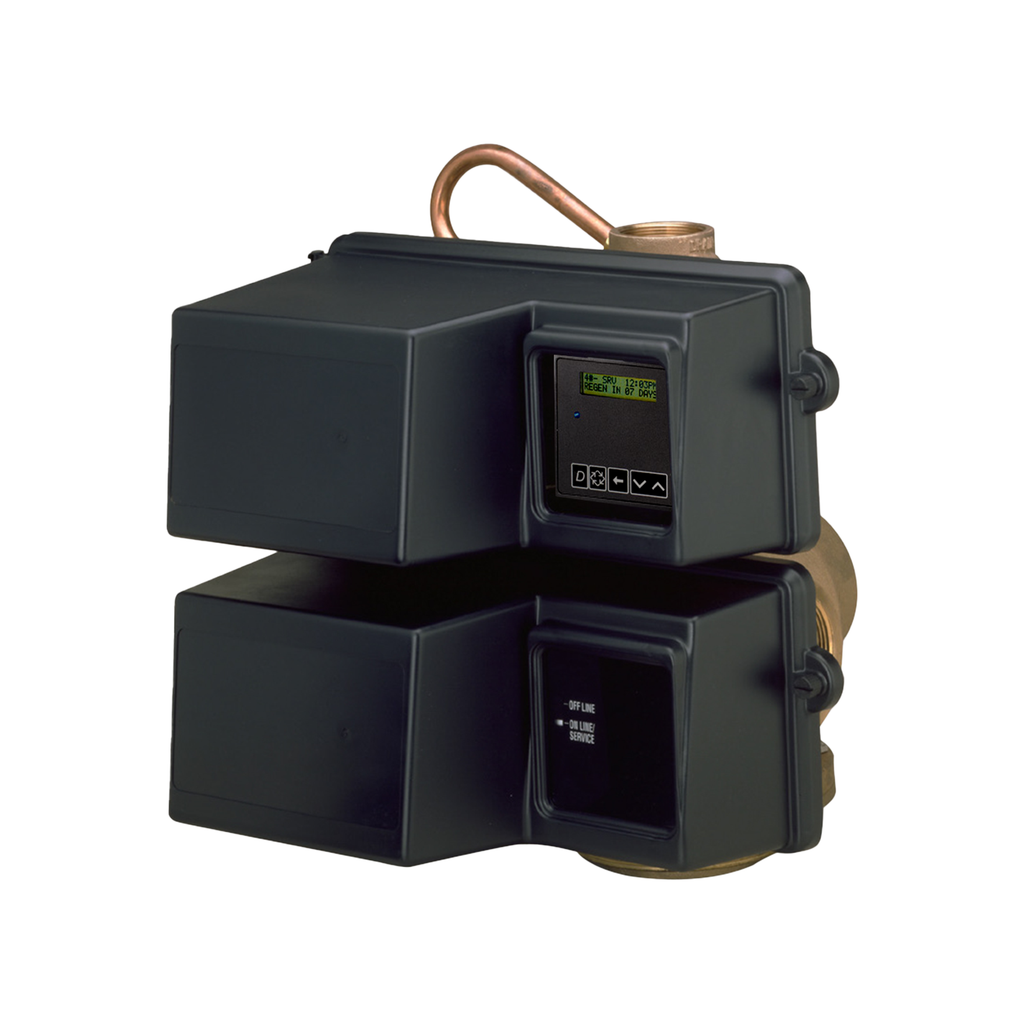

- Standard, NXT or NXT 2 controls with a backlit LCD display
- Downflow and upflow regeneration with adjustable cycles
- Brass valve body with EP/EPDM rubber components
- Manual lever override for maintenance and control
- Certified CE, DM174 and ACS
Details
Avermont Direct is an authorized Crystal Quest dealer. The 3900 valve is intended for industrial and commercial water softeners and large-scale filtration systems. Contact our team with your tank size, flow requirements and power supply if you need help choosing the timer or meter version and controller.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Valve Model | 3900 |
| Valve Material | Brass; EP/EPDM rubber components |
| Inlet / Outlet | 3" BSP female |
| Tank Top Adapter | 6" flanged or 6" thread |
| Side Mount Adapter | 3" BSP female |
| Distributor Pilot | 90 mm (DN80) |
| Drain Line | 2" BSP |
| Brine Line (1800) | 1" NPT male |
| Continuous Service Flow | 57.0 m³/h at 1 bar pressure drop |
| Peak Service Flow | 74.0 m³/h at 1.8 bar pressure drop |
| Maximum Backwash Flow | 24.0 m³/h at 1.8 bar pressure drop |
| CV / KV | 65.0 gpm / 56.4 m³/h |
| Recommended Operating Pressure | 1.8 - 8.6 bar |
| Maximum Inlet Pressure | 8.6 bar |
| Hydrostatic Test Pressure | 20 bar |
| Water Temperature | 1 - 43°C |
| Ambient Temperature | 5 - 40°C, indoor use only |
| Power Supply | 230 VAC (NXT) / 100-240 VAC (NXT 2), 50/60 Hz, 60 VA, Class II |
| Controller Voltage | 24 VAC (NXT) / 24 VDC (NXT 2) |
| Power Consumption | 35 W (1 powerhead) / 60 W (2 powerheads) |
| Protection Rating | Controller IP 22, valve IP 44 |
| Weight (Valve With Controller) | 41.0 kg max |
| Certifications | CE, DM174, ACS |
- Standard version bypasses raw water during regeneration; the NBP version does not
- Flow figures are for the valve alone at 3.5 bar inlet, top mount
- Maximum relative humidity 80% up to 31°C, decreasing linearly to 50% at 40°C
