Description

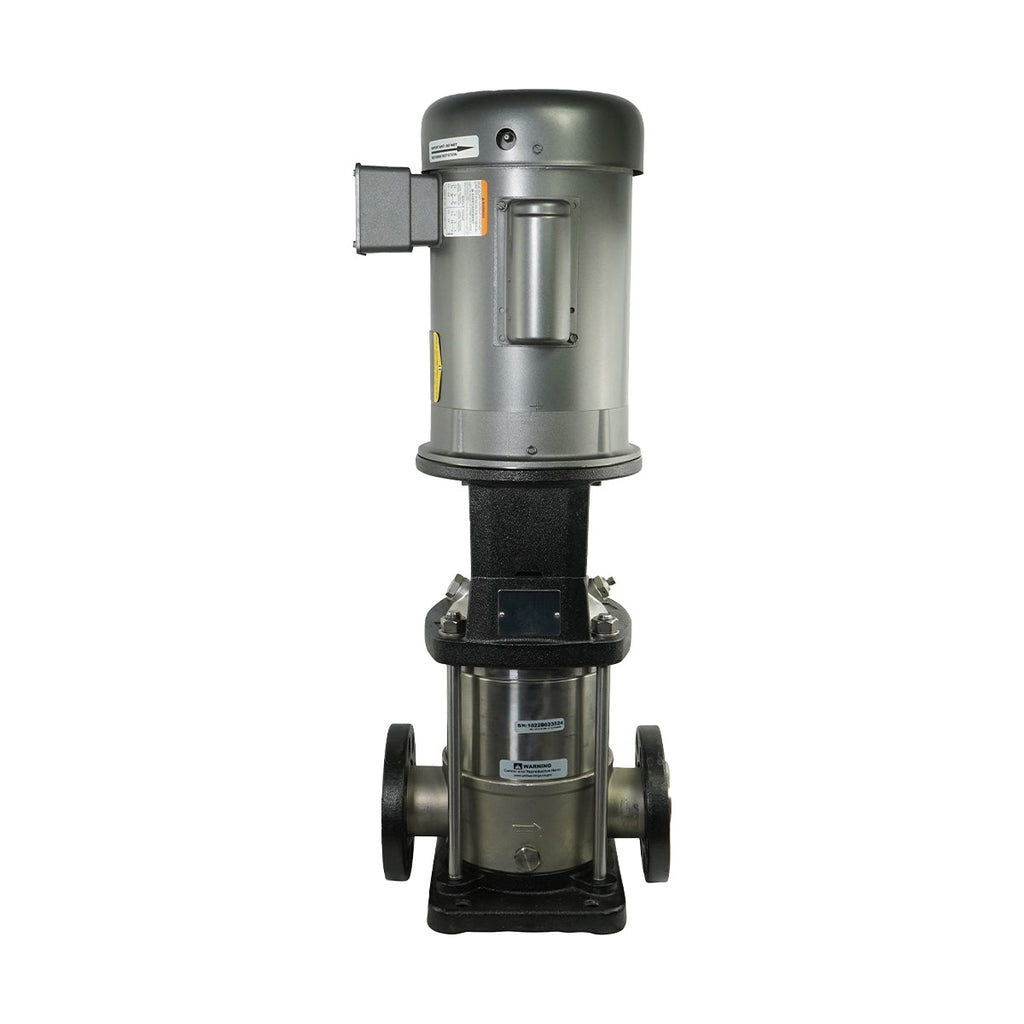

The Crystal Quest V-Flow NV45-5S is a 5-stage vertical multistage booster pump rated for 45 GPM at up to 232 PSI working pressure. It runs on a 5 HP three-phase motor and uses 304 stainless steel wetted parts.
Highlights
- 45 GPM rated flow for reverse osmosis, water treatment, boiler systems, irrigation and water boosting
- 5 HP three-phase motor with higher electrical efficiency and smoother continuous operation
- Vertical in-line design saves floor space
- 304 stainless steel pump head, impellers, diffusers and casing
- 2" ANSI 150# flanged connections
Details
Avermont Direct is an authorized Crystal Quest dealer. This pump is intended for industrial, commercial and agricultural water systems, including reverse osmosis feed, washing systems, power plants, boiler systems and hot and cold water circulation. It should be mounted on a level, solid base with aligned and supported suction and discharge piping.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | NV45-5S |
| Rated Flow | 45 GPM |
| Stages | 5 |
| Max Working Pressure | 232 PSI |
| Max Inlet Pressure | 118 PSI |
| Motor Power | 5 HP |
| Motor Phase / Frequency | 3PH / 60Hz |
| Motor Frame | 182TC |
| Motor Enclosure | Totally enclosed fan-cooled |
| Connections | 2" ANSI 150# flanged |
| Pump Length (Flanged) | 19.53 in |
| Weight (Flanged) | 89 lbs |
| Pump Head, Impeller, Diffuser, Casing, Base | 304 stainless steel |
| Shaft | 431 stainless steel |
| Motor Bracket / Base Plate | Cast iron |
| Neck Ring | Teflon |
| O-Ring | EPDM |
| Mechanical Seal | Silicon Carbide / Silicon Carbide / EPDM |
- Requires a three-phase power supply, verified by a certified electrician
- Install isolation valves on the suction and discharge sides; hot water systems need a bleed valve in the discharge line
- Never operate the pump without water; prime the casing before startup
