Description

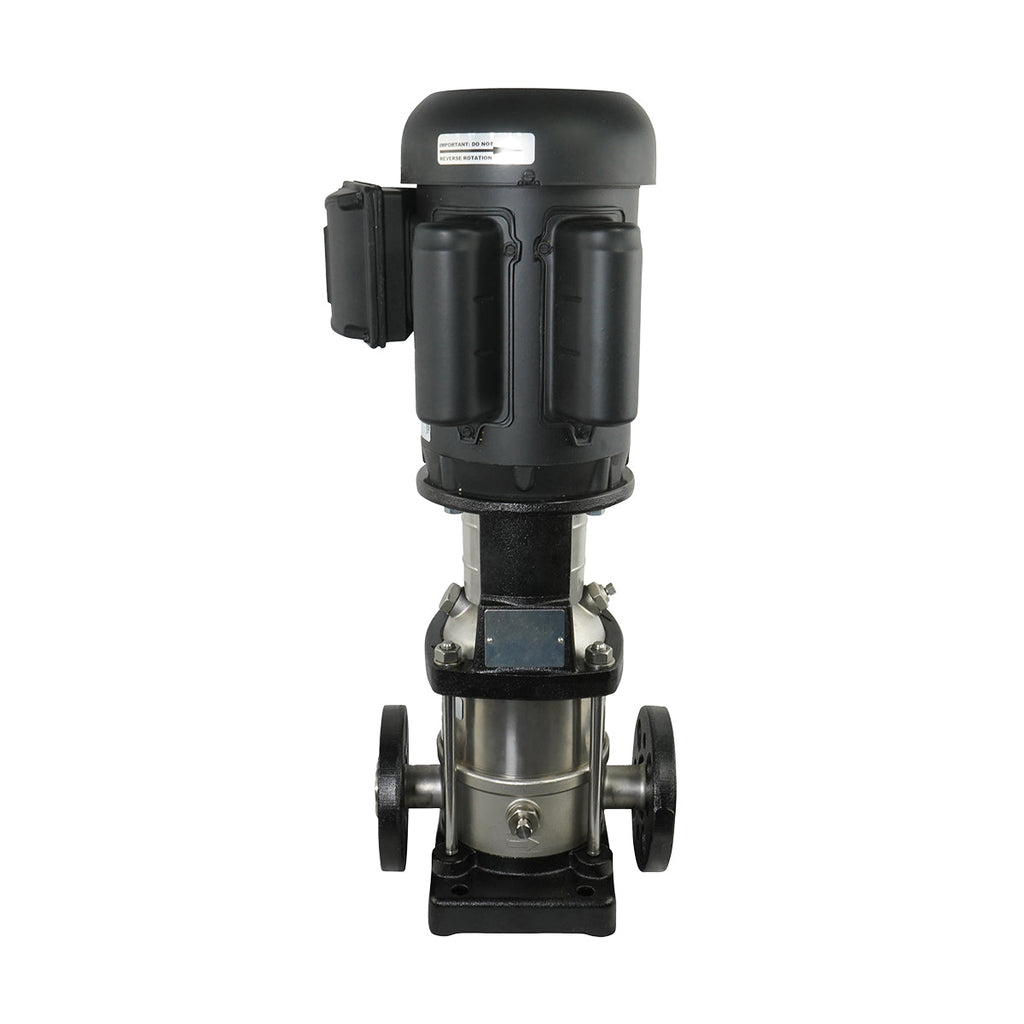

The Crystal Quest V-Flow NV12-10S is a 10-stage vertical multistage booster pump rated for 12 GPM at up to 362 PSI working pressure. It is built with 304 stainless steel wetted parts and is available with a single-phase or three-phase 2 HP motor.
Highlights
- 10 stages for high-pressure duty at 12 GPM
- Single-phase option for sites without three-phase power
- Three-phase option with higher electrical efficiency and smoother continuous operation
- 304 stainless steel pump head, impellers, diffusers and casing
- Silicon carbide mechanical seal with EPDM elastomers
Details
Avermont Direct is an authorized Crystal Quest dealer. This pump is intended for industrial, commercial and agricultural water systems, including reverse osmosis feed, water treatment, irrigation, sprinkler systems and hot and cold water circulation. Choose the motor phase that matches the power available at your site, and confirm flange size with our team before ordering if your piping is already in place.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Model | NV12-10S |
| Rated Flow | 12 GPM |
| Stages | 10 |
| Max Working Pressure | 362 PSI |
| Max Inlet Pressure | 150 PSI |
| Motor Power | 2 HP |
| Motor Phase / Frequency | 1PH or 3PH / 60Hz |
| Motor Frame | 56C |
| Motor Enclosure | Totally enclosed fan-cooled |
| Connections | ANSI 150# flanged |
| Pump Length (Flanged) | 17.01 in |
| Weight (Flanged) | 40 lbs |
| Pump Head, Impeller, Diffuser, Casing, Base | 304 stainless steel |
| Shaft | 431 stainless steel |
| Motor Bracket / Base Plate | Cast iron |
| Neck Ring | Teflon |
| O-Ring | EPDM |
| Mechanical Seal | Silicon Carbide / Silicon Carbide / EPDM |
- Single-phase motor has slightly lower electrical efficiency and is better suited to lighter duty cycles
- Electrical supply should be verified by a certified electrician against the motor nameplate
- Install isolation valves on the suction and discharge sides; hot water systems need a bleed valve in the discharge line
- Never operate the pump without water; prime the casing before startup
