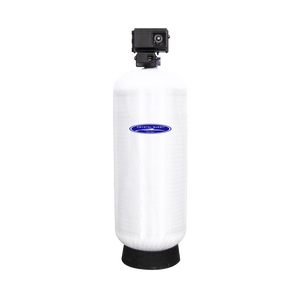

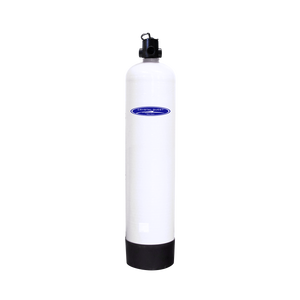

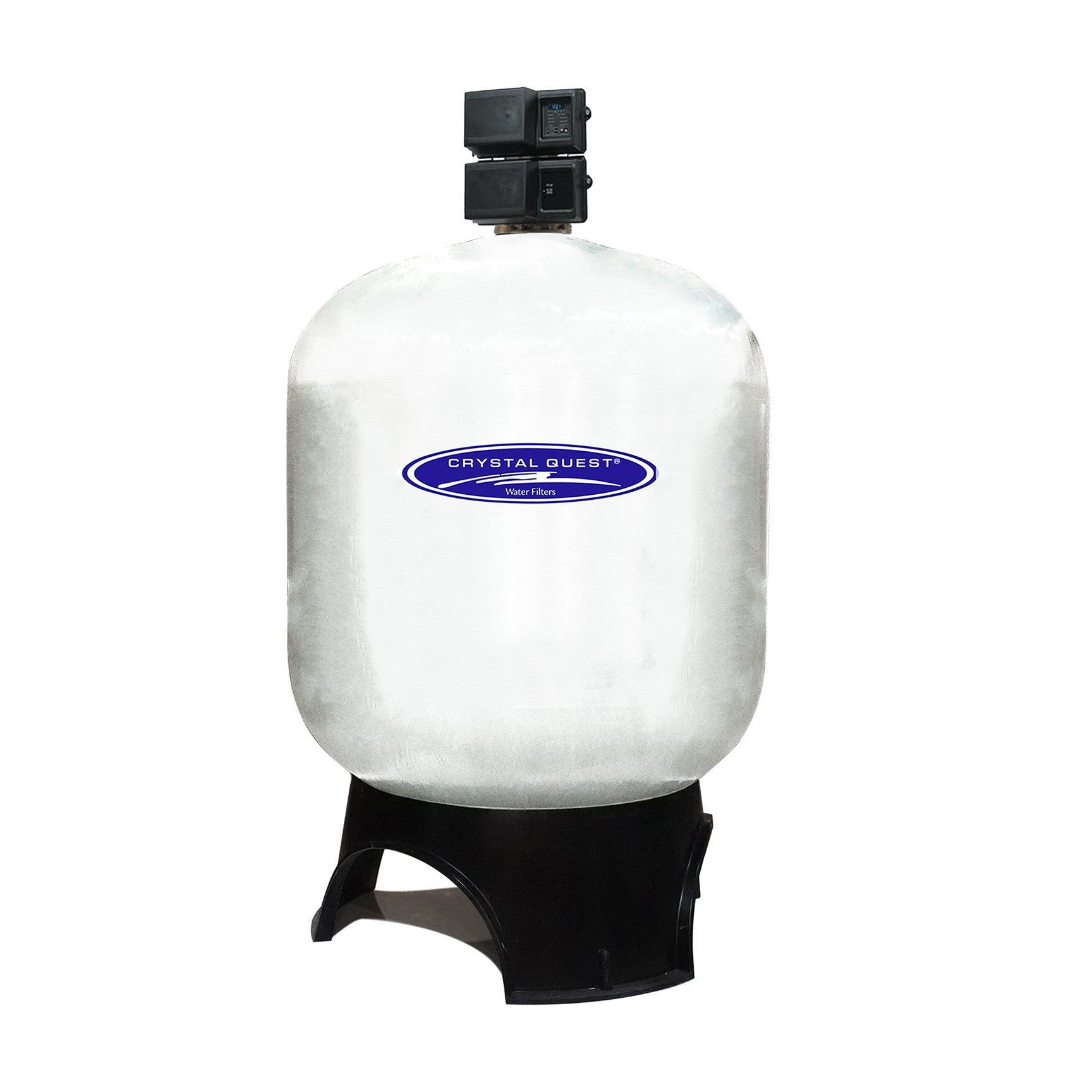

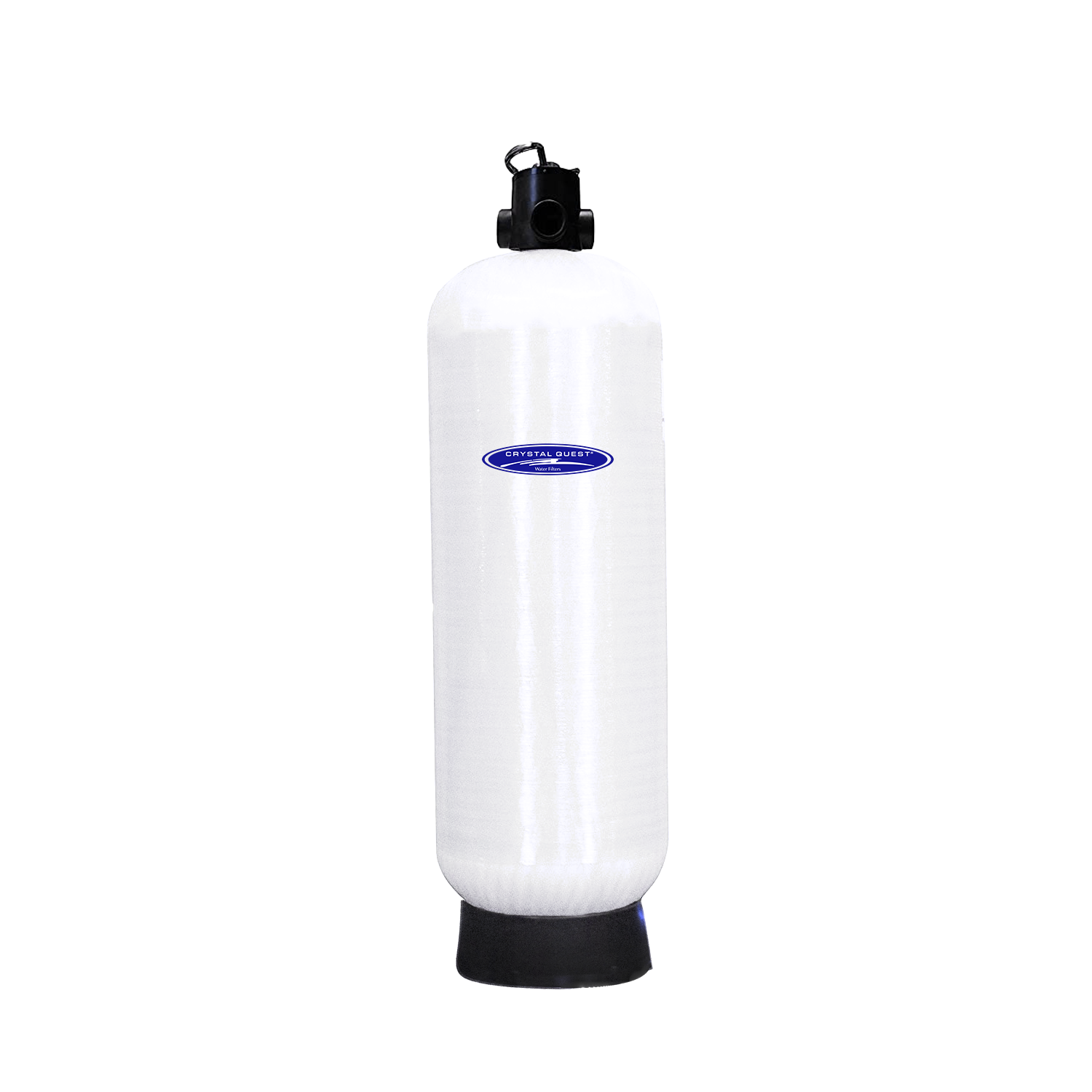

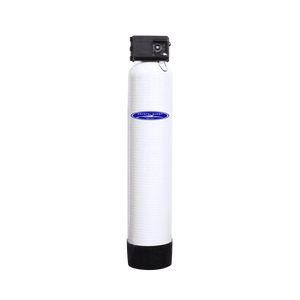

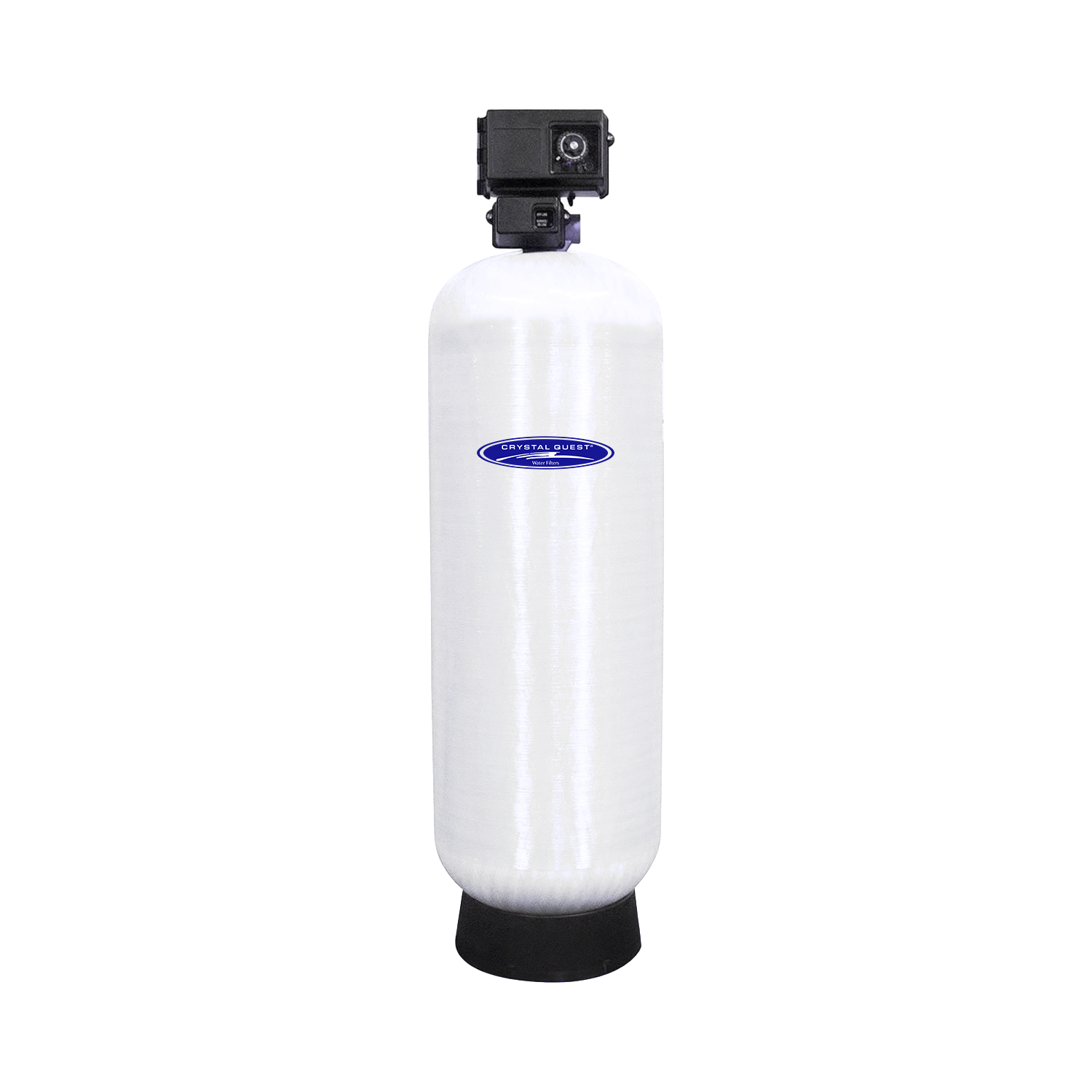

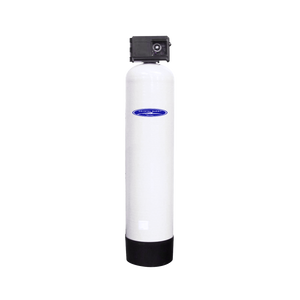

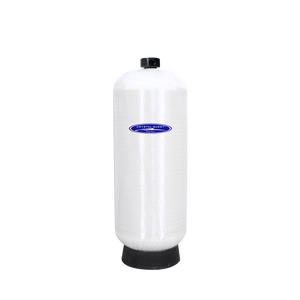

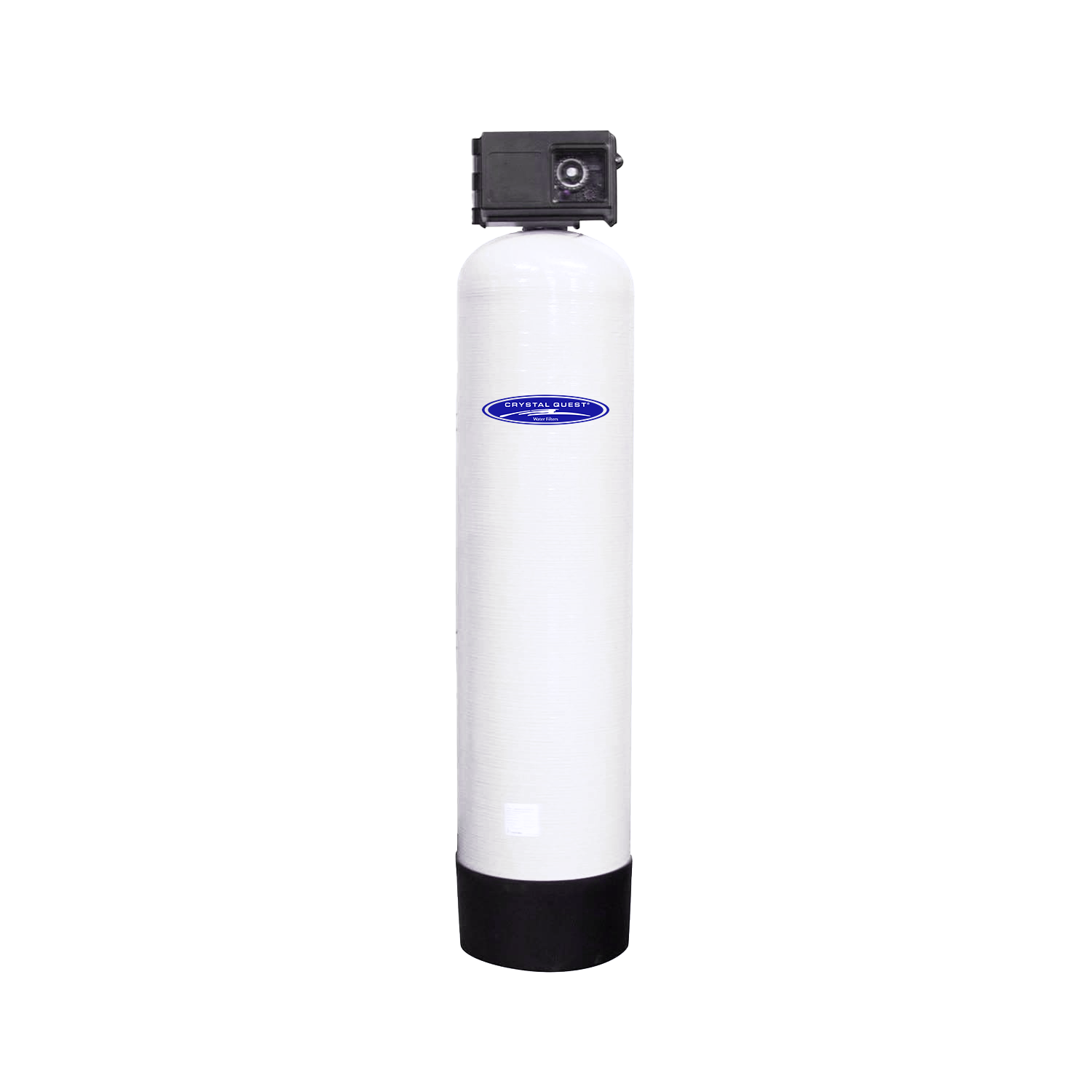

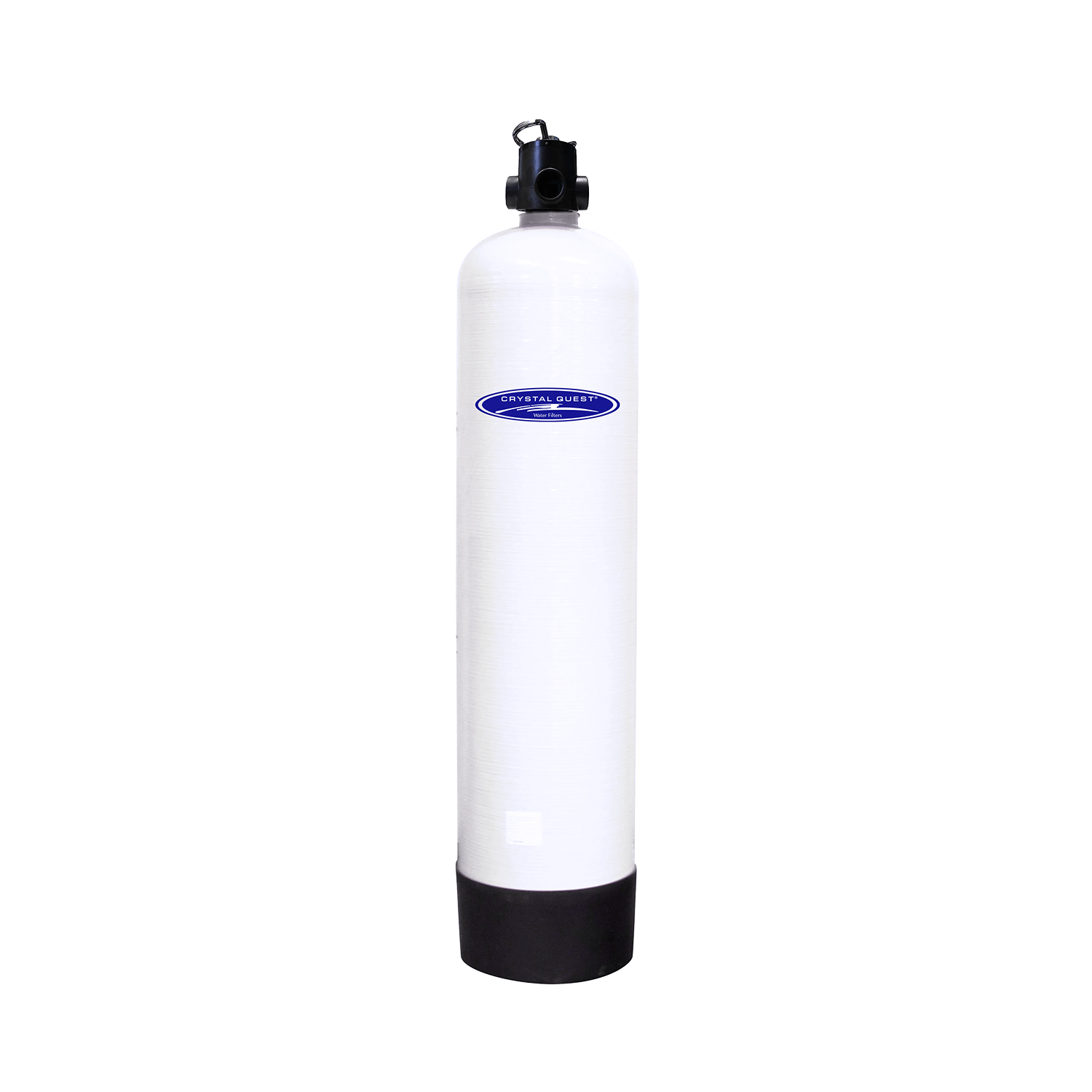

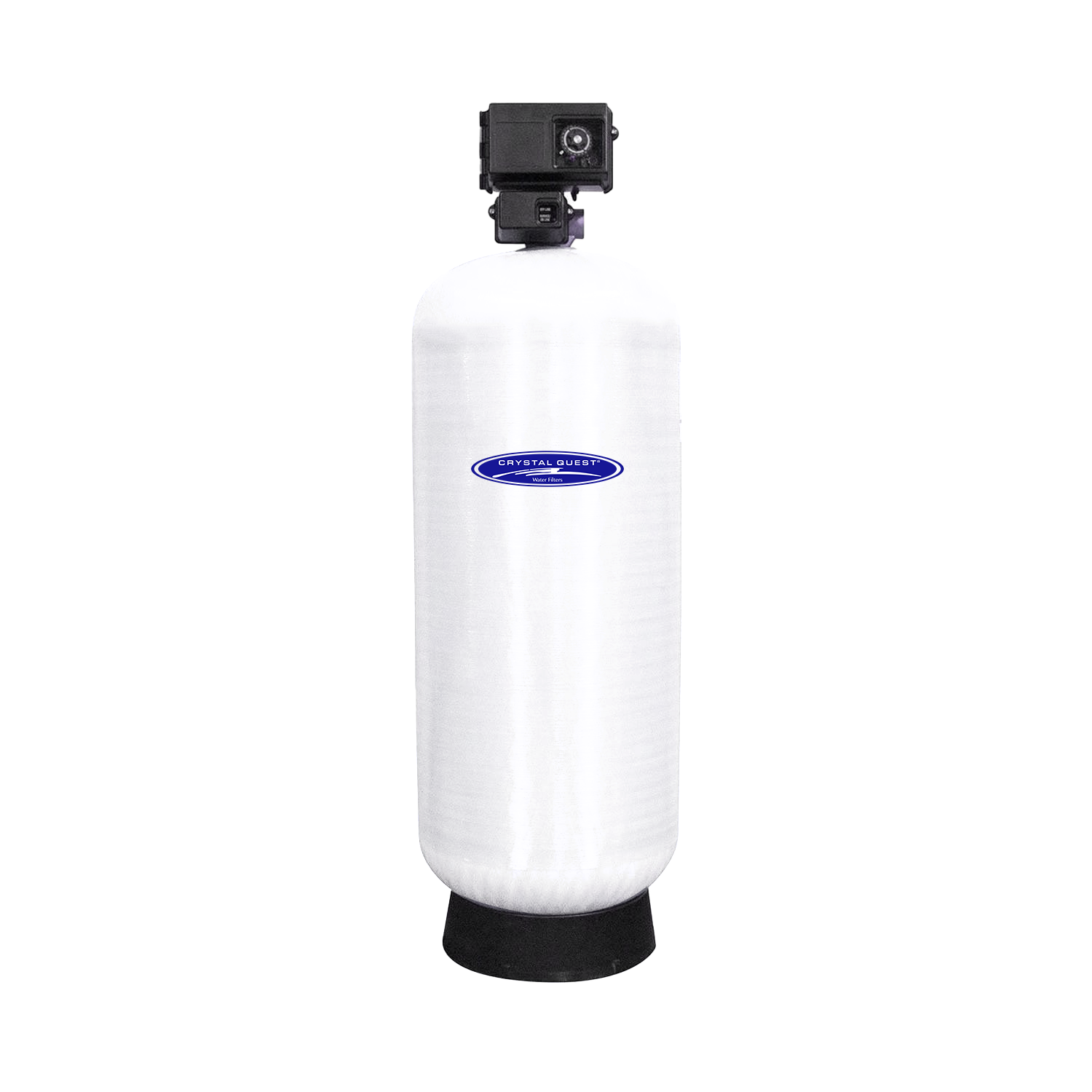

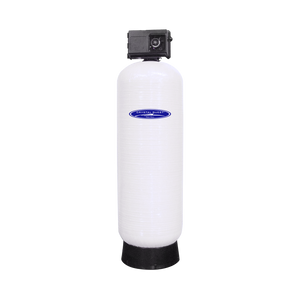

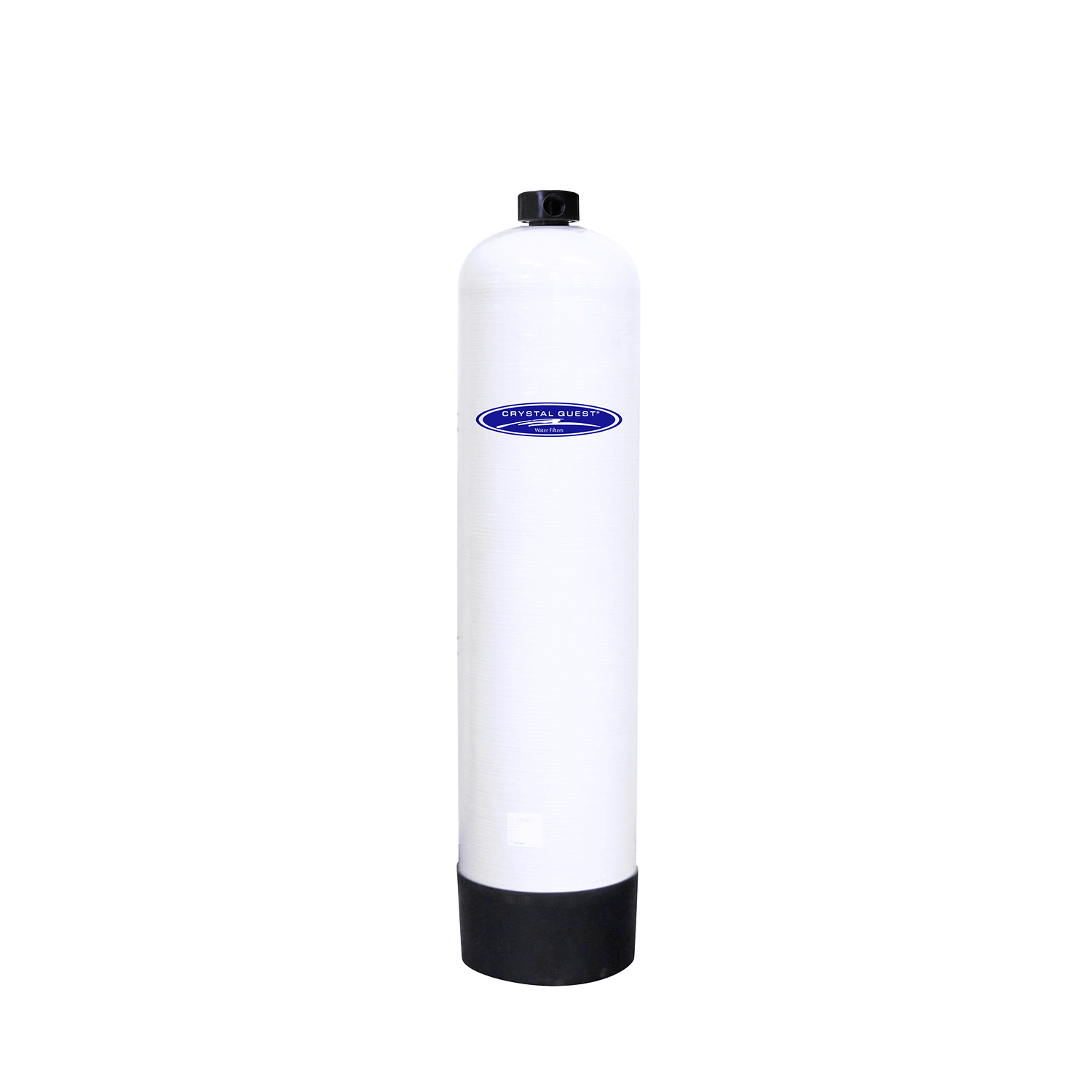

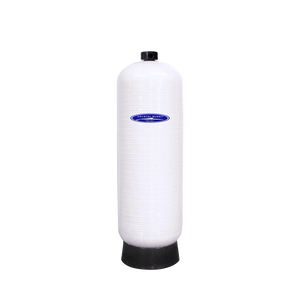

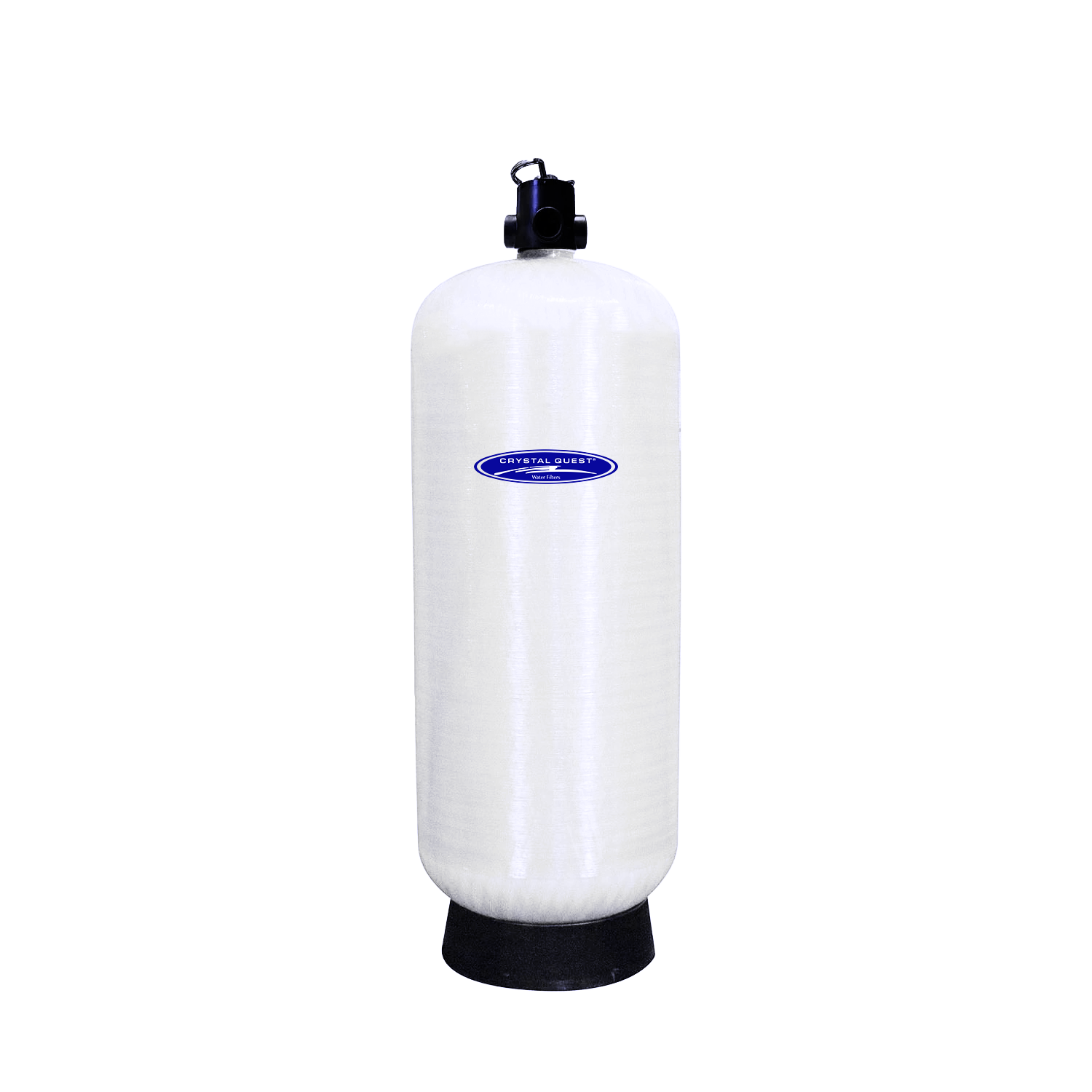

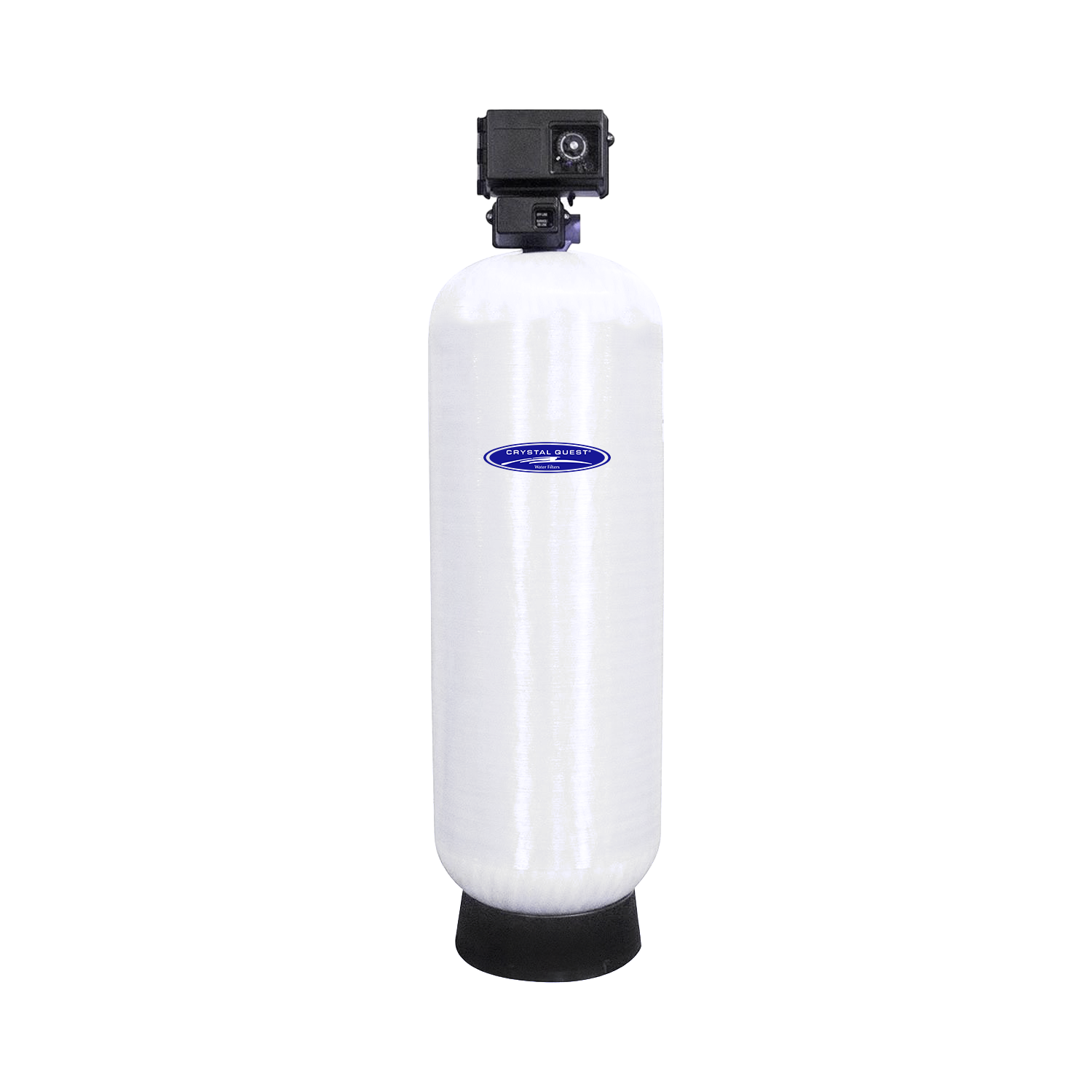

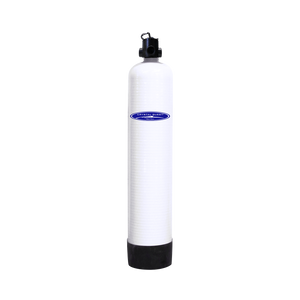

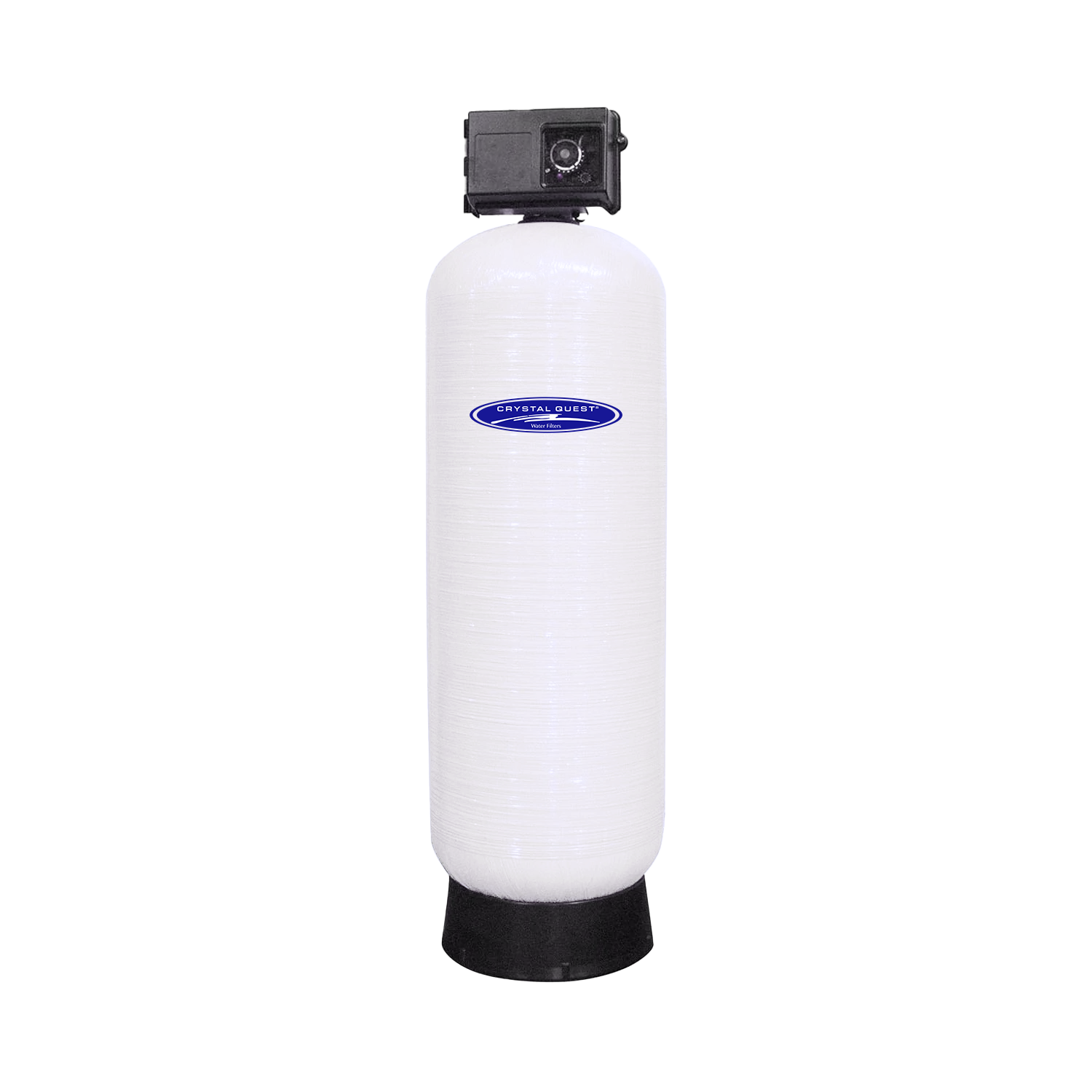

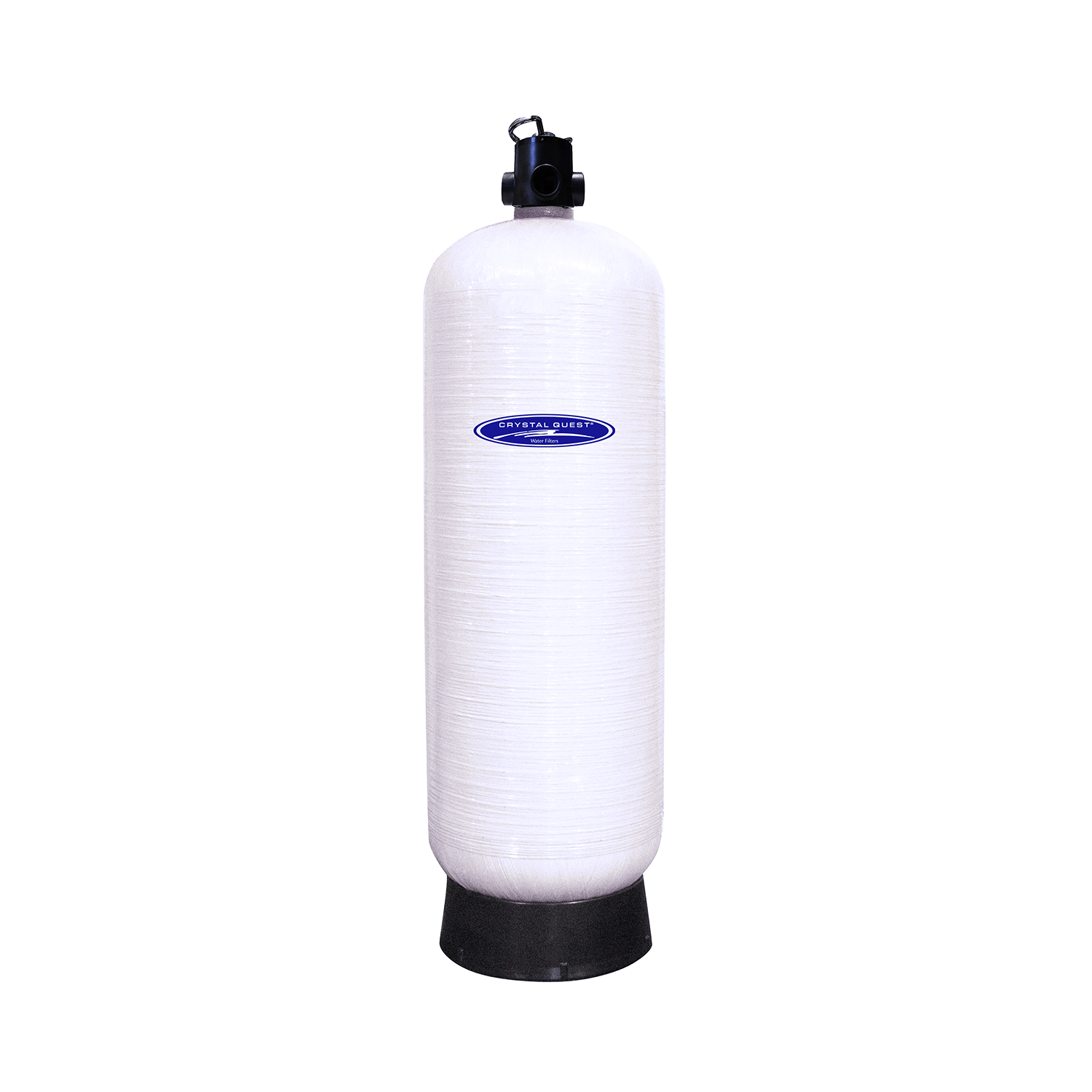

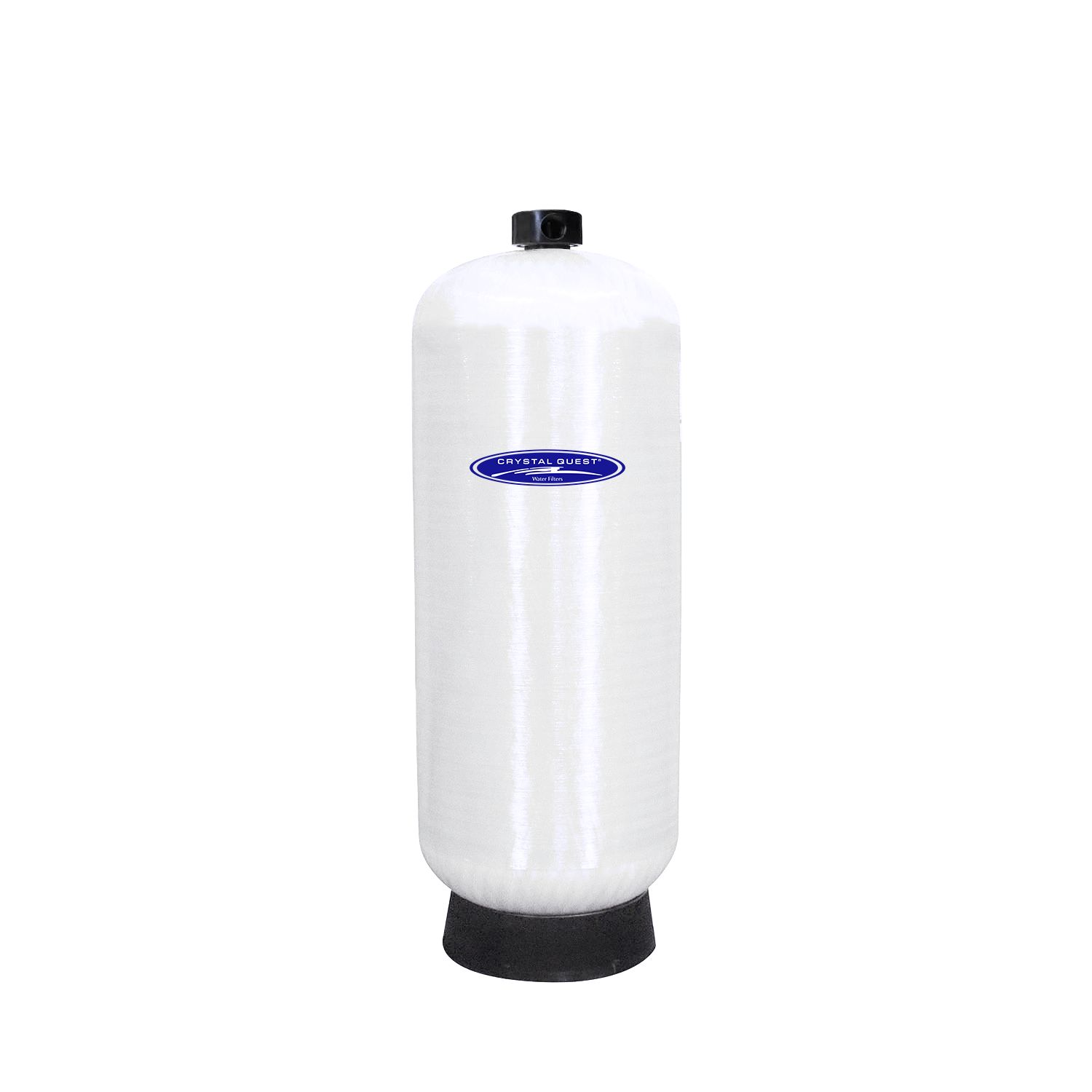

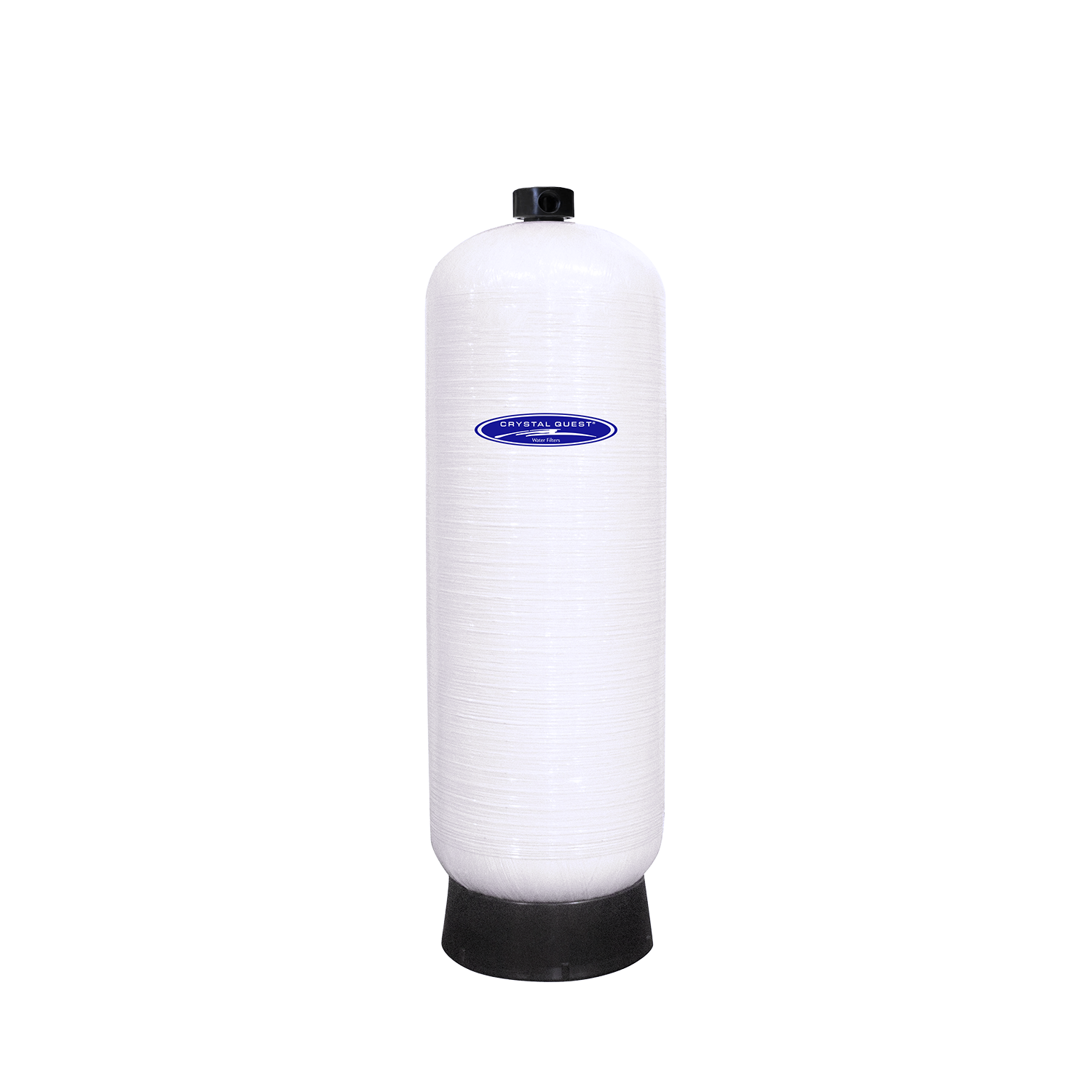

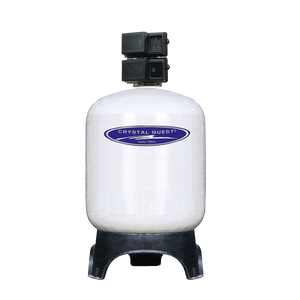

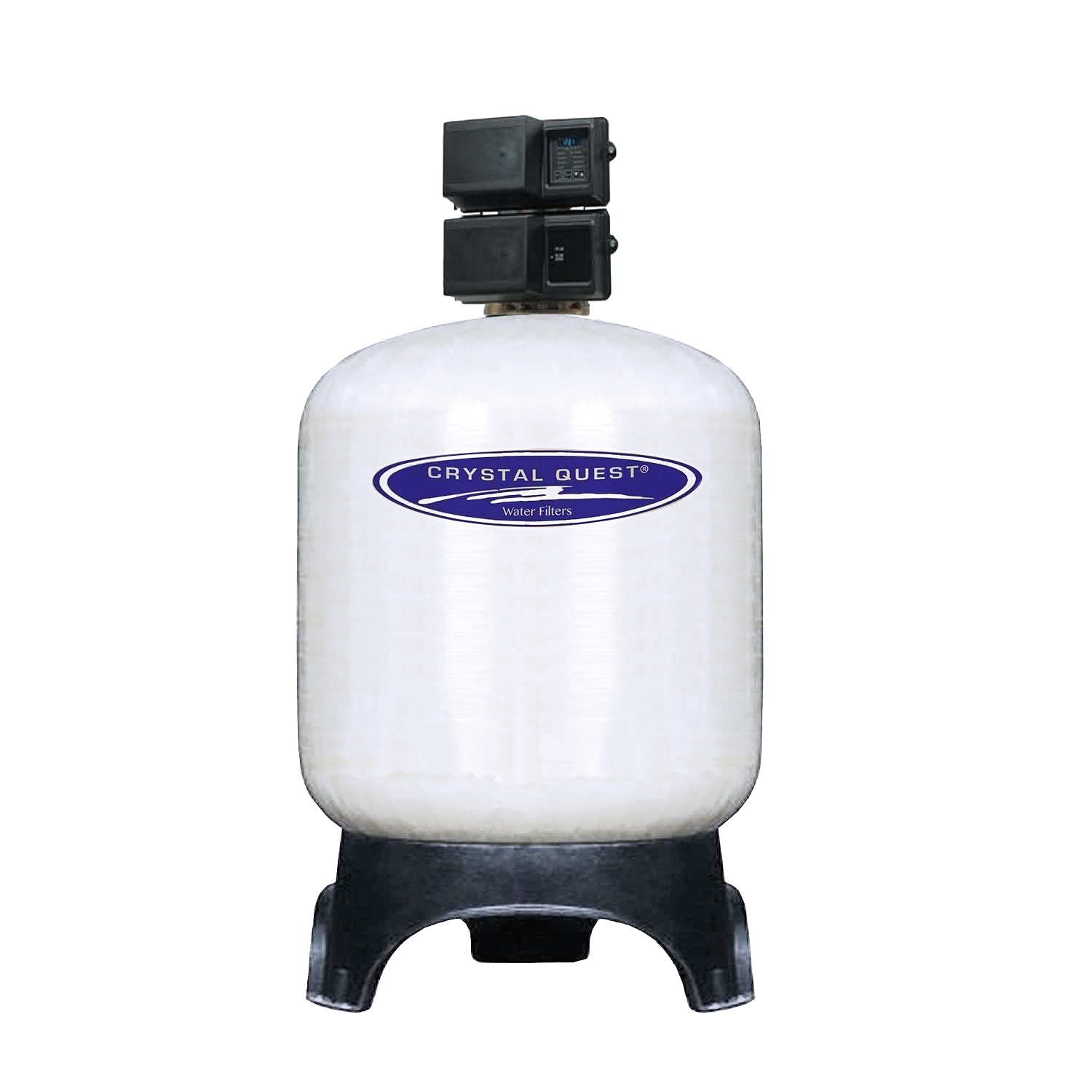

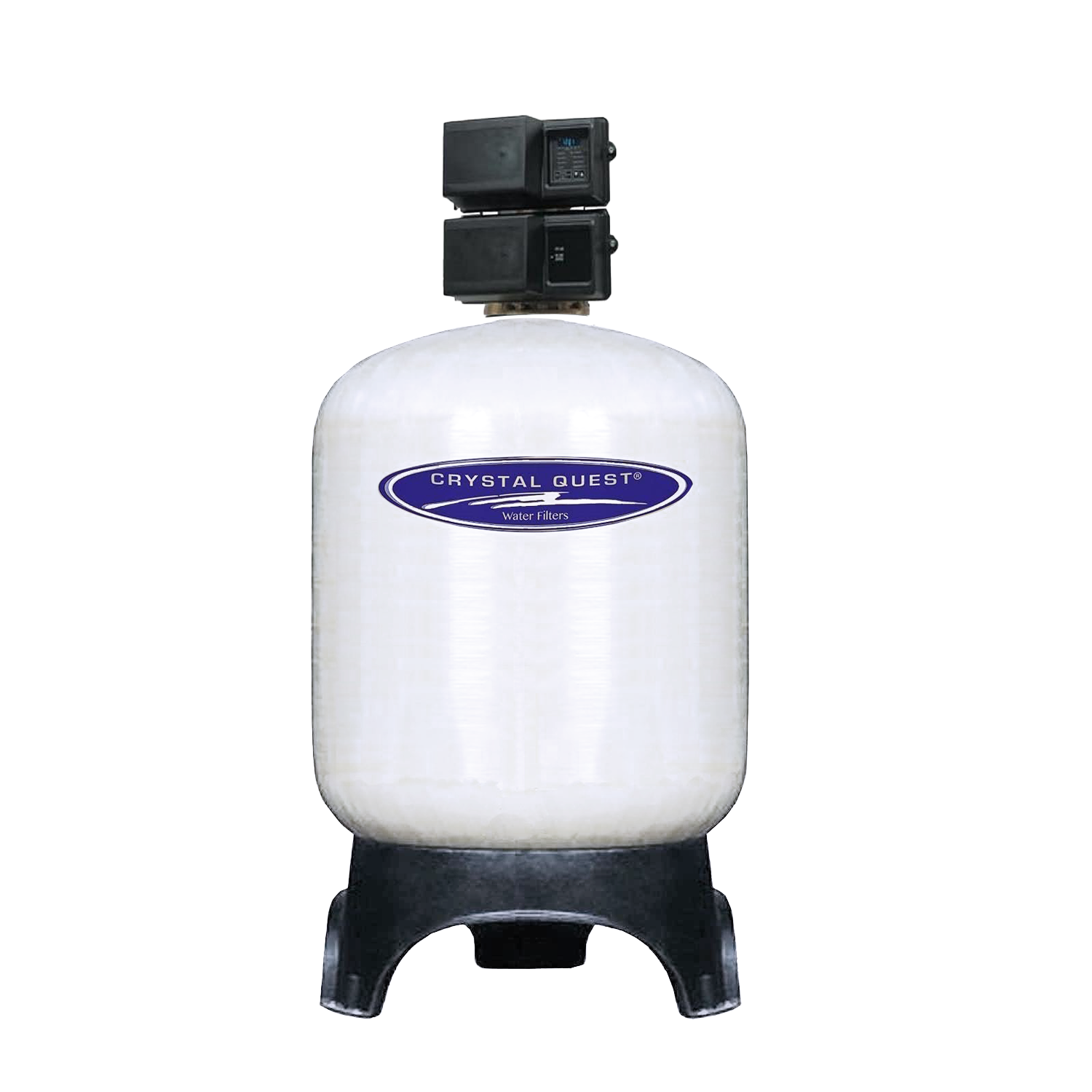

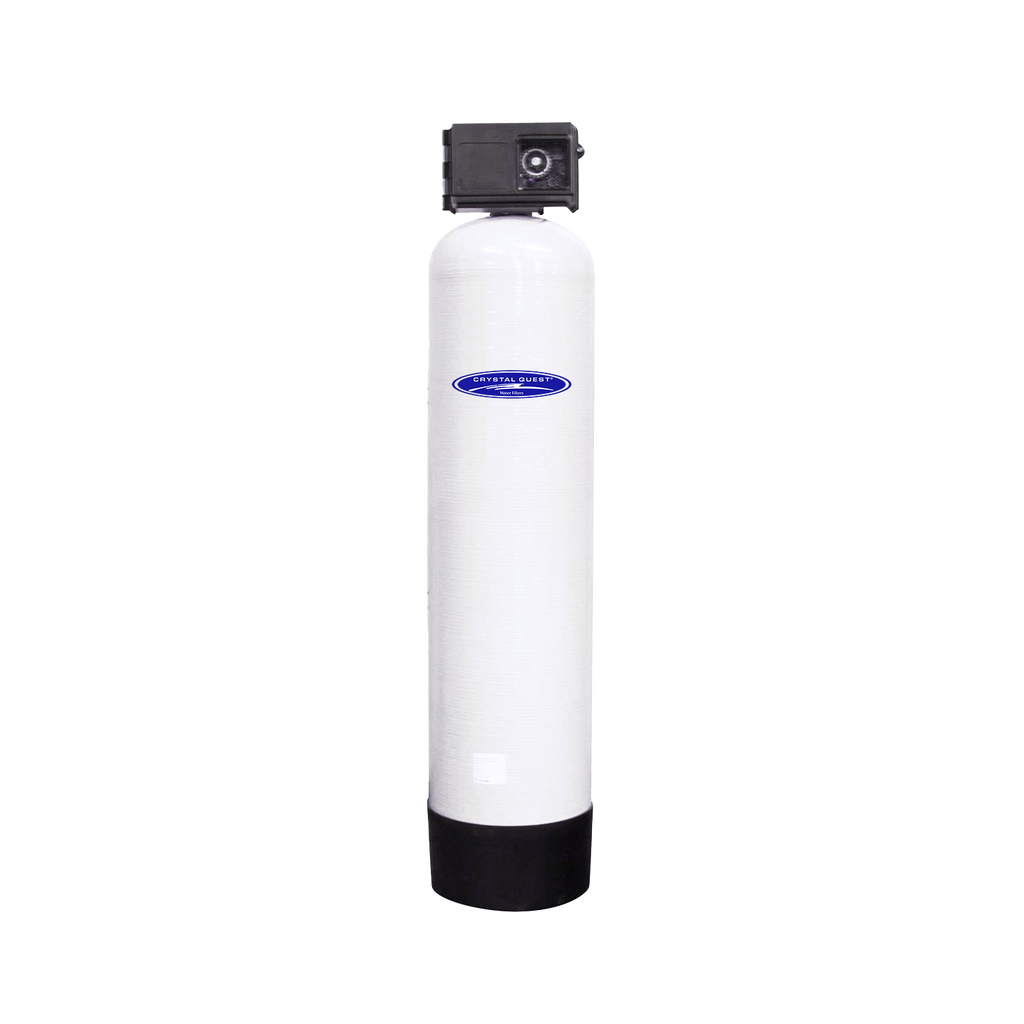

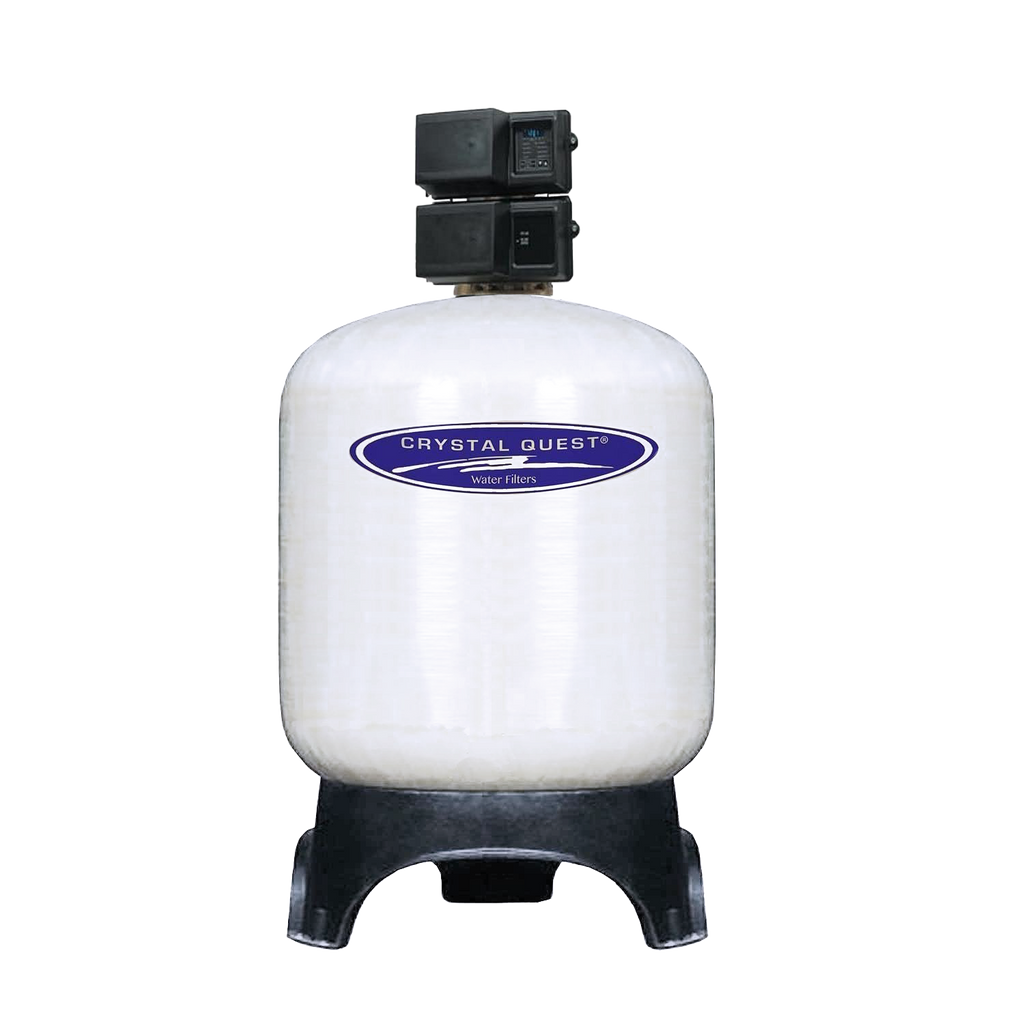

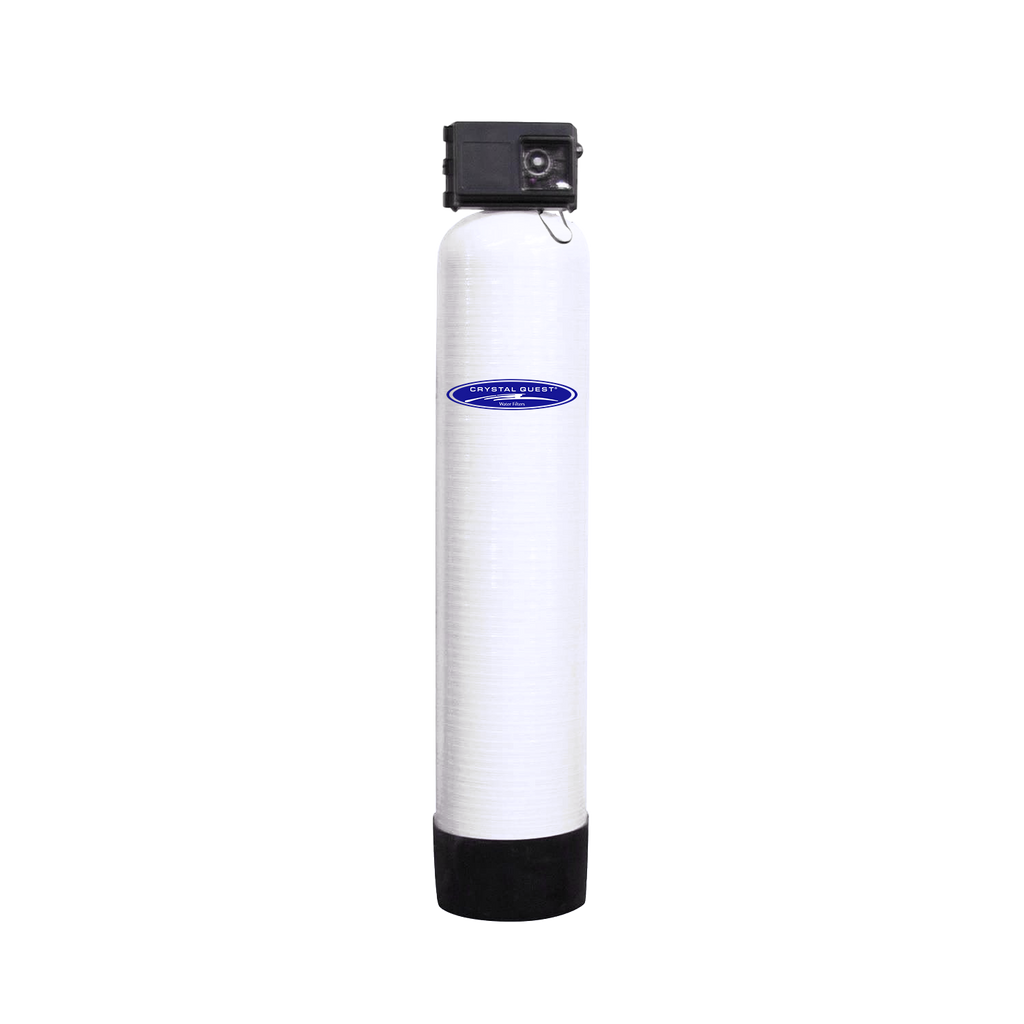

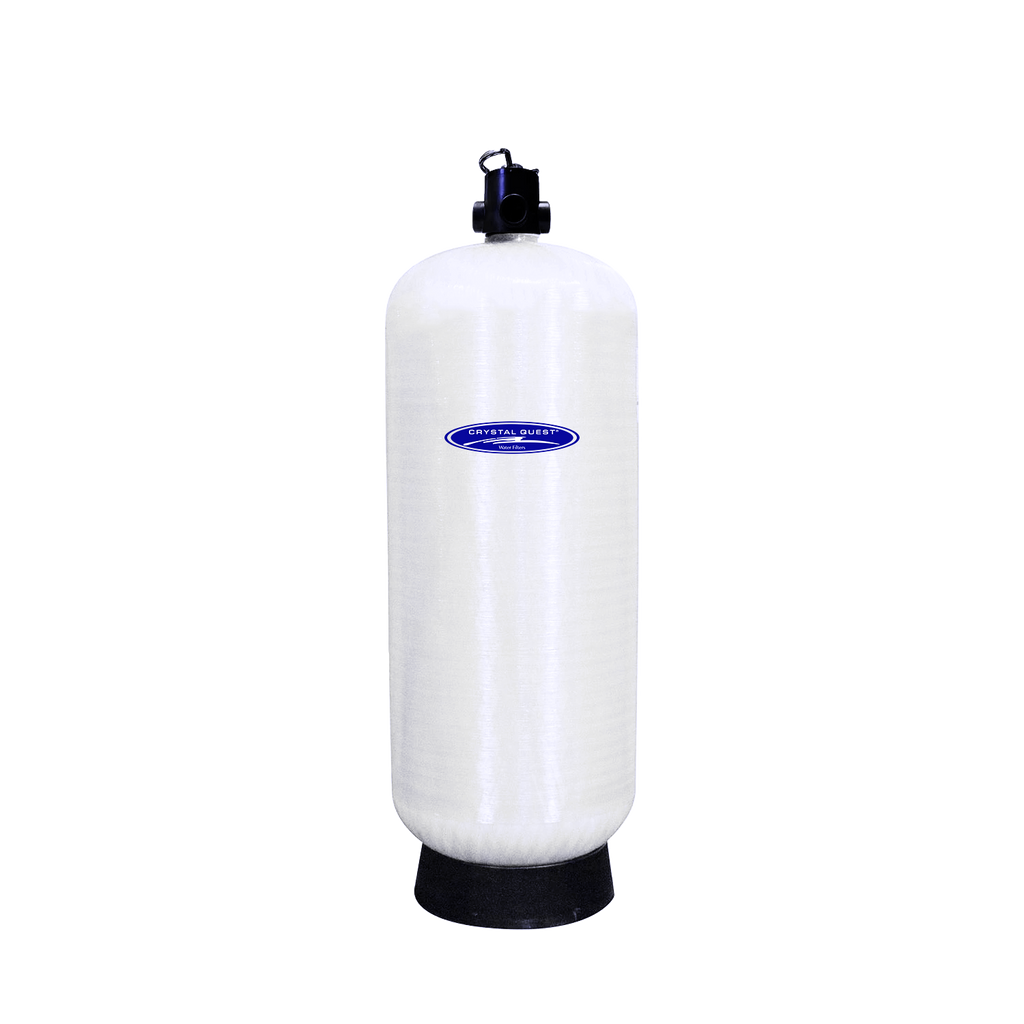

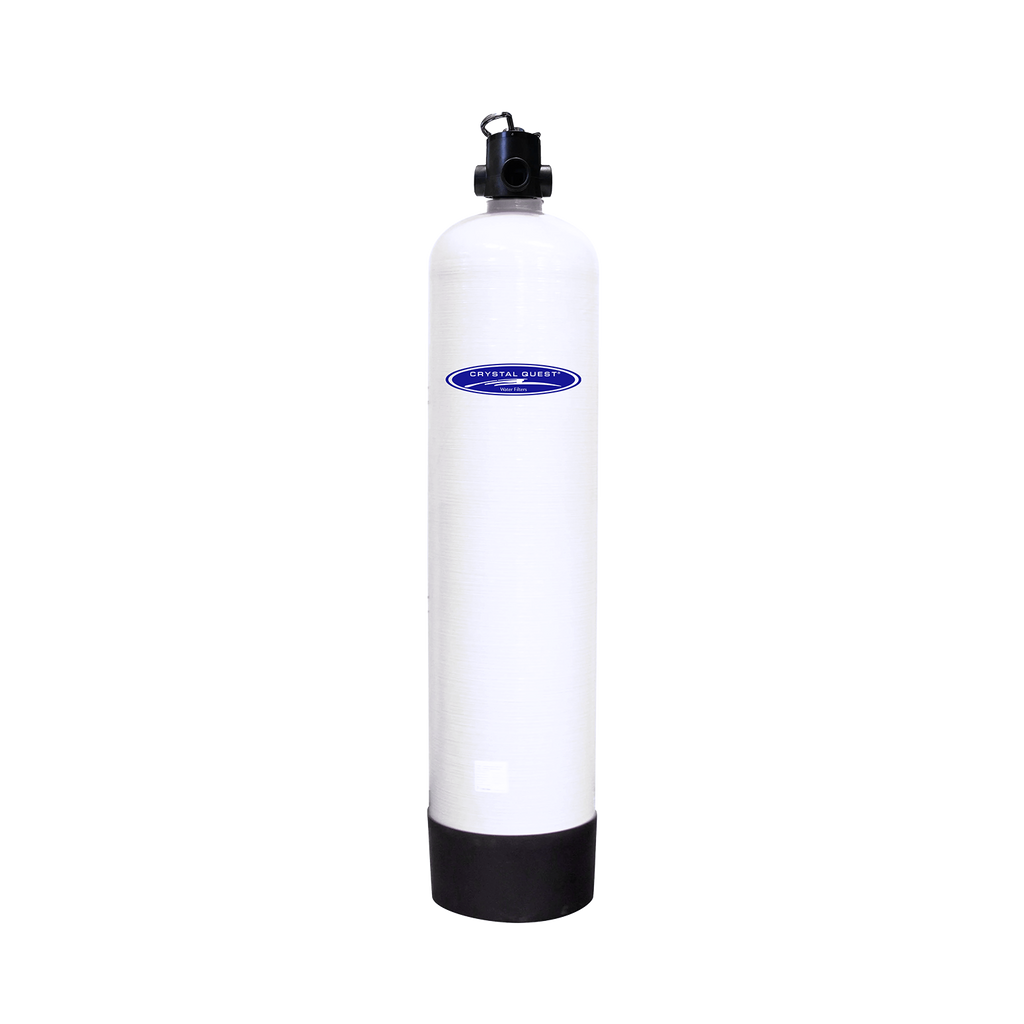

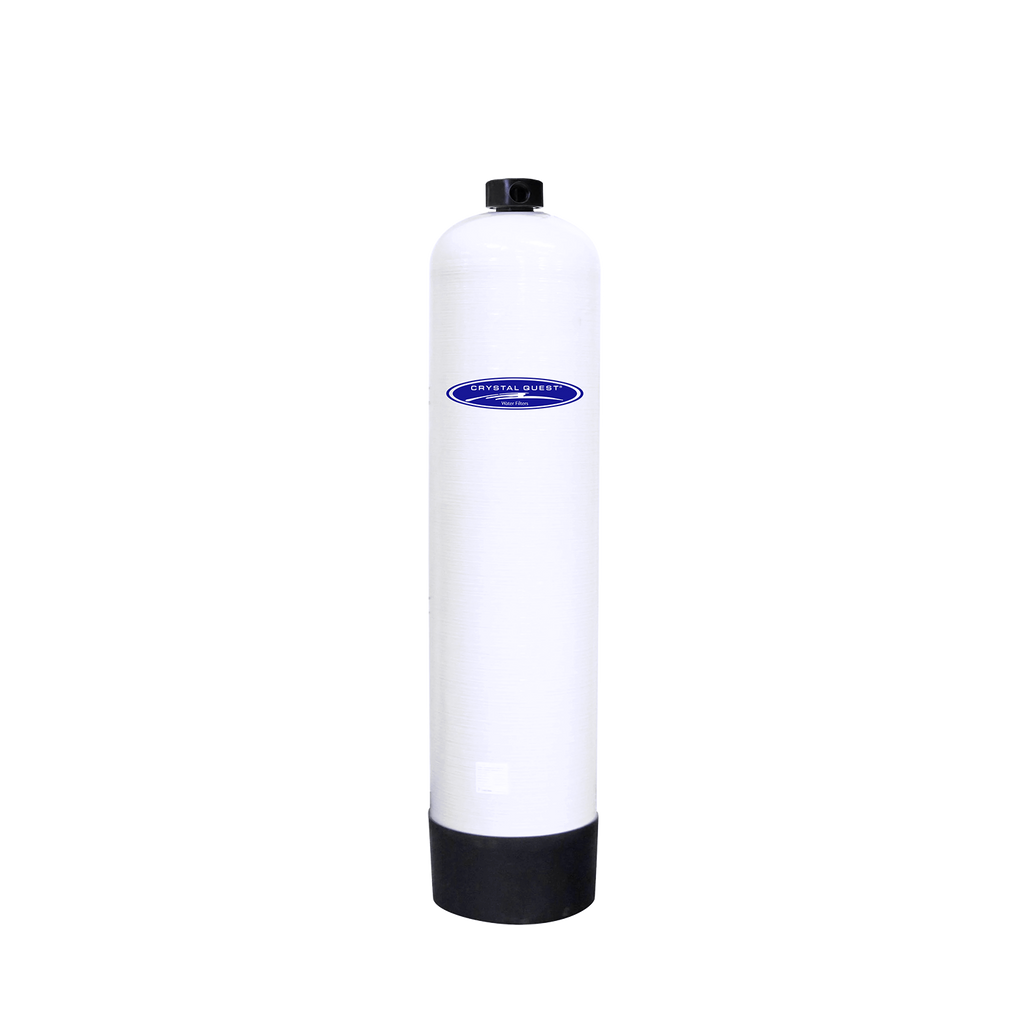

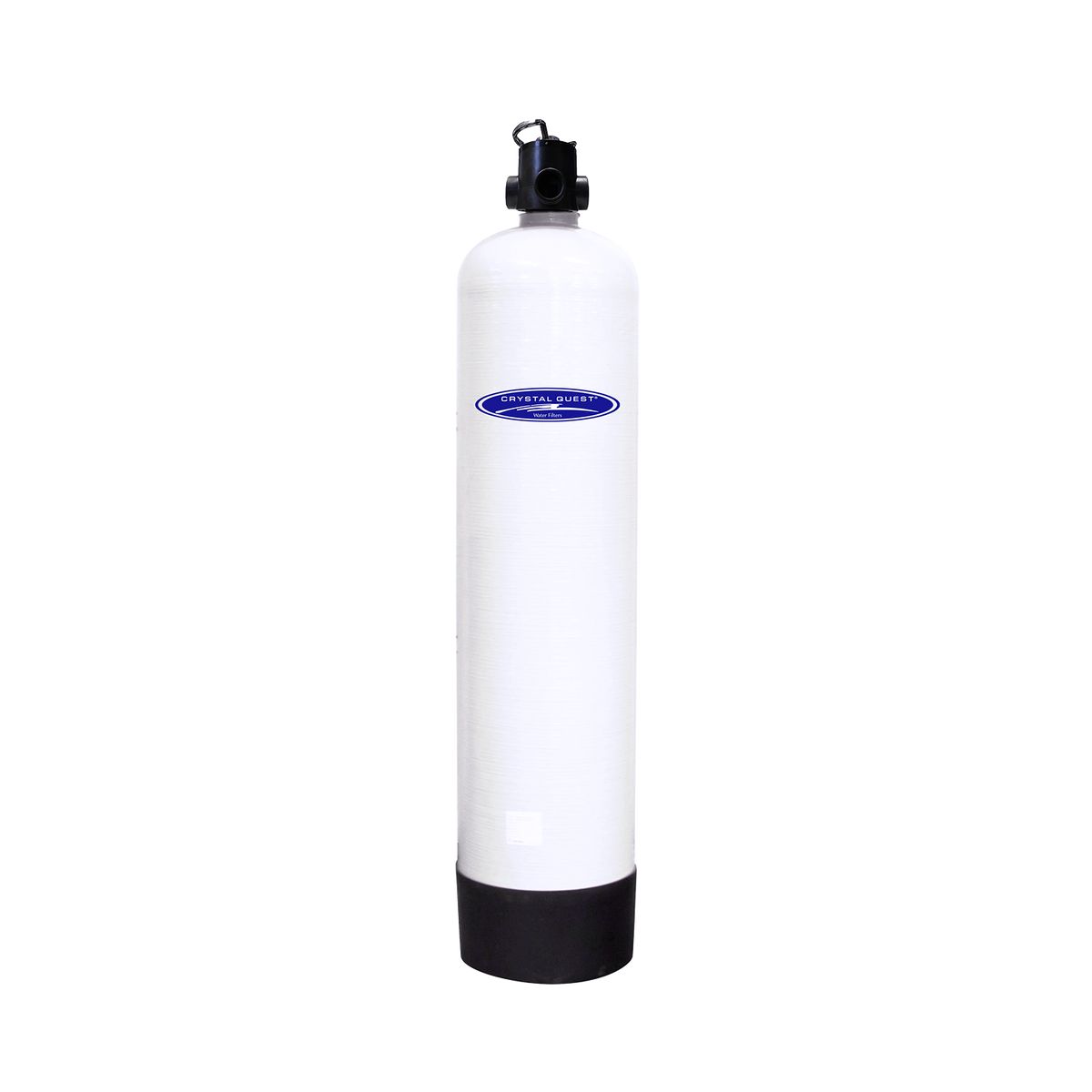

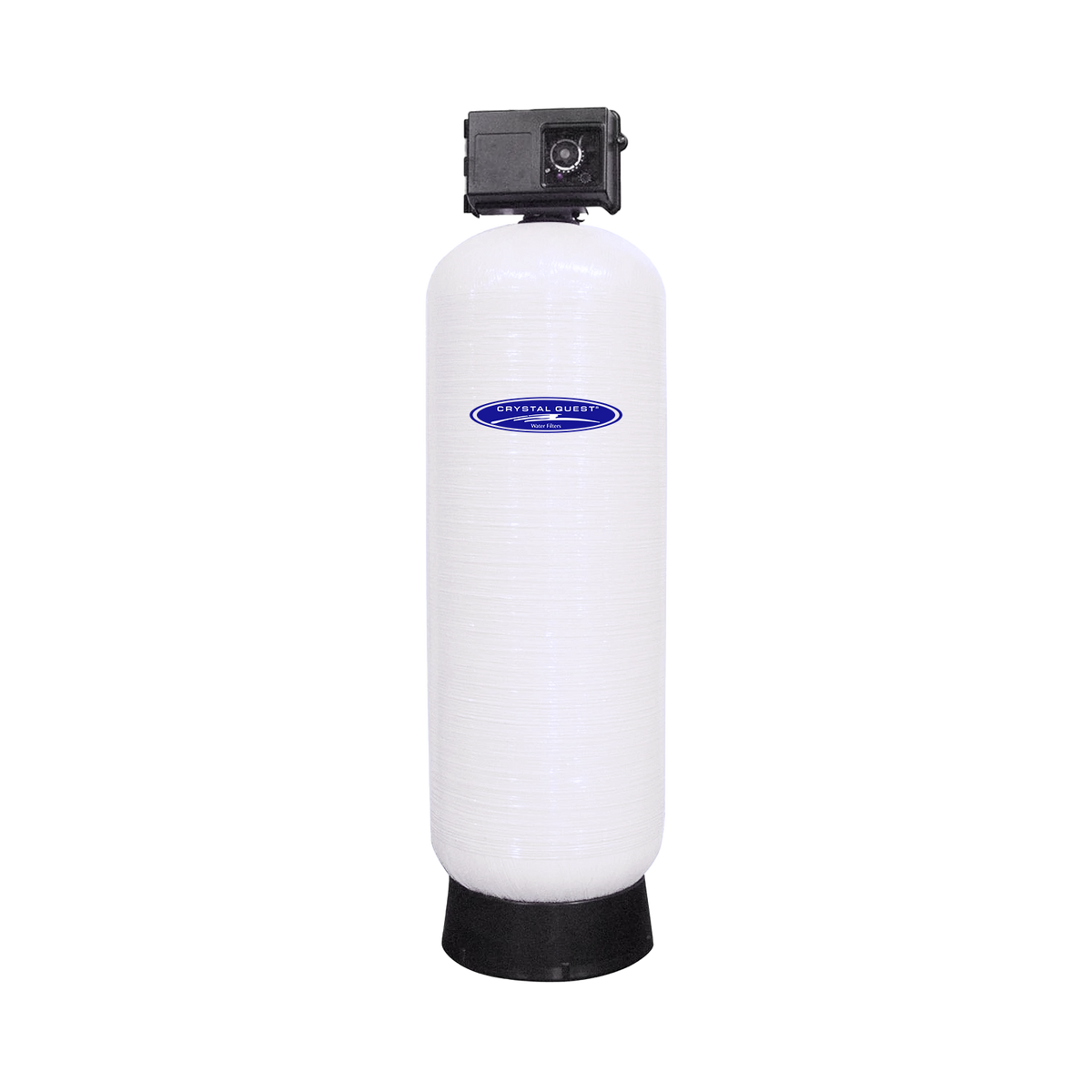

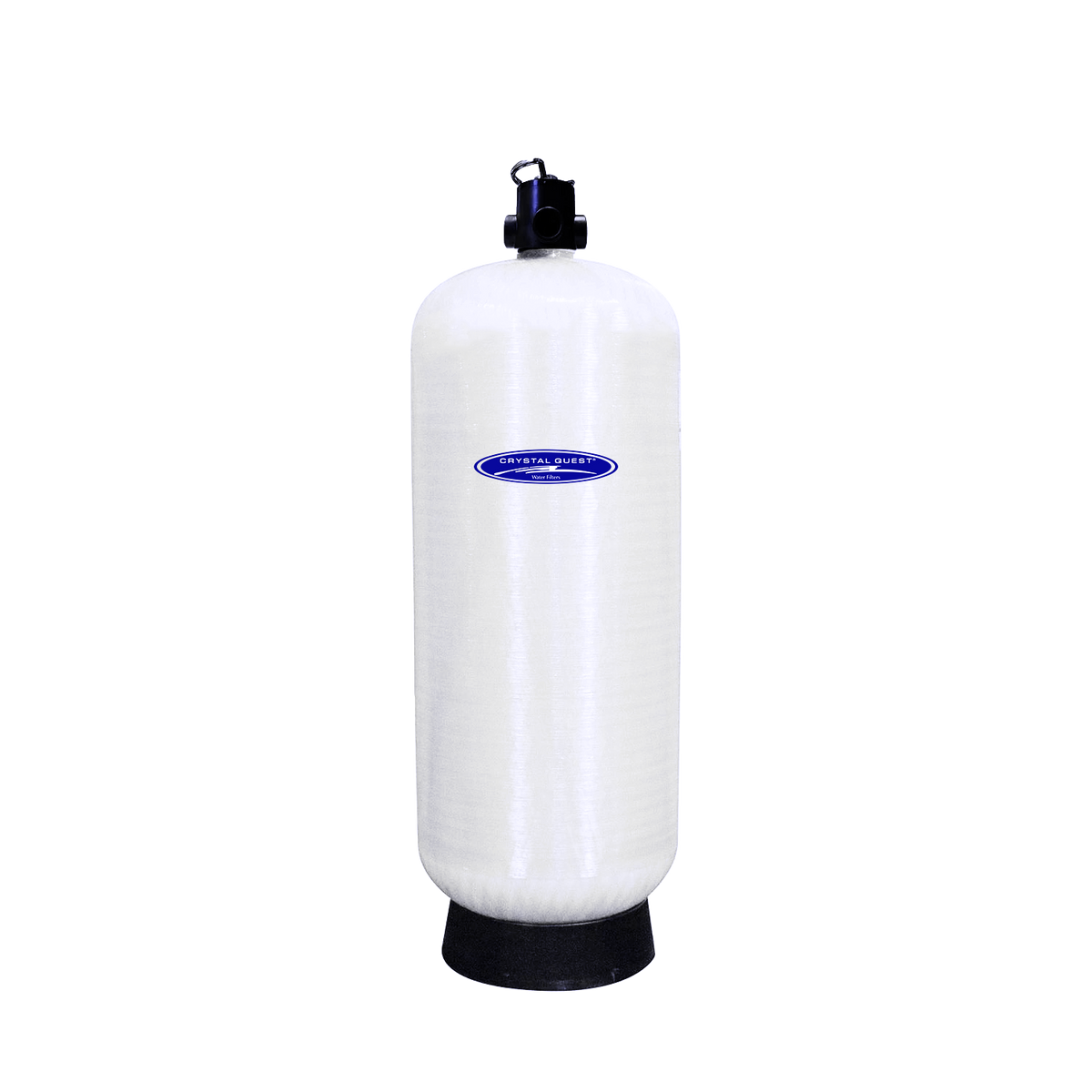

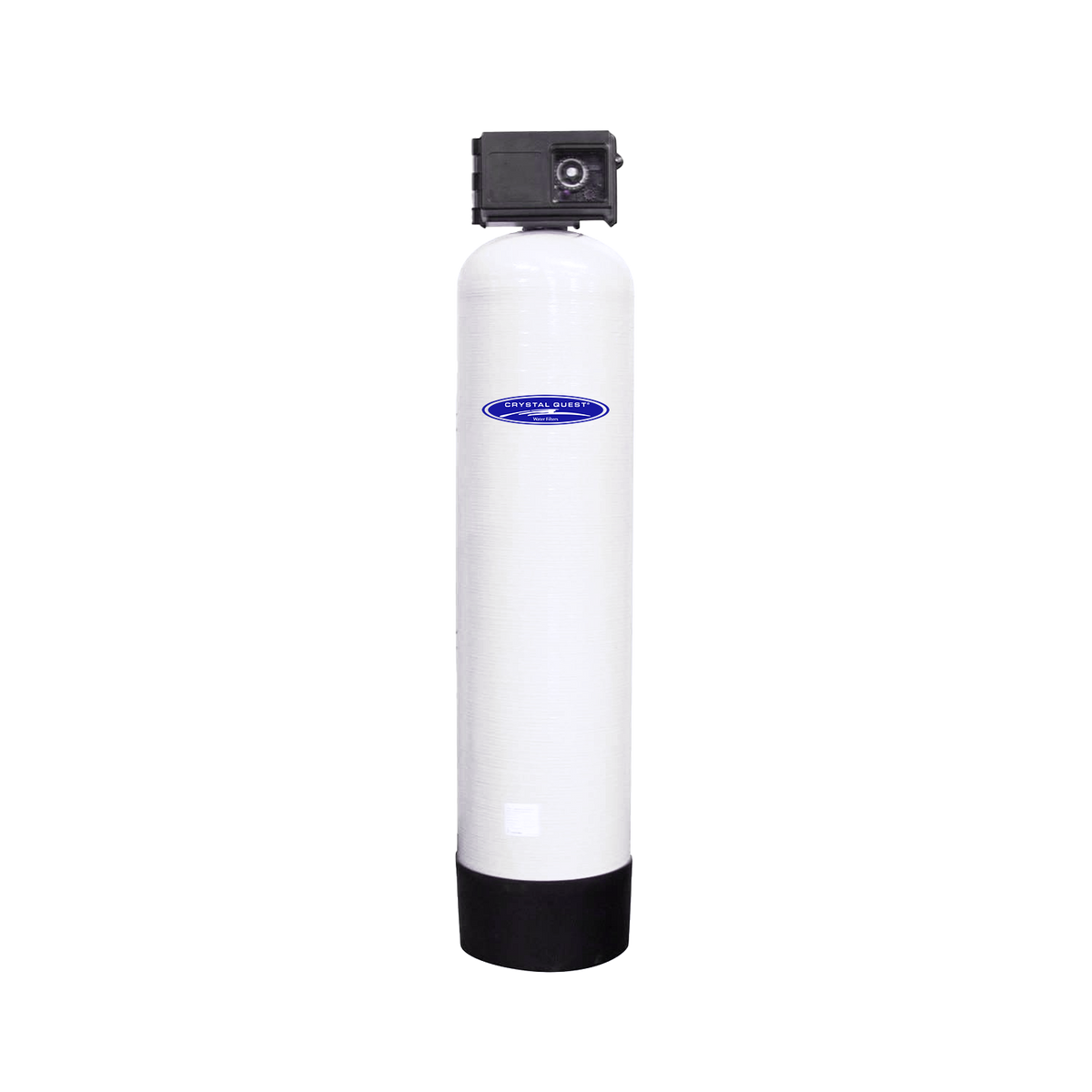

The Crystal Quest Commercial SMART Water Filtration System uses a layered SMART Multimedia filtration bed to reduce and remove contaminants throughout the filter, capturing particles as small as 5–15 microns — significantly finer than many conventional sand or basic media filters.
Highlights
- Core filtration blend of high-quality coconut shell granular activated carbon (GAC) and catalytic carbon helps reduce chlorine and chloramines, VOCs, industrial chemicals and solvents, pesticides and herbicides, and unpleasant taste and odor
- Installed at the point where water enters the building, treating water for drinking and cooking, showering and bathing, laundry and dishwashing, ice makers/refrigerators, and humidifiers/appliances
- Customizable systems come with pre- and post-filters and can be paired with a water softener for hard water
- Engineered to maintain strong water flow and consistent pressure even at high daily water usage
- Filtration media is designed for long service life, often lasting years before replacement is required
Specs & Features
| Model |
CQE-CO-02059 / 02060 / 02061 / 02062 / 02063 / 02064 / 02065 / 02066 / 02700 |
| Service Flow (GPM) |
15 / 20 / 35 / 60 / 75 / 185 / 200 / 245 / 390 |
| Peak Flow (GPM) |
22 / 41 / 60 / 95 / 140 / 250 / 270 / 280 / 450 |
| Backwash Flow (GPM) |
5 / 7 / 12 / 15 / 25 / 35 / 50 / 65 / 75 |
| Pipe Size |
1" / 1.5" / 1.5" / 2" / 2" / 2"-3" / 3" / 3" / 3" |
| Electronic Control Valve |
2510 / 2850 / 2850 / 2900 / 2900 / 3150-3900 / 3900 / 3900 / 3900 |
| SMART Multimedia Volume |
3 / 4 / 7 / 10 / 15 / 20 / 30 / 40 / 60 cu. ft. |
| PSI Range |
35–60 (all models) |
| Mineral Tank Size |
14"x65" / 16"x65" / 21"x62" / 24"x72" / 30"x72" / 36"x72" / 42"x72" / 48"x72" / 63"x83" |
| Space Required (D x H) |
16"x75" / 18"x75" / 23"x84" / 24"x95" / 32"x95" / 40"x192" / 46"x192" / 52"x192" / 67"x203" |
| Quartz |
30 / 40 / 70 / 100 / 150 / 200 / 300 / 400 / 600 lbs. |
- 2510 Automatic Control Head: electromechanical timer valve, 3/5" control valve, 1.9" distributor pilot, 19 GPM service flow, 17 GPM backwash capacity, all-brass construction, built for commercial and industrial use
- 2900 Automatic Control Head: electromechanical timer valve, 2" control valve, 106 GPM service flow, 36 GPM backwash capacity, all-brass construction, self-adjusting backwash controller
- Note: service flow rate varies depending on water quality and filter selected
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is covered by Crystal Quest's one-year limited warranty against defects in materials and workmanship (filter cartridges and UV bulbs excluded). It's designed for point-of-entry, whole-building installation in commercial and light-industrial settings that need consistent flow and multi-stage filtration.
