What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

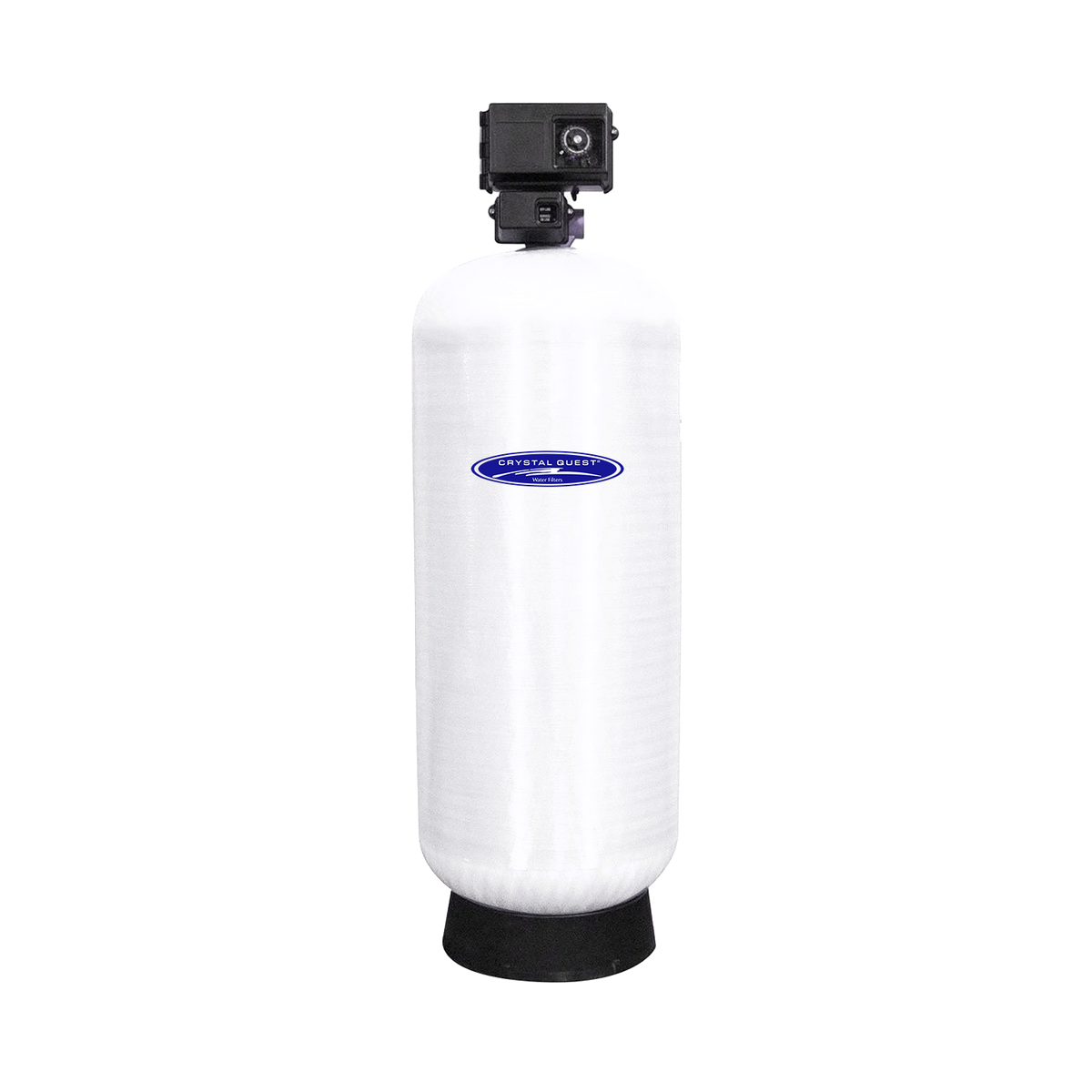

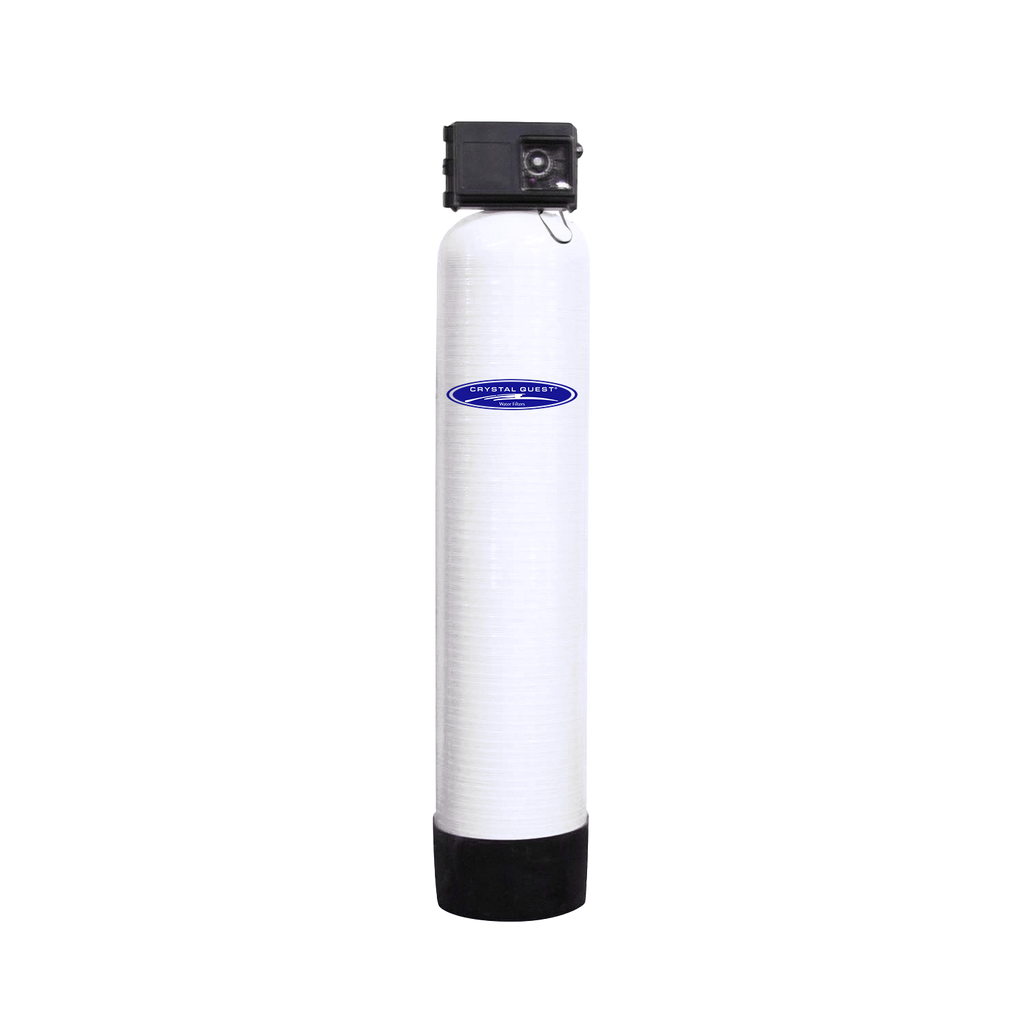

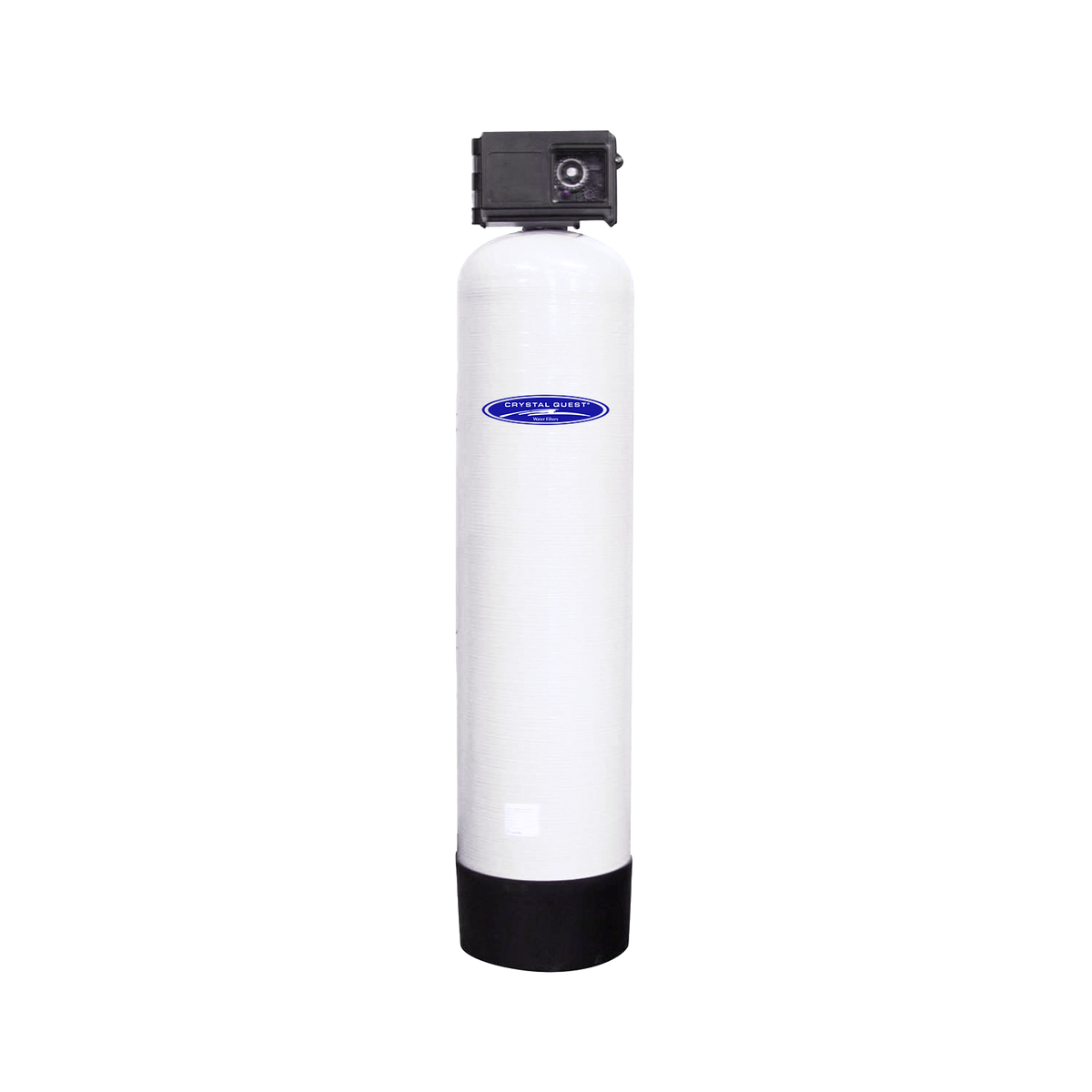

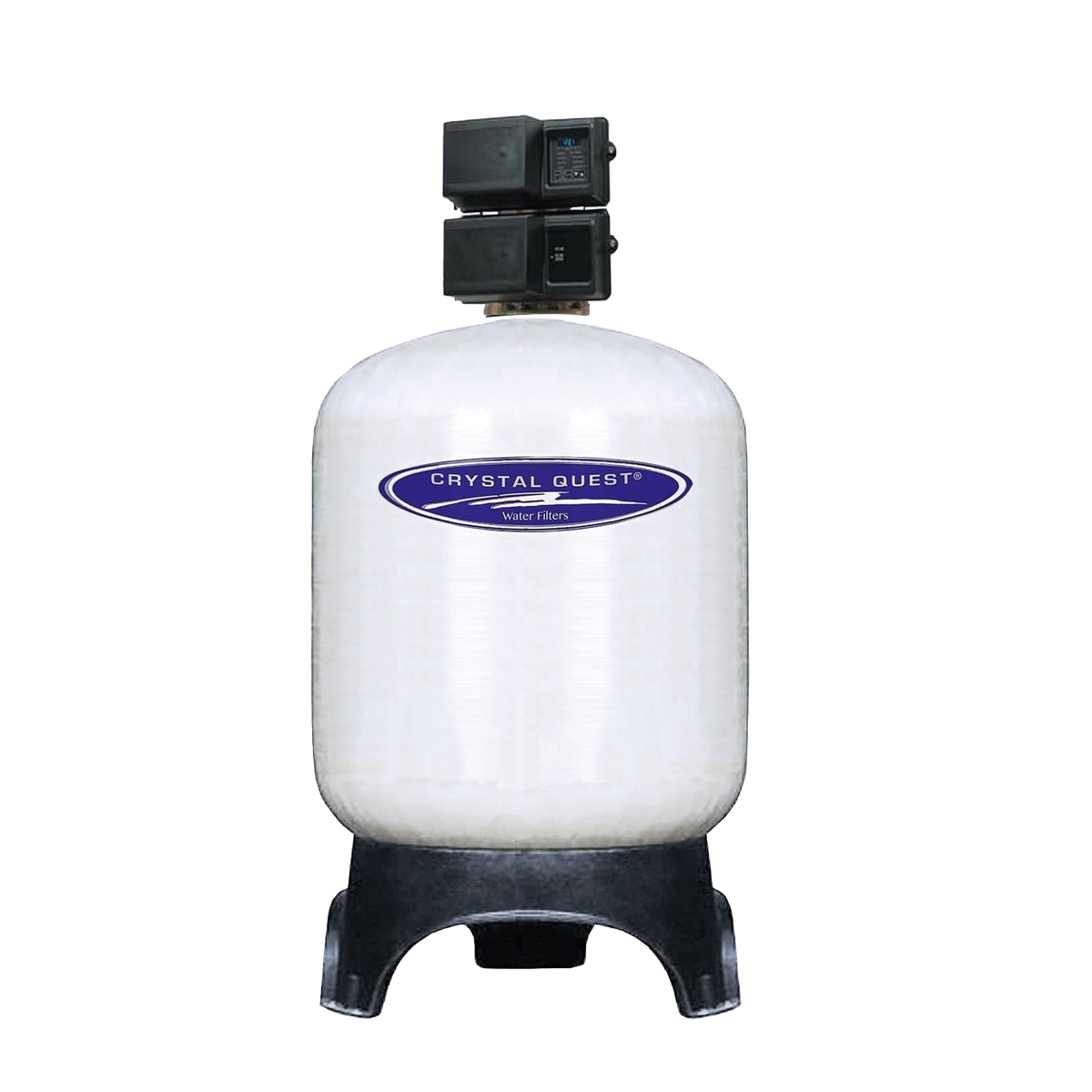

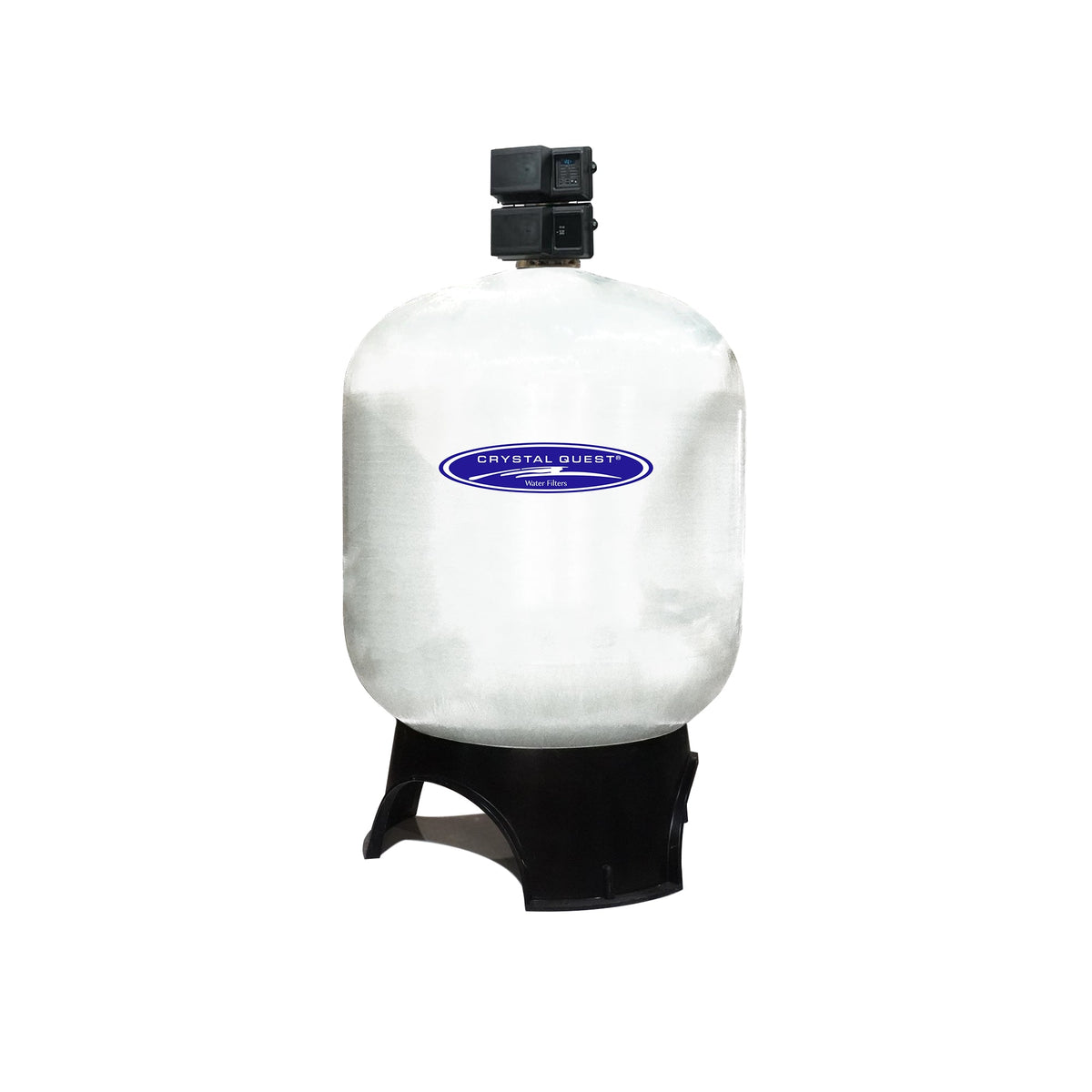

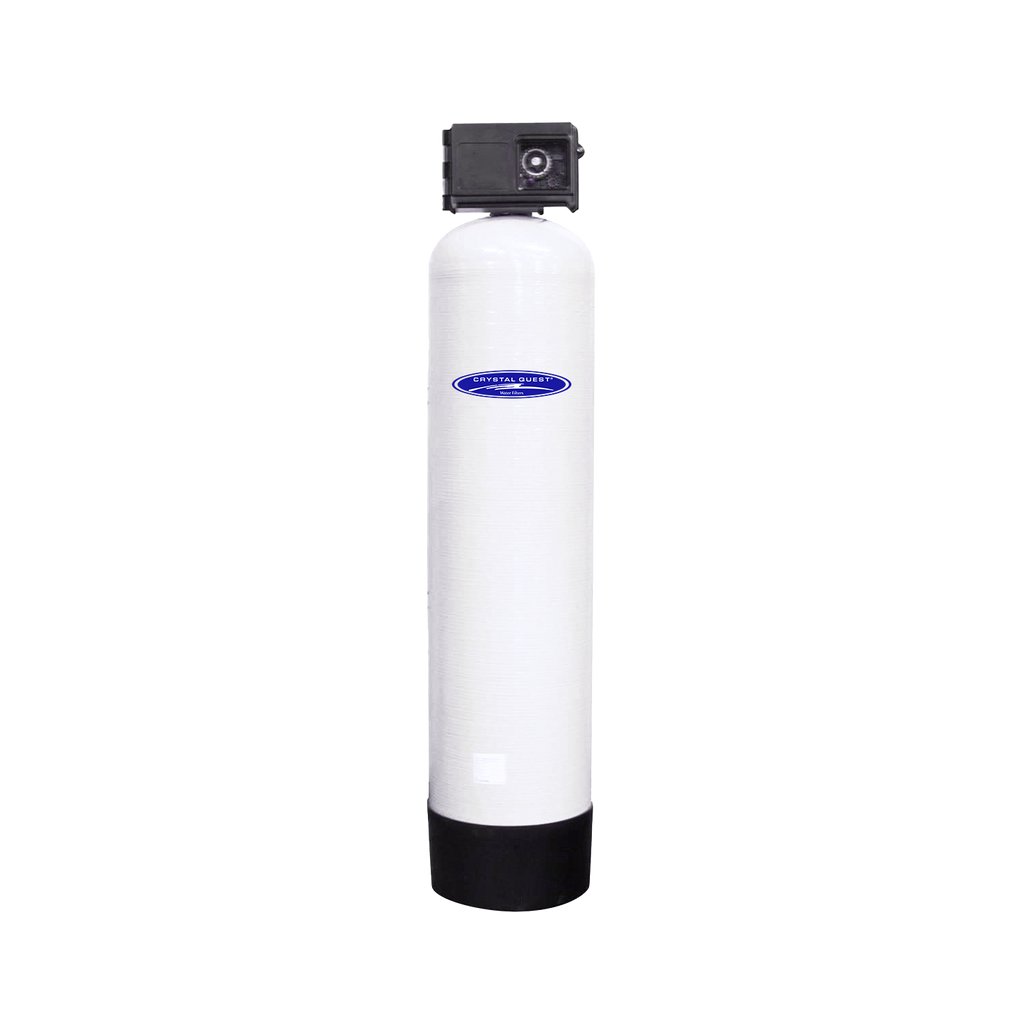

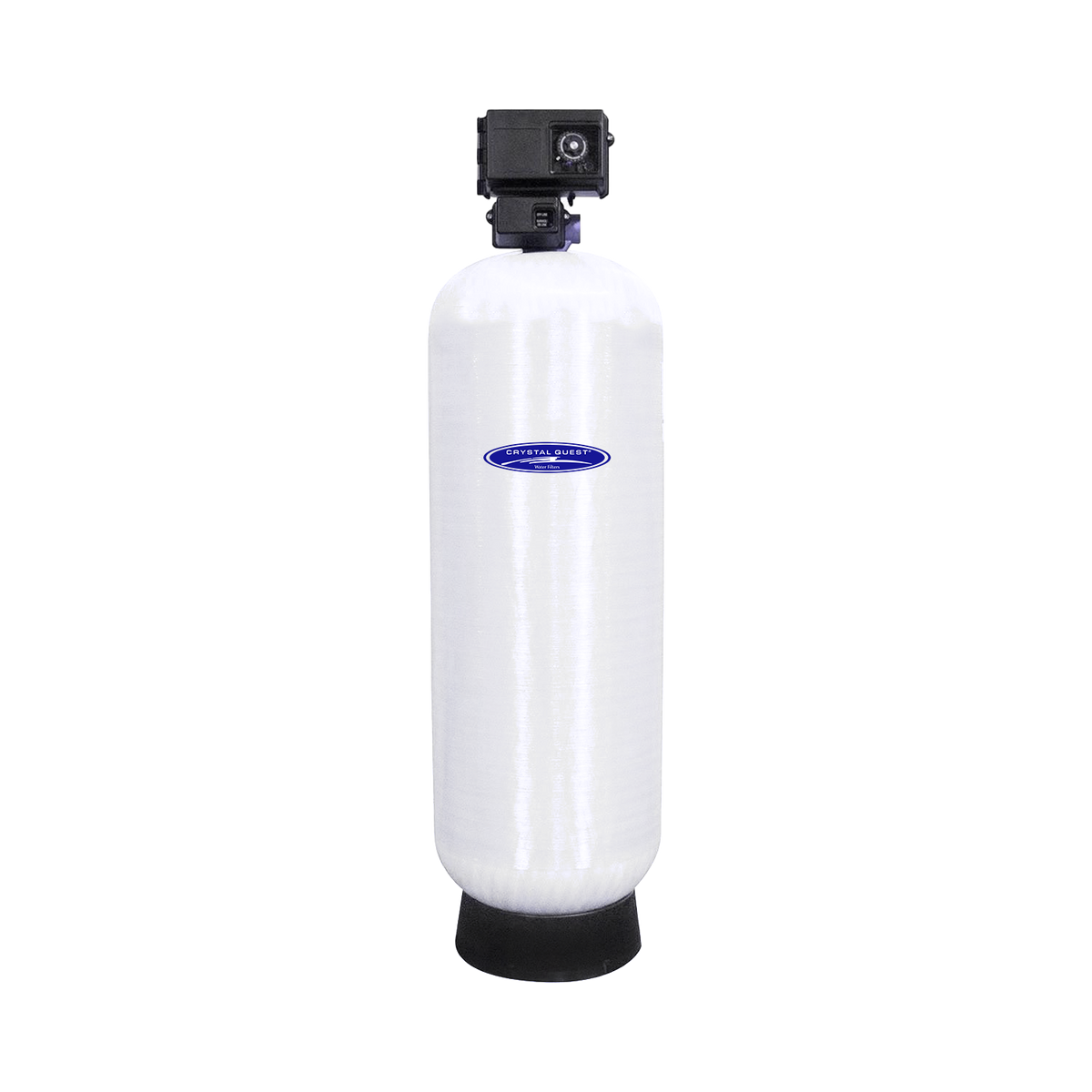

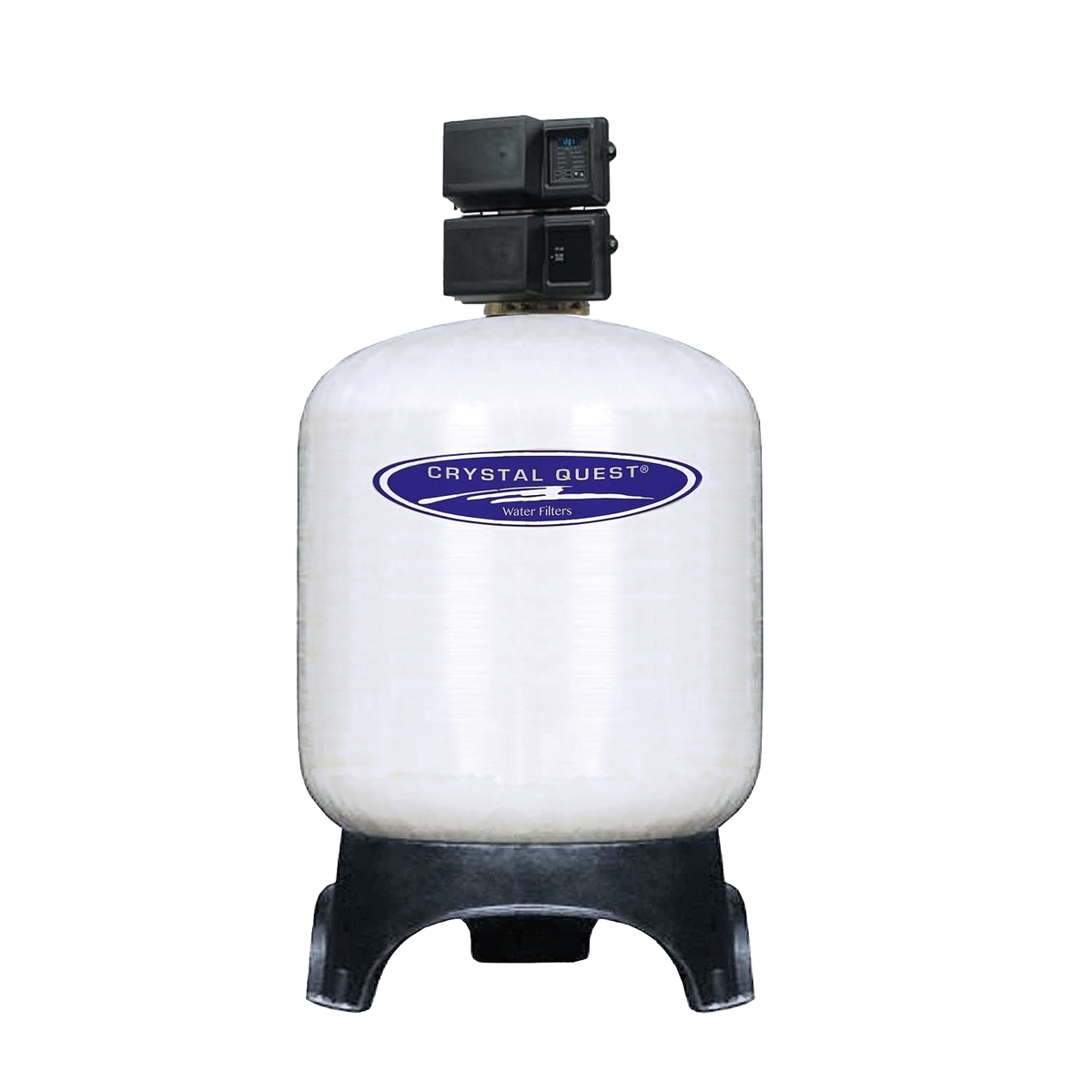

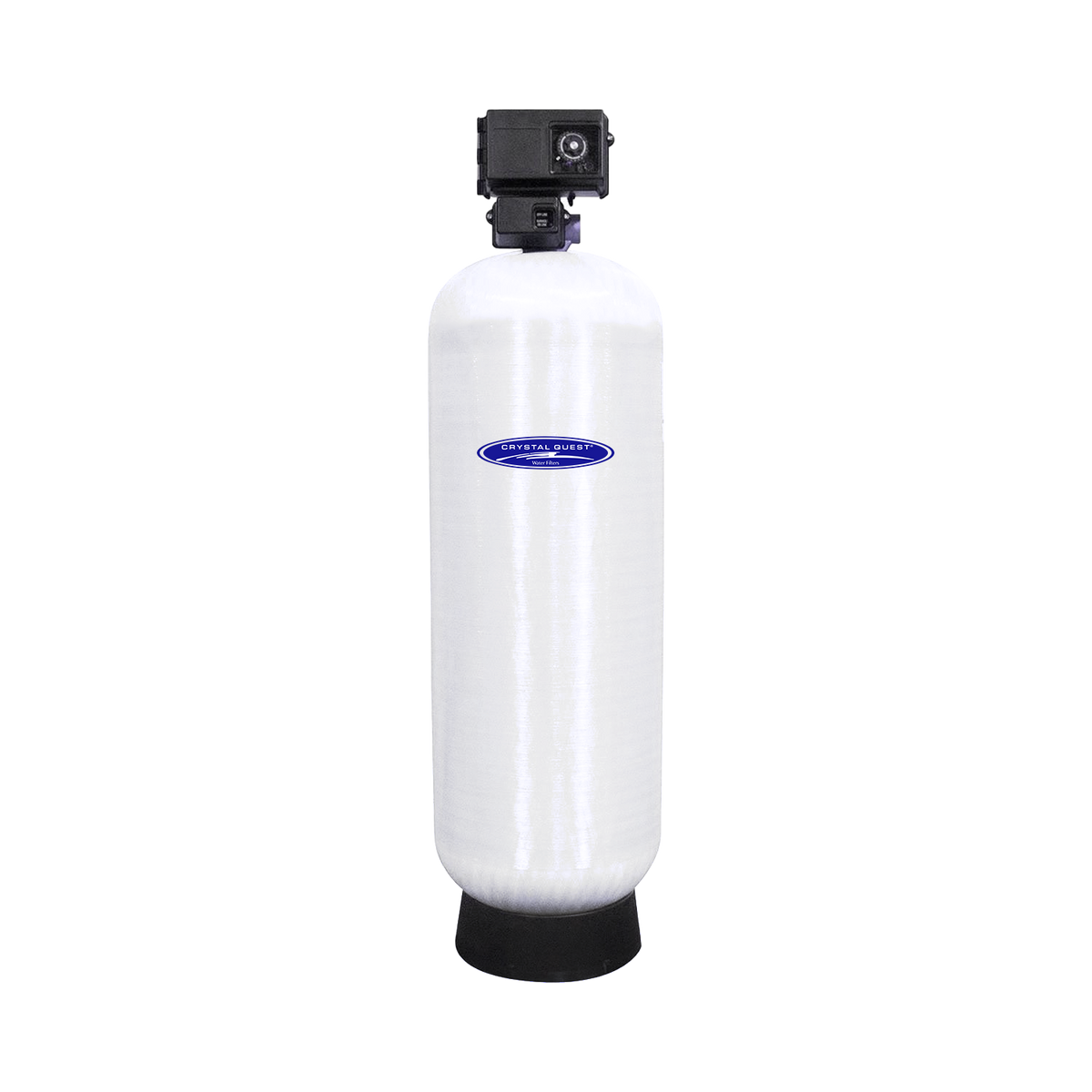

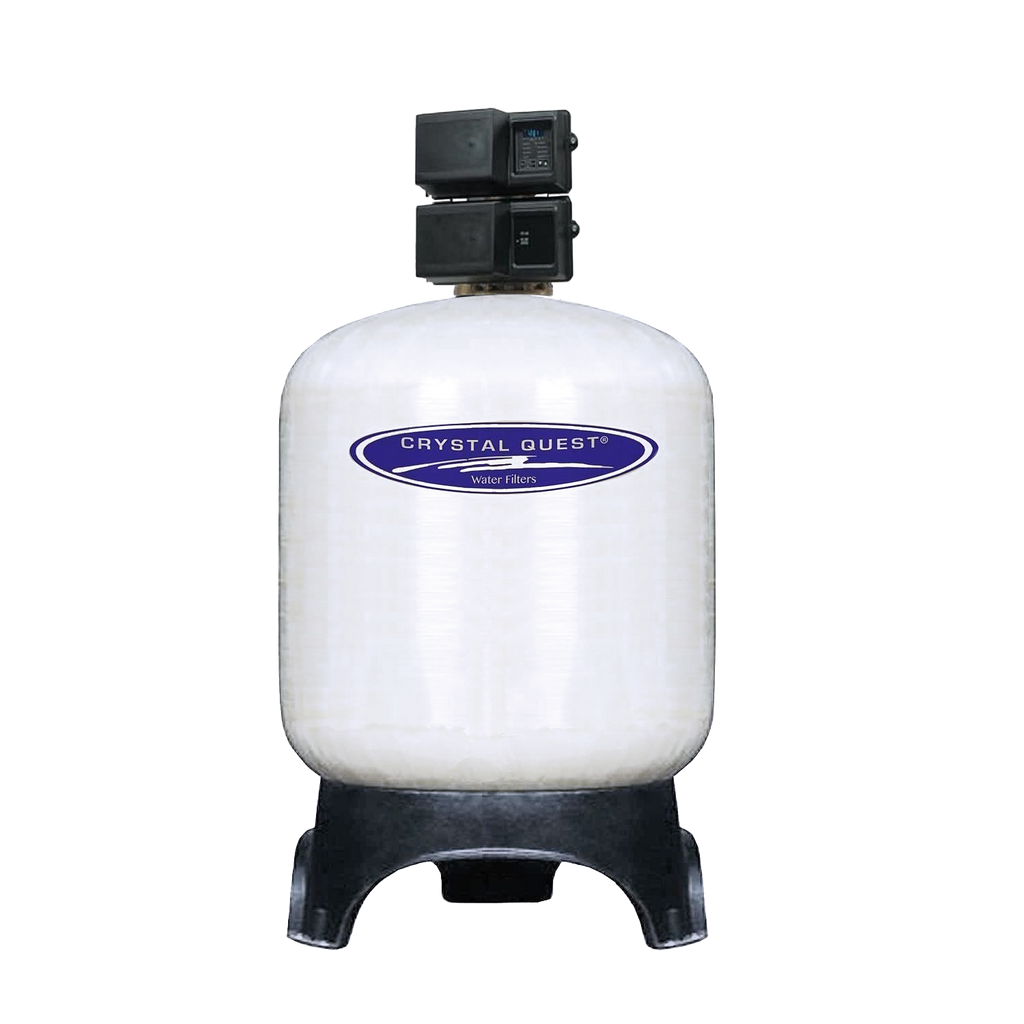

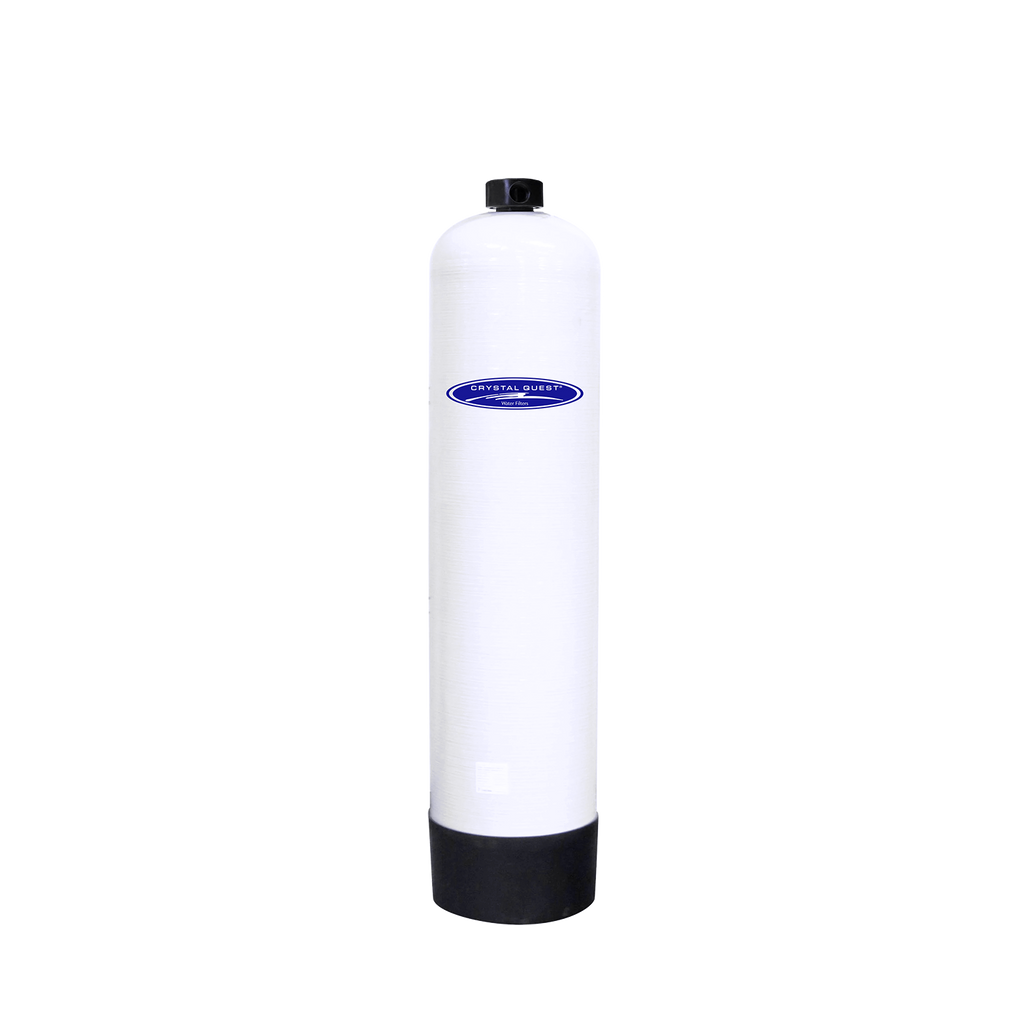

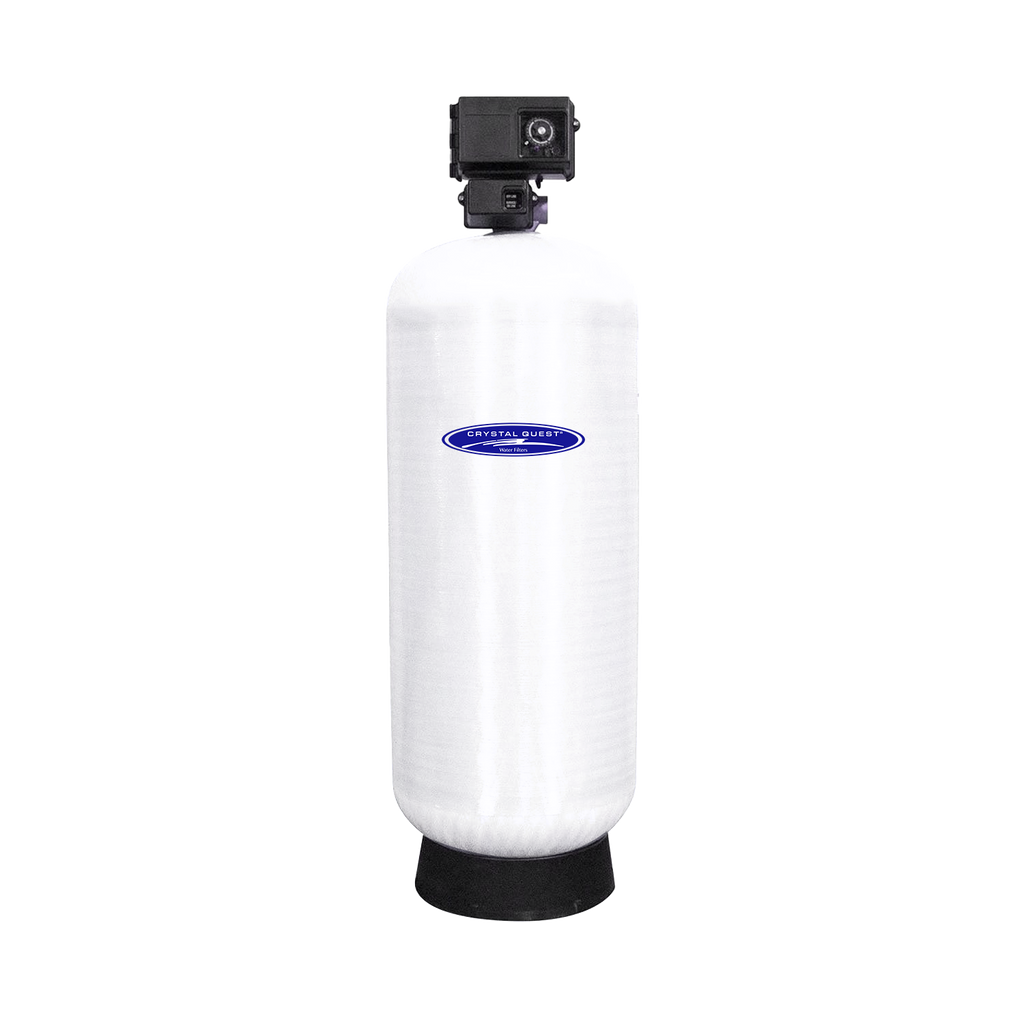

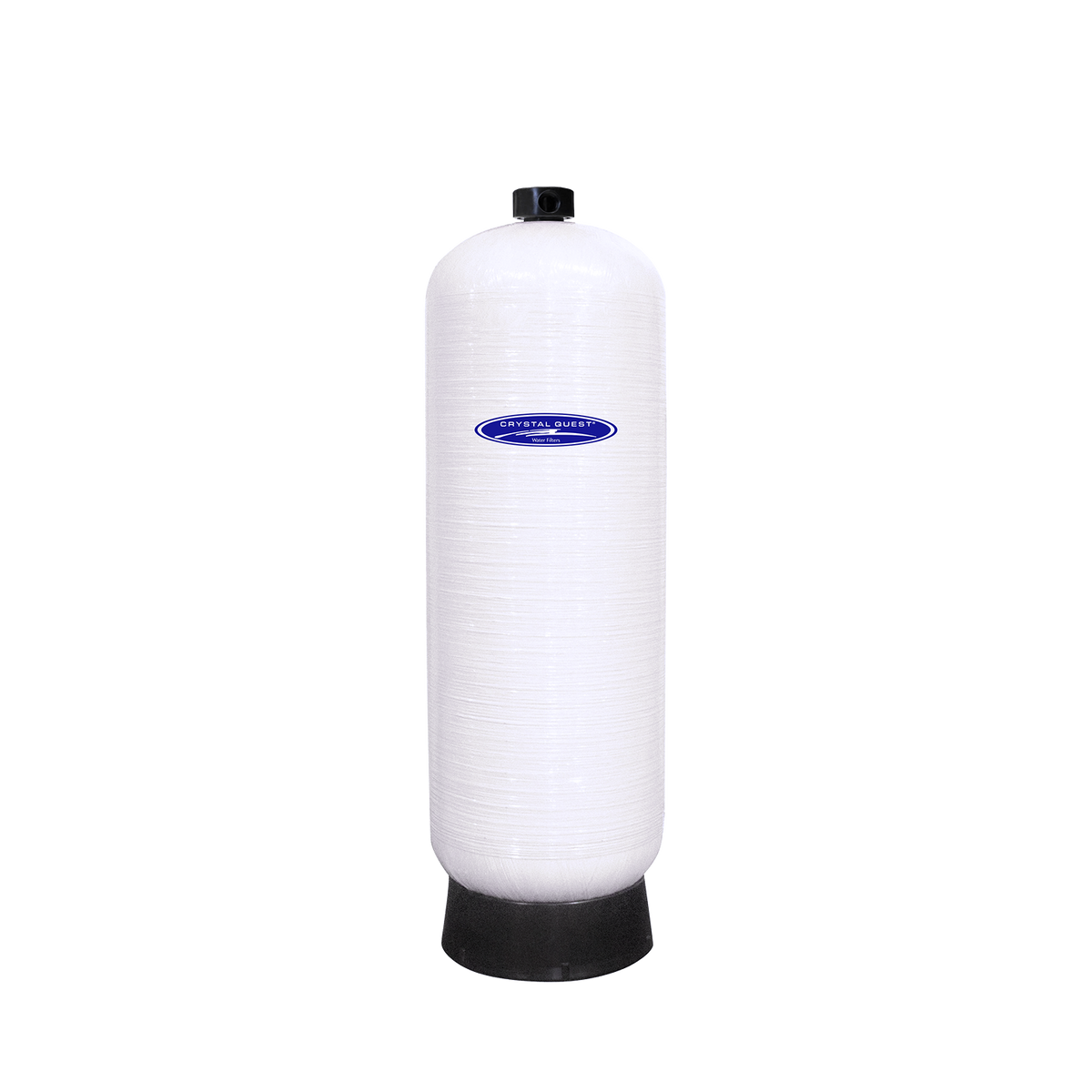

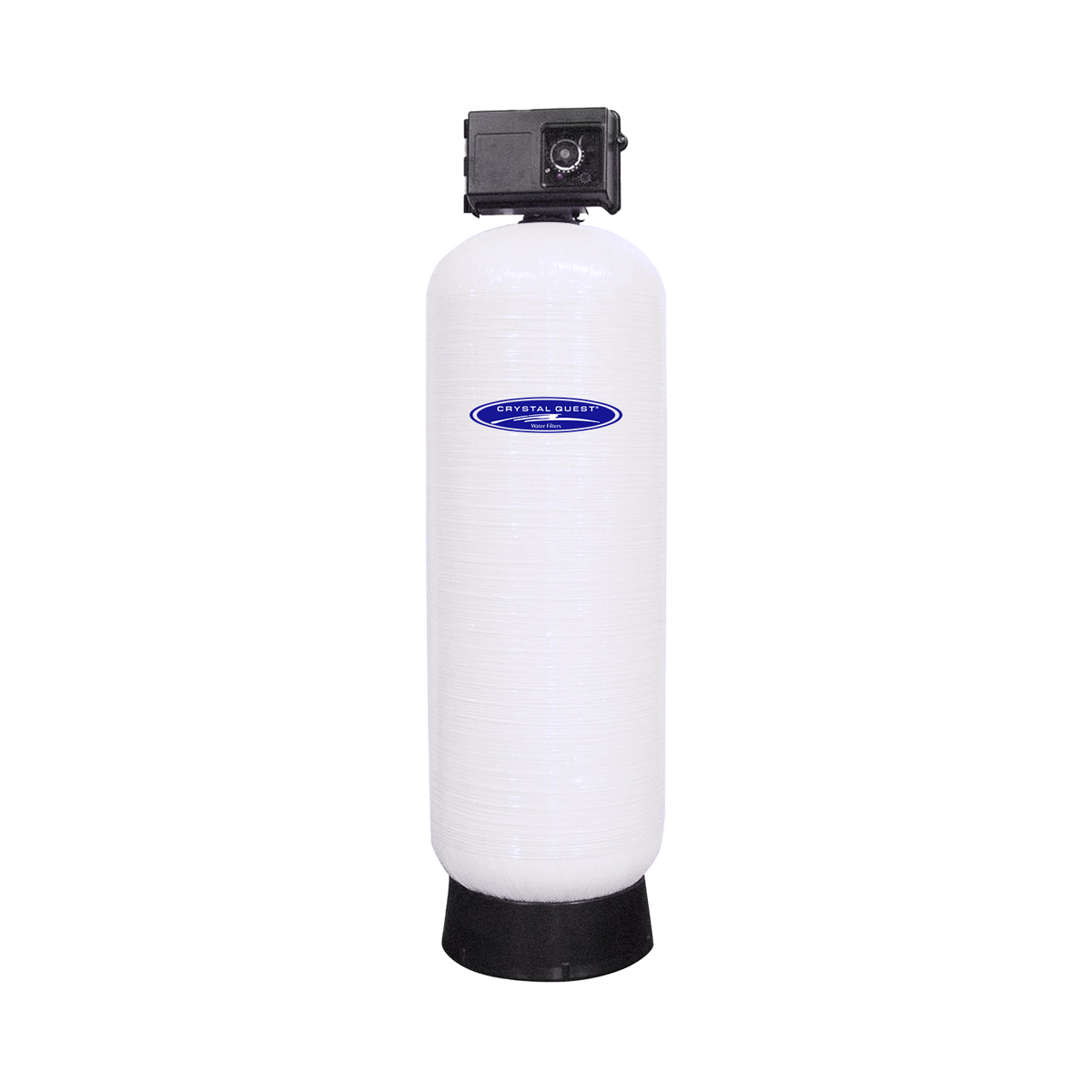

High levels of colloidal and reactive silica can leave scale in pipes, damage filtration equipment, and etch glass. The Crystal Quest Commercial Silica Removal Water Filtration System uses Trapp XT media, 99.99% pure magnesium oxide, at service flow rates from 15 GPM to 390 GPM.
Highlights
- Trapp XT media captures silica, phosphates, ammonia, and heavy metals by adsorption and ion exchange
- Media raises water pH without added chemicals
- Nine service flow sizes from 15 GPM to 390 GPM with 3 to 60 cubic feet of media
- Heavy duty composite fiberglass tanks with a high flow distributor
- All-brass, motor-driven control valves with fully adjustable backwash cycles
- Automatic timer heads or manual upflow and manual backwash heads on 15–75 GPM sizes
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is engineered for commercial and industrial sites where silica causes scaling on equipment or etching on glass. Our team can help match flow rate, pipe size, and footprint to your application before you order.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Media | Trapp XT (99.99% pure magnesium oxide), NSF/WQA certified |
| Service Flow | 15, 20, 35, 60, 75, 185, 200, 245, 390 GPM |
| Peak Flow | 22, 41, 60, 95, 140, 250, 270, 280, 450 GPM |
| Backwash Flow | 5, 7, 12, 15, 25, 35, 50, 65, 75 GPM |
| Pipe Size | 1" (15 GPM), 1.5" (20–35 GPM), 2" (60–75 GPM), 2" or 3" (185 GPM), 3" (200–390 GPM) |
| Control Valve | 2510 (15 GPM), 2850 (20–35 GPM), 2900 (60–75 GPM), 3150 / 3900 (185 GPM), 3900 (200–390 GPM) |
| Silica Removal Media Volume | 3, 4, 7, 10, 15, 20, 30, 40, 60 cu. ft. |
| Quartz Underbed | 30, 40, 70, 100, 150, 200, 300, 400, 600 lbs. |
| Operating Pressure | 35–60 PSI |
| Mineral Tank | 14" x 65" (15 GPM) up to 63" x 83" (390 GPM) |
| Space Required (D x H) | 16" x 75" (15 GPM) up to 67" x 203" (390 GPM) |
- Self-adjusting backwash controller and a flow controller to limit backwash flow
- 2510 head: 19 GPM high service flow, 17 GPM backwash capacity; 2850 head: 60 GPM high service flow, 47 GPM backwash, 5-cycle control; 2900 head: 106 GPM high service flow, 36 GPM backwash
- 3900 head: NXT display controller, 3" BSP female connections and 6" tank adapters, downflow or upflow regeneration

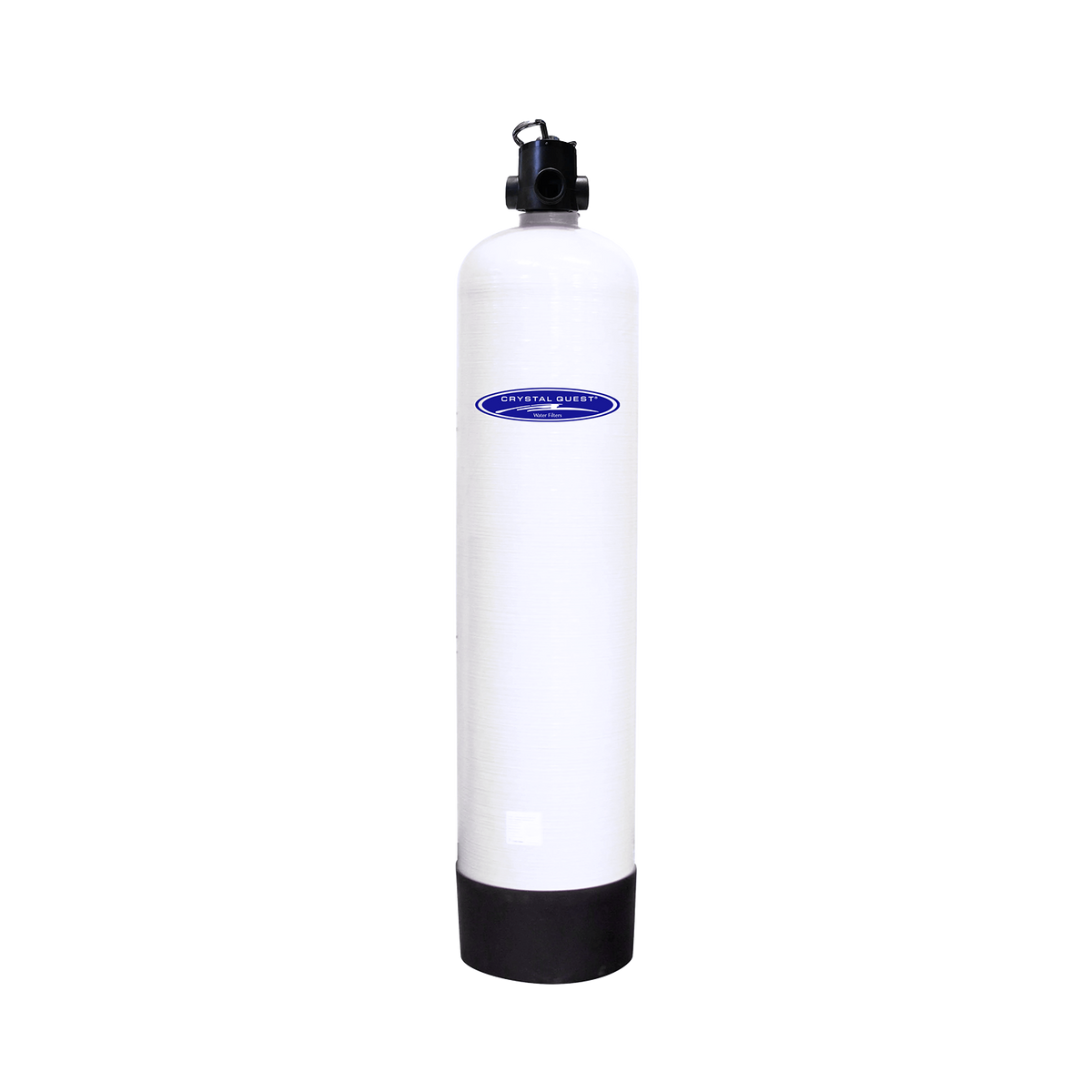

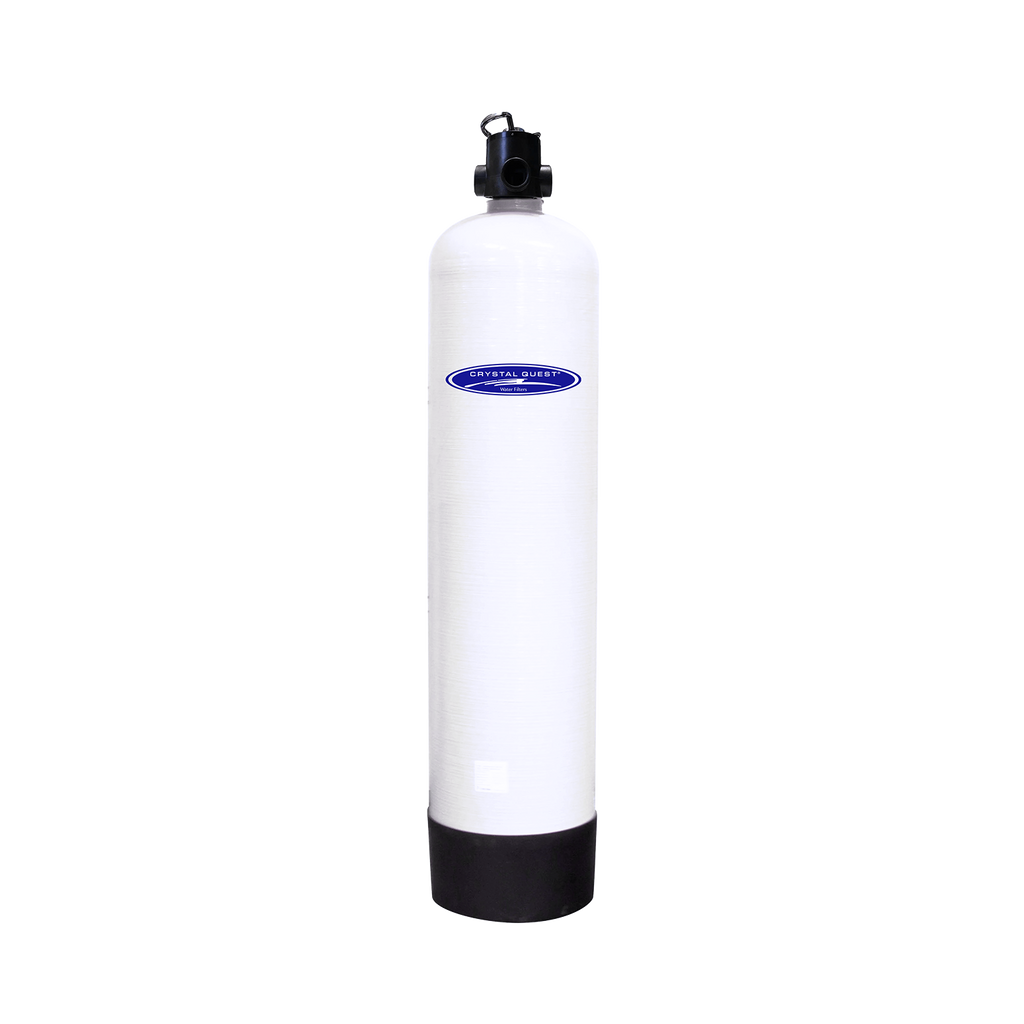

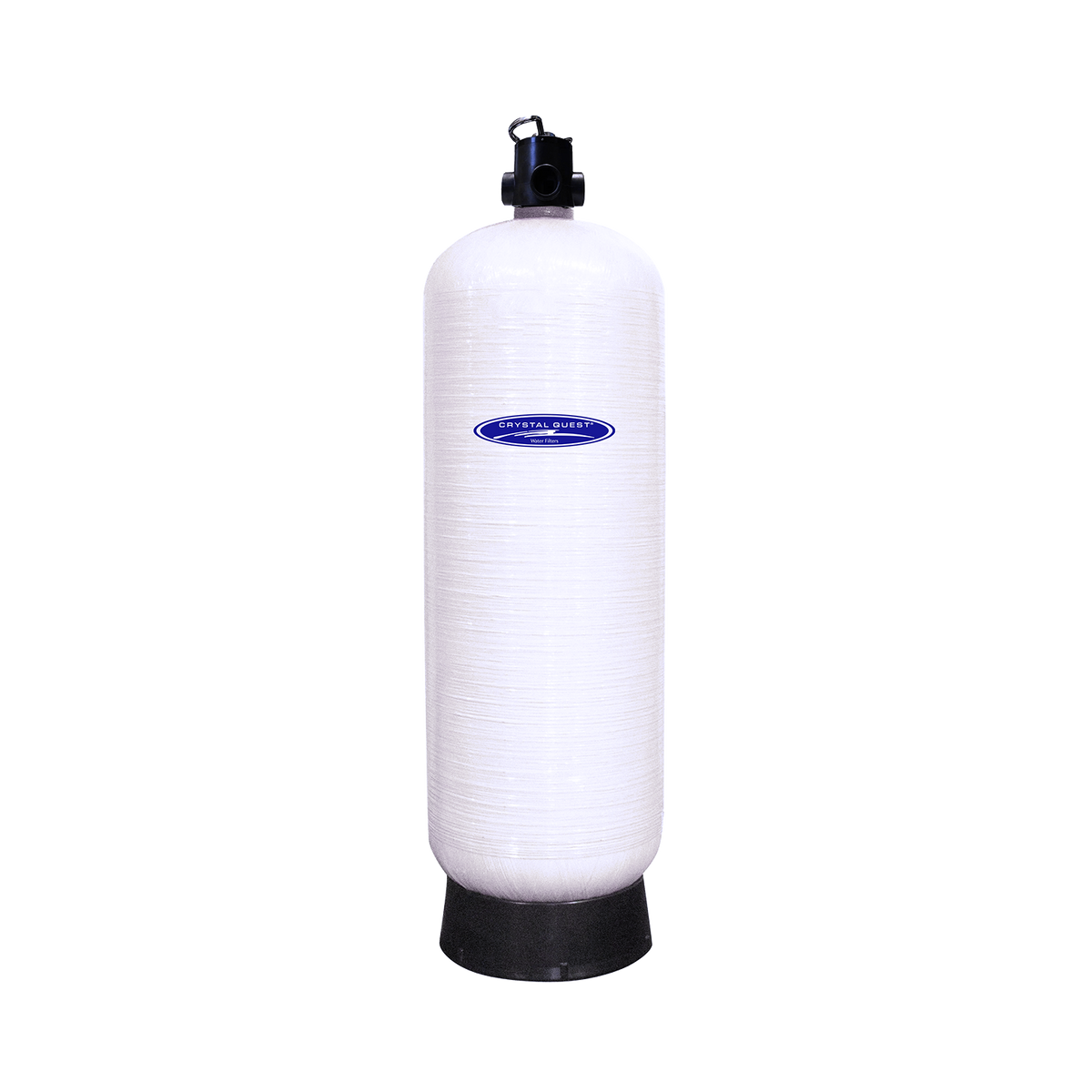

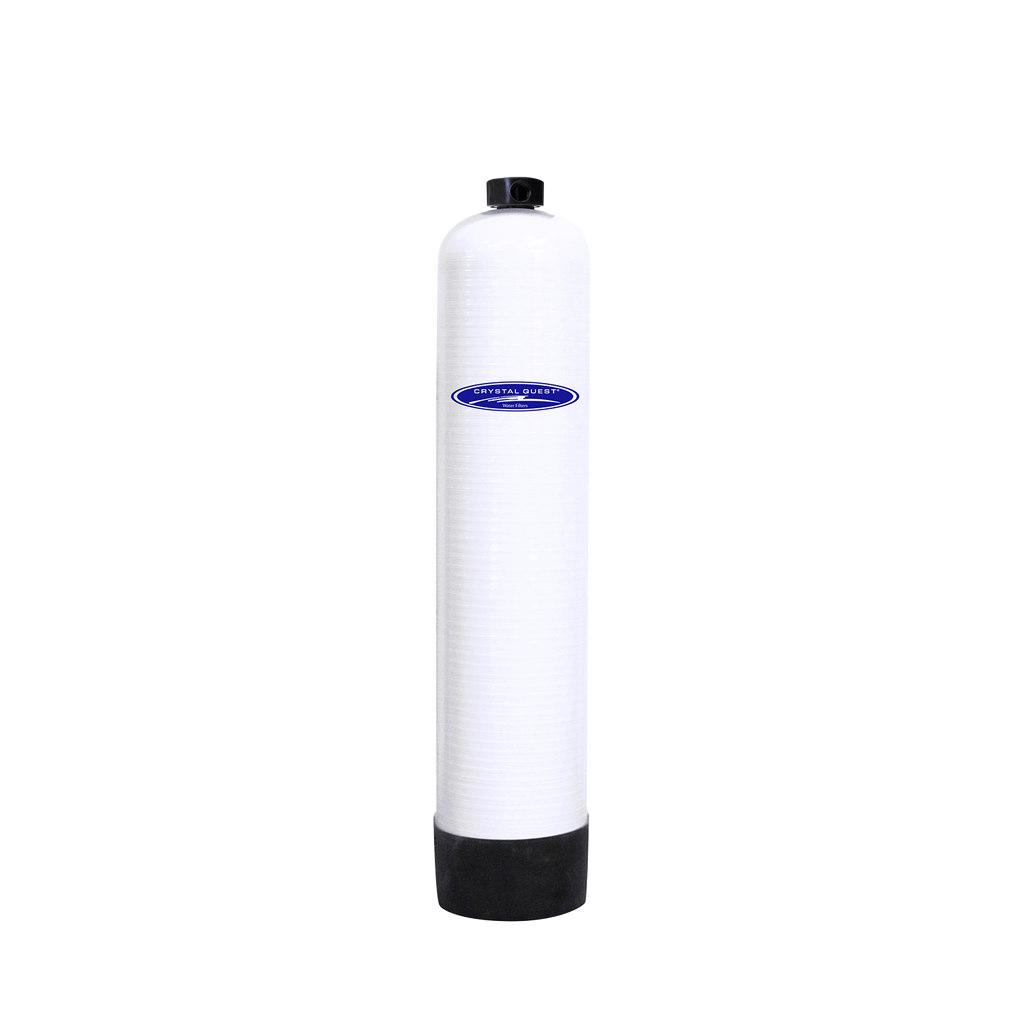

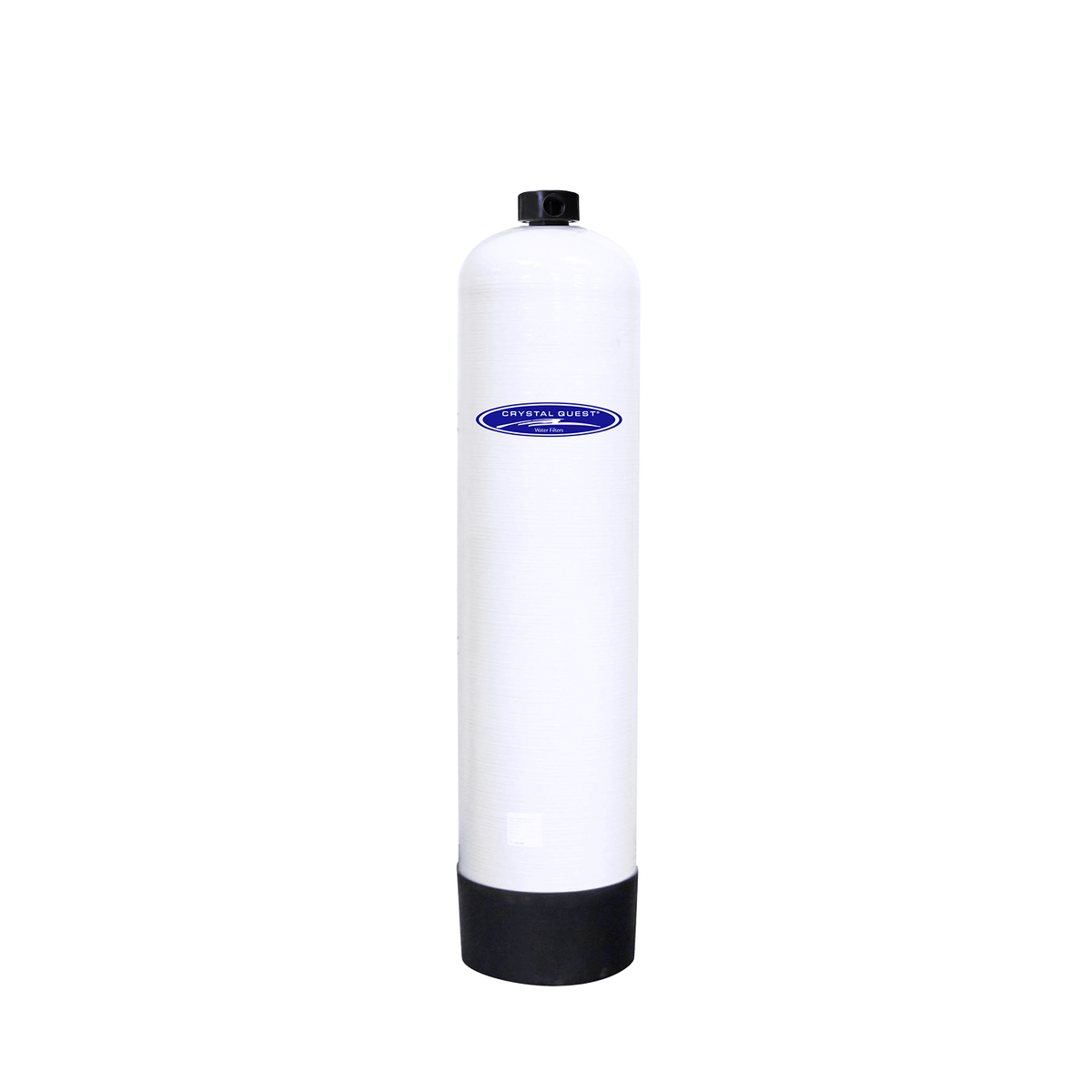

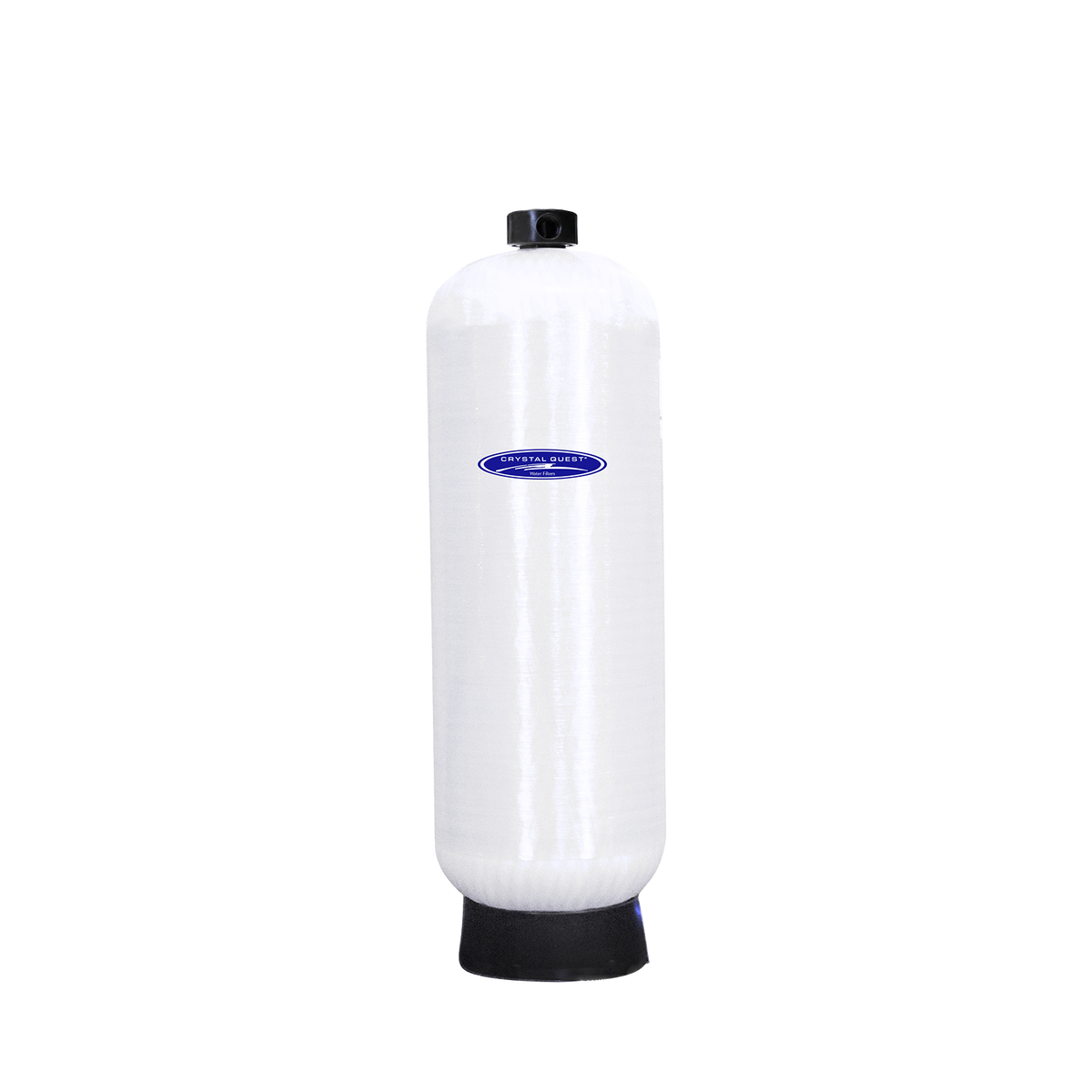

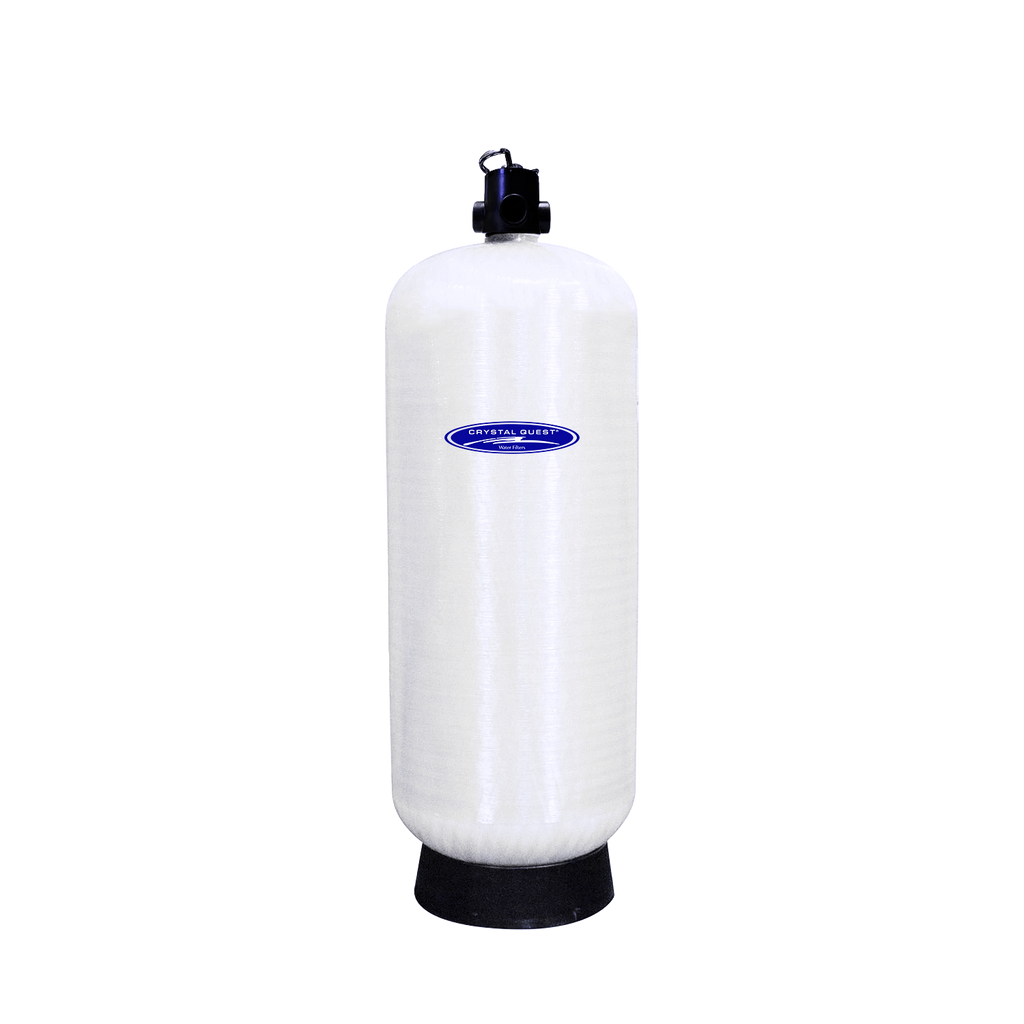

- Manual upflow head needs no electricity and has no backwash; it can be plumbed for upflow or downflow
- Optional add-ons (metered control valve, backwash bypass, 3200NT or NXT controller, duplex, twin alternating or triplex configurations, skid mounting) are arranged by phone
