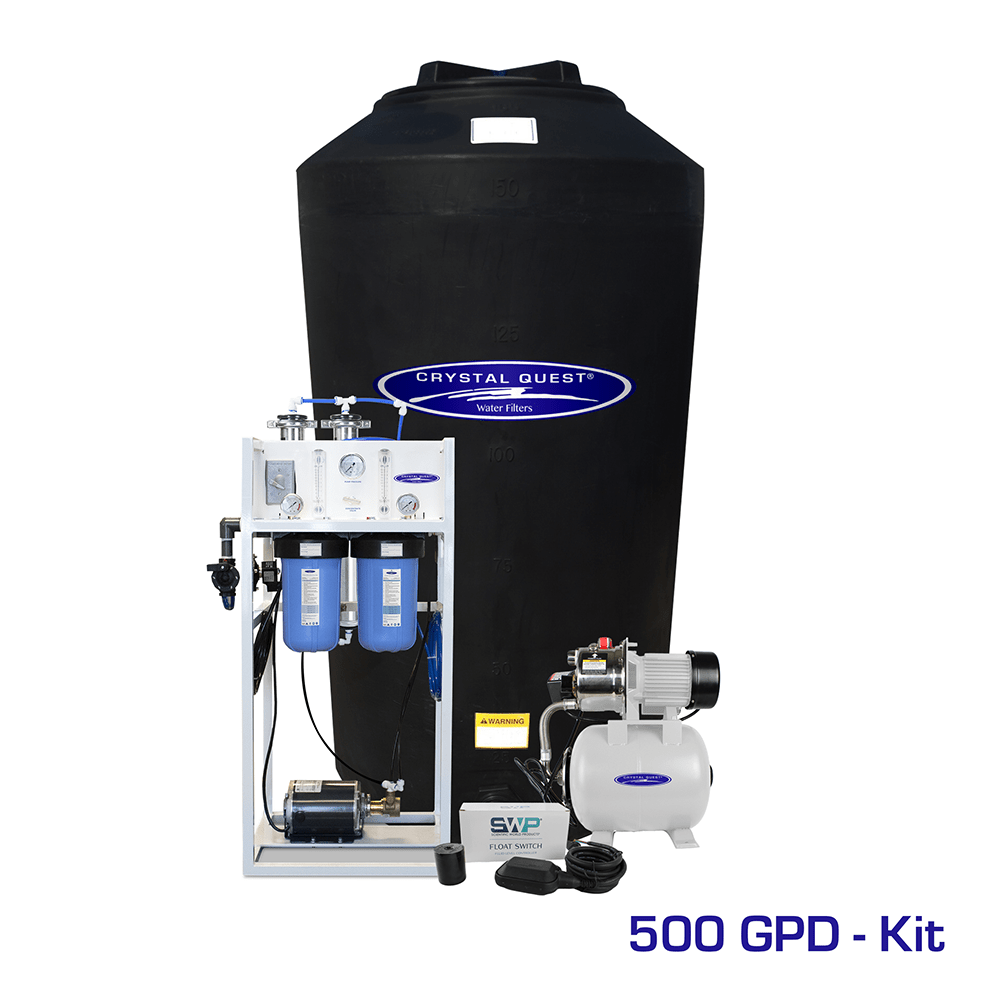

What's in this package
Everything shown here ships as part of this package. Select a piece to see its description, specs and manuals.
Description

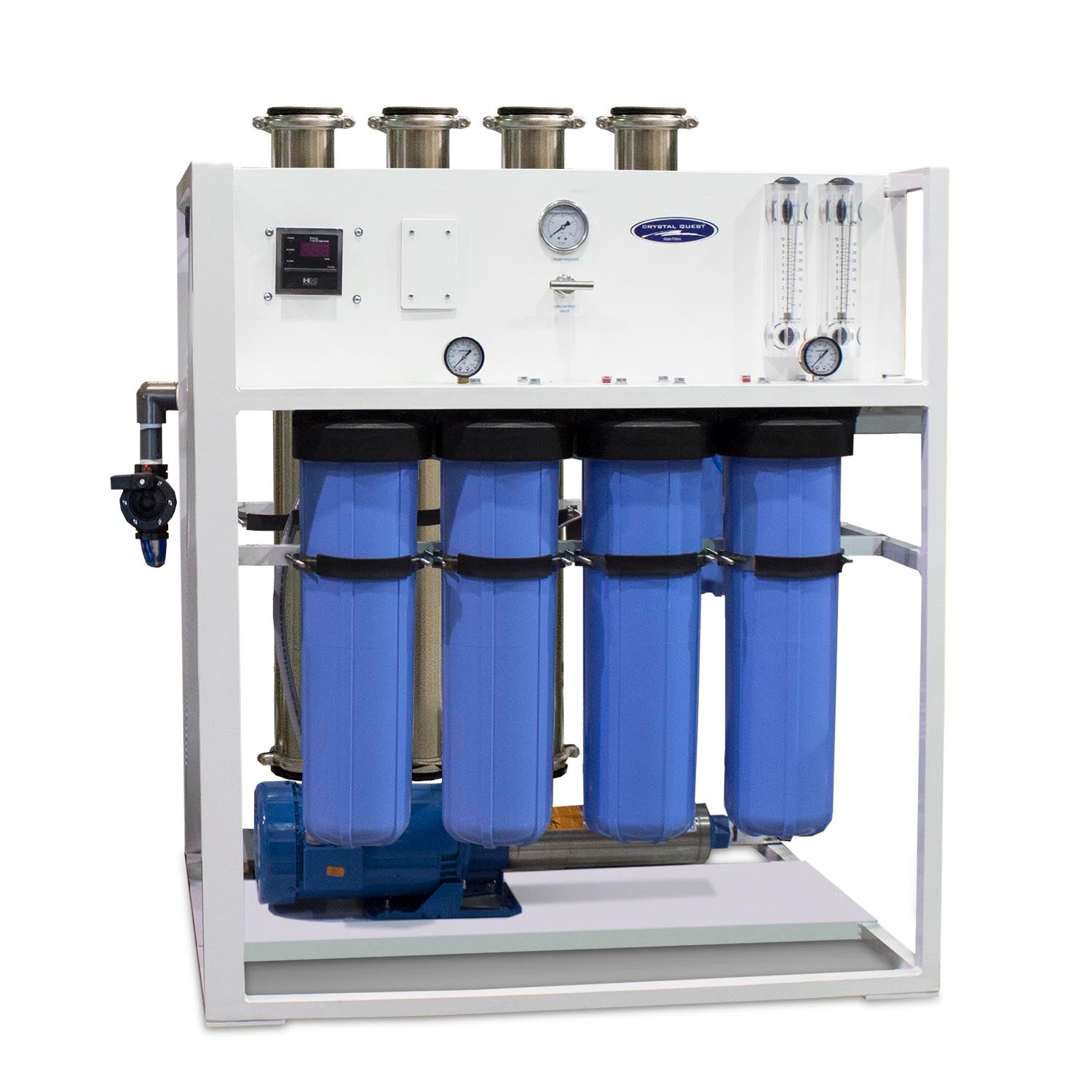

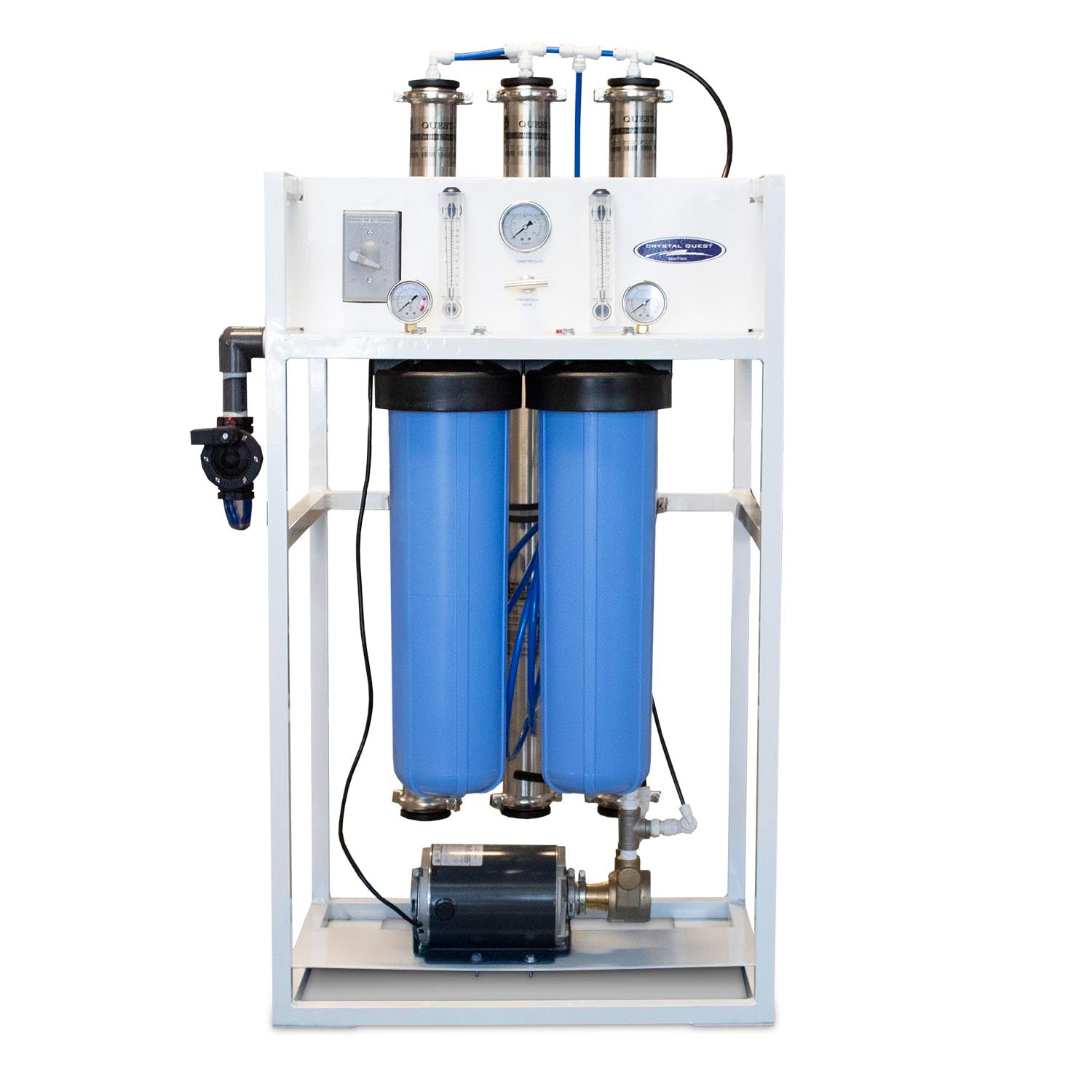

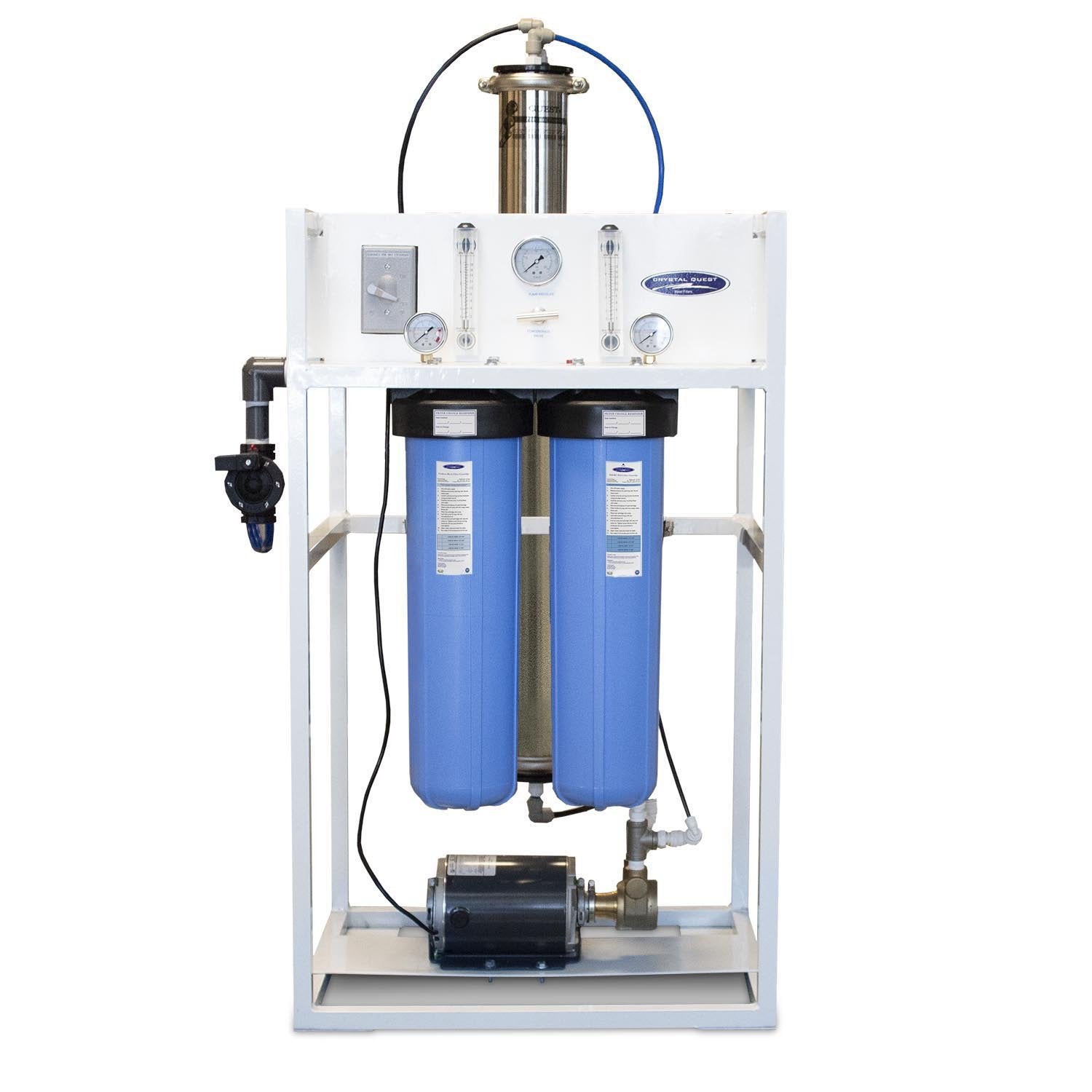

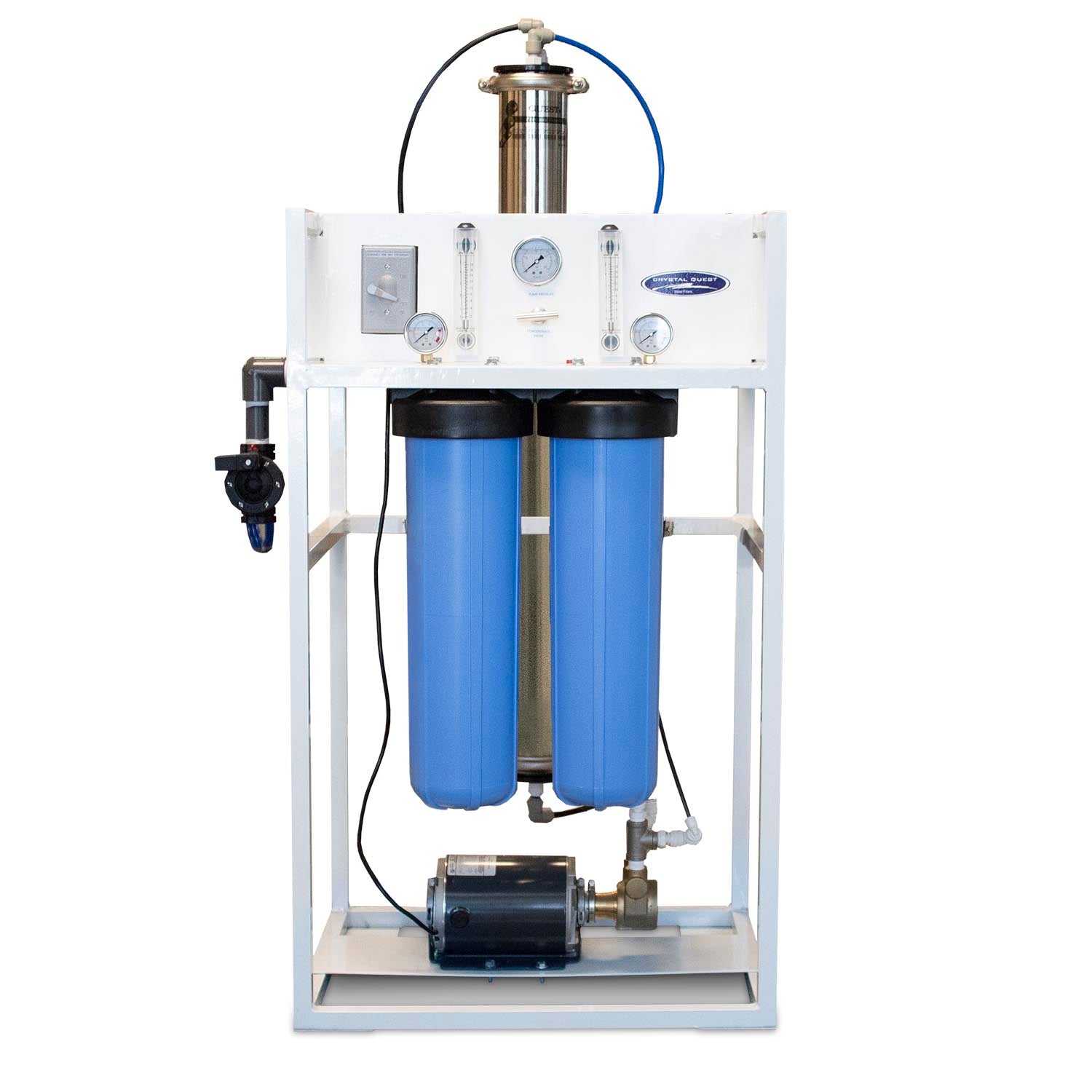

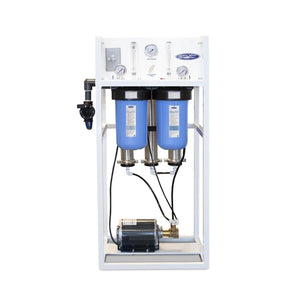

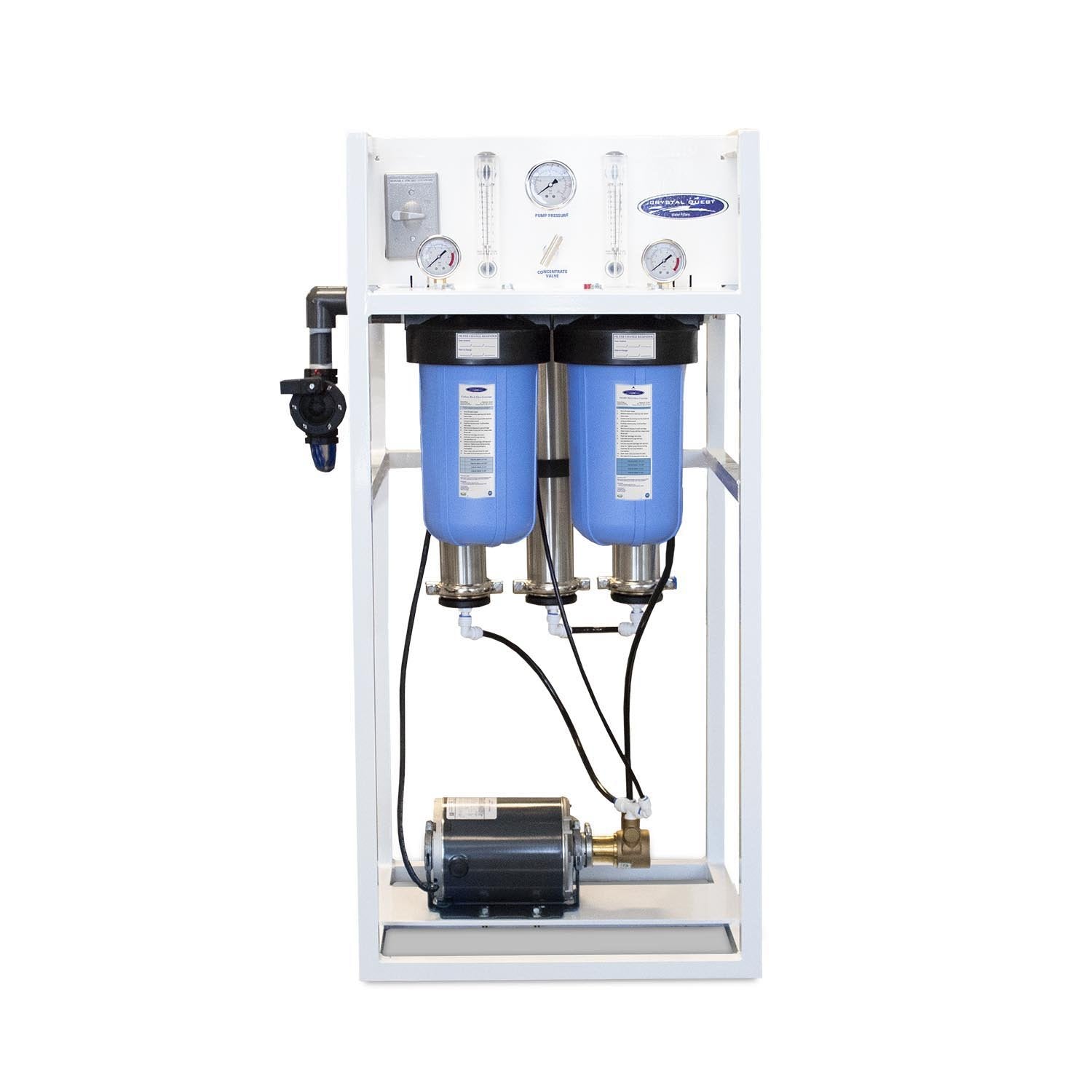

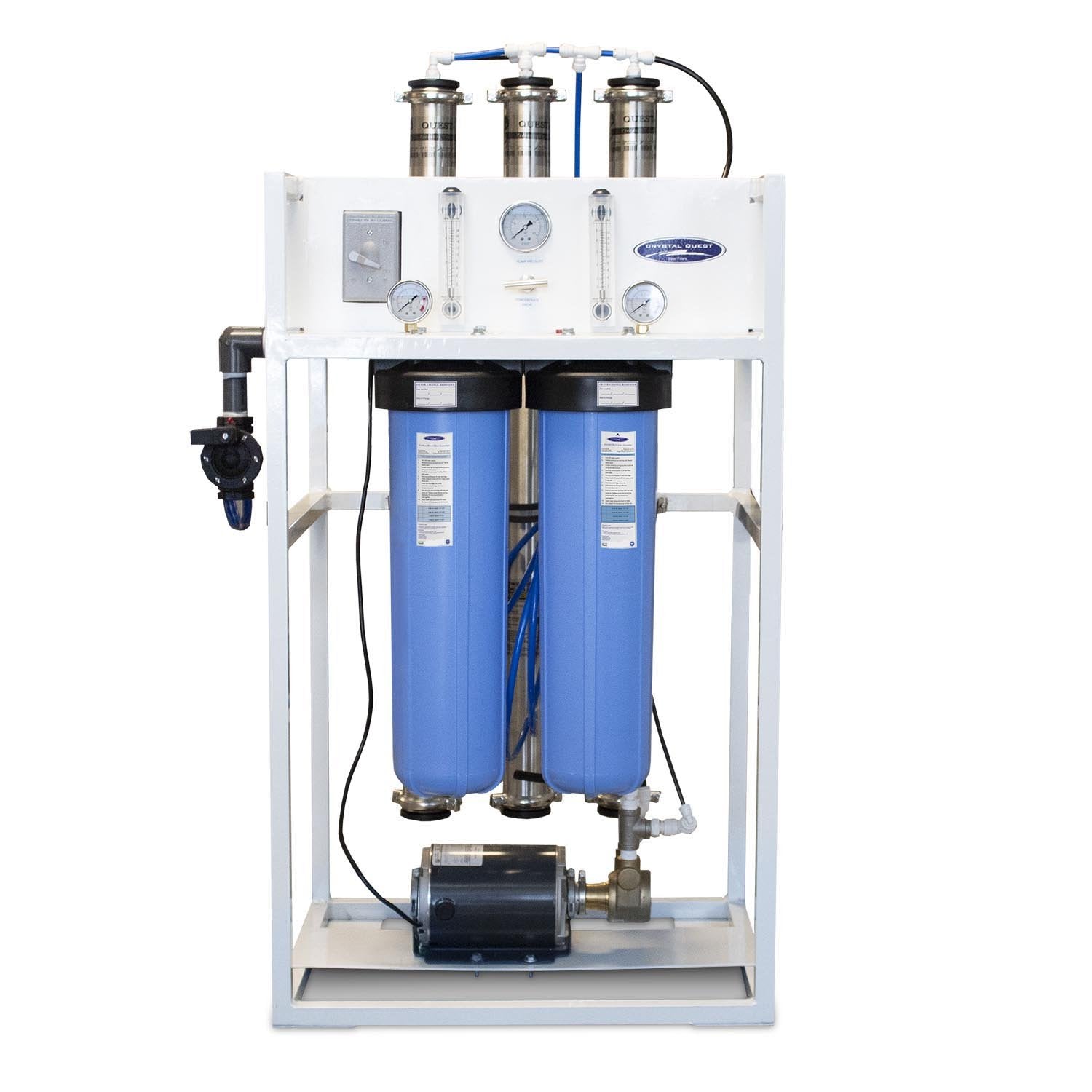

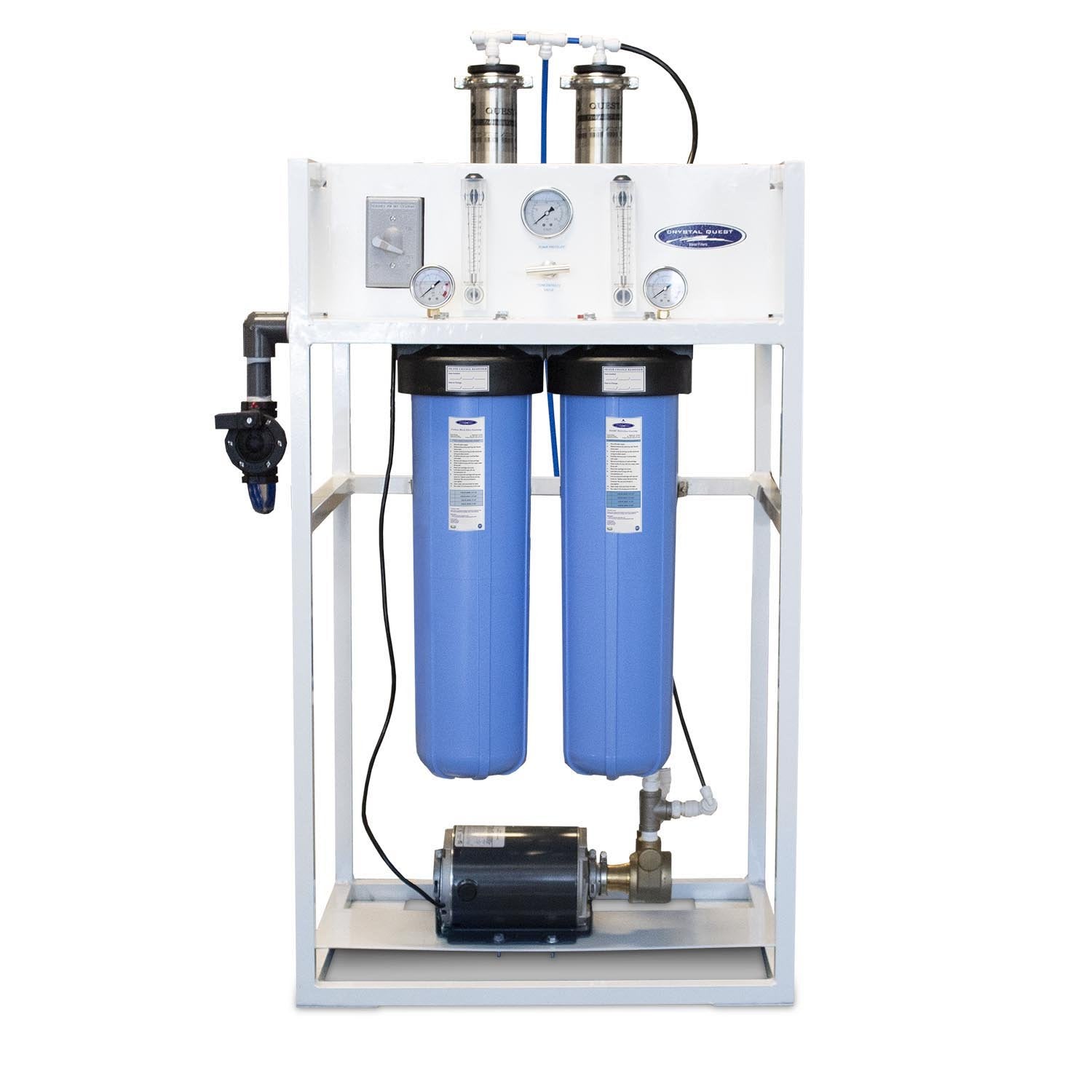

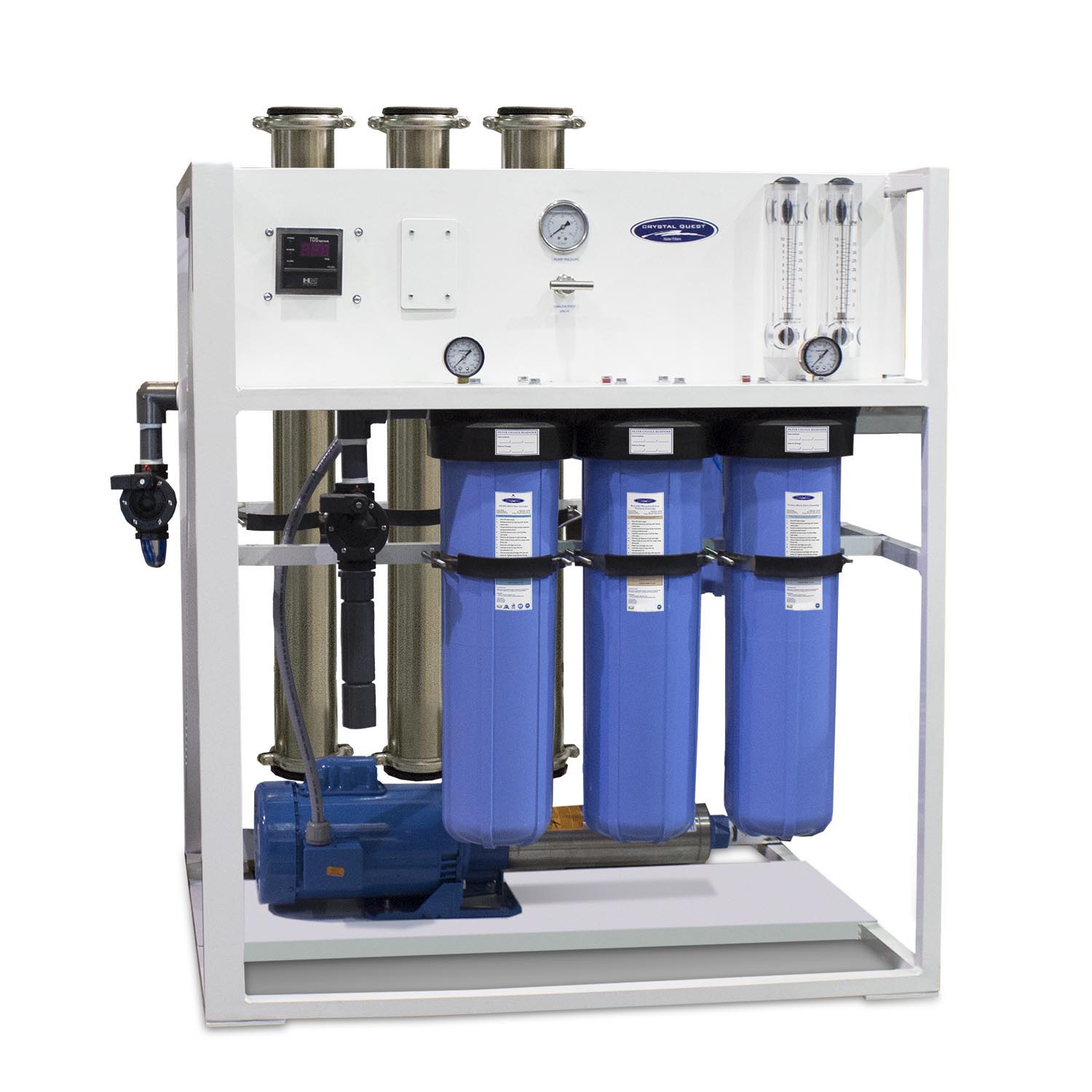

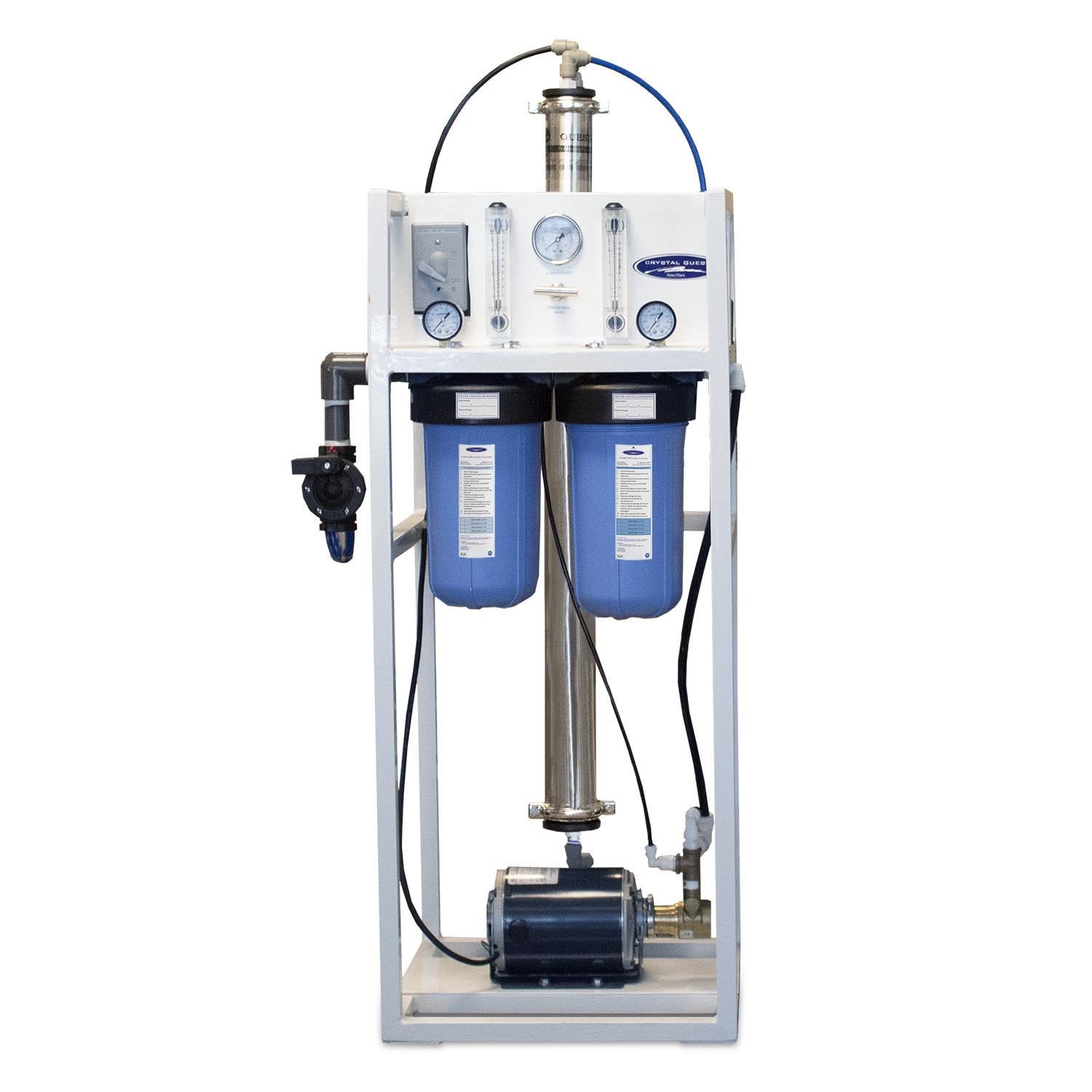

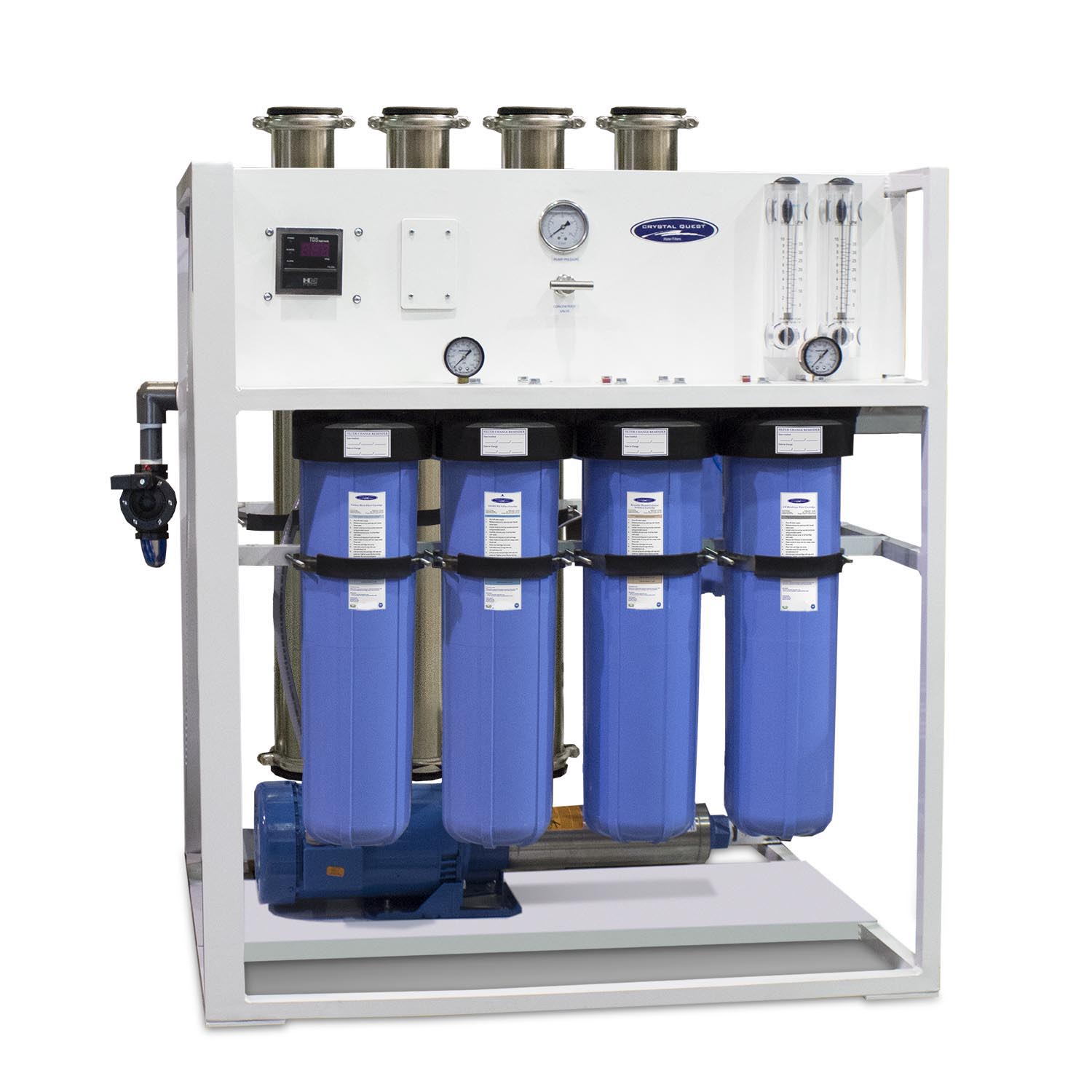

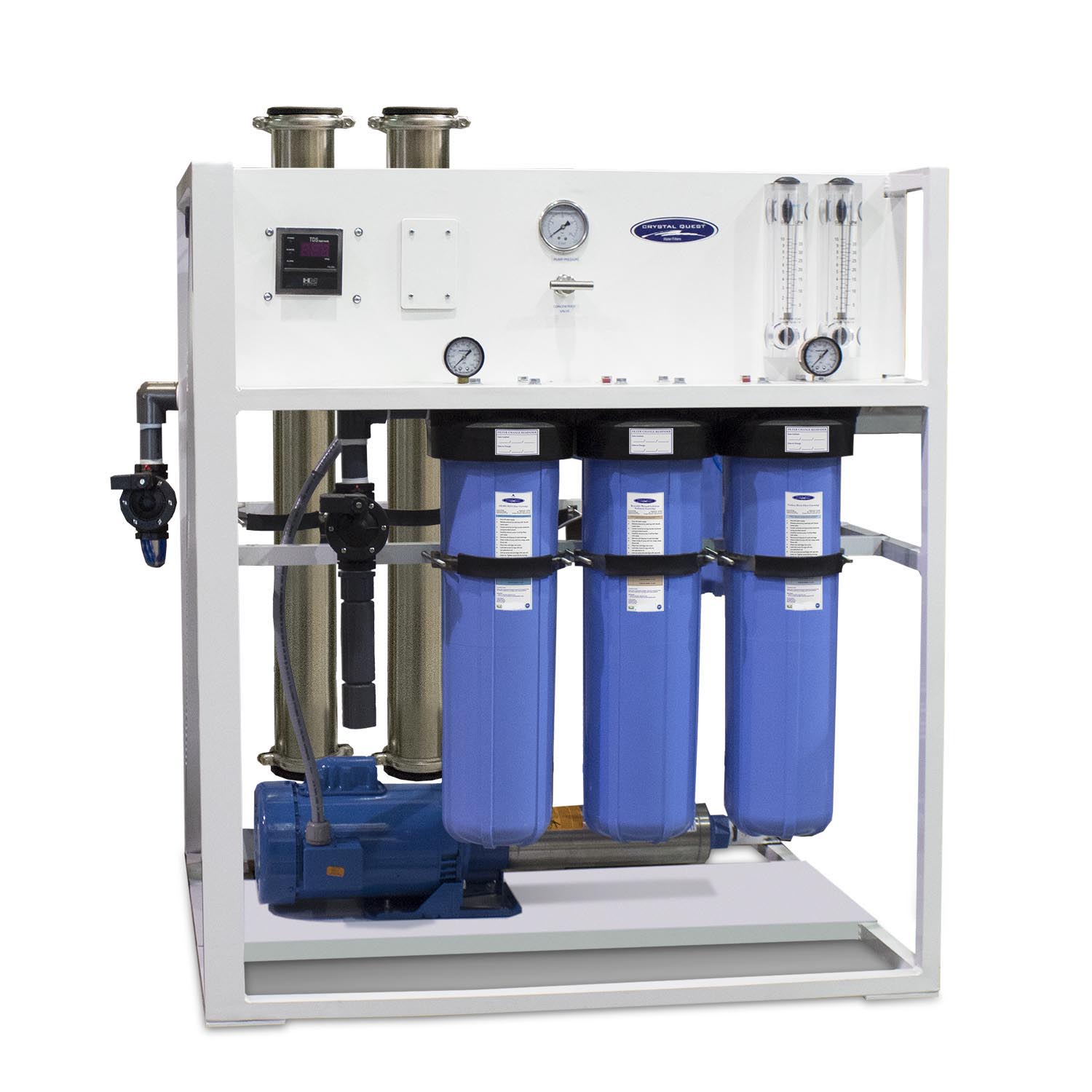

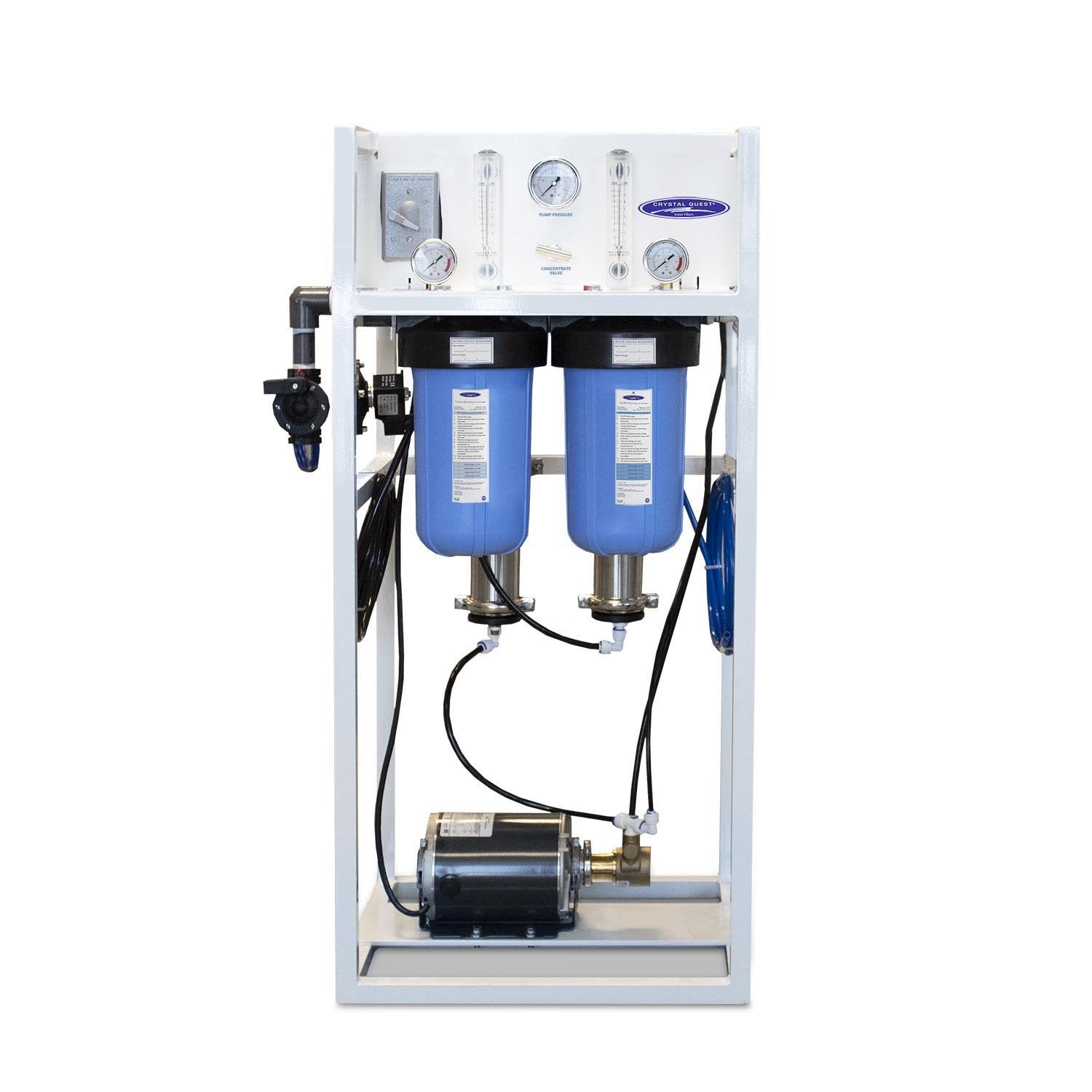

This commercial reverse osmosis system is available in output capacities from 500 to 7,000 gallons per day (GPD), with aluminum white powder-coated, corrosion-resistant construction and a stainless steel membrane housing built for continuous use.
Highlights
- Brass rotary-vane high-pressure pump designed for continuous use, with built-in protection against feedwater loss
- High-efficiency carbonate motor paired with a TFC membrane for high flow and impurity rejection
- Automatic low-pressure and high-pressure tank switches shut the system off to protect the pump and prevent overfilling
- Push/pull fittings with locking safety clips; system ships pre-plumbed, wired, and assembled
- CE compliant and covered by a 1-year limited warranty
- Made in the USA
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is built for commercial and high-volume water treatment installations and is backed by a 1-year limited warranty. Because output capacity ranges from 500 to 7,000 GPD across nine models, it should be paired with an appropriately sized atmospheric storage tank and installed according to the manufacturer's manual for your chosen model.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Construction | Aluminum, white powder-coated, corrosion-resistant |
| Membrane Housing | Stainless steel; TFC membrane |
| Pump | Brass rotary-vane, high-pressure, continuous-duty rated |
| Motor | High-efficiency carbonate motor |
| Output Capacity | 500 – 7,000 GPD (model dependent) |
| Operating Pressure | 150 psi |
| Minimum Feed Pressure | 45 psi |
| NaCl Rejection Range | 96% – 98.5% |
| Voltage / Frequency | 110/220V, 50/60Hz |
| Feed Connection | 3/4" – 1" (model dependent) |
| pH Range | 3 – 11 |
| Certification | CE Compliant |
| Warranty | 1-Year Limited Warranty |
| Origin | Made in the USA |

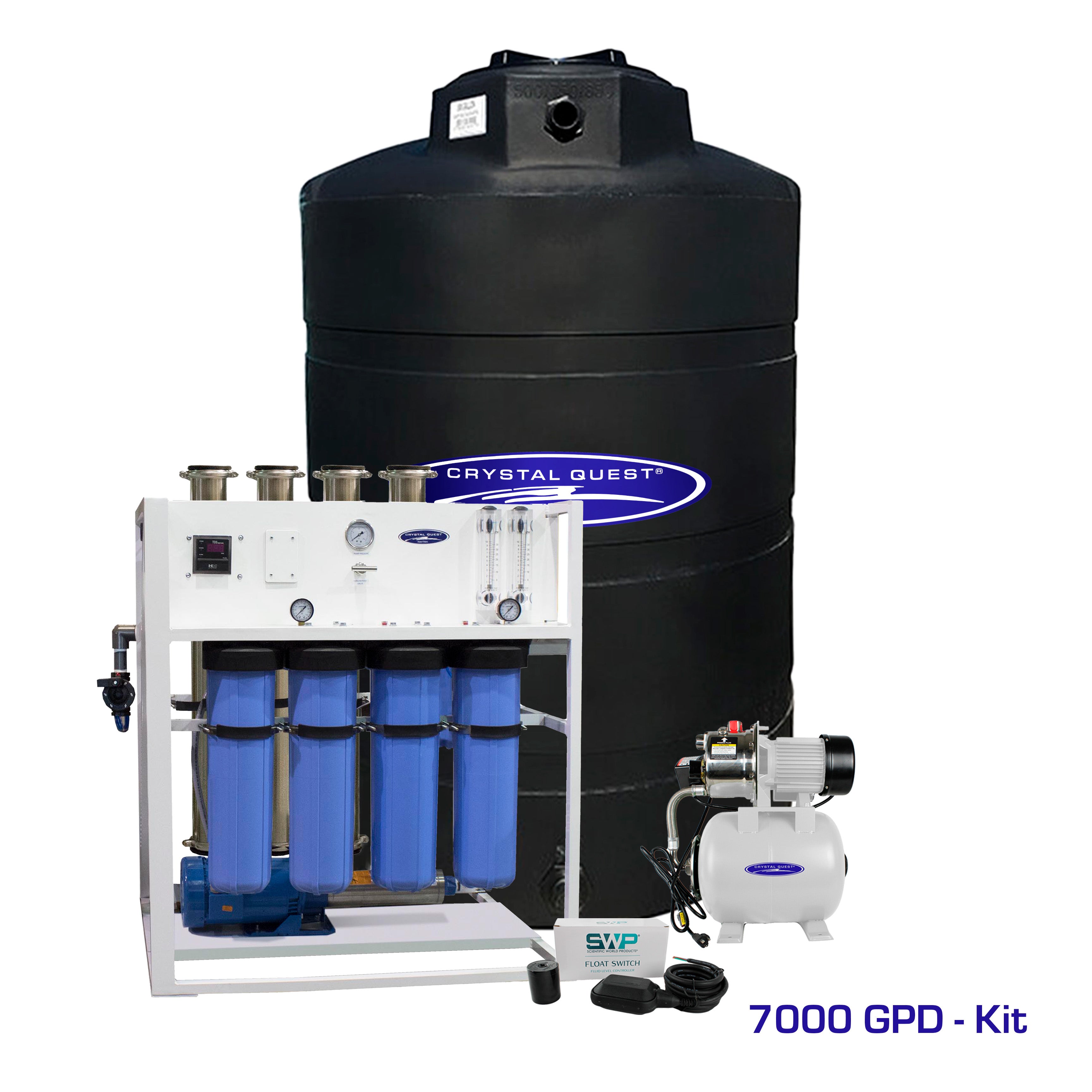

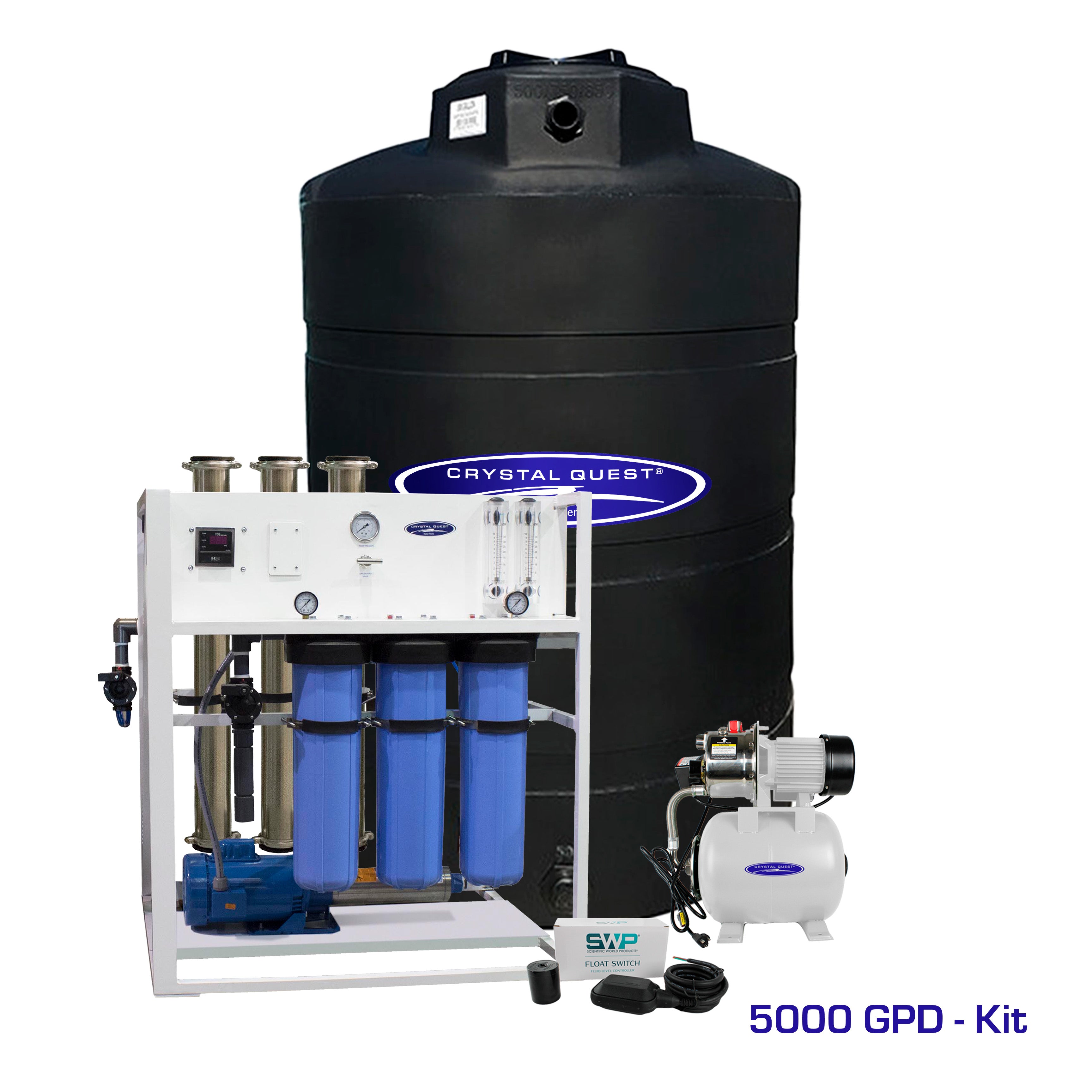

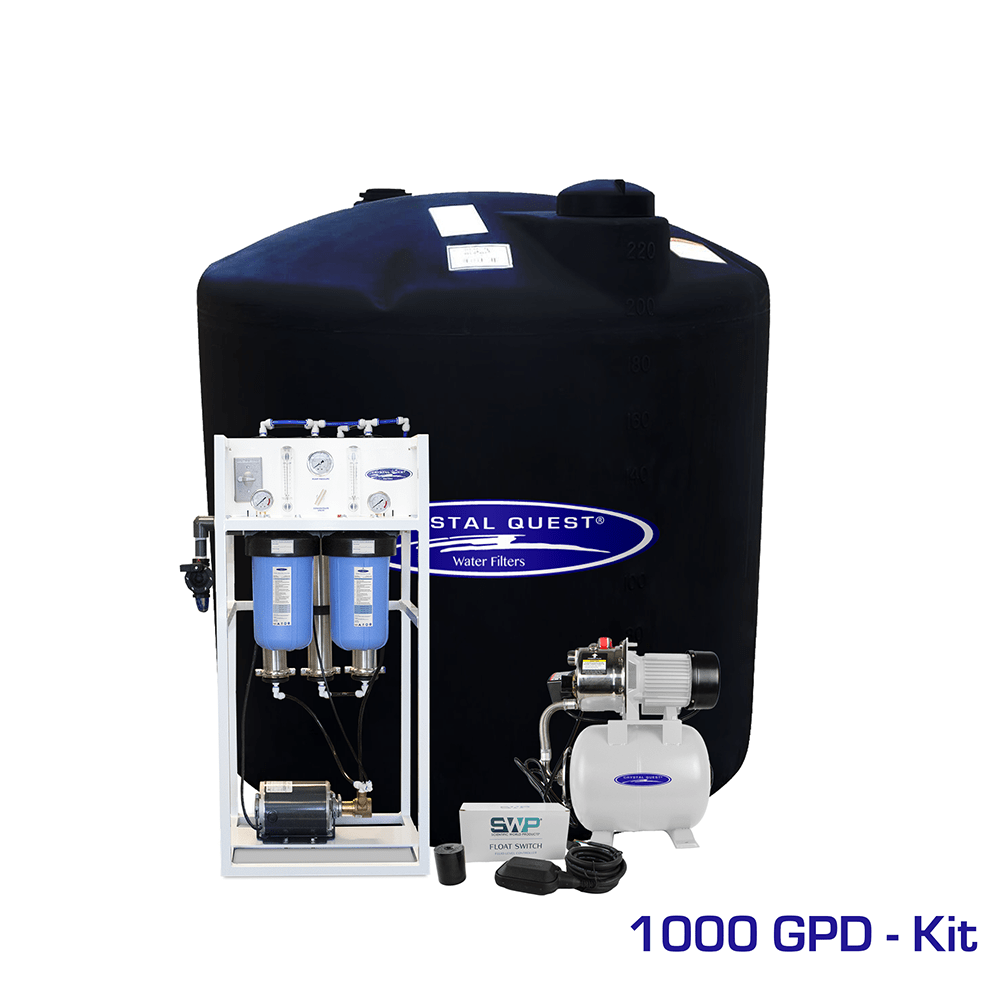

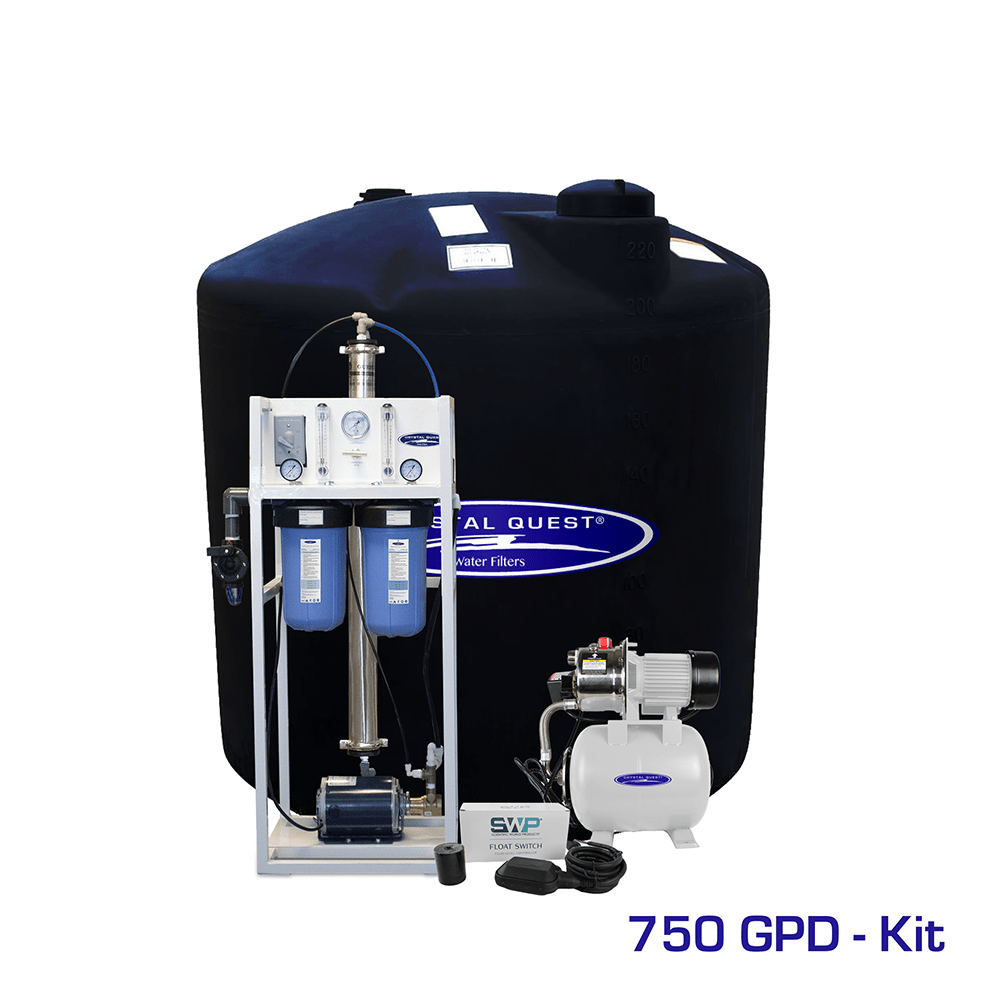

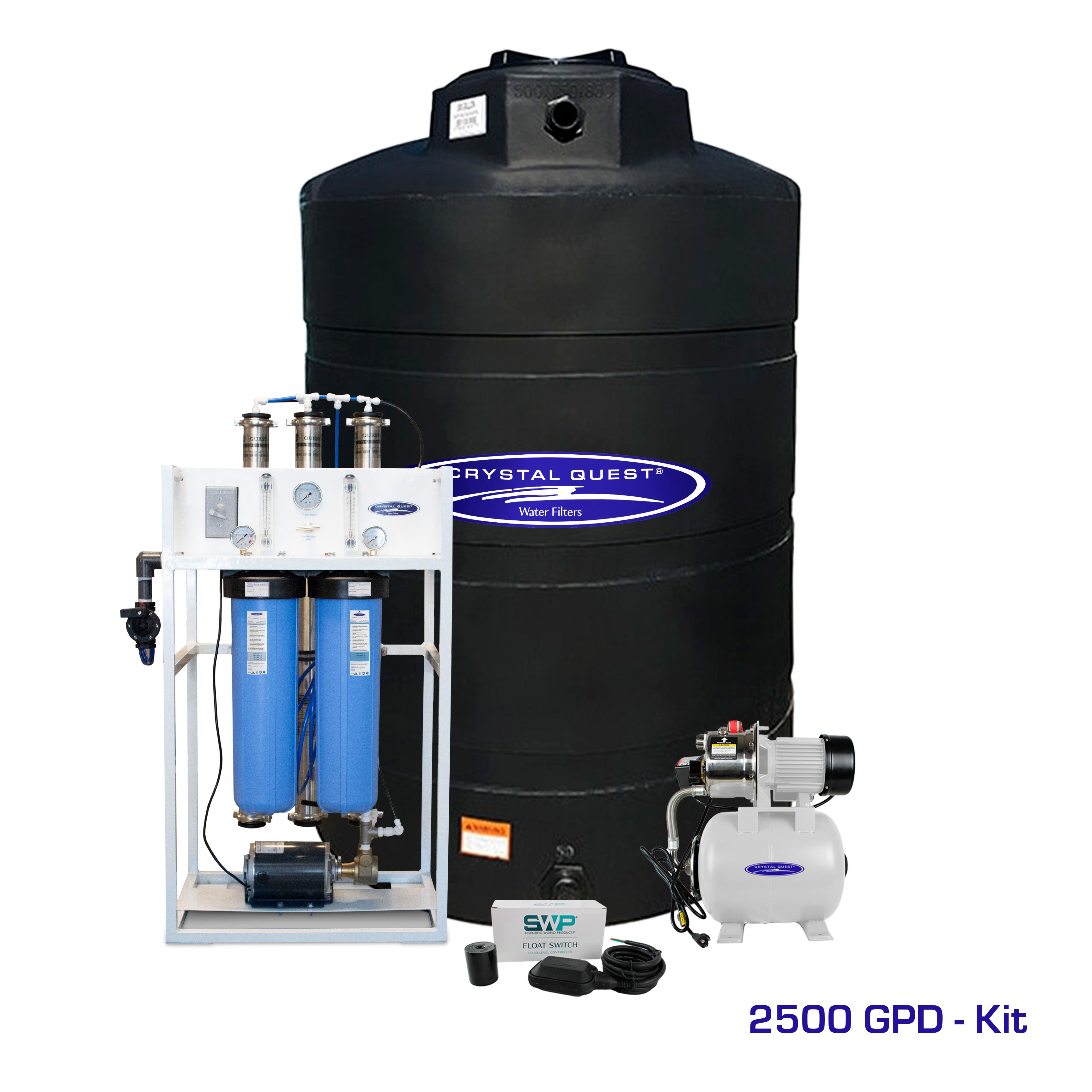

- Available in 9 output-capacity models — 500, 750, 1000, 1500, 1800, 2500, 4000, 5000, and 7000 GPD — each with its own footprint, weight, and membrane configuration
- Optional factory upgrades include a stainless-steel rotary vane pump, concentrate recycle valve, digital TDS/conductivity controllers, feed-flush computer controller, chemical pump outlet, blending valve, and permeate sample port

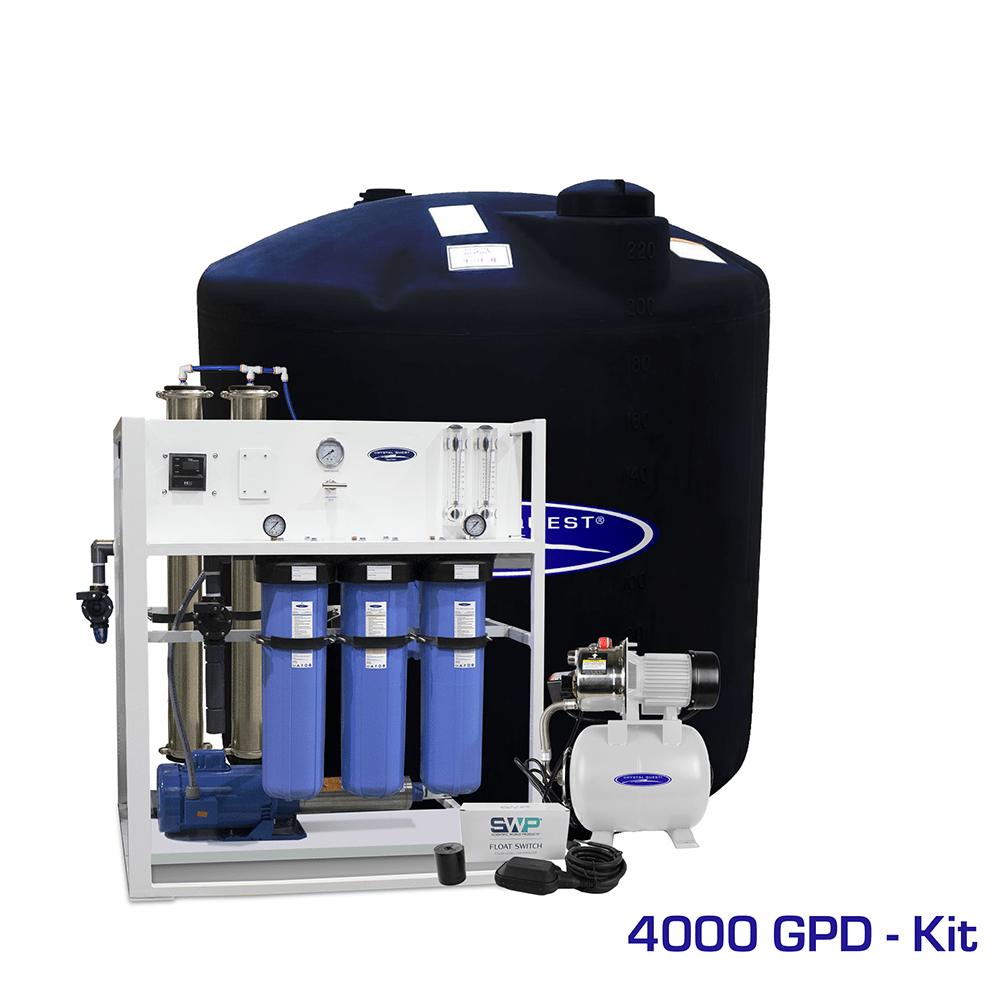

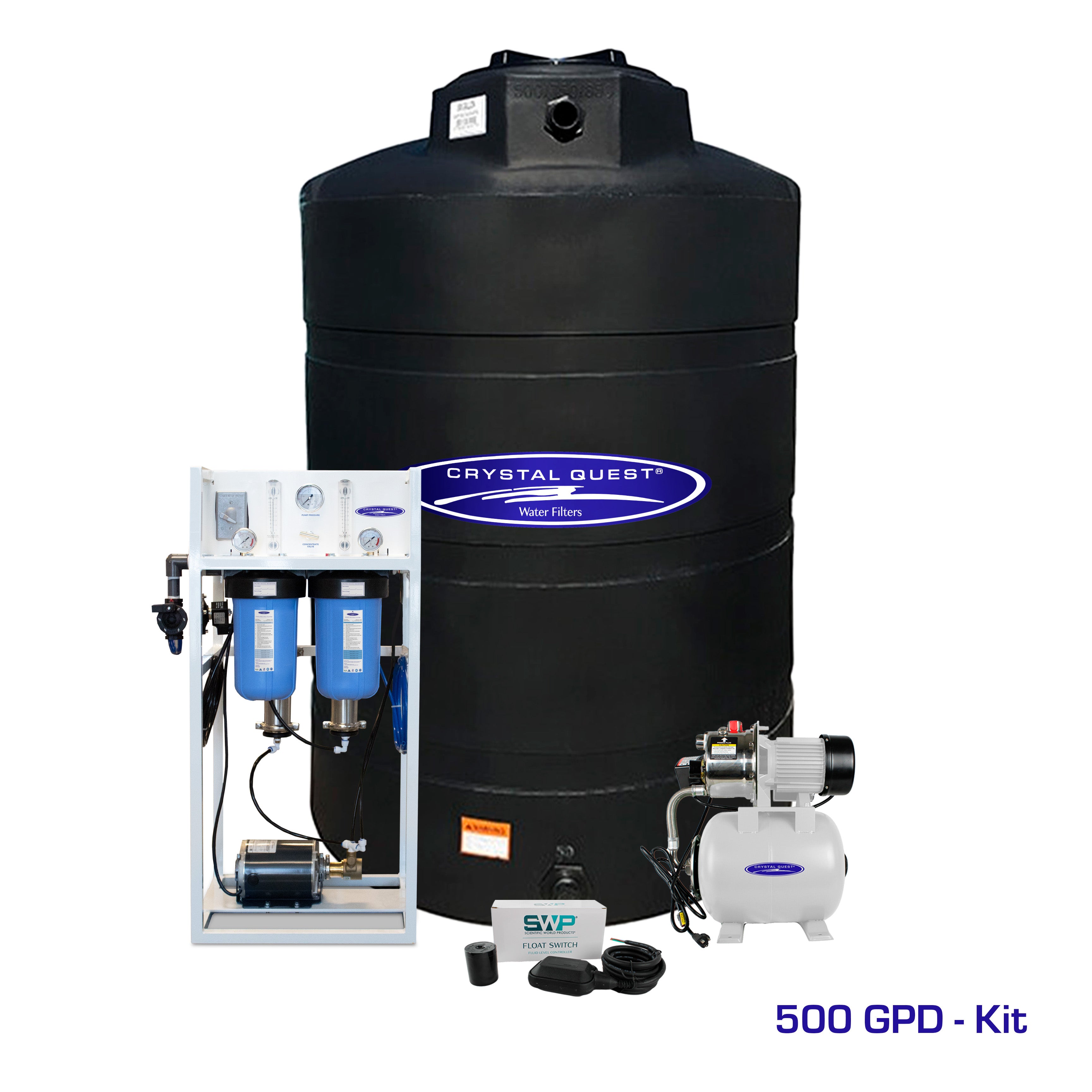

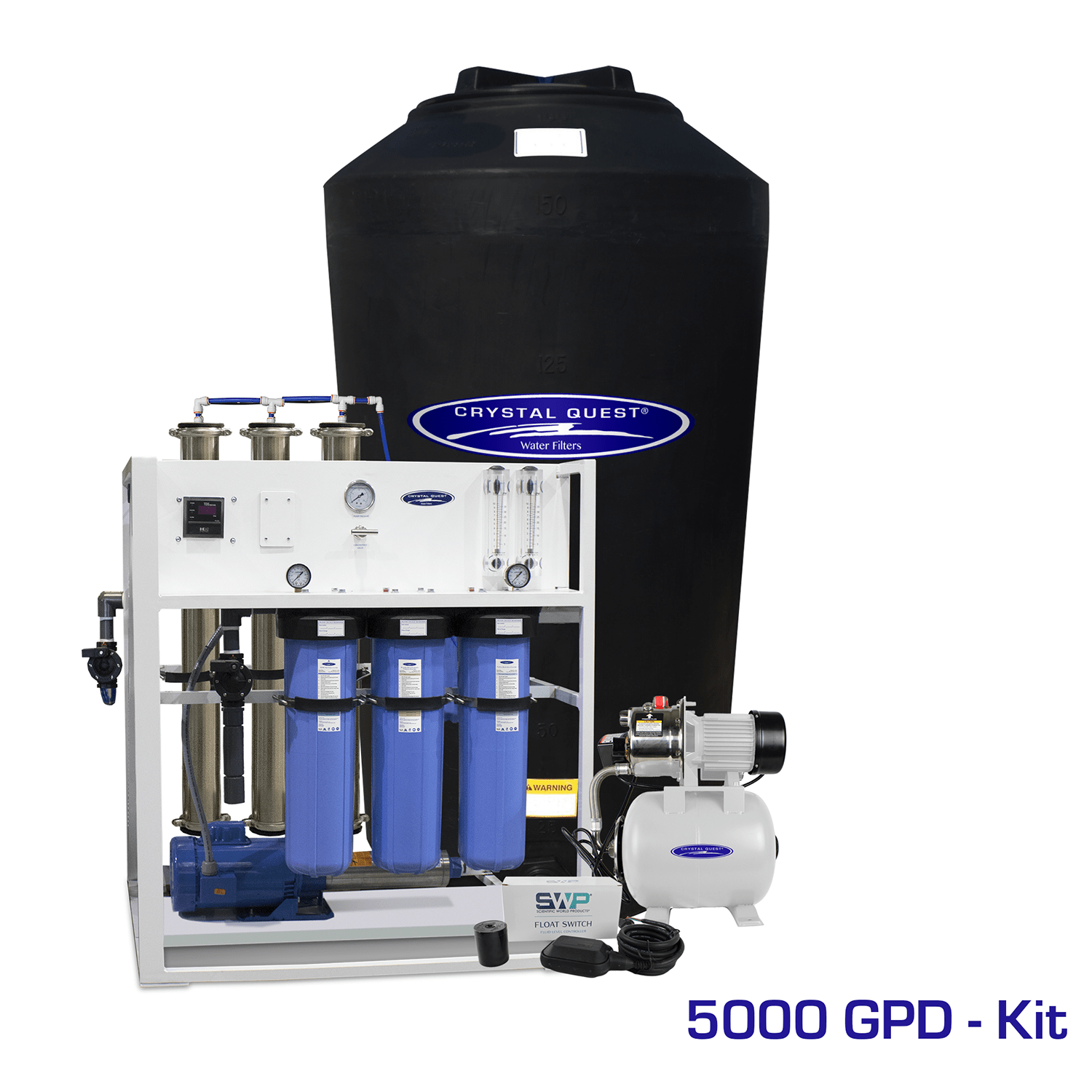

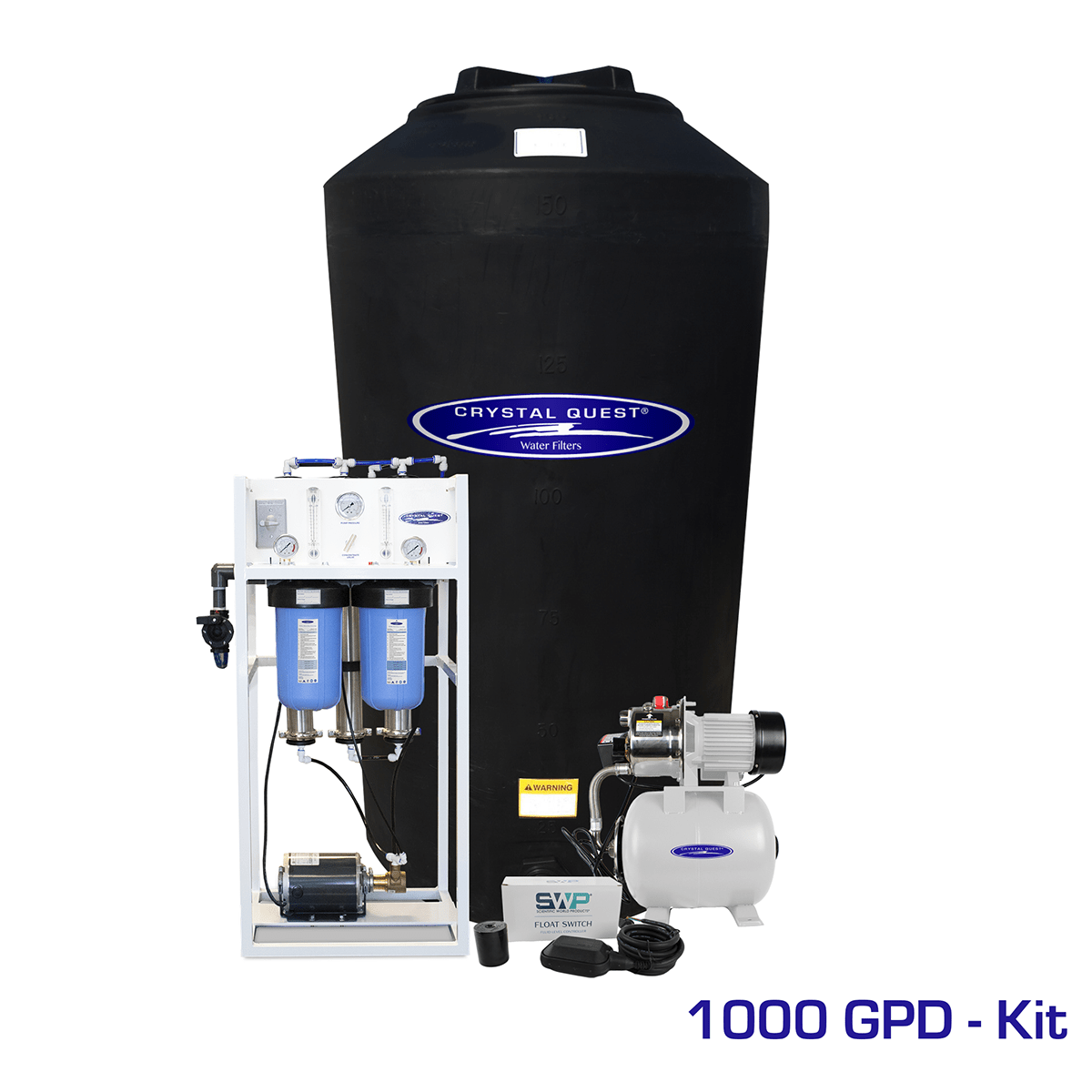

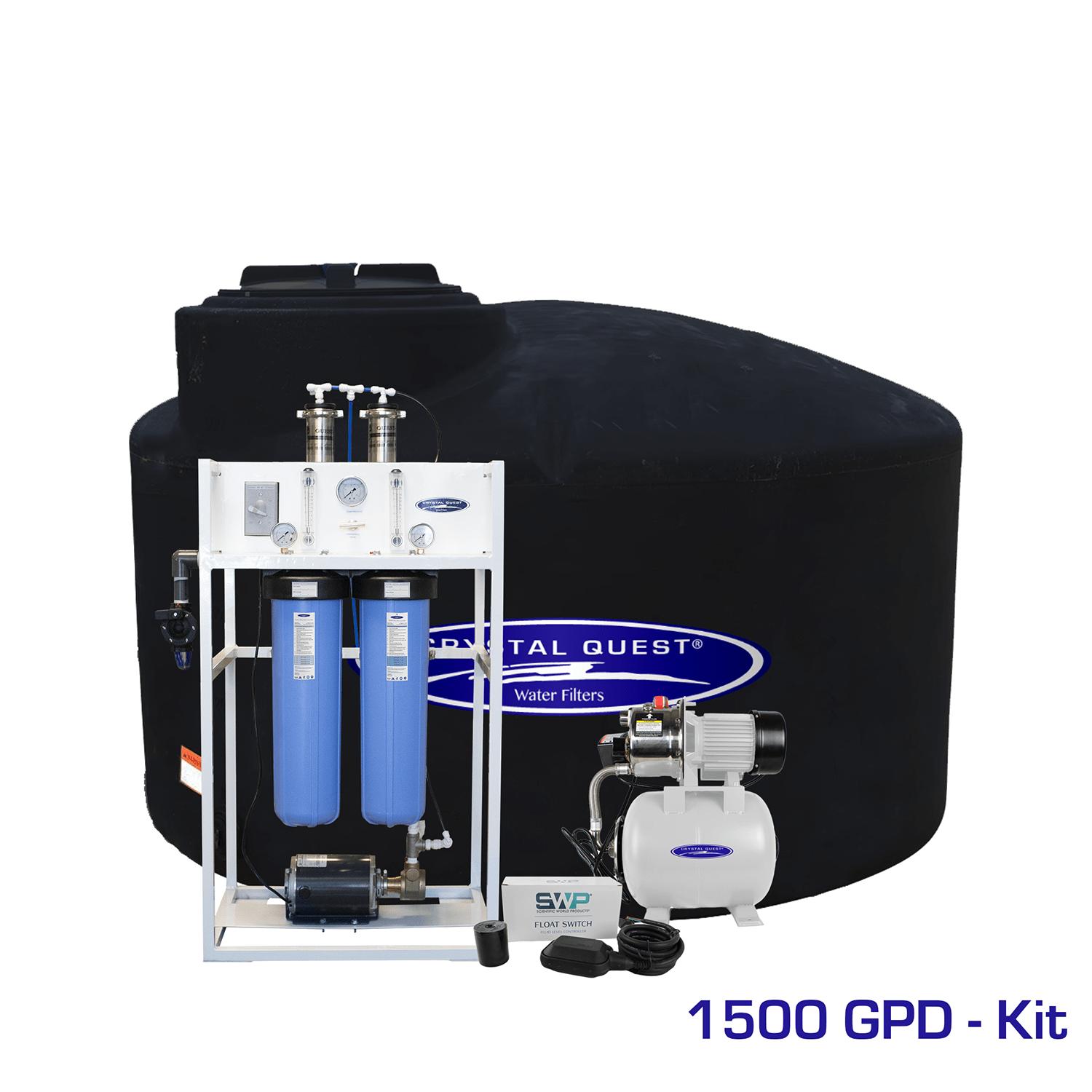

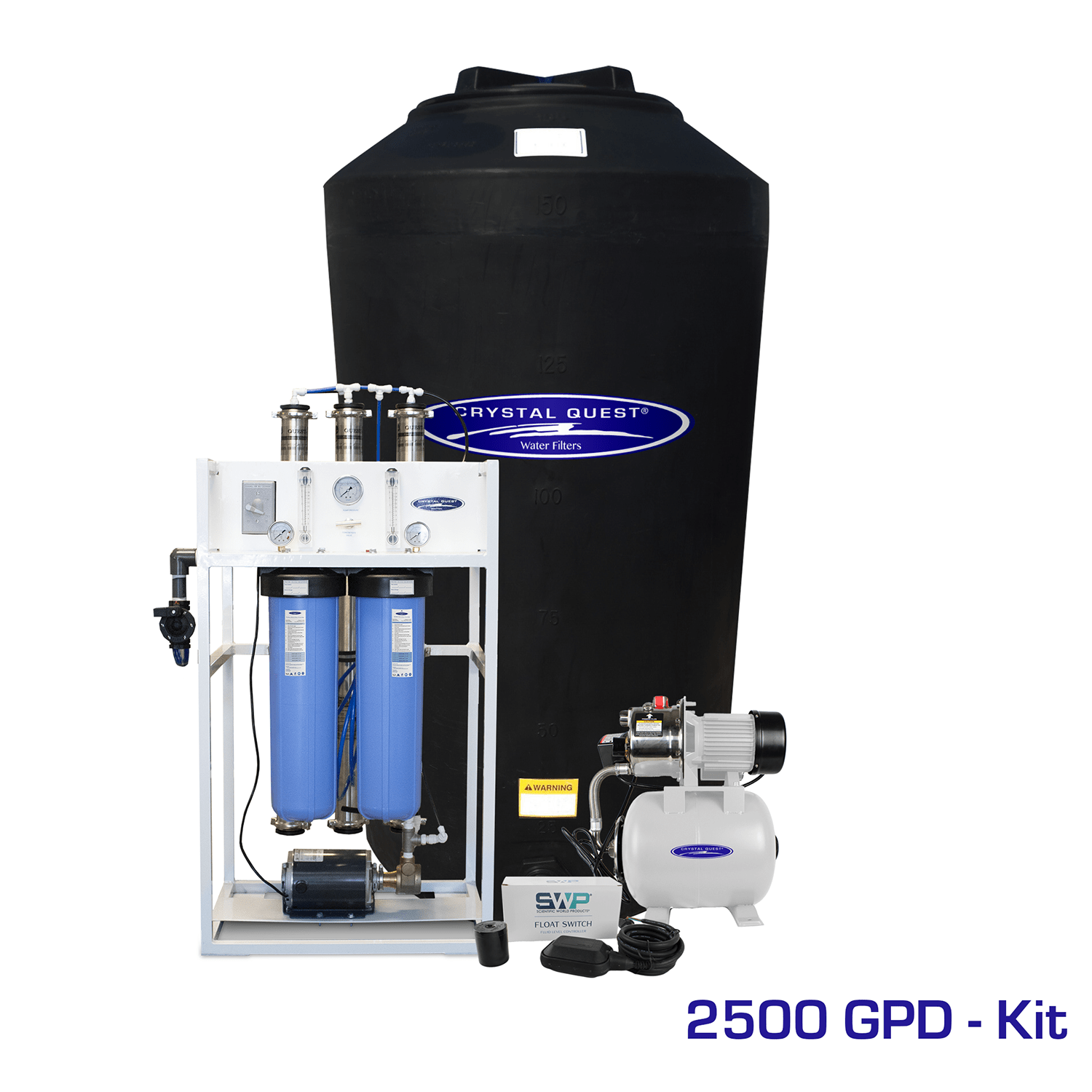

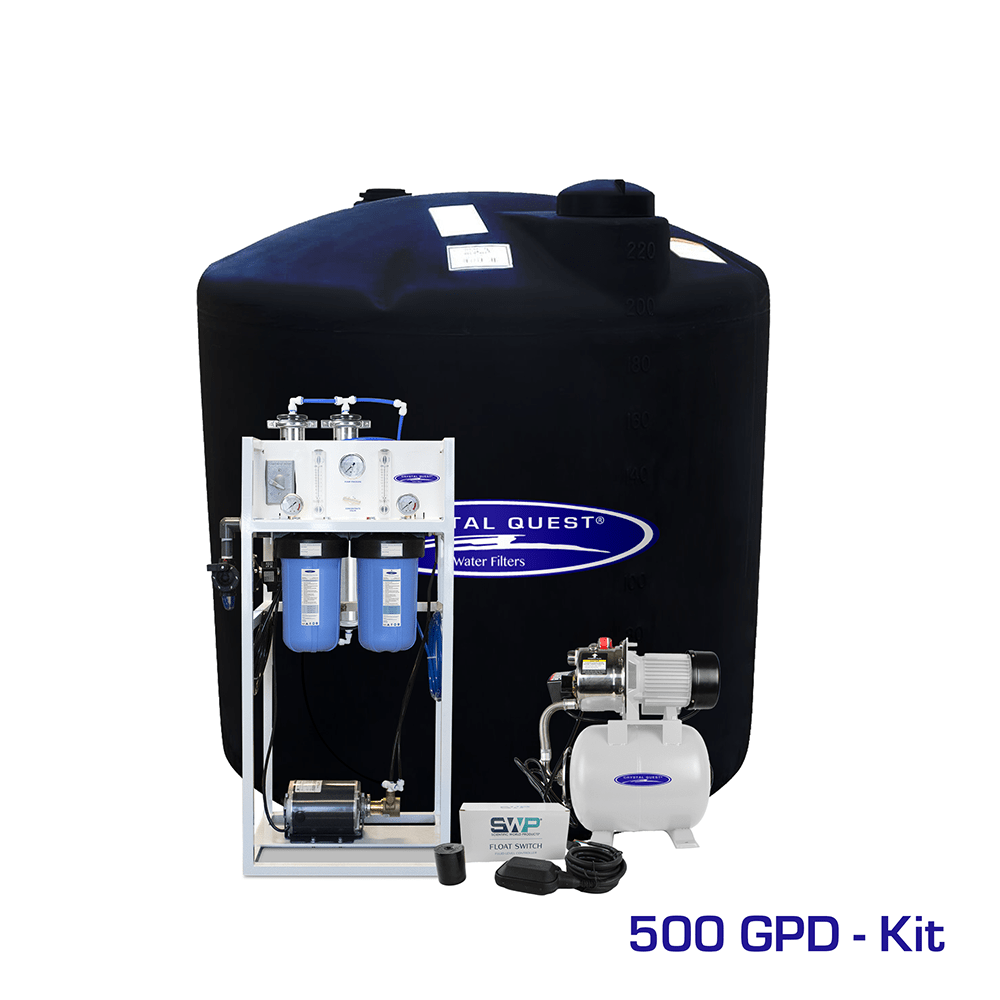

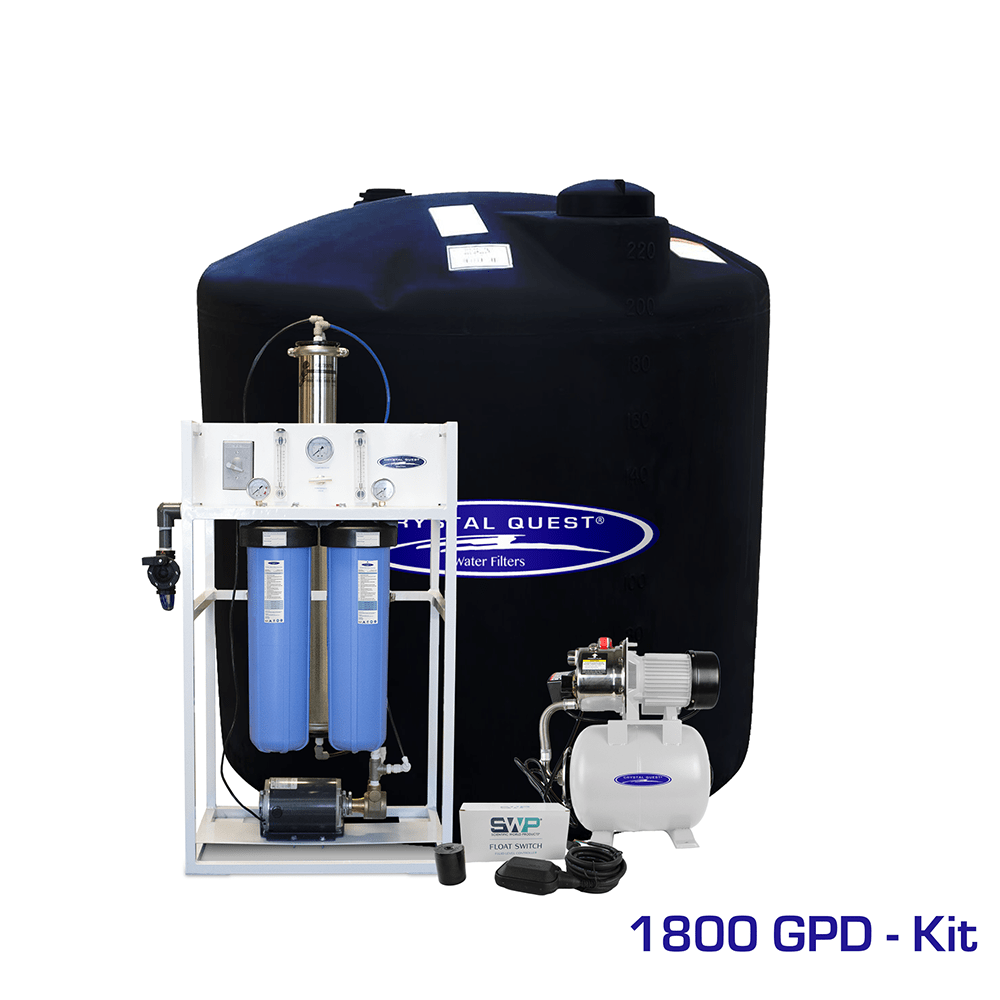

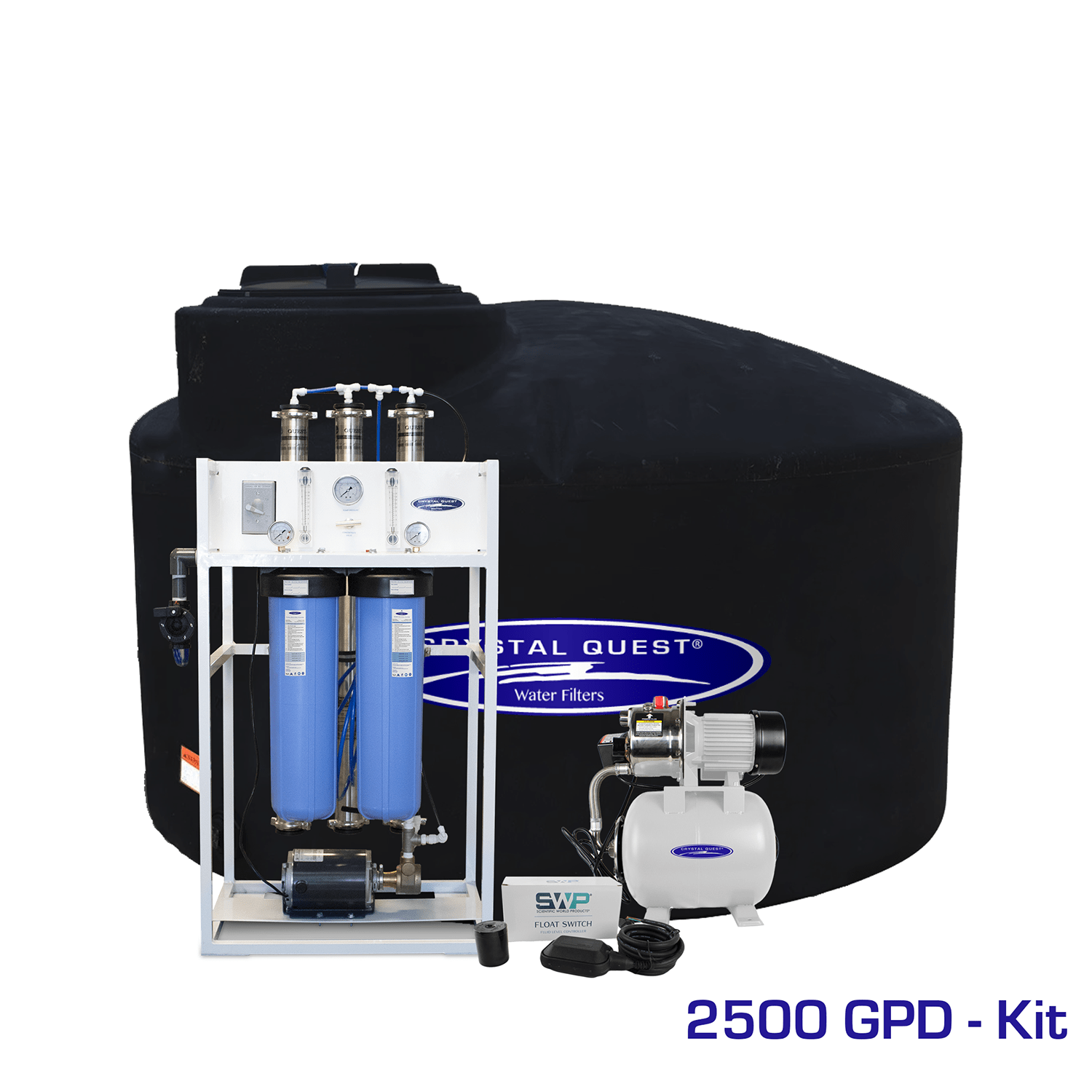

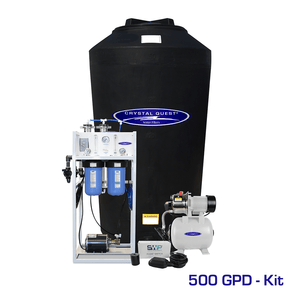

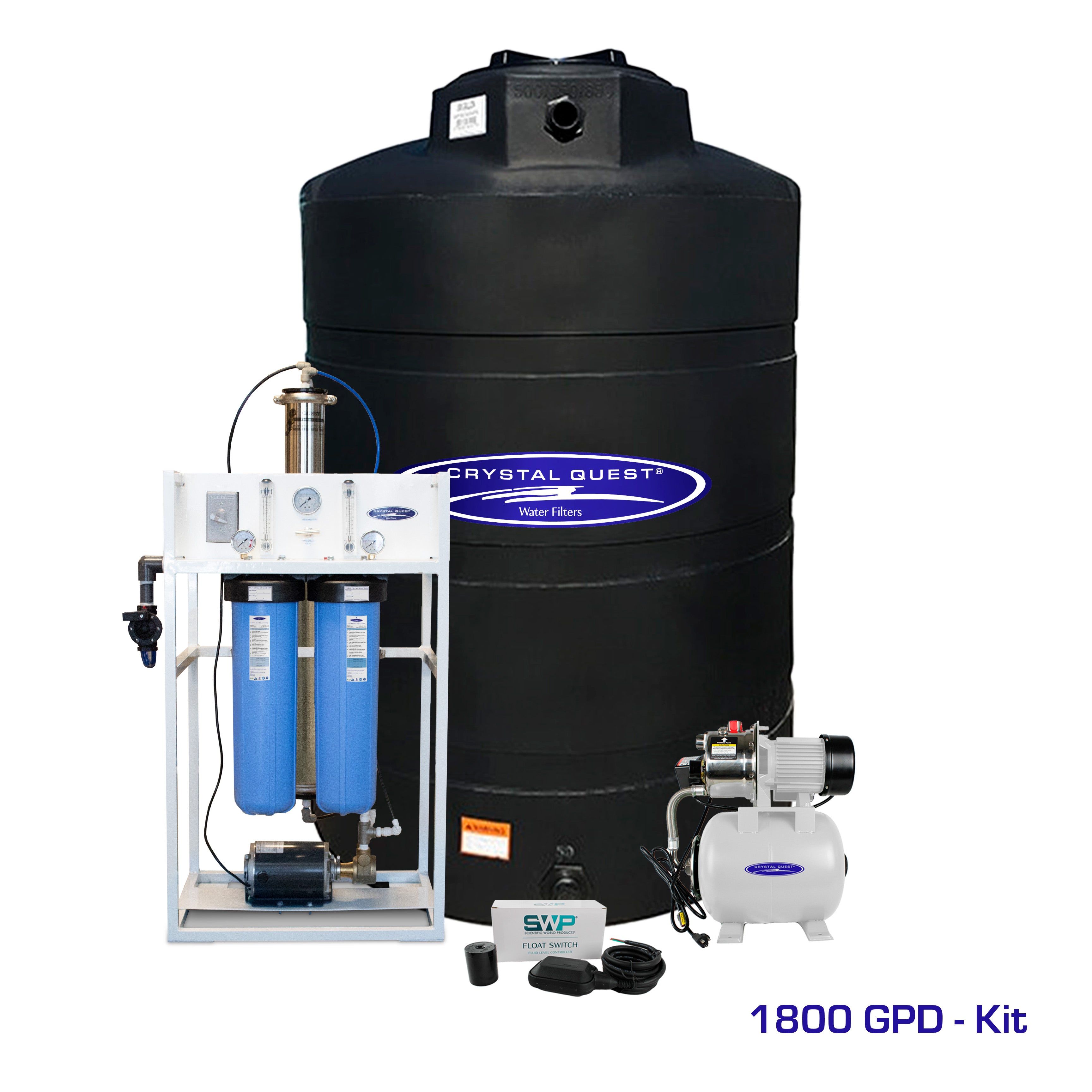

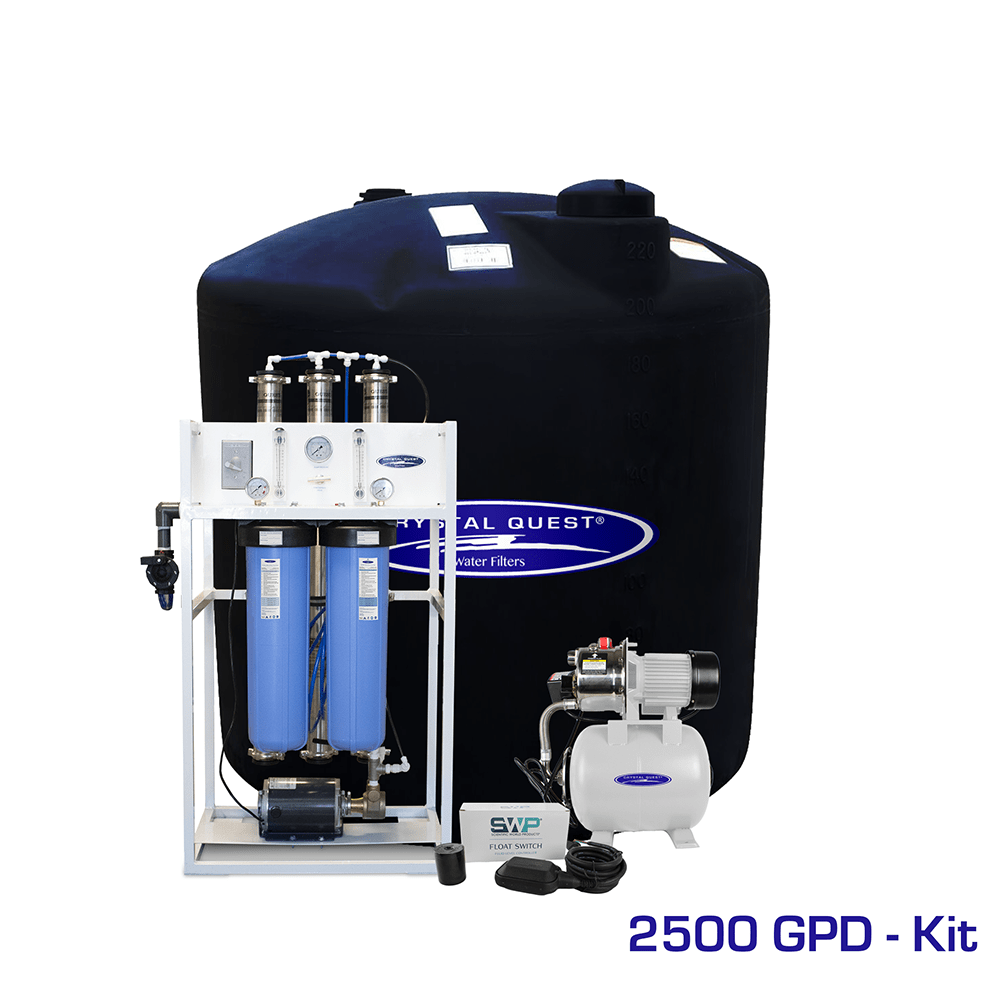

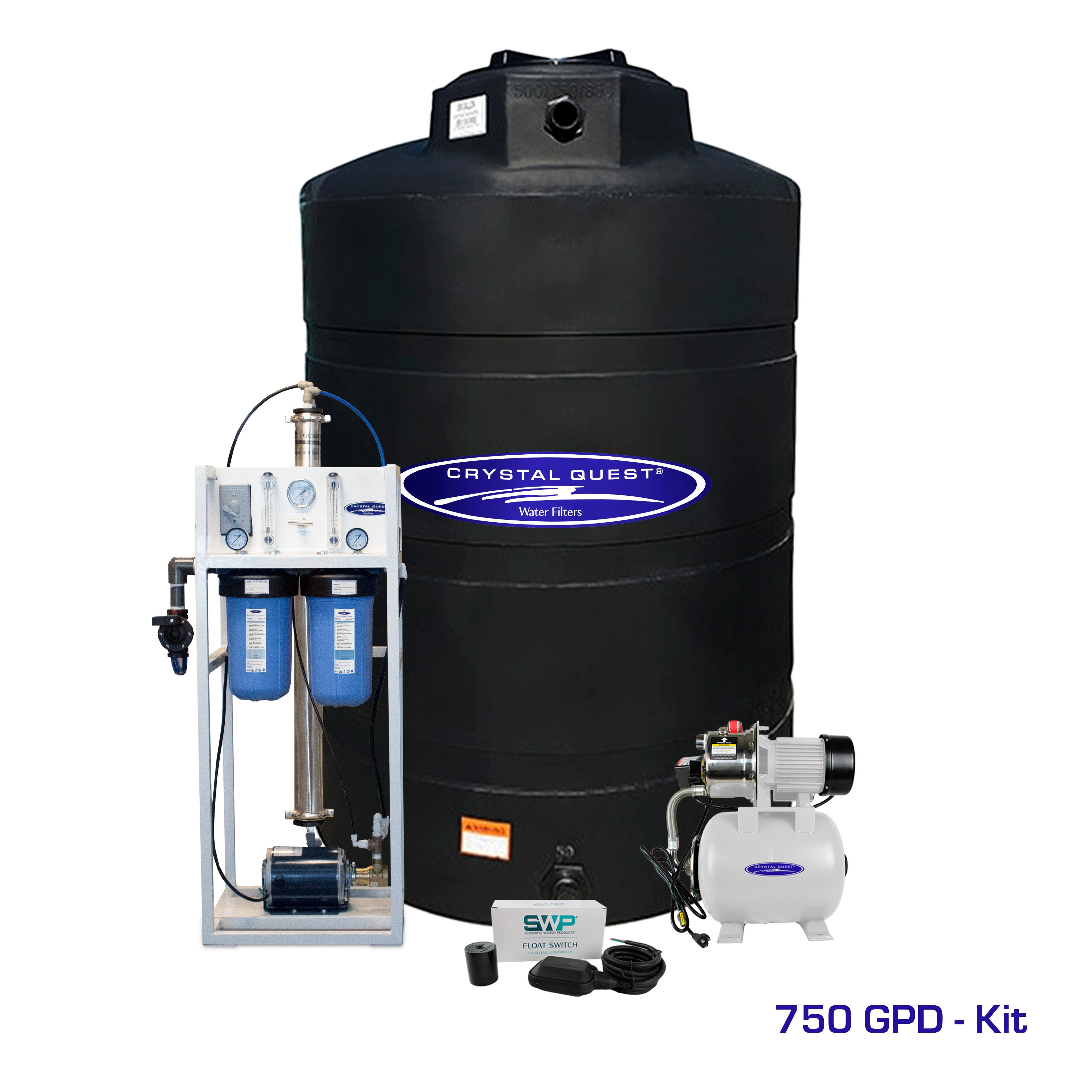

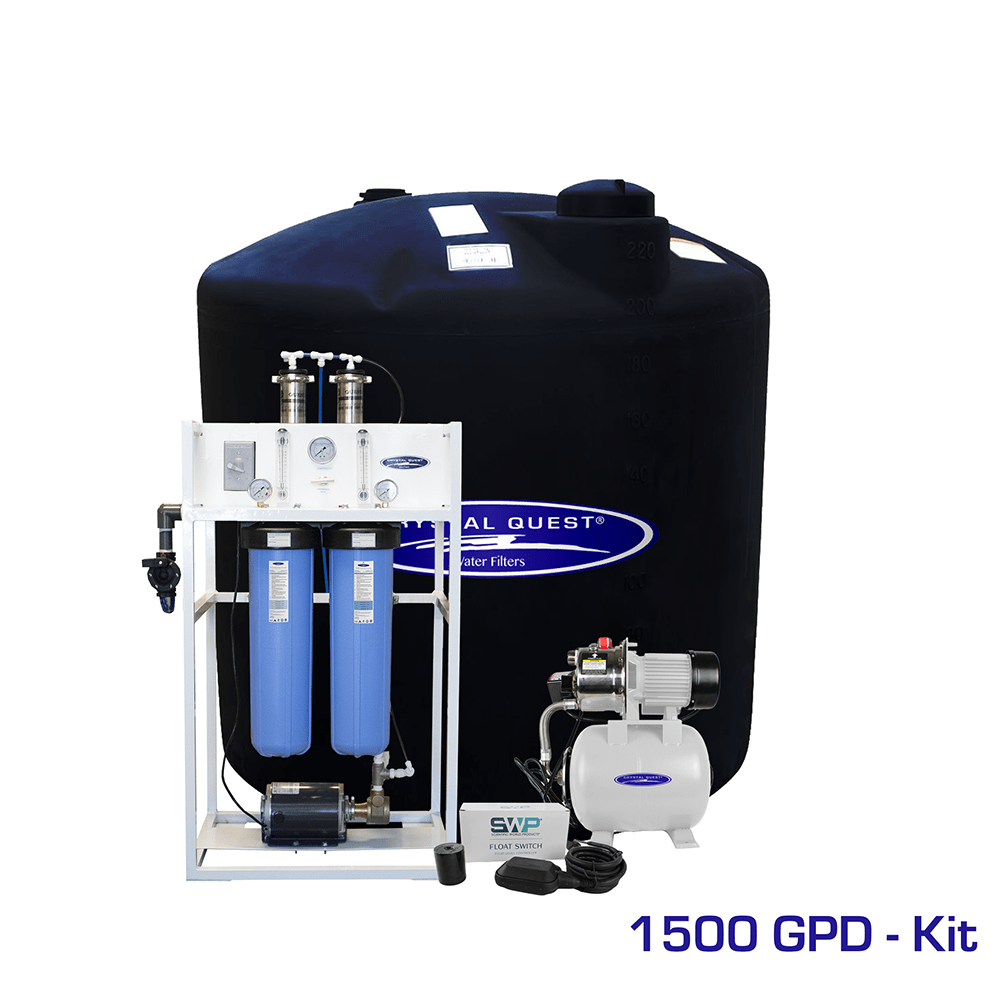

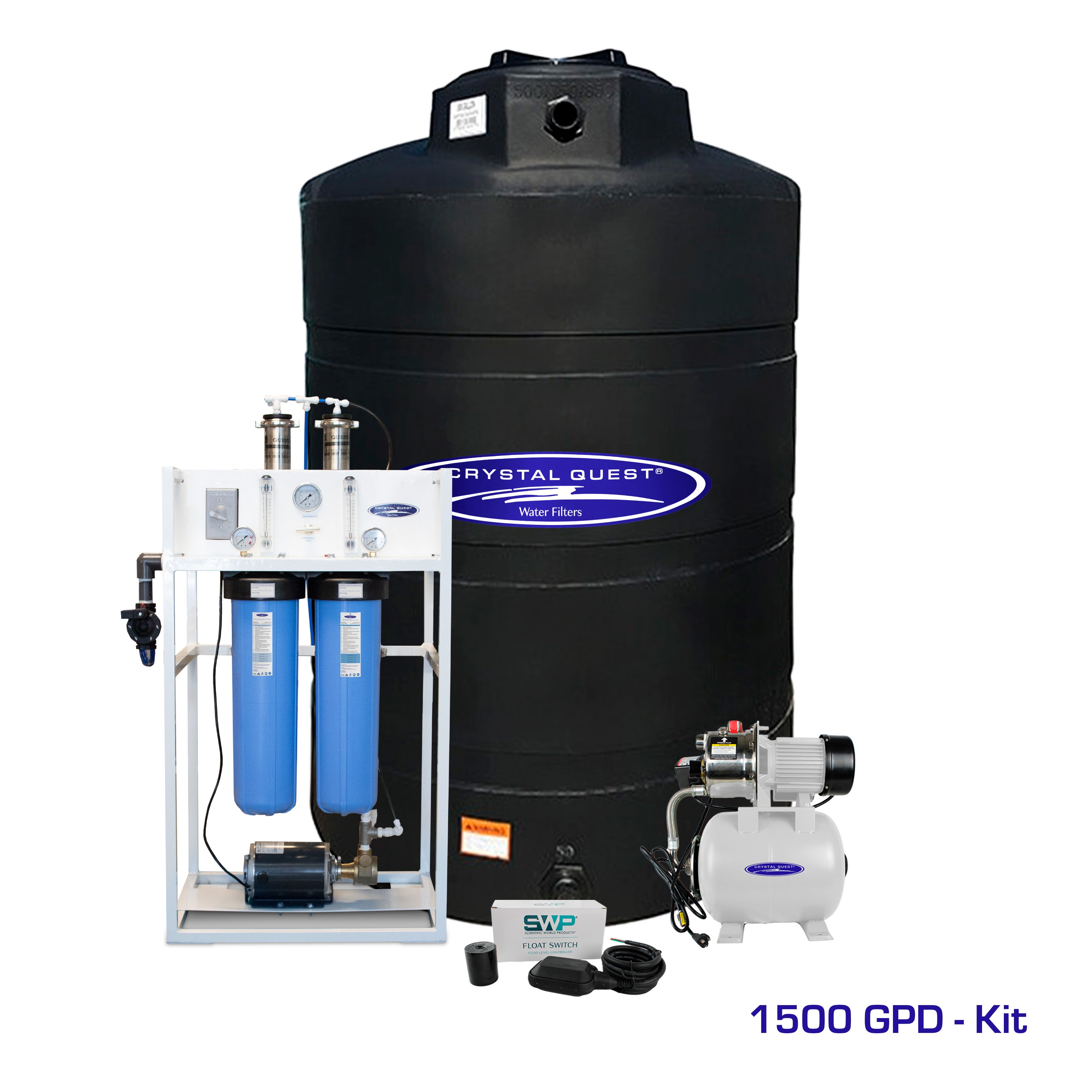

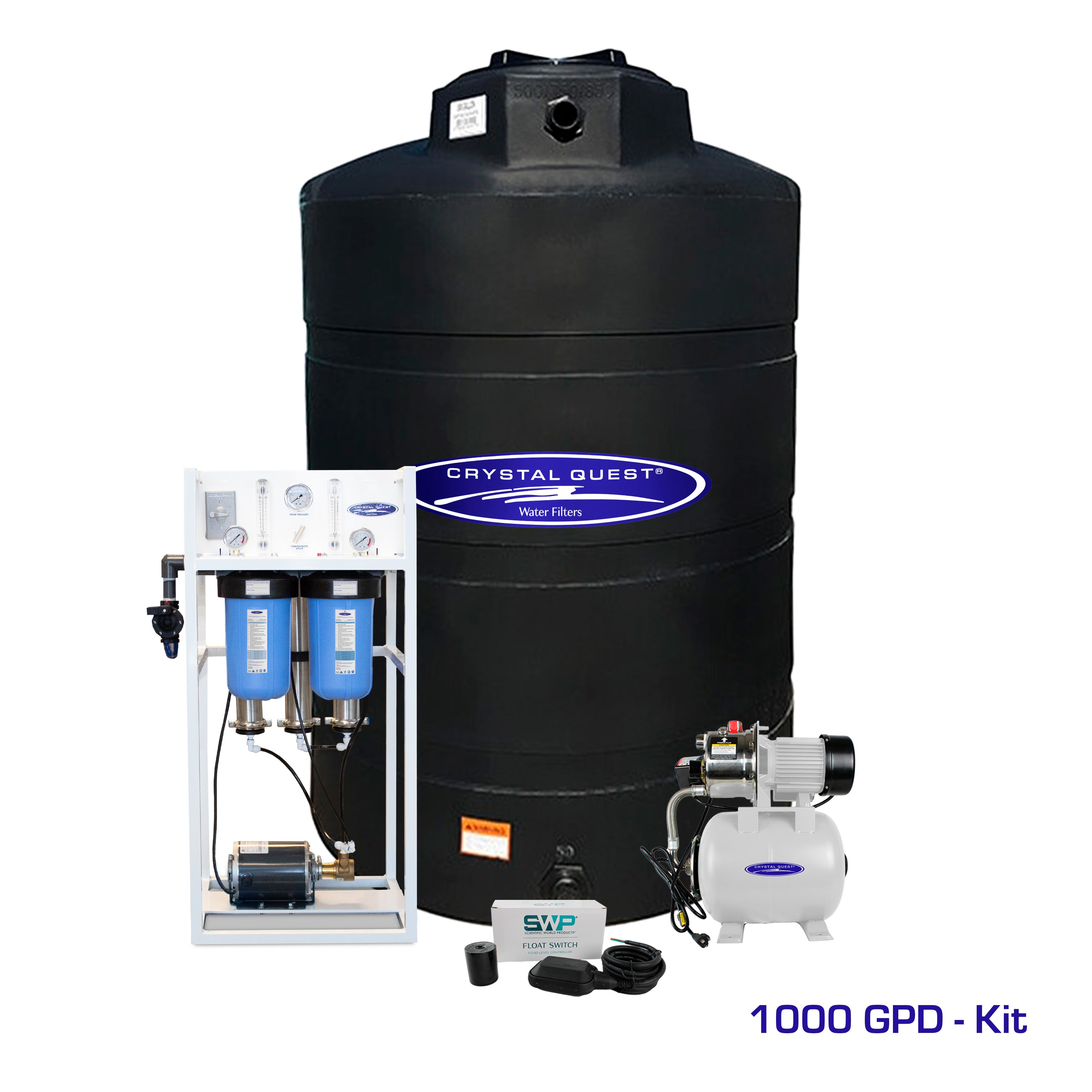

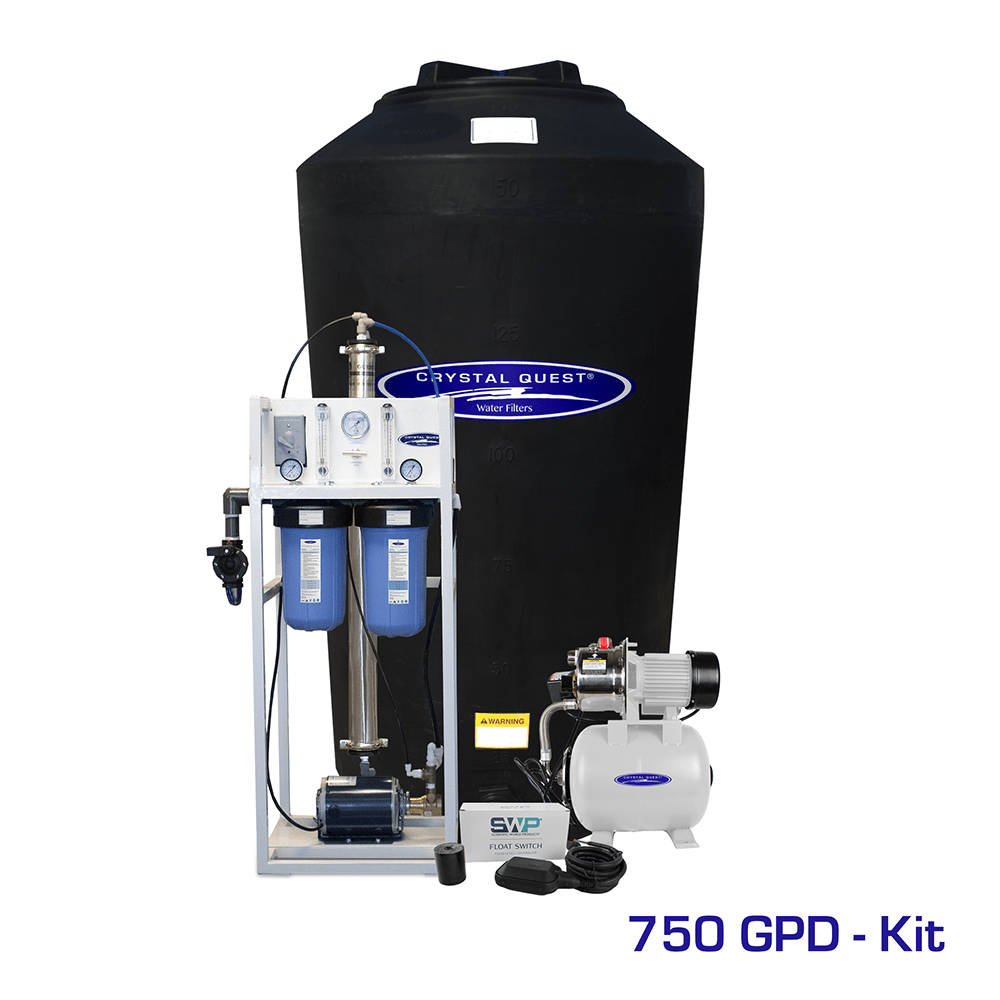

- Matching atmospheric storage tank sizing: 165 gallons for 200–300 GPD systems, 220 gallons for 500–2,500 GPD systems, and 500 gallons for 4,000–7,000 GPD systems
- Compact, space-saving design with easily accessible components for maintenance and servicing
- Manufacturer resources: 500-2500 GPD Reverse Osmosis Manual, 4000-7000 GPD Reverse Osmosis Manual, RO Storage Tank Manual, and Up Float Switch Wiring Guide
