Description

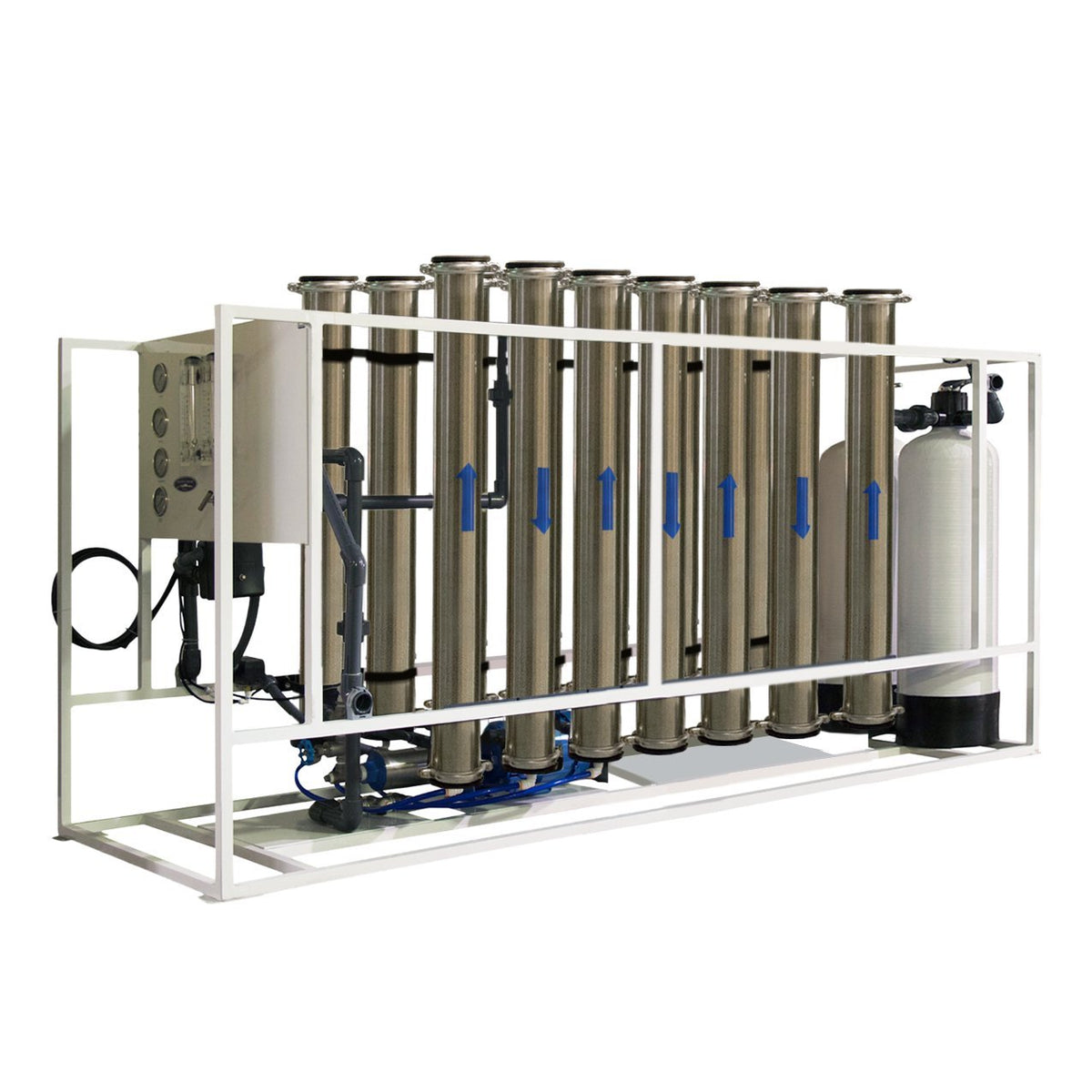

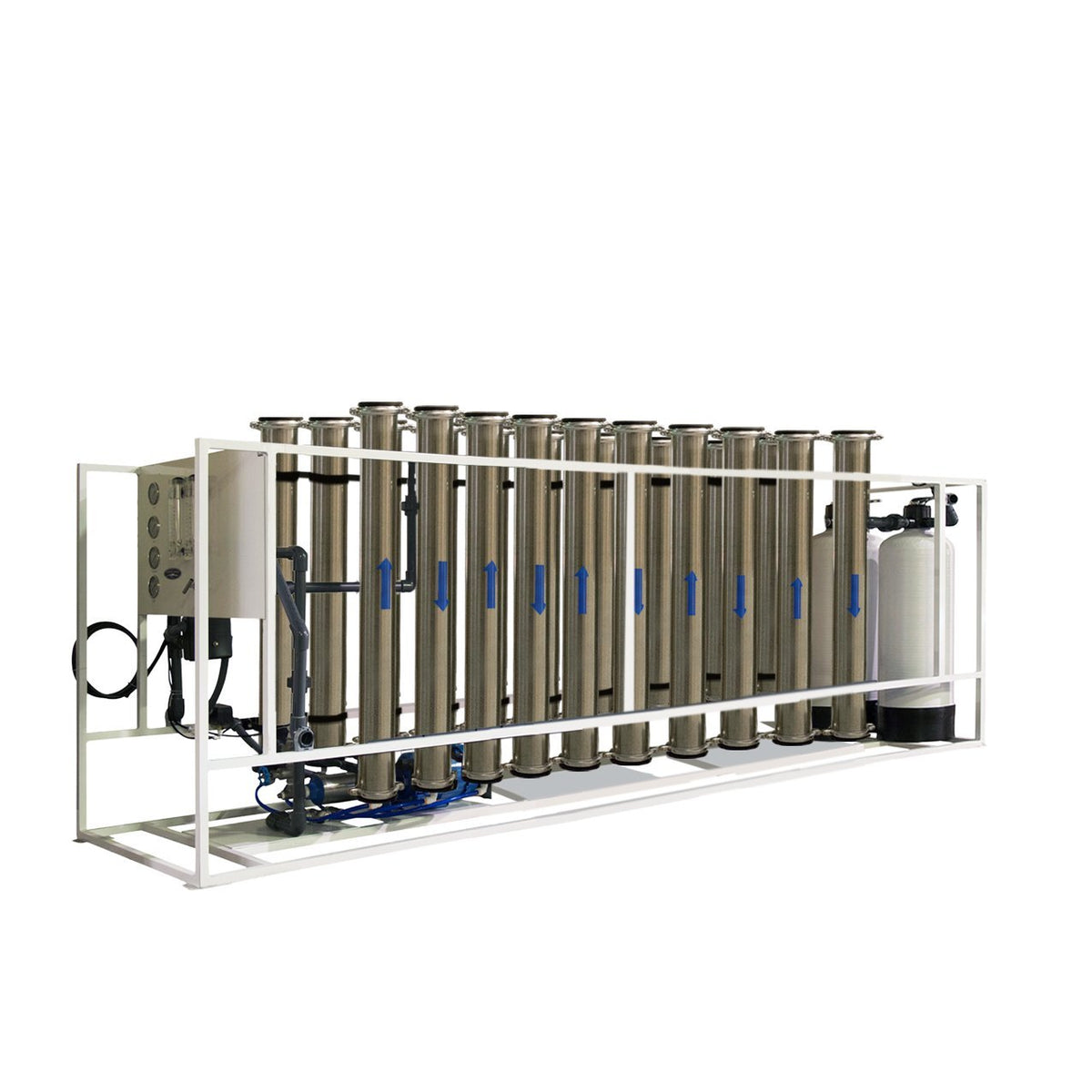

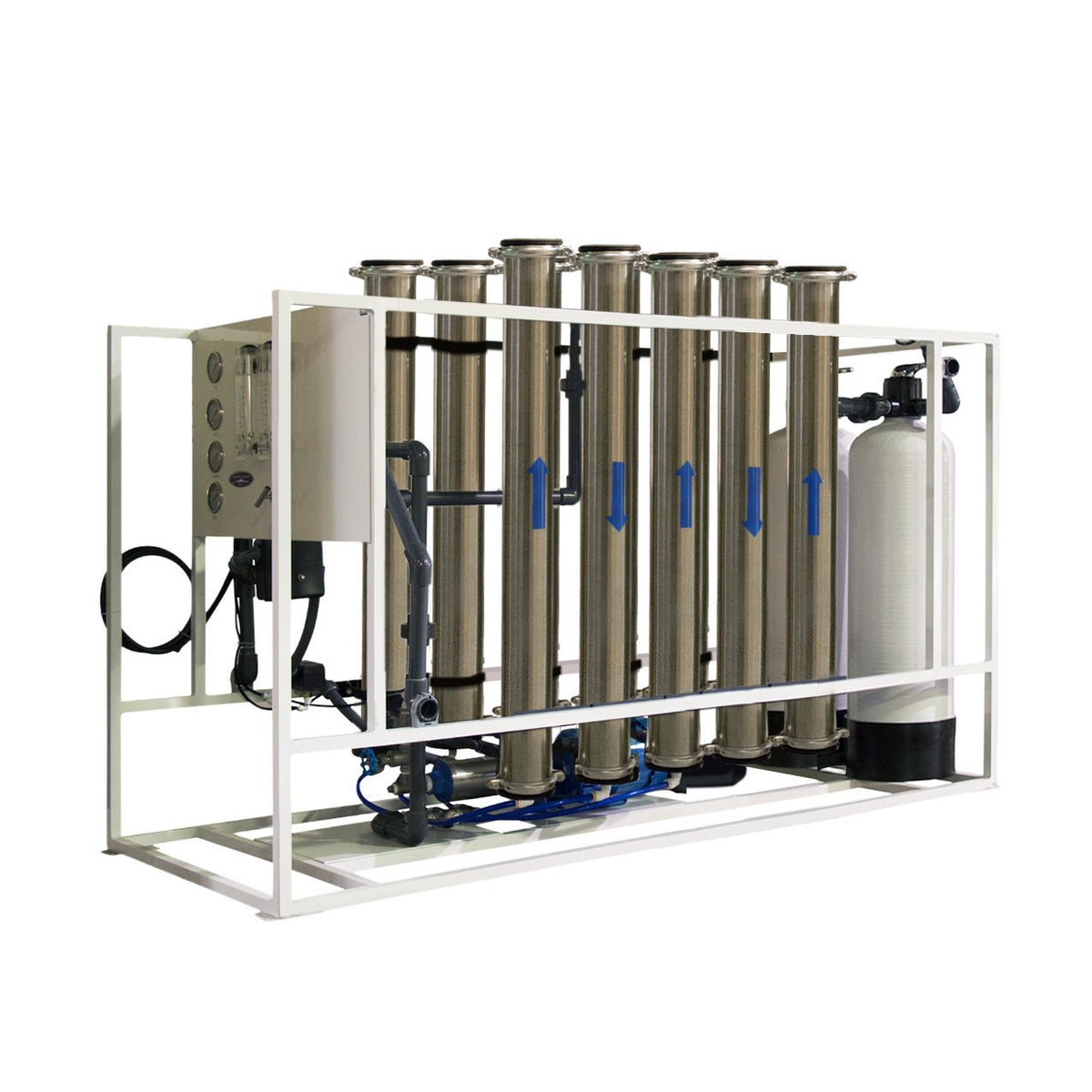

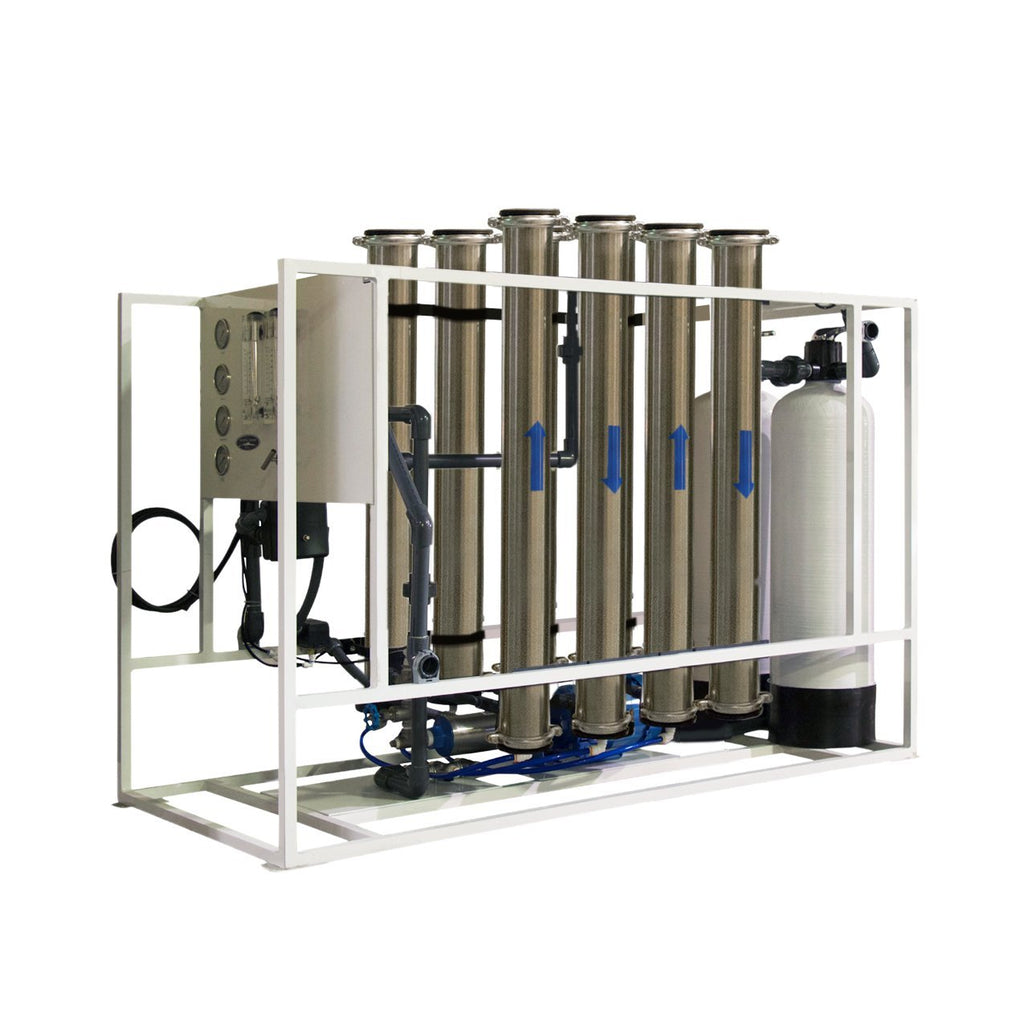

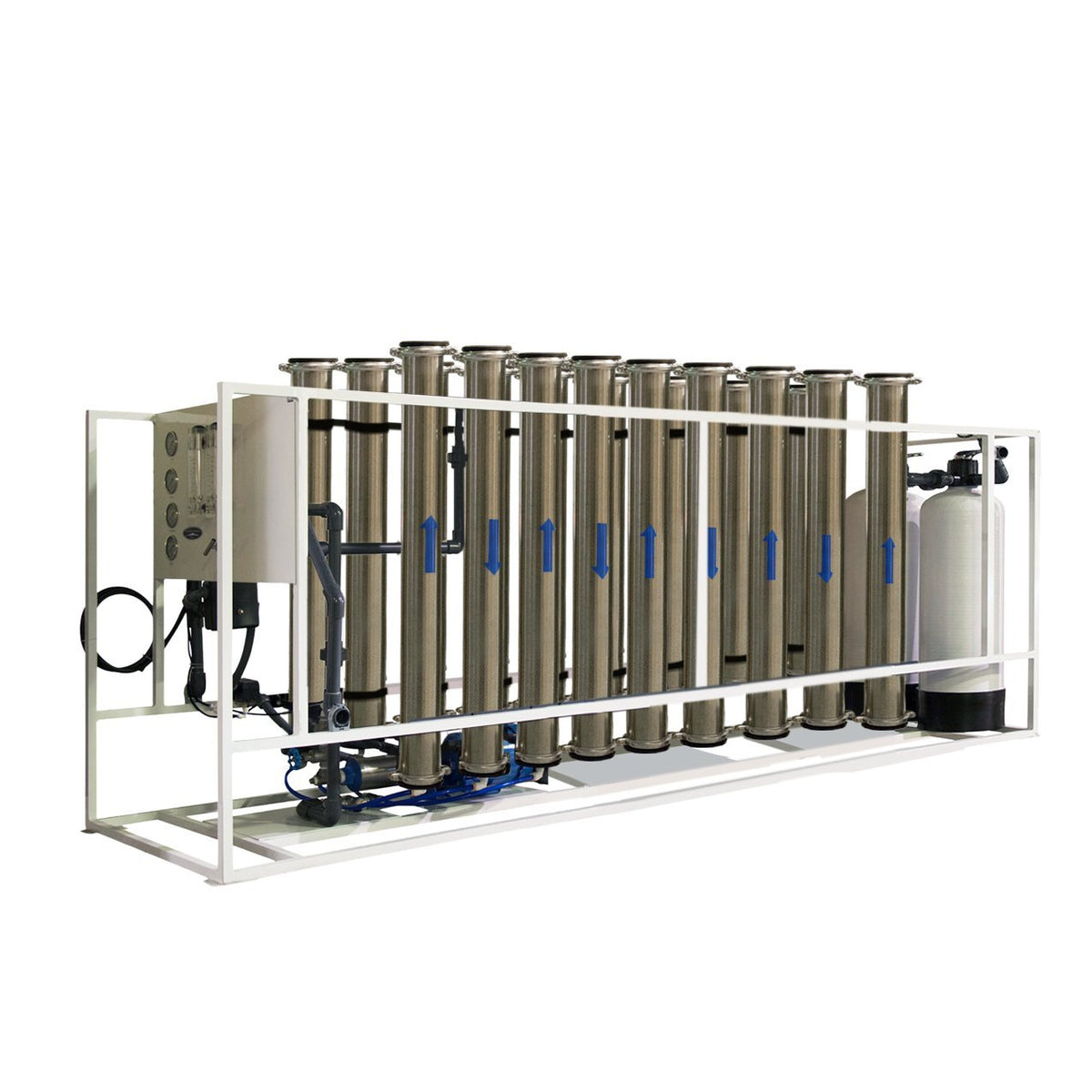

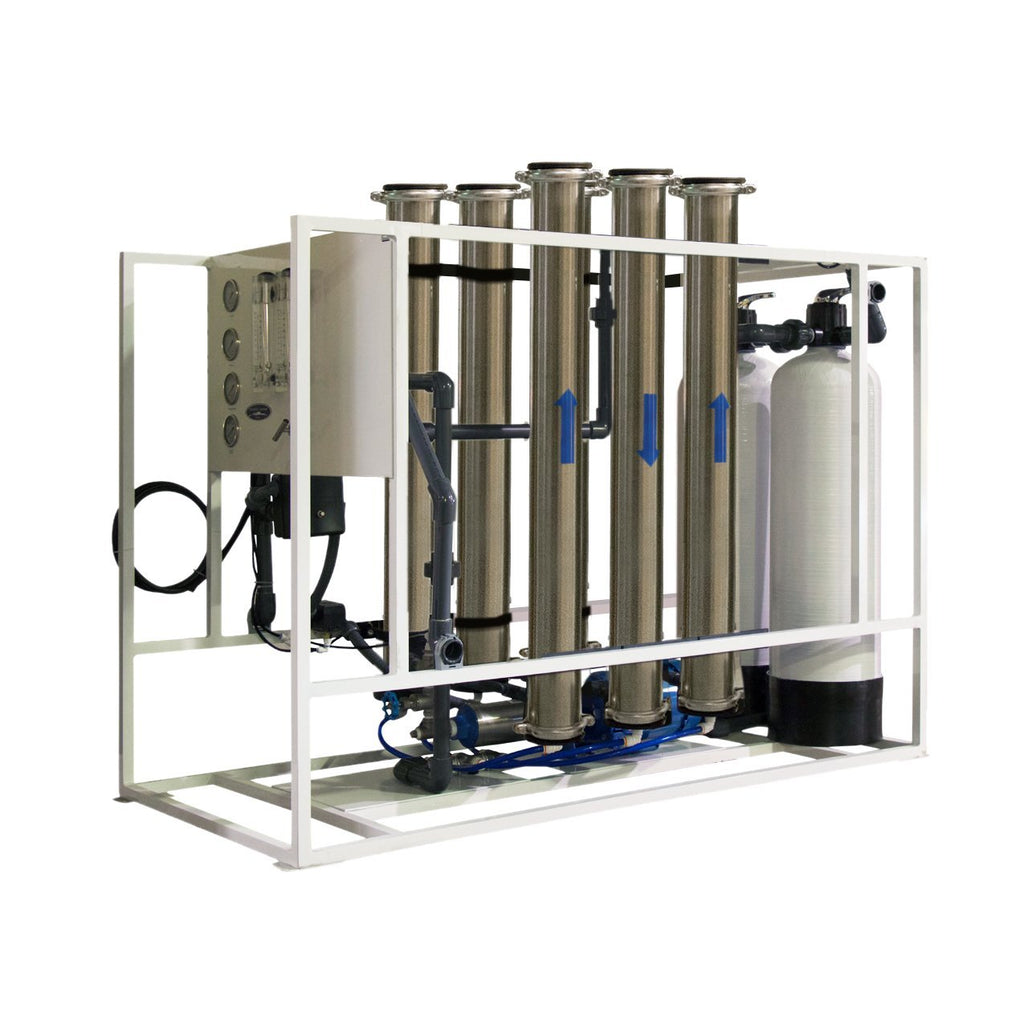

The Crystal Quest High-Flow Reverse Osmosis System produces 10,000 to 50,000 gallons per day using 6 to 20 thin film composite 4040 membranes in stainless steel housings. It arrives pre-plumbed, wired, assembled, and factory tested on a coated aluminum frame.
Highlights
- Six capacities from 10,000 GPD to 50,000 GPD for commercial and industrial demand
- Pretreatment vessels with 0.5 micron zeolite and coconut shell carbon protect the membranes
- C-150 microprocessor controller with automatic shutdown at tank full and on pressure faults
- Feed and permeate TDS displays plus permeate and concentrate flowmeters for monitoring
- 96% to 98.5% NaCl rejection with feed water up to 2000 ppm TDS
- Compact, expandable frame with easily accessible components
Details
Avermont Direct is an authorized Crystal Quest dealer. This system is built for facilities that need large daily volumes of reverse osmosis water and can supply the minimum feed flow and pressure listed for each model. Crystal Quest covers it with a 1-year limited warranty.
Need Help?
If you have questions about this product before you order, our team is happy to help.
Email: support@avermontdirect.com
Phone: +1 (844) 455-3695
Hours: Monday–Friday, 9AM–5PM
Live Chat: Available 24/7
| Capacity | 10,000 / 15,000 / 20,000 / 30,000 / 40,000 / 50,000 GPD |
| Membranes | 4040 TFC HF1; 6 / 8 / 10 / 14 / 16 / 20 membranes |
| Membrane Housings | Stainless steel, rated up to 300 PSI |
| Pump | Centrifugal; 1.5 / 1.5 / 3 / 3 / 5 / 5 HP |
| Pretreatment | 1.5 or 2.0 cu. ft. vessels with 0.5 micron zeolite and coconut shell granulated activated carbon |
| Dimensions (W x D x H) | 49" x 33" x 54" (10,000 GPD); 63" x 39" x 54" (15,000 and 20,000 GPD); 41" x 143" x 80" (30,000 to 50,000 GPD) |
| Weight | 385 lbs. / 400 lbs. / 415 lbs. (10,000 / 15,000 / 20,000 GPD) |
| Power | 110/220 VAC, 50/60 Hz; ships at 110V unless requested otherwise |
| Feed Connection | 1" (10,000 to 20,000 GPD); 2" (30,000 to 50,000 GPD) |
| Product Connection | 1" (10,000 to 20,000 GPD); 1.5" (30,000 to 50,000 GPD) |
| Waste Connection | 1" (10,000 to 40,000 GPD); 1.5" (50,000 GPD) |
| Minimum Feed Flow | 14 / 21 / 28 / 42 / 56 / 70 GPM |
| Feed Pressure | 45 psi minimum; 150 psi operating pressure |
| Feed Water Limits | Max hardness 15 GPG; max TDS 2000 ppm; pH 3–11 |
| NaCl Rejection | 96% minimum, 98.5% maximum |
| Warranty | 1-year limited warranty |
- Standard: low- and high-pressure shut-off, auto feed shut-off, flow control, feed and system pressure gauges, cleaning ports
- Automatic controls: motorized feed valve, delayed pump start-up, pre-treatment lock-out, feed water flush at shutdown, high product TDS alarm shutdown
- C-150 controller: 5 relay outputs, 4 dry contact inputs, 2 TDS/conductivity inputs, 2 x 20 character LED display; ethernet is an optional upgrade
- Auto flush is included on the 40,000 GPD model and optional on the others; concentrate recirculation is optional on all models
- Optional upgrades include a stainless steel rotary vane pump, concentrate recycle valve, digital TDS controllers, blending valve, permeate sample port, chemical pump outlet, 240V or 110V configuration, and a single wood crate
- CE compliant; made in the USA
